Add a Node to Runtime Fabric (Linux 7.8 localhost)

DZone 's Guide to

Add a Node to Runtime Fabric (Linux 7.8 localhost)

In this article, see how to add a node to Runtime Fabric.

· Integration Zone ·
Free Resource

Add Node in the specific controller in MuleSoft Runtime Fabric

Here are subsequent steps to add worker (MuleSoft runtime) once the controller is ready to operate...

Prerequisites

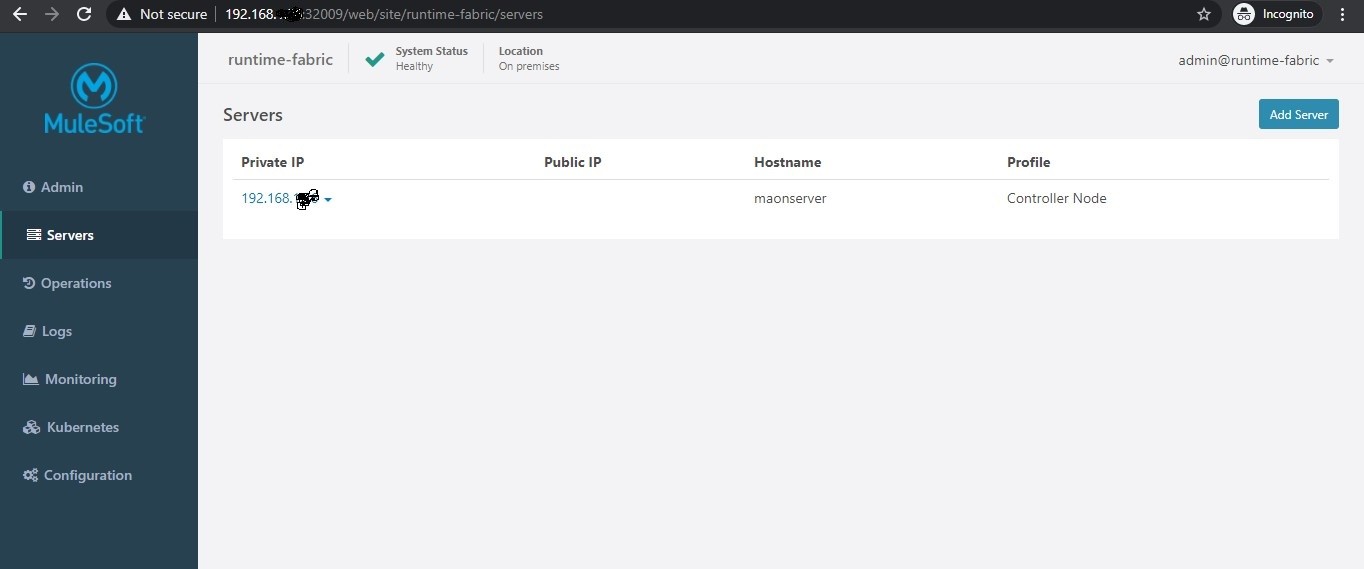

  • The controller should be up and available. In below screen, controller

  • Prepare worker node with prerequisite recommended by MuleSoft
  • Runtime fabric will create a standard worker on each node server. Furthermore, each node required a minimum of 15 GB Memory/ temp with a minimum of 20 GB. Will suggest assigning some extra space as based on operation some time it throws space validation error.
  • A minimum of 250 GB dedicated disk.

Follow MuleSoft doc:

MuleSoft doc

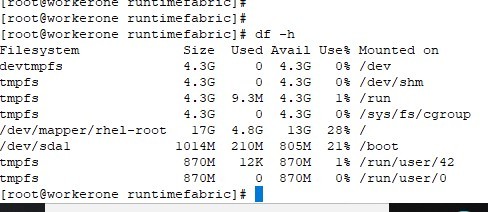

Here is a sample server which is ready to add in a specific controller...

Fdisk details for the worker node as below:

Java





x
45



1
[root@workerone runtimefabric]# fdisk -l
2

3
Disk /dev/sda: 21.5 GB, 21474836480 bytes, 41943040 sectors
4
Units = sectors of 1 * 512 = 512 bytes
5
Sector size (logical/physical): 512 bytes / 512 bytes
6
I/O size (minimum/optimal): 512 bytes / 512 bytes
7
Disk label type: dos
8
Disk identifier: 0x0002997d
9

10
   Device Boot      Start         End      Blocks   Id  System
11
/dev/sda1   *        2048     2099199     1048576   83  Linux
12
/dev/sda2         2099200    41943039    19921920   8e  Linux LVM
13

14
Disk /dev/mapper/rhel-root: 18.2 GB, 18249416704 bytes, 35643392 sectors
15
Units = sectors of 1 * 512 = 512 bytes
16
Sector size (logical/physical): 512 bytes / 512 bytes
17
I/O size (minimum/optimal): 512 bytes / 512 bytes
18

19

20
Disk /dev/mapper/rhel-swap: 2147 MB, 2147483648 bytes, 4194304 sectors
21
Units = sectors of 1 * 512 = 512 bytes
22
Sector size (logical/physical): 512 bytes / 512 bytes
23
I/O size (minimum/optimal): 512 bytes / 512 bytes
24

25

26
Disk /dev/sdb: 107.4 GB, 107374182400 bytes, 209715200 sectors
27
Units = sectors of 1 * 512 = 512 bytes
28
Sector size (logical/physical): 512 bytes / 512 bytes
29
I/O size (minimum/optimal): 512 bytes / 512 bytes
30
Disk label type: dos
31
Disk identifier: 0x7d66bb91
32

33
   Device Boot      Start         End      Blocks   Id  System
34
/dev/sdb1            2048   209715199   104856576   83  Linux
35

36
Disk /dev/sdc: 107.4 GB, 107374182400 bytes, 209715200 sectors
37
Units = sectors of 1 * 512 = 512 bytes
38
Sector size (logical/physical): 512 bytes / 512 bytes
39
I/O size (minimum/optimal): 512 bytes / 512 bytes
40
Disk label type: dos
41
Disk identifier: 0x4ce3c5d6
42

43
   Device Boot      Start         End      Blocks   Id  System
44
/dev/sdc1            2048   209715199   104856576   83  Linux
45
[root@workerone runtimefabric]#




  • As in my previous article mentioned about chrony service error.. like below snippet.
Plain Text





xxxxxxxxxx
1



1
chrony-3.4-1.el7.x86_64
2
Checking chrony sync status...Retrying in 30 seconds...
3
Retrying in 30 seconds...
4
Error: chrony sync check failed 3 times, giving up.



Better install it before installing node..follow the below steps:

Plain Text





xxxxxxxxxx
1



1
[root@workerone runtimefabric]# yum install chrony
2
Loaded plugins: langpacks, product-id, search-disabled-repos, subscription-manager
3
Package chrony-3.4-1.el7.x86_64 already installed and latest version
4
Nothing to do
5
[root@workerone runtimefabric]# systemctl start chronyd
6
[root@workerone runtimefabric]# systemctl enable chronyd
7
Created symlink from /etc/systemd/system/multi-user.target.wants/chronyd.service to /usr/lib/systemd/system/chronyd.service.
8




Once the above steps are done:

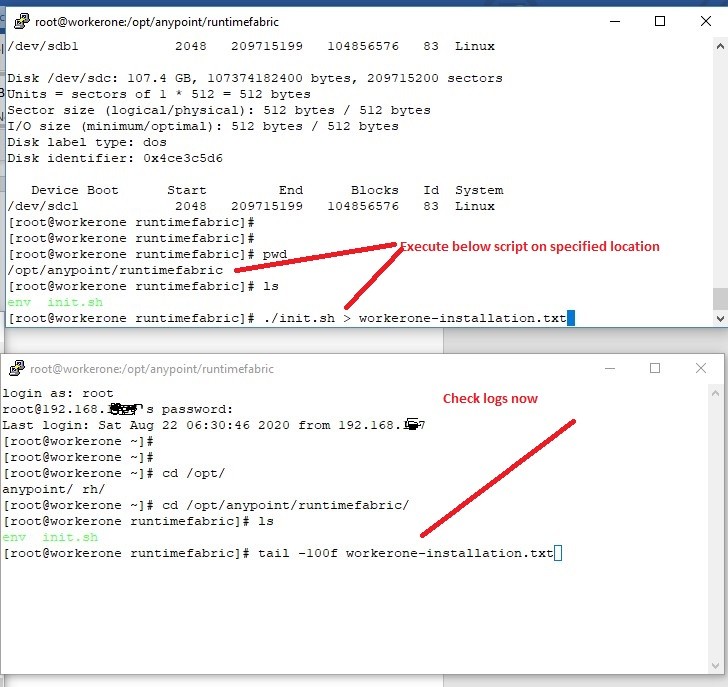

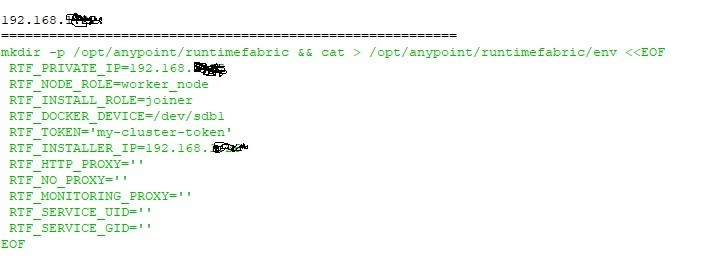

  • Execute output command prepared by generate-configs.sh for a specific node.

The above script was prepared by Runtime Fabric hence not required to add or modify any value into it...

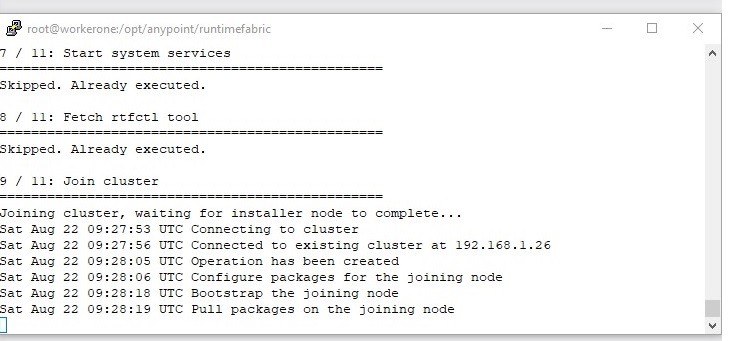

Few logs as below while the script was executing to install and create a node.

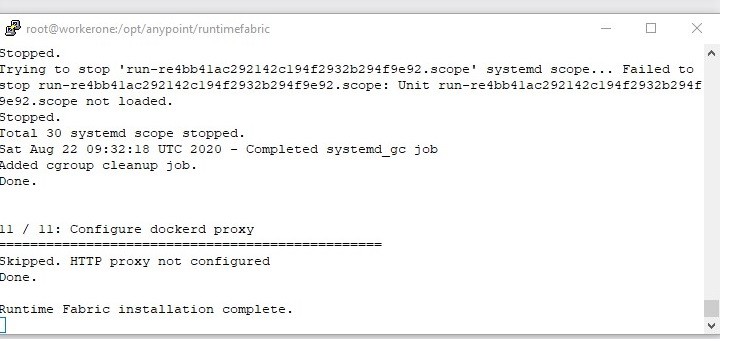

Final few lines output of script...


Note: It takes few extra moments to complete script execution, do not interfere until the script stopped itself if any occurs.

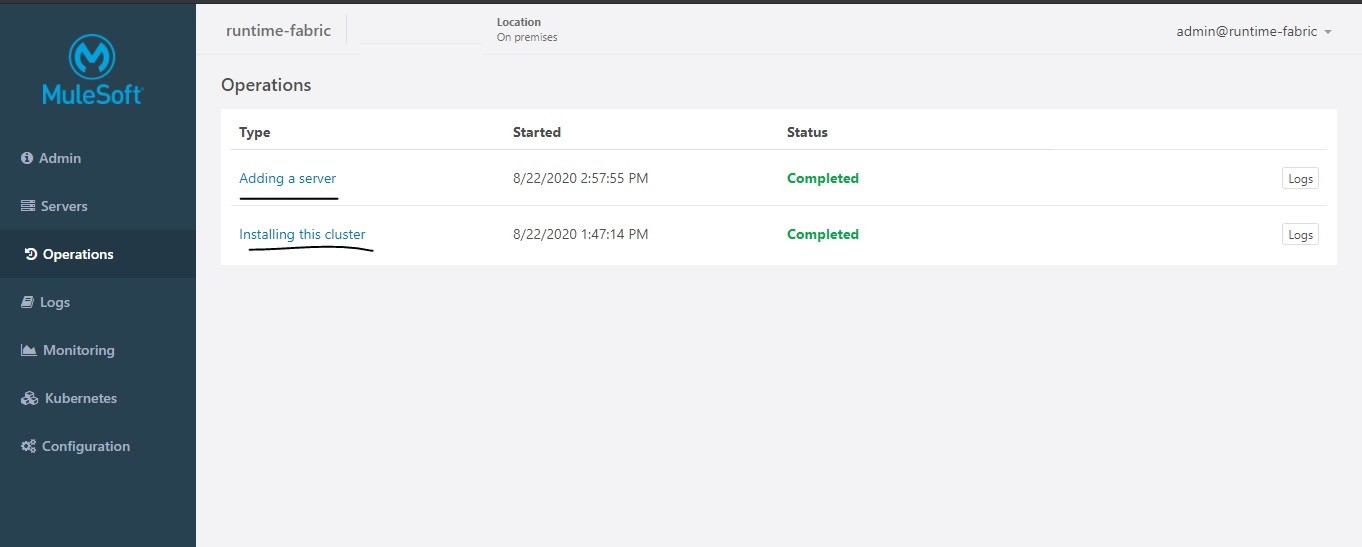

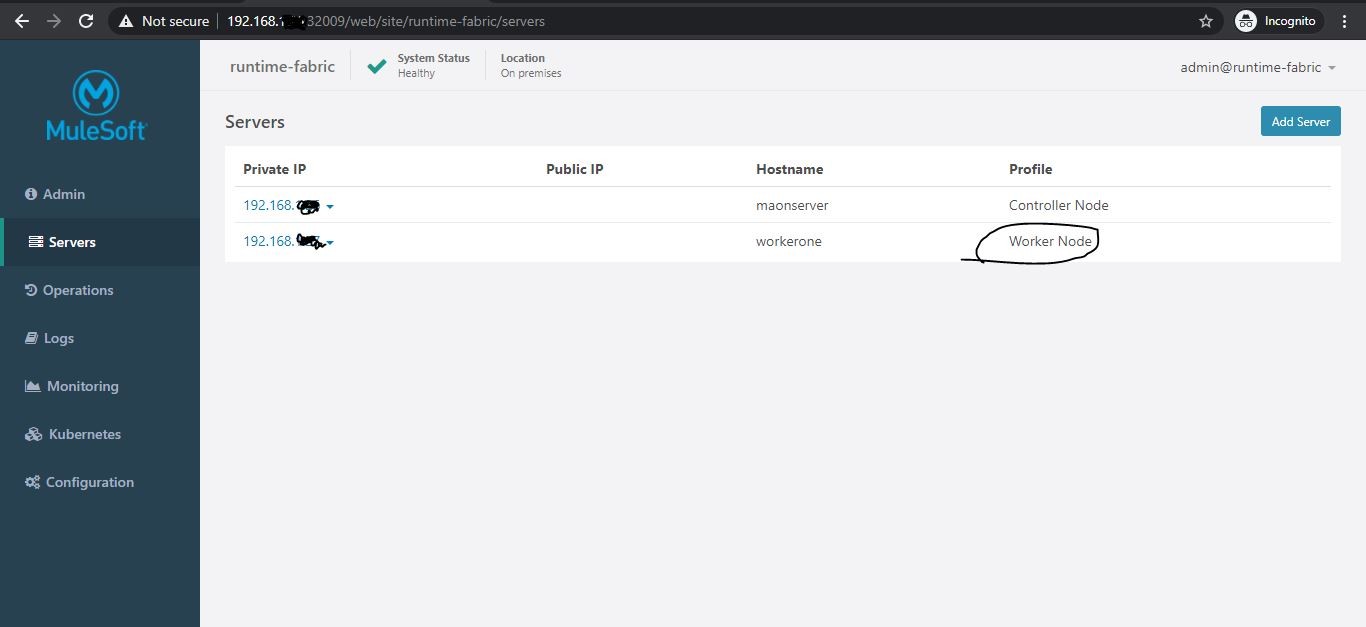

Now the node is installed and added in the controller.

Now you can use node to deploy the application.
