Apache Ambari Meets Spring XD
Apache Ambari Meets Spring XD
Ambari is a cluster provisioning tool to install and manage various Apache projects like HDFS, YARN, Zookeeper or Kafka.
Join the DZone community and get the full member experience.Join For Free
New whitepaper: Database DevOps – 6 Tips for Achieving Continuous Delivery. Discover 6 tips for continuous delivery with Database DevOps in this new whitepaper from Redgate. In 9 pages, it covers version control for databases and configurations, branching and testing, automation, using NuGet packages, and advice for how to start a pioneering Database DevOps project. Also includes further research on the industry-wide state of Database DevOps, how application and database development compare, plus practical steps for bringing DevOps to your database. Read it now free.
Ambari is a cluster provisioning tool to install and manage various Apache projects like HDFS, YARN, Zookeeper or Kafka. Ambari has a concept of a stack definition which is used by both Pivotal and Hortonworks. The stack definition is usually made up of components supported by the maintainer.
Spring XD is not part of the main Ambari distribution for PHD or HDP. However, it is easy to extend an existing Ambari installation via a simple RPM installation which modifies existing stack definitions.

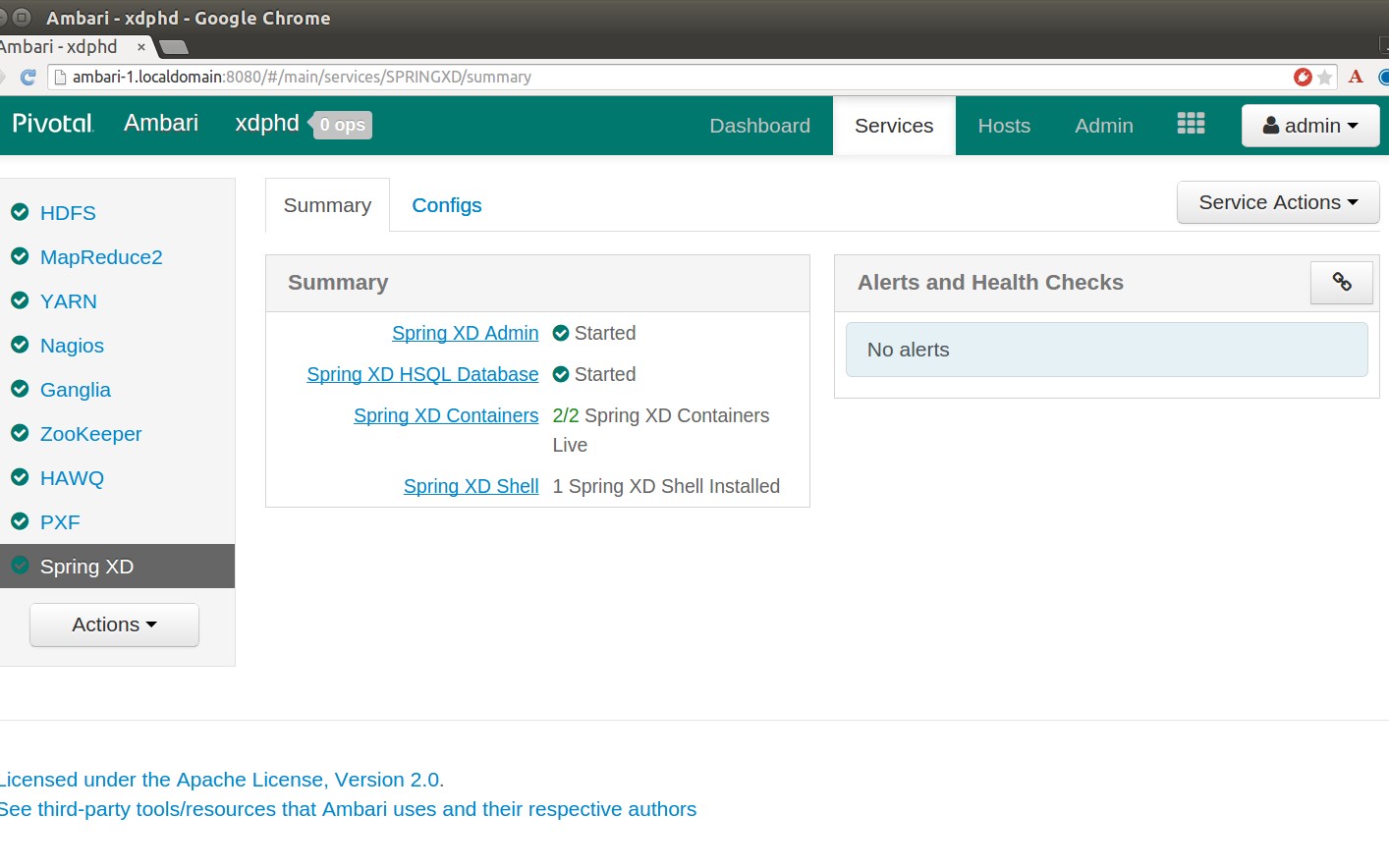

Spring XD on Pivotal HD 3.0 with external Redis as a message bus:
Spring XD on Hortonworks HDP 2.2 with Ambari hosted Kafka as a message bus:
After cluster provisioning has been completed successfully, it is easy to connect to a running Spring XD cluster from the XD shell. A command script
/etc/springxd/conf/xd-shell.initis created automatically with correct settings that you can load into the XD shell.
$ export JAVA_HOME=/usr/jdk64/jdk1.7.0_67 $ xd-shell server-unknown:>script --file /etc/springxd/conf/xd-shell.init admin config server http://ambari-2.localdomain:9393 Successfully targeted http://ambari-2.localdomain:9393 hadoop config fs --namenode hdfs://ambari-2.localdomain:8020 Script required 0.625 seconds to execute xd:>runtime containers Container Id Host IP Address PID Groups Custom Attributes ------------------------------------ -------------------- -------------- ----- ------ ----------------- 44c34156-8b8a-4ada-ad46-e5d955b6f995 ambari-6.localdomain 172.16.101.146 6327 d8273536-c688-4fdd-b370-6bc0f68bdc25 ambari-5.localdomain 172.16.101.145 31199 xd:>hadoop fs ls / Found 9 items drwxrwxrwx - yarn hadoop 0 2015-06-01 04:55 /app-logs drwxr-xr-x - gpadmin gpadmin 0 2015-06-01 04:52 /hawq_data drwxr-xr-x - mapred hdfs 0 2015-06-01 04:50 /mapred drwxr-xr-x - hdfs hdfs 0 2015-06-01 04:50 /mr-history drwxr-xr-x - hdfs hdfs 0 2015-06-01 04:51 /phd drwxr-xr-x - hdfs hdfs 0 2015-06-01 04:52 /system drwxrwxrwx - hdfs hdfs 0 2015-06-01 04:53 /tmp drwxr-xr-x - hdfs hdfs 0 2015-06-01 04:53 /user drwxrwxrwx - spring-xd hdfs 0 2015-06-01 07:29 /xd Writing into HDFS works out of the box. xd:>stream create --name hdfstest --definition "time|hdfs" --deploy xd:>stream destroy --name hdfstest xd:>hadoop fs ls --recursive true --dir /xd drwxrwxrwx - spring-xd hdfs 0 2015-06-01 07:29 /xd/hdfstest -rw-r--r-- 3 spring-xd hdfs 680 2015-06-01 07:29 /xd/hdfstest/hdfstest-0.txt
