Docker and ASP.NET Core With Couchbase Server

Learn how to set up an ASP.NET website using Couchbase and Docker to simulate multiple nodes.

· Database Zone

Learn NoSQL for free with hands-on sample code, example queries, tutorials, and more.  Brought to you in partnership with Couchbase.

In many of my blog posts and samples, I use a single Couchbase Server node. I do this because it’s easy, and much of what I demonstrate can be done with a single node. However, Couchbase Server is typically run on multiple nodes in production (sometimes 3, sometimes 3000). In order to simulate this locally, I can use some lightweight Docker containers.

While I’m at it, I’m going to show you how to get started with an ASP.NET Core website, also running on Docker.

Getting Started

  • Docker for Windows. You can use Docker for any platform, but in this sample, I’m using Windows.
  • Visual Studio 2015 (or later). You don’t need Visual Studio to use ASP.NET Core or Docker, but I’m using a Visual Studio extension to make things easier.
  • .NET Core VS 2015 tooling preview 2 or higher. This is .NET Core tooling for Visual Studio.
  • Visual Studio Tools for Docker (preview). More VS tooling to make the job easier.

Once you have all of the above installed, make sure to turn on drive sharing in Docker. Otherwise, you will get a error like The "PrepareForLaunch" task failed unexpectedly later. (I needed to enable sharing on both C and D drive, but your setup will vary).

Enable shared drives in Docker for Windows

Setup Couchbase Server on Docker

Start by running a Couchbase Docker image. Since the ASP.NET Core site will be running within Docker, we only need to expose port 8091 (to use the Couchbase Console from a web browser at localhost:8091).

docker run -d --name db -p 8091:8091 couchbase

I named it db but you are welcome to name it whatever you’d like. I specified couchbase as the image, which is Couchbase Server 4.5.1 at the time I’m writing this.

Next, run at least one more container with Couchbase. There’s no need to map any ports for these. I’ll just create two:

docker run -d --name db2 couchbase

docker run -d --name db3 couchbase

Make note of the IP addresses of these two containers by using docker inspect db / docker inspect db2 / etc… and looking for IPAddress in the output.

Now, point your web browser to localhost:8091 to setup the Couchbase cluster. If you’ve not done this before, you can check out this blog post on setting up Couchbase Server or you can watch this video on stepping through Couchbase Server setup.

When you setup and create a bucket (I created a bucket named 'default'), go ahead and enable replication, since we’re going to add some more nodes.

Enable replication when creating a bucket

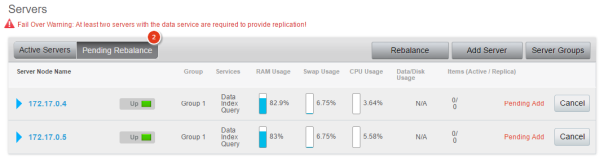

Go to the Server Nodes tab and click "Add Server". Enter the IP Address of db2 and click "Add Server". Repeat for db3 and any other nodes you’ve created. At this point, you should see a number next to "Pending Rebalance". This means the nodes are ready to become part of the cluster.

Rebalance pending in Couchbase Console

Click 'rebalance'. This will take a little bit of time, but when it’s done, you’ll have a Couchbase Server cluster all running within Docker. It’s important to note that even during the rebalancing operation, the cluster remains functional.

Couchbase Cluster in Docker

While you’re in the Couchbase Console, go ahead and create a primary index. Execute CREATE PRIMARY INDEX on `default` in the Query tab. The ASP.NET Core app will need this.

Create an ASP.NET Core app

From Visual Studio, create a new ASP.NET Core app. Or you can use the ASP.NET Core source code I’ve already prepared for this example on GitHub. It’s a very simple website with two operations: list all the gifts and add a new random(ish) gift to the list. (It’s that time of year and I’ve got gifts on my mind!)


New ASP.NET Core project in Visual Studio

Add the CouchbaseNetClient dependency with NuGet. We’ll be using the .NET Core SDK, which is currently in developer preview. Therefore, you will need to execute Install-Package CouchbaseNetClient -Pre in the Package Manager Console. If you don’t use -Pre, NuGet will attempt to install the .NET SDK instead of the .NET Core SDK.

Next, add Docker support to the project. Right-click the project, then click Add, then click "Docker Support". This will add some Docker files to your project. If you don’t see this option, then you need to install Visual Studio Tools for Docker.

Add Docker support with Visual Studio Tools for Docker

In the ASP.NET Core app, setup the ClusterHelper to point to the Couchbase Cluster by using one or more of the IP addresses of the db/db2/db3 containers.

var client = new ClientConfiguration();
client.Servers = new List<Uri> {new Uri("couchbase://172.17.0.2")};
ClusterHelper.Initialize(client);

Check out the full source code on GitHub, especially HomeController.cs and Gift.cs. Here is the Index action and the GetAllGifts method it’s calling.

public IActionResult Index()
{
    var gifts = Gift.GetAllGifts();
    return View(gifts);
}

public static List<Gift> GetAllGifts()
{
    var bucket = ClusterHelper.GetBucket("default");
    var query = QueryRequest.Create("SELECT g.* FROM `default` g");
    query.ScanConsistency(ScanConsistency.RequestPlus);
    return bucket.Query<Gift>(query).Rows;
}

Since you have Docker tools installed, there’s a new deploy button for Docker.

Docker deploy button in Visual Studio

Click this to run your ASP.NET Core app in Docker. Note that when you first run this, it might take longer because it’s downloading the aspnetcore image from Docker Hub.

Once that container is deployed, there’s one more step. For whatever reason, the aspnetcore Docker image doesn’t attach to the 'bridge' Docker network. Therefore, the ASP.NET Core app can’t see the Couchbase cluster. To add 'bridge', run docker network connect bridge dockernetcore_dockernetcore_1 (the name of your container may vary). There might be another way to do this by changing the Dockerfile or docker-compose.yml, but I don’t know what it is (yet).

Run the ASP.NET Core app again (with Docker). The website should appear in your browser. At this point, you have 4 containers running in the Docker host together: a web server running ASP.NET Core and three Couchbase Server nodes.

ASP.NET Core website using Couchbase Server

Summary

When your site is running, and you’ve added a few gifts, go back to the Couchbase Console and open the Server Nodes tab. Take a look at the "Items" column and note the Active/Replica split. As you add gifts, note that the documents are being automatically sharded amongst the nodes, and the replicas are being stored in the other nodes.

Something else you can try for fun: turn on auto-failover (Settings → Auto-Failover → Enable), and then shut down one of the Couchbase nodes (docker stop db2 for instance). Then watch the Couchbase Console as the node goes down and the other nodes compenstate. Finally, bring the node back online (docker start db2), and notice that the cluster gives you some options for adding the node back in.

Options for recovering a Couchbase node

I’m pretty new at both Docker and ASP.NET Core, so if you have any tips or suggestions, I’d love to hear them. Please leave a comment or find @mgroves on Twitter.
