Easy Session Sharing in Spring Boot With Spring Session and MySQL

In this tutorial, we will walk you through the configuration of session sharing in a multi-node Spring Boot application.

Jimena Garbarino

Oct. 15, 20 · Java Zone · Tutorial

Like (8)

Save

5.08K Views

Session management in multi-node applications presents multiple challenges. When the architecture includes a load balancer, client requests might be routed to different servers each time, and the HTTP session might be lost. In this tutorial, we will walk you through the configuration of session sharing in a multi-node Spring Boot application.

Prerequisites: Table of Contents

Session Persistence

Session Persistence is a technique for sticking a client to a single server, using application layer information-like a cookie, for example. In this tutorial, we will implement session persistence with the help of HAProxy, a reliable, high performance, TCP/HTTP load balancer.

First, let's create a web application with Okta authentication and run three nodes with HAProxy load balancing using Docker Compose.

Create a Maven project using the Spring Initializr's API.

      Shell

 x

curl https://start.spring.io/starter.zip \
 -d dependencies=web,okta \
 -d groupId=com.okta.developer \
 -d artifactId=webapp \
 -d name="Web Application" \
 -d description="Demo Web Application" \
 -d packageName=com.okta.developer.webapp \
 -d javaVersion=11 \
 -o web-app.zip

Unzip the project:

      Shell

xxxxxxxxxx

unzip web-app.zip -d web-app
cd web-app

Run the Okta Maven Plugin to register a new account:

      Shell

xxxxxxxxxx

./mvnw com.okta:okta-maven-plugin:register

If you already have an Okta account registered, use login instead of register.

Then, configure your Spring application for authentication using Okta:

      Shell

xxxxxxxxxx

./mvnw com.okta:okta-maven-plugin:spring-boot

It will set up a new OIDC application for you and write your Okta settings to your src/main/resources/application.properties file.

Create a GreetingController at src/main/java/com/okta/developer/webapp/controller:

      Java

xxxxxxxxxx

package com.okta.developer.webapp.controller;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.security.core.annotation.AuthenticationPrincipal;
import org.springframework.security.oauth2.core.oidc.user.OidcUser;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.context.request.RequestContextHolder;
import java.net.InetAddress;
@Controller
public class GreetingController {
    private static final Logger logger = LoggerFactory.getLogger(GreetingController.class);
    @GetMapping(value = "/greeting")
    @ResponseBody
    public String getGreeting(@AuthenticationPrincipal OidcUser oidcUser) {
        String serverUsed = "unknown";
        try {
            InetAddress host = InetAddress.getLocalHost();
            serverUsed = host.getHostName();
        } catch (Exception e){
            logger.error("Could not get hostname", e);
        }
        String sessionId = RequestContextHolder.currentRequestAttributes().getSessionId();
        logger.info("Request responded by " + serverUsed);
        return "Hello " + oidcUser.getFullName() + ", your server is " + serverUsed + ", with sessionId " + sessionId;
    }
}

Run the application with:

      Shell

xxxxxxxxxx

./mvnw spring-boot:run

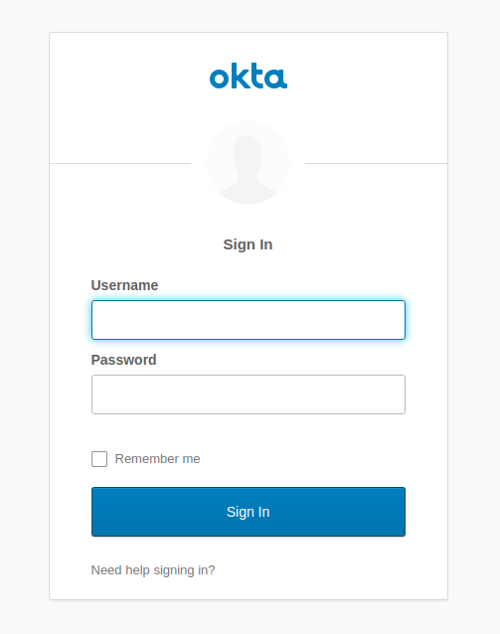

Go to http://localhost:8080 in an incognito window and you should be redirected to the Okta sign-in page.

If you sign in, you will get a 404 error when you're redirected back to your Spring Boot app. This is expected because there's no controller mapped to the / endpoint. You can fix this if you want by adding a method like the following to your WebApplication.java.

      Java

x

@RestController
@SpringBootApplication
public class WebApplication {
    public static void main(String[] args) {
        SpringApplication.run(WebApplication.class, args);
    }
    @GetMapping("/")
    public String hello(@AuthenticationPrincipal OidcUser user) {
        return "Hello, " + user.getFullName();
    }
}

Now, let's configure three Docker containers, one for each application node, and an HAProxy container. In the project root folder, create a docker/docker-compose.yml file, with the following content:

      YAML

x

version: '3.1'
services:
  webapp1:
    environment:
      - OKTA_OAUTH2_ISSUER=${OKTA_OAUTH2_ISSUER}
      - OKTA_OAUTH2_CLIENT_ID=${OKTA_OAUTH2_CLIENT_ID}
      - OKTA_OAUTH2_CLIENT_SECRET=${OKTA_OAUTH2_CLIENT_SECRET}
    image: webapp
    hostname: webapp1
    ports:
      - 8081:8080
  webapp2:
    environment:
      - OKTA_OAUTH2_ISSUER=${OKTA_OAUTH2_ISSUER}
      - OKTA_OAUTH2_CLIENT_ID=${OKTA_OAUTH2_CLIENT_ID}
      - OKTA_OAUTH2_CLIENT_SECRET=${OKTA_OAUTH2_CLIENT_SECRET}
    image: webapp
    hostname: webapp2
    ports:
      - 8082:8080
  webapp3:
    environment:
      - OKTA_OAUTH2_ISSUER=${OKTA_OAUTH2_ISSUER}
      - OKTA_OAUTH2_CLIENT_ID=${OKTA_OAUTH2_CLIENT_ID}
      - OKTA_OAUTH2_CLIENT_SECRET=${OKTA_OAUTH2_CLIENT_SECRET}
    image: webapp
    hostname: webapp3
    ports:
      - 8083:8080
  haproxy:
    build:
      context: .
      dockerfile: Dockerfile-haproxy
    image: my-haproxy
    ports:
      - 80:80
    depends_on:
      - "webapp1"
      - "webapp2"
      - "webapp3"

Create a docker/.env file with the following content:

      Plain Text

xxxxxxxxxx

OKTA_OAUTH2_ISSUER={issuer}
OKTA_OAUTH2_CLIENT_ID={clientId}
OKTA_OAUTH2_CLIENT_SECRET={clientSecret}

You can find the issuer, clientId, and clientSecret in the src/main/resources/application.properties, after running the Okta Maven Plugin. Remove the \ in the issuer's URL after you paste the value. Also, make sure to remove the curly braces around the values.

Create a Dockerfile for the HAProxy container, at docker/Dockerfile-haproxy and add the following:

      Dockerfile

           x

FROM haproxy:2.2
COPY haproxy.cfg /usr/local/etc/haproxy/haproxy.cfg

Create the configuration file for the HAProxy instance at docker/haproxy.cfg:

      Plain Text

x

global
    debug
    daemon
    maxconn 2000
defaults
    mode http
    timeout connect 5000ms
    timeout client 50000ms
    timeout server 50000ms
frontend http-in
    bind *:80
    default_backend servers
backend servers
    balance roundrobin
    cookie SERVERUSED insert indirect nocache
    option httpchk /
    option redispatch
    default-server check
    server webapp1 webapp1:8080 cookie webapp1
    server webapp2 webapp2:8080 cookie webapp2
    server webapp3 webapp3:8080 cookie webapp3

I'm not going to dive deep into how to configure HAProxy but take note that, in the backend servers section, there are the following options:

balance roundrobin sets round-robin as the load balancing strategy.
cookie SERVERUSED adds a cookie SERVERUSED to the response, indicating the server responding to the request. The client requests will stick to that server.
option redispatch makes the request be re-dispatched to a different server if the current server fails.

Edit the pom.xml to add the Jib Maven Plugin to the <build> section to create a webapp Docker image.

      XML

x

<plugin>
    <groupId>com.google.cloud.tools</groupId>
    <artifactId>jib-maven-plugin</artifactId>
    <version>2.5.2</version>
    <configuration>
        <to>
            <image>webapp</image>
        </to>
    </configuration>
</plugin>

Build the webapp container image:

      Shell

           x

./mvnw compile jib:dockerBuild

Start all the services with docker-compose:

      Shell

           x

cd docker
docker-compose up

NOTE: If you get a URISyntaxException on startup, remove the \ in the issuer in application.properties.

HAProxy will be ready after you see the following lines in the logs:

      Plain Text

xxxxxxxxxx

haproxy_1  | [WARNING] 253/130140 (6) : Server servers/webapp2 is UP, reason: Layer7 check passed, code: 302, check duration: 5ms. 1 active and 0 backup servers online. 0 sessions requeued, 0 total in queue.
haproxy_1  | [WARNING] 253/130141 (6) : Server servers/webapp3 is UP, reason: Layer7 check passed, code: 302, check duration: 4ms. 2 active and 0 backup servers online. 0 sessions requeued, 0 total in queue.
haproxy_1  | [WARNING] 253/130143 (6) : Server servers/webapp1 is UP, reason: Layer7 check passed, code: 302, check duration: 7ms. 3 active and 0 backup servers online. 0 sessions requeued, 0 total in queue.

Before you can sign in to your application, you'll need to go to your Okta developer console and add a Login redirect URI for http://localhost/login/oauth2/code/okta. Otherwise, you'll get a 400 error in the next step. While you're in there, add a Logout redirect URI for http://localhost.

In a browser, go to http://localhost/greeting. After you sign in, inspect the request cookie SERVERUSED. An example value is:

      Plain Text

xxxxxxxxxx

Cookie: SERVERUSED=webapp3; JSESSIONID=5AF5669EA145CC86BBB08CE09FF6E505

Shut down the current node with the following Docker command:

      Shell

xxxxxxxxxx

docker stop docker_webapp3_1

Refresh your browser and wait a few seconds. Check the SERVERUSED cookie to verify that HAProxy re-dispatched the request to a different node, and the sessionId has changed, meaning the old session was lost.

You can stop the services with CTRL+C.

Session Sharing With Spring Session

Storing sessions in an individual node can affect scalability. When scaling up, active sessions will remain in the original nodes and traffic will not be spread equally among nodes. Also, when a node fails, the session in that node is lost. With session sharing, the user session lives in a shared data storage that all server nodes can access.

Next, for a transparent failover with the redispatch option in HAProxy, let's add session sharing between nodes with Spring Session. For this tutorial, I'll show you how to use MySQL for storing the session.

First, add the following dependencies to the pom.xml:

      XML

xxxxxxxxxx

<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <scope>runtime</scope>
</dependency>
<dependency>
    <groupId>org.springframework.session</groupId>
    <artifactId>spring-session-core</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.session</groupId>
    <artifactId>spring-session-jdbc</artifactId>
</dependency>
<dependency>
    <groupId>com.zaxxer</groupId>
    <artifactId>HikariCP</artifactId>
    <version>3.2.0</version>
</dependency>
<dependency>
    <groupId>com.h2database</groupId>
    <artifactId>h2</artifactId>
    <scope>test</scope>
</dependency>

Rename src/main/resources/application.properties to application.yml, change your okta.* properties to be in YAML syntax, and add the following key-value pairs:

      YAML

xxxxxxxxxx

okta:
  oauth2:
    issuer: {issuer}
    client-secret: {client-secret}
    client-id: {client-id}
spring:
  session:
    jdbc:
      initialize-schema: always
  datasource:
    url: jdbc:mysql://localhost:3306/webapp
    username: root
    password: example
    driverClassName: com.mysql.cj.jdbc.Driver
    hikari:
      initializationFailTimeout: 0
logging:
  level:
    org.springframework: INFO
    com.zaxxer.hikari: DEBUG

In this example, you are using HikariCP for the database connection pooling. The option initializationFailTimeout is set to 0, meaning if a connection cannot be obtained, the pool will start anyways.

You are also instructing Spring Session to always create the schema with the option spring.session.jdbc.initialize-schema=always.

The application.yml file you just created contains the default datasource properties for the MySQL session storage. As the MySQL database is not up when the tests run, set up an in-memory H2 database so the application tests don't fail.

Create a src/test/resources/application-test.yml file with the following content:

      YAML

xxxxxxxxxx

spring:
  datasource:
    url: jdbc:h2:mem:testdb
    username: sa
    password: passord
    driverClassName: org.h2.Driver

Modify the WebApplicationTests.java class to add the @ActiveProfiles annotation:

      Java

xxxxxxxxxx

package com.okta.developer.webapp;
import org.junit.jupiter.api.Test;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.ActiveProfiles;
@SpringBootTest
@ActiveProfiles("test")
class WebApplicationTests {
    @Test
    void contextLoads() {
    }
}

Modify docker/docker-compose.yml to add the database container and the admin application to inspect the session tables. The final configuration should look like the following:

      YAML
















xxxxxxxxxx











version: '3.1'
services:
  webapp1:
    environment:
      - SPRING_DATASOURCE_URL=jdbc:mysql://db:3306/webapp
      - OKTA_OAUTH2_ISSUER=${OKTA_OAUTH2_ISSUER}
      - OKTA_OAUTH2_CLIENT_ID=${OKTA_OAUTH2_CLIENT_ID}
      - OKTA_OAUTH2_CLIENT_SECRET=${OKTA_OAUTH2_CLIENT_SECRET}
    image: webapp
    hostname: webapp1
    ports:
      - 8081:8080
    depends_on:
      - "db"
  webapp2:
    environment:
      - SPRING_DATASOURCE_URL=jdbc:mysql://db:3306/webapp
      - OKTA_OAUTH2_ISSUER=${OKTA_OAUTH2_ISSUER}
      - OKTA_OAUTH2_CLIENT_ID=${OKTA_OAUTH2_CLIENT_ID}
      - OKTA_OAUTH2_CLIENT_SECRET=${OKTA_OAUTH2_CLIENT_SECRET}
    image: webapp
    hostname: webapp2
    ports:
      - 8082:8080
    depends_on:
      - "db"
  webapp3:
    environment:
      - SPRING_DATASOURCE_URL=jdbc:mysql://db:3306/webapp
      - OKTA_OAUTH2_ISSUER=${OKTA_OAUTH2_ISSUER}
      - OKTA_OAUTH2_CLIENT_ID=${OKTA_OAUTH2_CLIENT_ID}
      - OKTA_OAUTH2_CLIENT_SECRET=${OKTA_OAUTH2_CLIENT_SECRET}
    image: webapp
    hostname: webapp3
    ports:
      - 8083:8080
    depends_on:
      - "db"
  db:
    image: mysql
    command: --default-authentication-plugin=mysql_native_password
    restart: always
    environment:
      MYSQL_ROOT_PASSWORD: example
      MYSQL_DATABASE: webapp
    ports:
      - 3306:3306
  adminer:
    image: adminer
    restart: always
    ports:
      - 8090:8080
  haproxy:
    build:
      context: .
      dockerfile: Dockerfile-haproxy
    image: my-haproxy
    ports:
      - 80:80
    depends_on:
      - "webapp1"
      - "webapp2"
      - "webapp3"





Delete the previous containers and previous webapp Docker image with the following commands:

      Shell

xxxxxxxxxx

docker-compose down
docker rmi webapp

In the root folder of the project, rebuild the webapp docker image with Maven:

      Shell

xxxxxxxxxx

./mvnw compile jib:dockerBuild

Start all the services again ( docker-compose up from the docker directory), and repeat the re-dispatch test (go to http://localhost/greeting then shutdown the active node with docker stop docker_webapp#_1). You might see a lot of connection errors until the database is up.

Now the session should be the same after changing the node. How cool is that?!

You can inspect the session data in the admin UI at http://localhost:8090. Log in with root and the MYSQL_ROOT_PASSWORD value that you set in docker-compose.yml.

Learn More about Spring Session and OAuth 2.0

I hope you enjoyed this tutorial and could see the advantages of the session sharing technique for multi-node applications. You can find all the code for this tutorial in GitHub.

Know that there are multiple options for session storage-we selected a database because of the ease of setup-but it might slow down your application. To learn more about session management, check out the following links:

If you liked this post, follow @oktadev on Twitter to see when we publish similar ones. We have a YouTube channel too! You should subscribe.

Topics:

java, tutorial, okta, haproxy, api, spring

Published at DZone with permission of Jimena Garbarino, DZone MVB. See the original article here.

Opinions expressed by DZone contributors are their own.

Comments

Easy Session Sharing in Spring Boot With Spring Session and MySQL

In this tutorial, we will walk you through the configuration of session sharing in a multi-node Spring Boot application.

Session Persistence

Session Sharing With Spring Session

Learn More about Spring Session and OAuth 2.0

Java Partner Resources
