It is a short howto guide which shall talk about adding a LDAP realm to an elasticsearch 7.6.2 cluster.

Realms

It is a concept not alien to IDAM professionals. In simple words it is a system that allows you to authenticate and authorize an incoming request. It will define the entity USER, that may include at a bare minimum (not limited to)

A unique name, which can be queried upon
Password, which can be validated
Roles that defines its access privileges for resources mapped to.

The official documentation is available here

Prerequisites

To being with, have a local ldap instance configured. In my case I am using Openldap configured on a Centos 7.0 machine ldap.myserver.com.

     Plain Text

          x

netstat -antup | grep slapd
tcp        0      0 0.0.0.0:389             0.0.0.0:*               LISTEN      216270/slapd
tcp        0      0 0.0.0.0:636             0.0.0.0:*               LISTEN      216270/slapd
tcp6       0      0 :::389                  :::*                    LISTEN      216270/slapd
tcp6       0      0 :::636                  :::*                    LISTEN      216270/slapd

In my elasticsearch cluster I have setup my cluster as following.

     HTTP

          x

GET _cat/nodes?pretty
100.9.48.79   60 47 2 0.14 0.23 0.19 dil  - node1.elasticsearch.node
100.9.32.43   58 93 4 0.92 1.01 0.88 dilm * node2.elasticsearch.node
100.8.122.121 68 72 2 0.27 0.23 0.18 dil  - node3.elasticsearch.node
100.7.144.95  51 92 1 0.37 0.40 0.41 dilm - master.elasticsearch.node

The master node is `node2.elasticsearch.node`.

For managing my ldap - , I am using a free tool Jxplorer to connect. The connection settings are as under

     Plain Text

          x

myserver.ldap=ldap.myserver.com
myserver.ldap.11=
myserver.ldap.3=636
myserver.ldap.5=LDAP v3
myserver.ldap.7.1=
myserver.ldap.7.5=false
myserver.ldap.8.1=SSL + User + Password
myserver.ldap.8.3=cn\=Manager,dc\=saurabh,dc\=com

I have pre-configured few users and groups. (LDIF) looks as under

     Plain Text

















xxxxxxxxxx











version: 1
dn: dc=saurabh,dc=com
objectClass: dcObject
objectClass: organization
objectClass: top
dc: saurabh
description: My Ldap Server
o: saurabh.com

dn: cn=Manager,dc=saurabh,dc=com
objectClass: organizationalRole
objectClass: top
cn: Manager
description: Directory Manager

dn: ou=People,dc=saurabh,dc=com
objectClass: organizationalUnit
objectClass: top
ou: People

dn: uid=samarthya,ou=People,dc=saurabh,dc=com
objectClass: account
objectClass: posixAccount
objectClass: shadowAccount
objectClass: top
cn: samarthya
gidNumber: 7002
homeDirectory: /home/samarthya
loginShell: /bin/bash
ou: cn=Manager,ou=Group,dc=saurabh,dc=com
shadowLastChange: 0
shadowMax: 0
shadowWarning: 0
uid: samarthya
uidNumber: 8002
userPassword:: e1NTSEF9ZGc2VDgxbVZwaFJGcjZNd2lUWjVwQVVTbTZybjNPU2RIZ09FN2thQ
 VoyWTV6UU8xREFON3FRPT0=

dn: uid=saurabh,ou=People,dc=saurabh,dc=com
objectClass: account
objectClass: posixAccount
objectClass: shadowAccount
objectClass: top
cn: saurabh
description: Saurabh Sharma
gecos: administrators
gidNumber: 7001
homeDirectory: /home/samarthya
loginShell: /bin/bash
ou: cn=analysts,ou=Group,dc=saurabh,dc=com
uid: saurabh
uidNumber: 8001
userPassword:: e1NTSEF9ZGc2VDgxbVZwaFJGcjZNd2lUWjVwQVVTbTZybjNPU2RIZ09FN2thQ
 VoyWTV6UU8xREFON3FRPT0=


dn: uid=user1,ou=People,dc=saurabh,dc=com
objectClass: account
objectClass: posixAccount
objectClass: shadowAccount
objectClass: top
cn: user1
description: user 1
gidNumber: 7006
homeDirectory: /home/user1
loginShell: /bin/bash
ou: cn=administrators,ou=Group,dc=saurabh,dc=com
uid: user1
uidNumber: 8006
userPassword:: e1NTSEF9ZGc2VDgxbVZwaFJGcjZNd2lUWjVwQVVTbTZybjNPU2RIZ09FN2thQ
 VoyWTV6UU8xREFON3FRPT0=

dn: uid=user2,ou=People,dc=saurabh,dc=com
objectClass: account
objectClass: posixAccount
objectClass: shadowAccount
objectClass: top
cn: user2
description: User Two
gidNumber: 7007
homeDirectory: /home/user2
ou: cn=readers,ou=Group,dc=saurabh,dc=com
uid: user2
uidNumber: 8007
userPassword:: e1NTSEF9S2FQZE4ybW56V3k4aHBDUVpURk9KdW5PMm9aZmdQNXpwb3pHNC81R
 XhtMk8rU0oxK01RUWFRPT0=

dn: uid=user3,ou=People,dc=saurabh,dc=com
objectClass: account
objectClass: posixAccount
objectClass: shadowAccount
objectClass: top
cn: user3
gidNumber: 7008
homeDirectory: /home/user3
loginShell: /bin/bash
ou: cn=readers,ou=Group,dc=saurabh,dc=com
uid: user3
uidNumber: 8008
userPassword:: e1NTSEF9eTdsZFZFaUlJUUVwYjF3R3VybG96dFhWSE9XV2ZsTVpHT1VPakxXR
 nZIdXg0YTg0dXFRdzJRPT0=

dn: ou=Group,dc=saurabh,dc=com
objectClass: organizationalUnit
objectClass: top
ou:: R3JvdXAg

dn: cn=Manager,ou=Group,dc=saurabh,dc=com
objectClass: posixGroup
objectClass: top
cn: Manager
gidNumber: 1005
memberUid: uid=samarthya,ou=People,dc=saurabh,dc=com

dn: cn=administrators,ou=Group,dc=saurabh,dc=com
objectClass: posixGroup
objectClass: top
cn: administrators
description: Administrators
gidNumber: 1009
memberUid: uid=saurabh,ou=People,dc=saurabh,dc=com
memberUid: uid=user1,ou=People,dc=saurabh,dc=com

dn: cn=analysts,ou=Group,dc=saurabh,dc=com
objectClass: posixGroup
objectClass: top
cn: analysts
gidNumber: 1008
memberUid: uid=saurabh,ou=People,dc=saurabh,dc=com


dn: cn=readers,ou=Group,dc=saurabh,dc=com
objectClass: posixGroup
objectClass: top
cn: readers
gidNumber: 1006
memberUid: uid=user2,ou=People,dc=saurabh,dc=com
memberUid: uid=user3,ou=People,dc=saurabh,dc=com





I have security enabled for my elasticsearch cluster and SSL communication as well (using self-signed certificates)

Elasticsearch Configuration

     YAML

          x

xpack.security.enabled: true
xpack:
  security:
    authc:
      realms:
        native.secops:
          order: 0
        ldap.secldap:
          order: 1
          bind_dn: "cn=Manager,dc=saurabh,dc=com"
          url: "ldaps://ldap.myserver.com:636"
          user_search:
            base_dn: "ou=people,dc=saurabh,dc=com"
            filter: "(uid={0})"
          group_search:
            base_dn: "ou=group,dc=saurabh,dc=com"
          ssl:
            verification_mode: none
            certificate_authorities: ["/etc/pki/ldapserver.crt"]

As you can see the order for secldap is `1` and as result if the same user exists in both realms (native & ldap) it will be first checked against native.

     YAML

          x

ldap.secldap:
  order: 1
  bind_dn: "cn=Manager,dc=saurabh,dc=com"
  url: "ldaps://ldap.myserver.com:636"
  user_search:
    base_dn: "ou=people,dc=saurabh,dc=com"
    filter: "(uid={0})"
  group_search:
    base_dn: "ou=group,dc=saurabh,dc=com"
  ssl:
    verification_mode: none
    certificate_authorities: ["/etc/pki/ldapserver.crt"]

I have disabled the SSL verification, but if you have the ca cert added you can simply enable it. Essentially I have integrated the LDAP with the elasticsearch, once restarted this realm is available to be evaluated against.

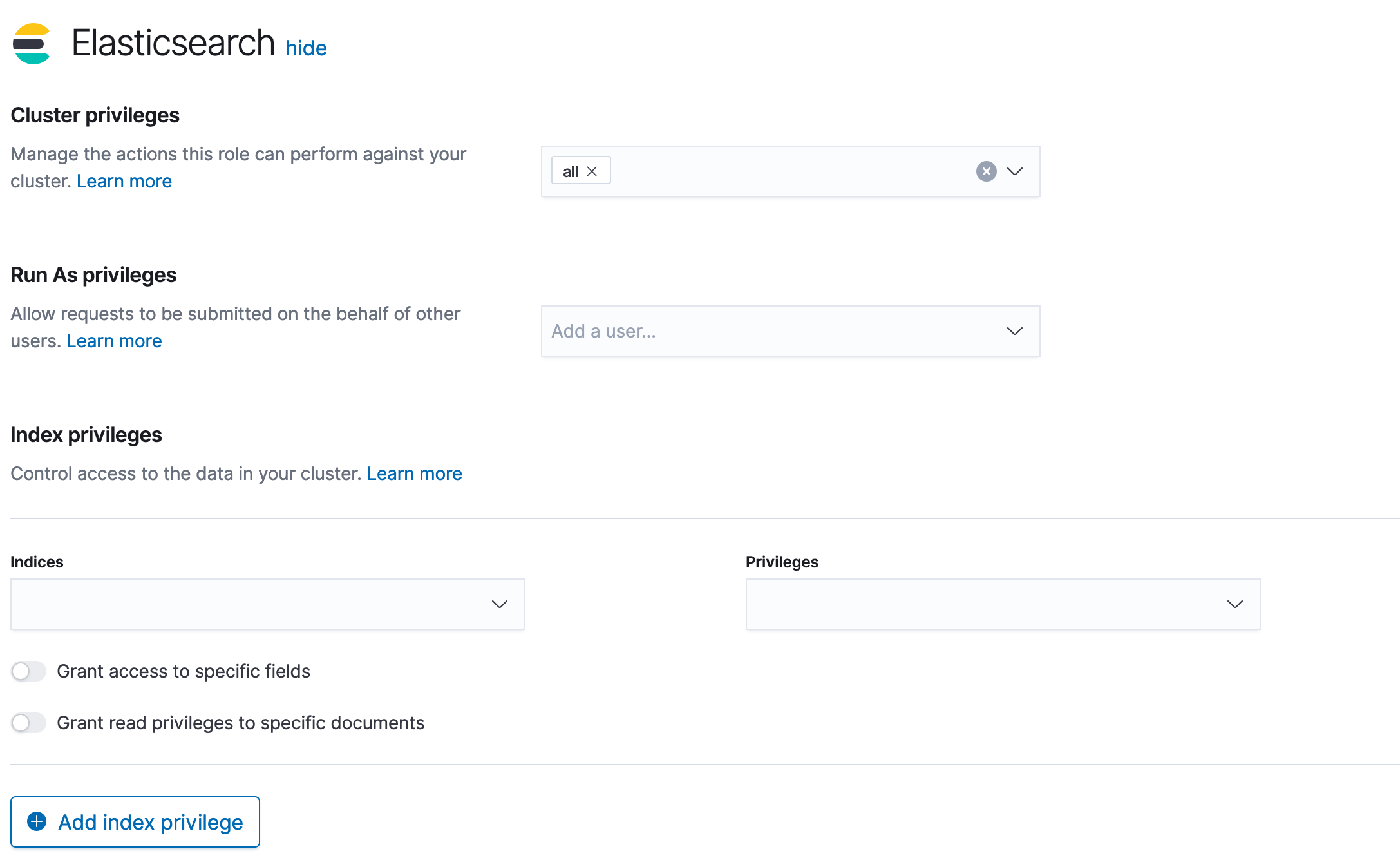

At the moment there is no role mapping defined let me create a user role in Kibana.

Let's use the role_mapping API to define a mapping

     HTTP

          x

POST _security/role_mapping/ldapuser
{
  "enabled" : true,
    "roles" : [
      "user"
    ],
    "rules" : {
      "any": [
        {
          "field":
            {
              "dn": "*,ou=People,dc=saurabh,dc=com"
            }

        },
        {
          "field" : {
            "groups" : "cn=readers,ou=Group,dc=saurabh,dc=com"
          }
        }
      ]
    },
    "metadata" : {
      "host" : "ldaps://ldap.myserver.com:636"
    }
}

I have defined a mapping to add the role - `user` for any USER in ldap.

If call is successful it should return

     Java

xxxxxxxxxx

{
  "role_mapping" : {
    "created" : true
  }
}

Now let's use the _authenticate api for a non existent user - user4 which we will soon add to the ldap.

     HTTP

          x

curl https://node1.elasticsearch.node:9200/_security/_authenticate?pretty -u user4:admin

{
  "error" : {
    "root_cause" : [
      {
        "type" : "security_exception",
        "reason" : "unable to authenticate user [user4] for REST request [/_security/_authenticate?pretty]",
        "header" : {
          "WWW-Authenticate" : [
            "Bearer realm=\"security\"",
            "ApiKey",
            "Basic realm=\"security\" charset=\"UTF-8\""
          ]
        }
      }
    ],
    "type" : "security_exception",
    "reason" : "unable to authenticate user [user4] for REST request [/_security/_authenticate?pretty]",
    "header" : {
      "WWW-Authenticate" : [
        "Bearer realm=\"security\"",
        "ApiKey",
        "Basic realm=\"security\" charset=\"UTF-8\""
      ]
    }
  },
  "status" : 401
}

As expected the user is denied access.

Let's add the user to ldap but let's not add as a member of any group.

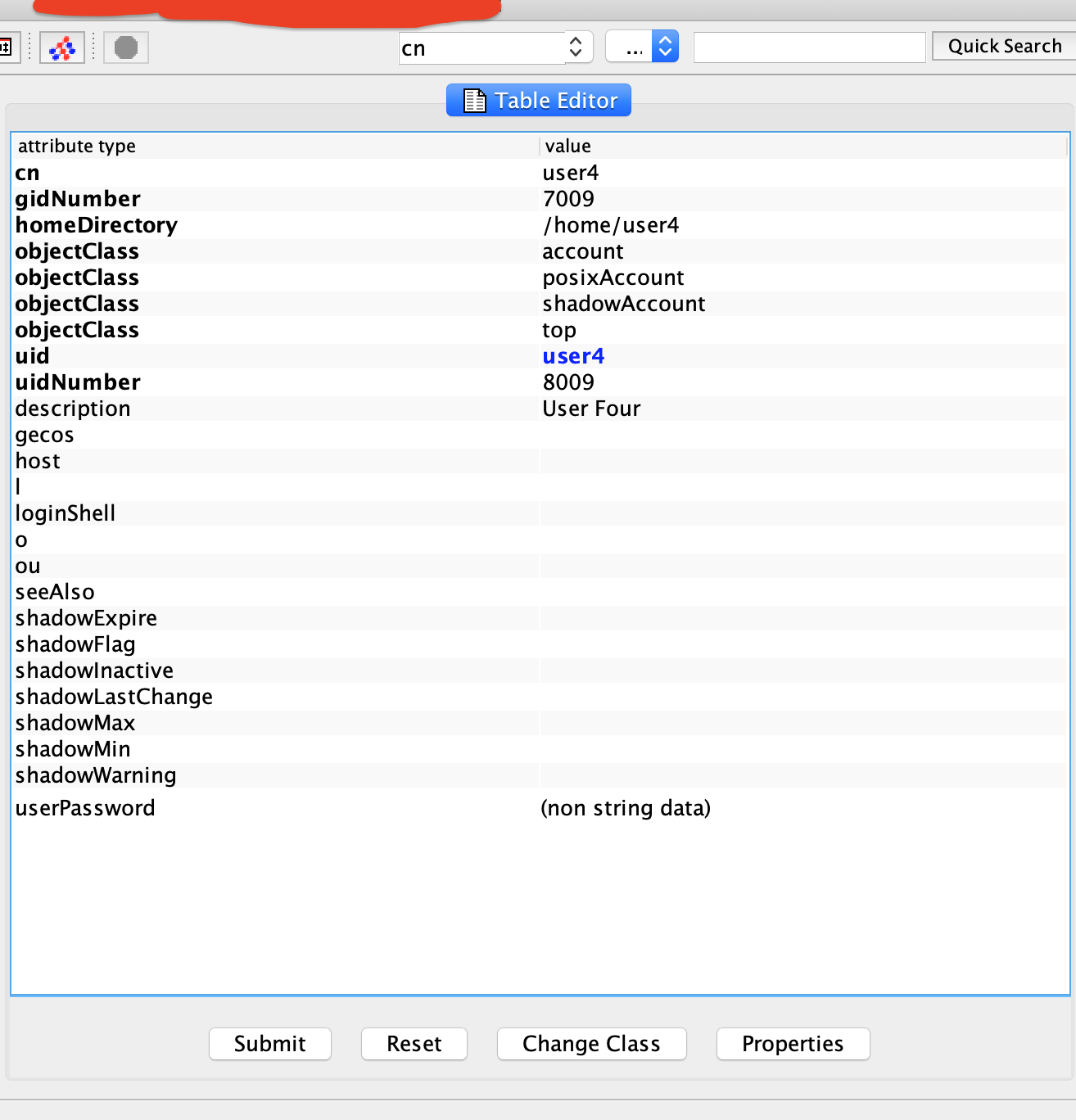

I have added user4 with password admin. Let us try the access again.

     HTTP

          x

curl https://node1.elasticsearch.node:9200/_security/_authenticate?pretty -u user4:admin
{
  "username" : "user4",
  "roles" : [
    "user"
  ],
  "full_name" : null,
  "email" : null,
  "metadata" : {
    "ldap_dn" : "uid=user4,ou=People,dc=saurabh,dc=com",
    "ldap_groups" : [ ]
  },
  "enabled" : true,
  "authentication_realm" : {
    "name" : "secldap",
    "type" : "ldap"
  },
  "lookup_realm" : {
    "name" : "secldap",
    "type" : "ldap"
  }
}

You can see the added user successfully authenticates, and has no ldap group membership. How about adding the membership and role mapping in roles_mapping.yml.

     YAML

          x

# Role mapping configuration file which has elasticsearch roles as keys
# that map to one or more user or group distinguished names

#roleA:   this is an elasticsearch role
#  - groupA-DN  this is a group distinguished name
#  - groupB-DN
#  - user1-DN   this is the full user distinguished name

#power_user:
#  - "cn=admins,dc=example,dc=com"
#user:
#  - "cn=users,dc=example,dc=com"
#  - "cn=admins,dc=example,dc=com"
#  - "cn=John Doe,cn=other users,dc=example,dc=com"
kibana_user:
  - "cn=readers,ou=Group,dc=saurabh,dc=com"

Once added let's execute the _authenticate api again.

     HTTP

          x

curl https://node1.elasticsearch.node:9200/_security/_authenticate?pretty -u user4:admin
{
  "username" : "user4",
  "roles" : [
    "kibana_user",
    "user"
  ],
  "full_name" : null,
  "email" : null,
  "metadata" : {
    "ldap_dn" : "uid=user4,ou=People,dc=saurabh,dc=com",
    "ldap_groups" : [
      "cn=readers,ou=Group,dc=saurabh,dc=com"
    ]
  },
  "enabled" : true,
  "authentication_realm" : {
    "name" : "secldap",
    "type" : "ldap"
  },
  "lookup_realm" : {
    "name" : "secldap",
    "type" : "ldap"
  }
}

In case you do not get the group membership, please clear the realm cache which is usually valid for 20 mins.

     HTTP

          x

POST _security/realm/secldap/_clear_cache

This bring us to the end of the blog. In summary, I showed how easy it is to configure the realm and once restarted you can easily add role mappings using API or role_mapping.yml. In case of questions please feel free to drop comments.

-- THE - END --
