End-to-End Automation for Docker-based Java Apps

DZone's Guide to

End-to-End Automation for Docker-based Java Apps

Full-length tutorial covers four application stacks (Tomcat, JBoss, GlassFish and Jetty) on any cloud.

· Java Zone
Free Resource

Learn how to troubleshoot and diagnose some of the most common performance issues in Java today. Brought to you in partnership with AppDynamics.


Java developers and DevOps professionals have long struggled to automate the deployment of enterprise Java applications. The complex nature of these applications usually meant that application dependencies and external integrations had to be re-configured each time an application was deployed in DEV/TEST environments.

Many solutions advertised the “model once, deploy anywhere” message for application deployments. In reality, however there were always intricacies that made it very difficult to re-use an application template across both an on-premise vSphere virtual environment and an AWS environment, for example.

More recently, however, Docker containers popularized the idea of packaging application components into Linux Containers that can be deployed exactly the same on any Linux host as long as Docker Engine is installed.

Unfortunately containerizing enterprise Java applications is still a challenge mostly because existing application composition frameworks do not address complex dependencies, external integrations or auto-scaling workflows post-provision. Moreover, the ephemeral design of containers meant that developers had to spin up new containers and re-create the complex dependencies & external integrations with every version update.

DCHQ, available in hosted and on-premise versions, addresses all of these challenges and simplifies the containerization of enterprise Java applications through an advance application composition framework that extends Docker Compose with cross-image environment variable bindings, extensible BASH script plug-ins that can be invoked at request time or post-provision, and application clustering for high availability across multiple hosts or regions with support for auto scaling.

Once an application is provisioned, a user can monitor the CPU, Memory, & I/O of the running containers, get notifications & alerts, and perform day-2 operations like Scheduled Backups, Container Updates using BASH script plug-ins, and Scale In/Out. Moreover, out-of-box workflows that facilitate Continuous Delivery with Jenkins allow developers to refresh the Java WAR file of a running application without disrupting the existing dependencies & integrations.

In this blog, we will go over the end-to-end automation of a Java application called Movie Store that is deployed on four different containerized application stacks:

  • Nginx (for load balancing), clustered Tomcat and MongoDB (as the database)
  • Nginx (for load balancing), clustered JBoss and MongoDB (as the database)
  • Nginx (for load balancing), clustered Jetty and MongoDB (as the database)
  • Nginx (for load balancing), clustered GlassFish and MongoDB (as the database)

The same Java WAR file will be deployed on four different application servers. DCHQ not only automates the application deployments – but it also integrates with 12 different clouds to automate the provisioning and auto-scaling of clusters with software-defined networking. We will cover:

  • Building the application templates that can re-used on any Linux host running anywhere
  • Provisioning & auto-scaling the underlying infrastructure on any cloud (with Rackspace being the example in this blog)
  • Deploying the multi-tier Java-based Movie Store applications on the Rackspace cluster
  • Monitoring the CPU, Memory & I/O of the Running Containers
  • Enabling the Continuous Delivery Workflow with Jenkins to update the WAR file of the running applications when a build is triggered
  • Scaling out the Application Server Cluster for Scalability Tests

Building the Application Templates for the Java-based Movie Store Application on Tomcat, JBoss, Jetty and GlassFish

Once logged in to DCHQ (either the hosted DCHQ.io or on-premise version), a user can navigate to Manage > Templates and then click on the + button to create a new Docker Compose template.

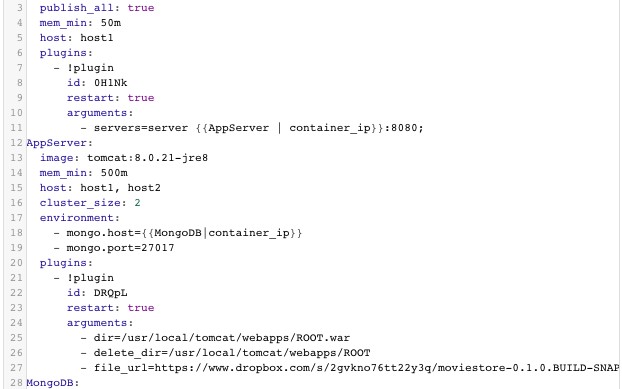

We have created four application templates using the official images from Docker Hub for the same Movie Store application – but for four different application servers.

  • 3-Tier MovieStore (Nginx - Tomcat - Mongo)
  • 3-Tier MovieStore (Nginx - JBoss- Mongo)
  • 3-Tier MovieStore (Nginx - Jetty - Mongo)
  • 3-Tier MovieStore (Nginx - GlassFish - Mongo)

Across all four templates, you will notice that Nginx is invoking a BASH script plug-in to add the container IP’s of the application servers in the default.conf file dynamically (or at request time). The application servers (Tomcat, JBoss, Jetty and GlassFish) are also invoking a BASH script plug-in to deploy the Movie Store Java WAR files from an external URL Tomcat, JBoss and Jetty are invoking the exact same plug-in – except the WAR file is getting deployed on different directories:

  • Tomcat – dir=/usr/local/tomcat/webapps/ROOT.war
  • JBoss – dir=/opt/jboss/wildfly/standalone/deployments/ROOT.war
  • Jetty – dir=/var/lib/jetty/webapps/ROOT.war

GlassFish is invoking another plug-in that uses the asadmin command to deploy the application on the default server. You will notice that the cluster_size parameter allows you to specify the number of containers to launch (with the same application dependencies). The host parameter allows you to specify the host you would like to use for container deployments. That way you can ensure high-availability for your application server clusters across different hosts (or regions) and you can comply with affinity rules to ensure that the database runs on a separate host for example. Here are the values supported for the host parameter:

  • host1, host2, host3, etc. – selects a host randomly within a data-center (or cluster) for container deployments
  • <IP Address 1, IP Address 2, etc.> -- allows a user to specify the actual IP addresses to use for container deployments
  • <Hostname 1, Hostname 2, etc.> -- allows a user to specify the actual hostnames to use for container deployments
  • Wildcards (e.g. “db-*”, or “app-srv-*”) – to specify the wildcards to use within a hostname

Additionally, a user can create cross-image environment variable bindings by making a reference to another image’s environment variable. In this case, we have made several bindings – including mongo.host={{MongoDB|container_ip}} – in which the database container IP is resolved dynamically at request time and is used to ensure that the application servers can establish a connection with the database. Here is a list of supported environment variable values:

  • {{alphanumeric | 8}} – creates a random 8-character alphanumeric string. This is most useful for creating random passwords.
  • {{<Image Name> | ip}} – allows you to enter the host IP address of a container as a value for an environment variable. This is most useful for allowing the middleware tier to establish a connection with the database.
  • {{<Image Name> | container_ip}} – allows you to enter the internal IP of a container as a value for an environment variable. This is most useful for allowing the middleware tier to establish a secure connection with the database (without exposing the database port).
  • {{<Image Name> | port _<Port Number>}} – allows you to enter the Port number of a container as a value for an environment variable. This is most useful for allowing the middleware tier to establish a connection with the database. In this case, the port number specified needs to be the internal port number – i.e. not the external port that is allocated to the container. For example, {{PostgreSQL | port_5432}} will be translated to the actual external port that will allow the middleware tier to establish a connection with the database.
  • {{<Image Name> | <Environment Variable Name>}} – allows you to enter the value an image’s environment variable into another image’s environment variable. The use cases here are endless – as most multi-tier applications will have cross-image dependencies.

Image title

Image title

Image title

Image title

Provisioning & Auto-Scaling the Underlying Infrastructure on Any Cloud

Once an application is saved, a user can register a Cloud Provider to automate the provisioning and auto-scaling of clusters on 12 different cloud end-points including OpenStack, CloudStack, Amazon Web Services, Rackspace, Microsoft Azure, DigitalOcean, HP Public Cloud, IBM SoftLayer, Google Compute Engine, and many others. First, a user can register a Cloud Provider for Rackspace (for example) by navigating to Manage > Repo & Cloud Provider and then clicking on the + button to select Rackspace. The Rackspace API Key needs to be provided – which can be retrieved from the Account Settings section of the Rackspace Cloud Control Panel.

Image title

A user can then create a cluster with an auto-scale policy to automatically spin up new Cloud Servers. This can be done by navigating to Manage > Clusters page and then clicking on the + button. You can select a capacity-based placement policy and then Weave as the networking layer in order to facilitate secure, password-protected cross-container communication across multiple hosts within a cluster. The Auto-Scale Policy in this example sets the maximum number of VM’s (or Cloud Servers) to 10.

Image title


A user can now provision a number of Cloud Servers on the newly created cluster by navigating to Manage > Bare-Metal Server & VM and then clicking on the + button to select Rackspace. Once the Cloud Provider is selected, a user can select the region, size and image needed. Ports can be opened on the new Cloud Servers (e.g. 32000-59000 for Docker, 6783 for Weave, and 5672 for RabbitMQ). A Data Center (or Cluster) is then selected and the number of Cloud Servers can be specified.

Image title



Deploying the Multi-Tier Java-based Movie Store Application on the Rackspace Cluster

Once the Cloud Servers are provisioned, a user can deploy a multi-tier, Docker-based Java applications on the new Cloud Servers. This can be done by navigating to the Self-Service Library and then clicking on Customize to request a multi-tier application. A user can select an Environment Tag (like DEV or QE) and the Rackspace Cluster created before clicking on Run.

Image title


Monitoring the CPU, Memory & I/O Utilization of the Running Containers

Once the application is up and running, our developers monitor the CPU, Memory, & I/O of the running containers to get alerts when these metrics exceed a pre-defined threshold. This is especially useful when our developers are performing functional & load testing. A user can perform historical monitoring analysis and correlate issues to container updates or build deployments. This can be done by clicking on the Actions menu of the running application and then on Monitoring. A custom date range can be selected to view CPU, Memory and I/O historically.

Image title

Image title


Enabling the Continuous Delivery Workflow with Jenkins to Update the WAR File of the Running Application when a Build is Triggered

For developers wishing to follow the “immutable” containers model by rebuilding Docker images containing the application code and spinning up new containers with every application update, DCHQ provides an automated build feature that allows developers to automatically create Docker images from Dockerfiles or private GitHub projects containing Dockerfiles. However, many developers may wish to update the running application server containers with the latest Java WAR file instead. For that, DCHQ allows developers to enable a continuous delivery workflow with Jenkins. This can be done by clicking on the Actions menu of the running application and then selecting Continuous Delivery. A user can select a Jenkins instance that has already been registered with DCHQ, the actual Job on Jenkins that will produce the latest WAR file, and then a BASH script plug-in to grab this build and deploy it on a running application server. Once this policy is saved, DCHQ will grab the latest WAR file from Jenkins any time a build is triggered and deploy it on the running application server. Developers, as a result will always have the latest Java WAR file deployed on their running containers in DEV/TEST environments.

Image title



Scaling out the Tomcat Application Server Cluster

If the running application becomes resource constrained, a user can to scale out the application to meet the increasing load. Moreover, a user can schedule the scale out during business hours and the scale in during weekends for example. To scale out the cluster of Tomcat servers from 2 to 3, a user can click on the Actions menu of the running application and then select Scale Out. A user can then specify the new size for the cluster and then click on Run Now. We then used the BASH plug-in to update Nginx’s default.conf file so that it’s aware of the new application server added. The BASH script plug-ins can also be scheduled to accommodate use cases like cleaning up logs or updating configurations at defined frequencies. An application time-line is available to track every change made to the application for auditing and diagnostics.

Image title



Once the scale out is complete, a user can execute a BASH plug-in to update Nginx’s default.conf file so that it’s aware of the new application server added. The BASH script plug-ins can also be scheduled to accommodate use cases like cleaning up logs or updating configurations at defined frequencies. To execute a plug-in on a running container, a user can click on the Actions menu of the running application and then select Plug-ins. A user can then select the load balancer (Nginx) container, search for the plug-in that needs to be executed, enable container restart using the toggle button. The default argument for this plug-in will dynamically resolve all the container IP’s of the running Tomcat servers and add them as part of the default.conf file.

Image title


An application time-line is available to track every change made to the application for auditing and diagnostics. This can be accessed from the expandable menu at the bottom of the page of a running application.

Alerts and notifications are available for when containers or hosts are down or when the CPU & Memory Utilization of either hosts or containers exceed a defined threshold.

Conclusion

Containerizing enterprise Java applications is still a challenge mostly because existing application composition frameworks do not address complex dependencies, external integrations or auto-scaling workflows post-provision. Moreover, the ephemeral design of containers meant that developers had to spin up new containers and re-create the complex dependencies & external integrations with every version update.

DCHQ, available in hosted and on-premise versions, addresses all of these challenges and simplifies the containerization of enterprise Java applications through an advance application composition framework that facilitates cross-image environment variable bindings, extensible BASH script plug-ins that can be invoked at request time or post-provision, and application clustering for high availability across multiple hosts or regions with support for auto scaling.

Sign Up for FREE on http://DCHQ.io

to get access to out-of-box multi-tier Java application templates (including the Movie Store app on Tomcat, JBoss, GlassFish and Jetty) along with application lifecycle management functionality like monitoring, container updates, scale in/out and continuous delivery.

Author

Amjad Afanah is the founder of DCHQ. He has extensive experience in application deployment automation and systems management. DCHQ was part of 500 Startups.
