How to Install Runtime Fabric in Linux 7.8 (localhost)

DZone 's Guide to

How to Install Runtime Fabric in Linux 7.8 (localhost)

MuleSoft provides a customer hosting solution to automate and orchestrate integration services. Let's see how to install runtime fabric in Linux 7.8 (localhost)

· Open Source Zone ·
Free Resource

As, we have cloud and on-prem version of runtime, which can be used to deploy mule applications. In addition, MuleSoft provides a customer hosting solution, which we can use to automate and orchestrate integration services within an organization.

Tutorial

Step 1

Prepare infrastructure with pre-requisite recommendations, by MuleSoft.

Runtime fabric Pre-requisites

Step 2

Create fabric in Runtime manager in the required environment. [Which will be in an inactive state]

creating fabric in runtime

Note: Please, copy and keep activation data safe as it will be required in configuration script.

verify requirements

Step 3

Adhere to the following:

To perform a manual installation of Runtime fabric application on localhost, below keys need to be assigned with value in the generate config.sh file ...

  • * RTF_CONTROLLER_IPS.
  • * RTF_WORKER_IPS
  • * RTF_ACTIVATION_DATA
  • * RTF_DOCKER_DEVICE
  • * RTF_ETCD_DEVICE
  • and
  • * RTF_MULE_LICENSE

Step 5

Below are the configurations for controller instance.

                                   [Controller required minimum 2 CUPs

Plain Text





x
30


1
[root@localhost manual]# fdisk -l
2


3
Disk /dev/sdc: 21.5 GB, 21474836480 bytes, 41943040 sectors Units = sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes Disk label type: dos Disk identifier: 0x0001cf67
4


5
   Device Boot      Start         End      Blocks   Id  System /dev/sdc1   *        2048     2099199     1048576   83  Linux /dev/sdc2         2099200    41943039    19921920   8e  Linux LVM
6


7
Disk /dev/sdb: 107.4 GB, 107374182400 bytes, 209715200 sectors Units = sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes
8


9

10
Disk /dev/sda: 128.8 GB, 128849018880 bytes, 251658240 sectors Units = sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes Disk label type: dos Disk identifier: 0xdd338791
11


12
   Device Boot      Start         End      Blocks   Id  System /dev/sda1            2048   251658239   125828096   83  Linux
13


14
Disk /dev/mapper/rhel-root: 18.2 GB, 18249416704 bytes, 35643392 sectors Units = sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes
15


16

17
Disk /dev/mapper/rhel-swap: 2147 MB, 2147483648 bytes, 4194304 sectors Units = sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes
18


19
[root@localhost manual]#
20
[root@localhost manual]# df -h Filesystem
21
  Size  Used Avail Use% Mounted on devtmpfs
22
  4.3G     0  4.3G   0% /dev tmpfs
23
 4.3G     0  4.3G   0% /dev/shm tmpfs
24
 4.3G  8.9M  4.3G   1% /run tmpfs
25
 4.3G     0  4.3G   0% /sys/fs/cgroup /dev/mapper/rhel-root
26
17G  5.3G   12G  31% / tmpfs
27
870M     0  870M   0% /run/user/1000 /dev/sda1
28
120G   11G  110G  10% /var/lib/gravity /dev/sdc1
29
 1014M  159M  856M  16% /var/lib/gravity/planet/etcd tmpfs
30
 870M     0  870M   0% /run/user/0 [root@localhost manual]#



* It required to ensure that while creating file system below partitions should not be mounted with directories (filesystems).

  • # RTF_DOCKER_DEVICE:    (default /dev/xvdb)
  • RTF_DOCKER_DEVICE='/dev/sdb1'
  • # RTF_ETCD_DEVICE:    (default /dev/xvdc)
  • RTF_ETCD_DEVICE='/dev/sdc1'

*Although Runtime fabric manages chrony service installation on server but to be sure, if it should be installed as pre-requisite and enabled before starting init.sh script. (Chrony is an implementation of the Network Time Protocol).

Step 5

Now execute init.sh file to install in the controller server.

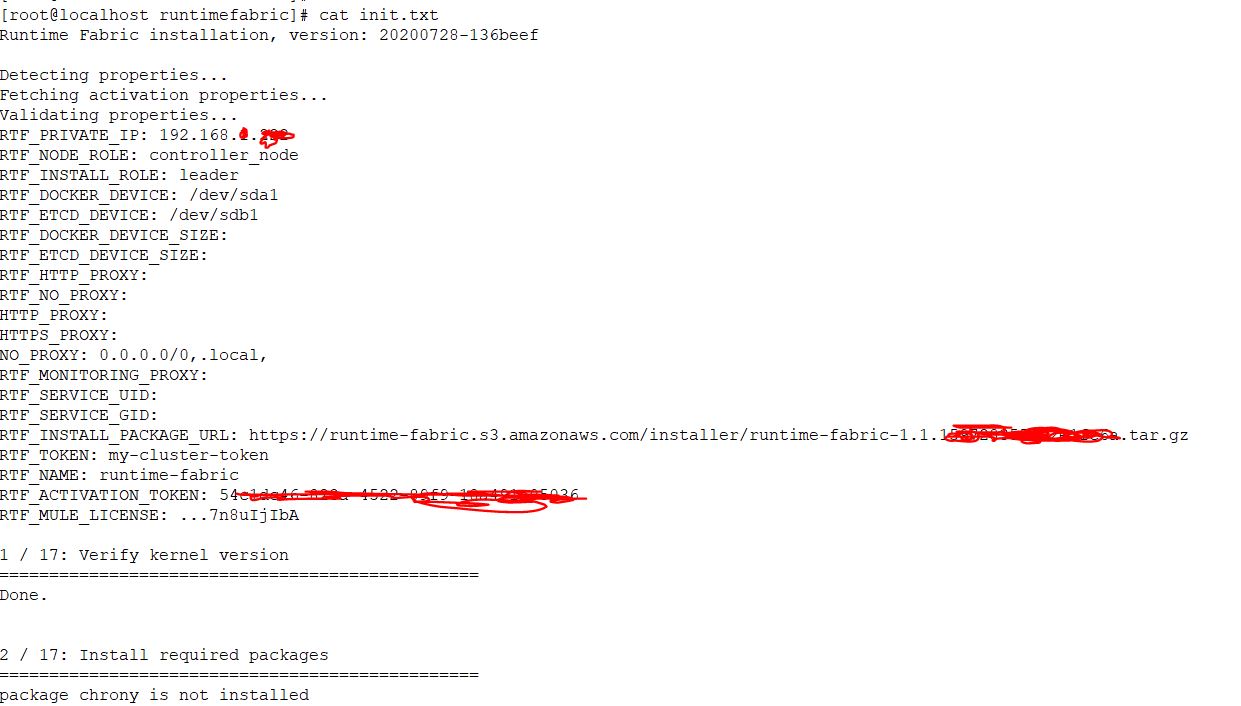

Below are a few initial logs.

Few sections of the final execution output of init.sh script.

Once we are in the final execution of init.sh process. which takes a few moments to start fabric, please be patient, it will be available and active in a few moments.

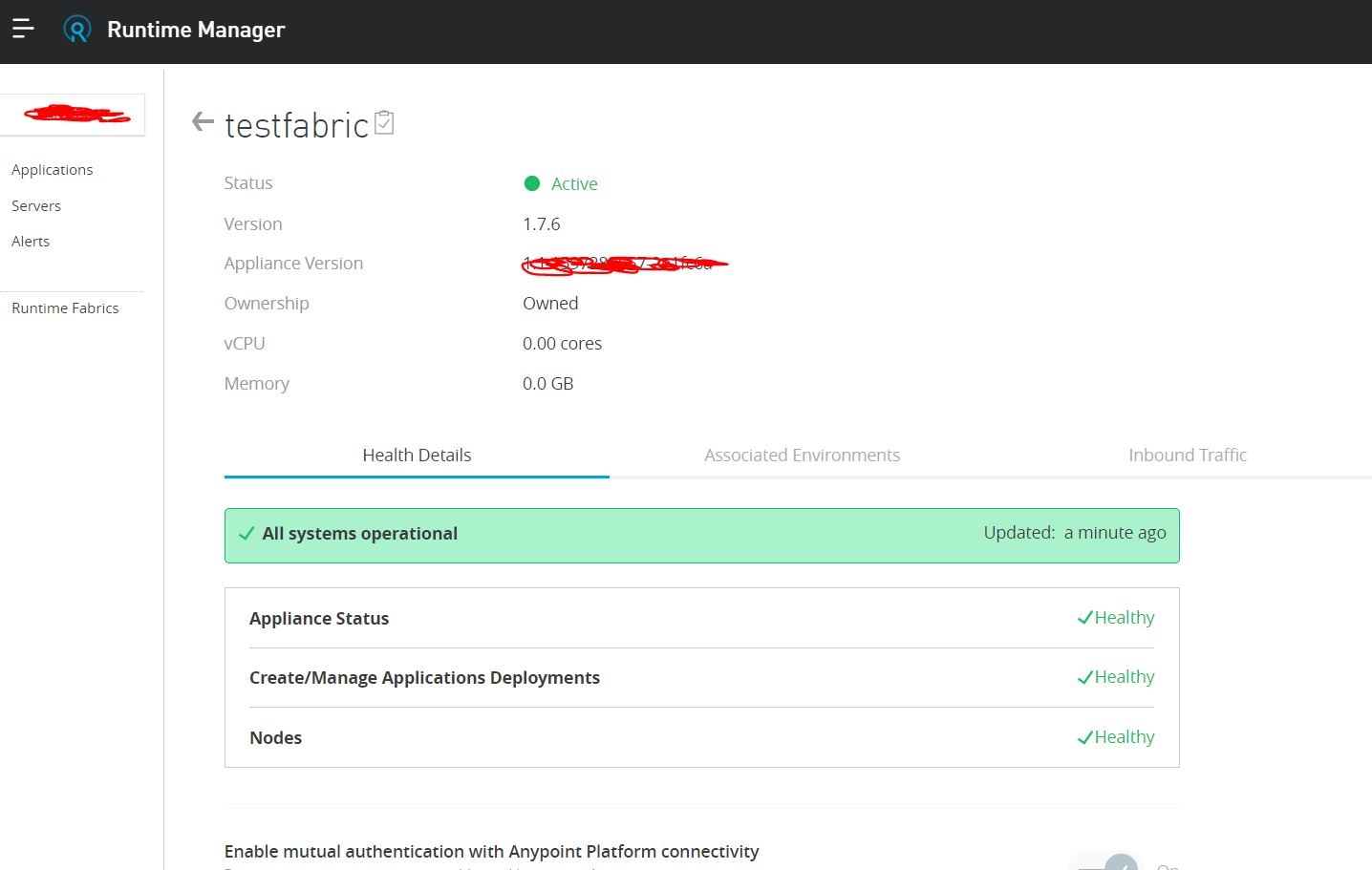

It's up now in Runtime Fabric (Anypoint Runtime manager Control panel) with status active.


Learning: If resources are available with required configurations, rest actions and processes will be taken care of by script which is provided by MuleSoft and even there is no single correction or changes required in the script to accommodate the installation.

Observation: Runtime fabric validates required resources availability before moving forward to install it to the server instance. It reserves some extra resources with it to avoid any performance degradation. Hence do not worry if assigning it an extra resource for future use.

Hope it helps.
