MuleSoft: Contract-First Web Service Development

Learn the quick and easy steps on how to develop and expose a WSDL-first and contract-first web service by using Anypoint studio.

· Integration Zone
Free Resource

Today’s data climate is fast-paced and it’s not slowing down. Here’s why your current integration solution is not enough. Brought to you in partnership with Liaison Technologies.

Learn about how to develop a WSDL-first web service using Anypoint studio.

In short, the steps required to expose a contract-first web service are:

  1. Define contract (WSDL and XML schema files).
  2. Create Mule project in Anypoint studio and place the contract files.
  3. Create a flow with an HTTP endpoint.
  4. Configure a CXF component.
  5. Implement Service Endpoint Interface (SEI) and configure the implementation as a Java component.
  6. Test the component using SOAP UI.

1. Define Contract (WSDL and XML Schema Files)

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<wsdl:definitions
	xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/"
	xmlns:mov="http://ss.com/ws/MovieService/"
	xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/"
	xmlns:xsd="http://www.w3.org/2001/XMLSchema" name="MovieService"
targetNamespace="http://ss.com/ws/MovieService/">
	<wsdl:types>
		<xsd:schema targetNamespace="http://ss.com/ws/MovieService/" attributeFormDefault="unqualified" elementFormDefault="qualified">
			<xsd:element name="movieSearch" type="mov:movieSearchRequestType" />
			<xsd:element name="movieSearchResponse" type="mov:movieSearchResponseType"/>
			<xsd:complexType name="movieSearchRequestType">
				<xsd:sequence>
					<xsd:element name="location" type="xsd:string" />
					<xsd:element name="date" type="xsd:date" />
					<xsd:element name="movieName" type="xsd:string" />
				</xsd:sequence>
			</xsd:complexType>
			<xsd:complexType name="movieSearchResponseType">
				<xsd:sequence>
					<xsd:element name="showDetails" type="mov:showType" minOccurs="0" maxOccurs="unbounded"/>
				</xsd:sequence>
			</xsd:complexType>
			<xsd:complexType name="showType">
				<xsd:sequence>
					<xsd:element name="cinemaName" type="xsd:string" />
					<xsd:element name="showTimes" type="xsd:string" minOccurs="1" maxOccurs="unbounded"/>
				</xsd:sequence>
			</xsd:complexType>
		</xsd:schema>
	</wsdl:types>
	<wsdl:message name="movieSearchRequest">
		<wsdl:part element="mov:movieSearch" name="parameters" />
	</wsdl:message>
	<wsdl:message name="movieSearchResponse">
		<wsdl:part element="mov:movieSearchResponse" name="parameters" />
	</wsdl:message>
	<wsdl:portType name="MovieService">
		<wsdl:operation name="movieSearch">
			<wsdl:input message="mov:movieSearchRequest" />
			<wsdl:output message="mov:movieSearchResponse" />
		</wsdl:operation>
	</wsdl:portType>
	<wsdl:binding name="MovieServiceSOAP" type="mov:MovieService">
		<soap:binding style="document"
transport="http://schemas.xmlsoap.org/soap/http" />
		<wsdl:operation name="movieSearch">
			<soap:operation soapAction="http://ss.com/ws/MovieService/movieSearch" />
			<wsdl:input>
				<soap:body use="literal" />
			</wsdl:input>
			<wsdl:output>
				<soap:body use="literal" />
			</wsdl:output>
		</wsdl:operation>
	</wsdl:binding>
	<wsdl:service name="MovieService">
		<wsdl:port binding="mov:MovieServiceSOAP" name="MovieServiceSOAP">
			<soap:address location="http://www.example.org/" />
		</wsdl:port>
	</wsdl:service>
</wsdl:definitions>

2. Create Mule Project in Anypoint Studio and Place Contract Files

Create a Mule project in Anypoint Studio and place the defined WSDL to the location src/main/wsdl as demonstrated below.

Image title

3. Create a Flow With an HTTP Endpoint

Image title

I configured the HTTP endpoint port as 9090 and path as /contract.

4. Configure CXF Component

Mule has a CXF component in the Component palette for configuring JAX-WS-based web services. CXF framework is the implementation of the JAX-WS specification. Drag and drop CXF component from the Component palette.

Image title

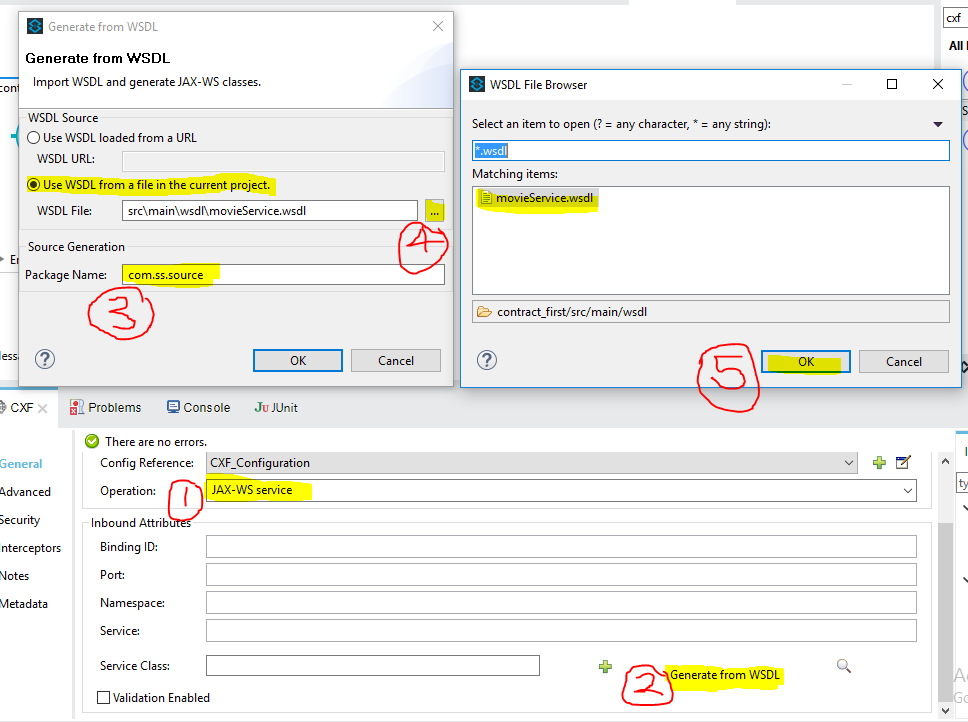

Configure the CXF component as follows:

Image title

The sources are generated from the WSDL document by the CXF framework:

Image title

5. Implement SEI and Configure the Implementation as a Java Component

Create a package for placing the implementation class:

Image title

Here is the implementation for the generated Service Endpoint Interface (SEI). For the sake of simplicity, we hard coded the implementation.

package com.ss.source.impl;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;

import javax.jws.WebMethod;
import javax.jws.WebParam;
import javax.jws.WebResult;
import javax.jws.WebService;
import javax.xml.bind.annotation.XmlSeeAlso;
import javax.xml.datatype.XMLGregorianCalendar;
import javax.xml.ws.RequestWrapper;
import javax.xml.ws.ResponseWrapper;

import com.ss.source.MovieService;
import com.ss.source.ObjectFactory;
import com.ss.source.ShowType;


@WebService(targetNamespace = "http://ss.com/ws/MovieService/", name = "MovieService")
@XmlSeeAlso({
 ObjectFactory.class
})
public class MovieServiceImpl implements MovieService {

 @Override
 @WebMethod(action = "http://ss.com/ws/MovieService/movieSearch")
 @RequestWrapper(localName = "movieSearch", targetNamespace = "http://ss.com/ws/MovieService/", className = "com.ss.ws.MovieSearchRequestType")
 @ResponseWrapper(localName = "movieSearchResponse", targetNamespace = "http://ss.com/ws/MovieService/", className = "com.ss.ws.MovieSearchResponseType")
 @WebResult(name = "showDetails", targetNamespace = "")
 public List < ShowType > movieSearch(
  @WebParam(name = "location", targetNamespace = "") java.lang.String location,
  @WebParam(name = "date", targetNamespace = "") javax.xml.datatype.XMLGregorianCalendar date,
  @WebParam(name = "movieName", targetNamespace = "") java.lang.String movieName
 ) {
  List < ShowType > shows = new ArrayList < ShowType > ();
  if (movieName.equalsIgnoreCase("Logan") && location.equalsIgnoreCase("hyderabad")) {
   ShowType showType = new ShowType();
   showType.setCinemaName("INOX Multiplex");
   showType.setShowTimes(Arrays.asList("10:00 AM", "2:00 PM", "7:00 PM"));
   shows.add(showType);
  }
  return shows;
 }

}

Drag and drop the Java component from the Component palette and configure as demonstrated below:

Image title

The flow after all configurations:

< ? xml version = "1.0"
encoding = "UTF-8" ? >

 < mule xmlns : http = "http://www.mulesoft.org/schema/mule/http"
xmlns: cxf = "http://www.mulesoft.org/schema/mule/cxf"
xmlns = "http://www.mulesoft.org/schema/mule/core"
xmlns: doc = "http://www.mulesoft.org/schema/mule/documentation"
xmlns: spring = "http://www.springframework.org/schema/beans"
xmlns: xsi = "http://www.w3.org/2001/XMLSchema-instance"
xsi: schemaLocation = "http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-current.xsd
http: //www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
 http: //www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd
 http: //www.mulesoft.org/schema/mule/cxf http://www.mulesoft.org/schema/mule/cxf/current/mule-cxf.xsd">
 < http: listener - config name = "HTTP_Listener_Configuration"
host = "localhost"
port = "9090"
doc: name = "HTTP Listener Configuration" / >
 < cxf: configuration name = "CXF_Configuration"
enableMuleSoapHeaders = "true"
initializeStaticBusInstance = "true"
doc: name = "CXF Configuration" / >
 < flow name = "contract_firstFlow" >
 < http: listener config - ref = "HTTP_Listener_Configuration"
path = "/contract"
doc: name = "HTTP" / >
 < cxf: jaxws - service configuration - ref = "CXF_Configuration"
serviceClass = "com.ss.source.MovieService"
doc: name = "CXF" / >
 < component class = "com.ss.source.impl.MovieServiceImpl"
doc: name = "Java" / >
 < /flow> < /mule>

Run the flow from Anypoint studio.

Test the Service using http://localhost:9090/contract?wsdl.

Open the SOAP UI and create the new SOAP project using the above WSDL URL.

Test the project using the new request as demonstrated below:

Image titleCongrats! You got the response as per the implementation.
