Nebula Graph 1.0 Benchmark Report Based on the LDBC Dataset

In this article, take a look at key configurations in Nebula graph, an intro into the dataset, and more.

Jamie Liu user avatar by
Jamie Liu
CORE ·
Sep. 18, 20 · Analysis
Like (3)
Save
Tweet
Share
5.22K Views

Join the DZone community and get the full member experience.

Join For Free

Testing Environment

Specs

CPU: Intel® Xeon® CPU E5-2697 v3 @ 2.60GHz, 2(sockets) * 14(cores) * 2(threads)

Memory: DDR4,64GB * 4

Storage: HP MT0800KEXUU,NVMe,800GB * 2

Network: Mellanox MT27500 10Gb/s

Five servers in total have been used for this testing:

  1. One for graphd (the query engine process)
  2. Three for storaged (the storage engine process).The meta service is deployed on the same hosts with the storage service.
  3. One for (Golang) client. A single process with multiple goroutines.

OS: Centos 7.5

Nebula Graph Version: V1.0.0 GA 1

Graph Space partition: 24

Key Configs in Nebula Graph

Storaged

Java





x
17



1
# One RocksDB instance per disk
2
# The default reserved bytes for one batch operation
3
--rocksdb_batch_size=4096
4
# The default block cache size used in BlockBasedTable.
5
# The unit is MB.
6
--rocksdb_block_cache=102400
7
--num_io_threads=24
8
--num_worker_threads=18
9
--max_handlers_per_req=256
10
--min_vertices_per_bucket=100
11
--reader_handlers=28
12
--vertex_cache_bucket_exp=8
13


14
--rocksdb_disable_wal=true
15
--rocksdb_column_family_options={"write_buffer_size":"67108864",
16
  "max_write_buffer_number":"4","max_bytes_for_level_base":"268435456"}
17
--rocksdb_block_based_table_options={"block_size":"8192"}


Graphd

Java





xxxxxxxxxx
1



1
# The number of networking IO threads, 0 for # of CPU cores
2
--num_netio_threads=20
3
# The number of threads to execute user queries, 0 for # of CPU cores
4
--num_worker_threads=32
5
--storage_client_timeout_ms=600000
6
--filter_pushdown=false


Besides, some kernel configurations can be found here.

Intro to the Dataset

Data Source

LDBC Social Network Benchmark Dataset

The LDBC is designed to be a plausible look-alike of a social network site. For a detailed introduction to the dataset, see https://github.com/ldbc

Data Scale

  • Scale Factor is 1000
  • Data size: 632GB
  • Disk size occupied: ~500GB (* number of replicas)
  • Number of Vertices: 1,243,792,996
  • Number of Edges: 8,397,443,896

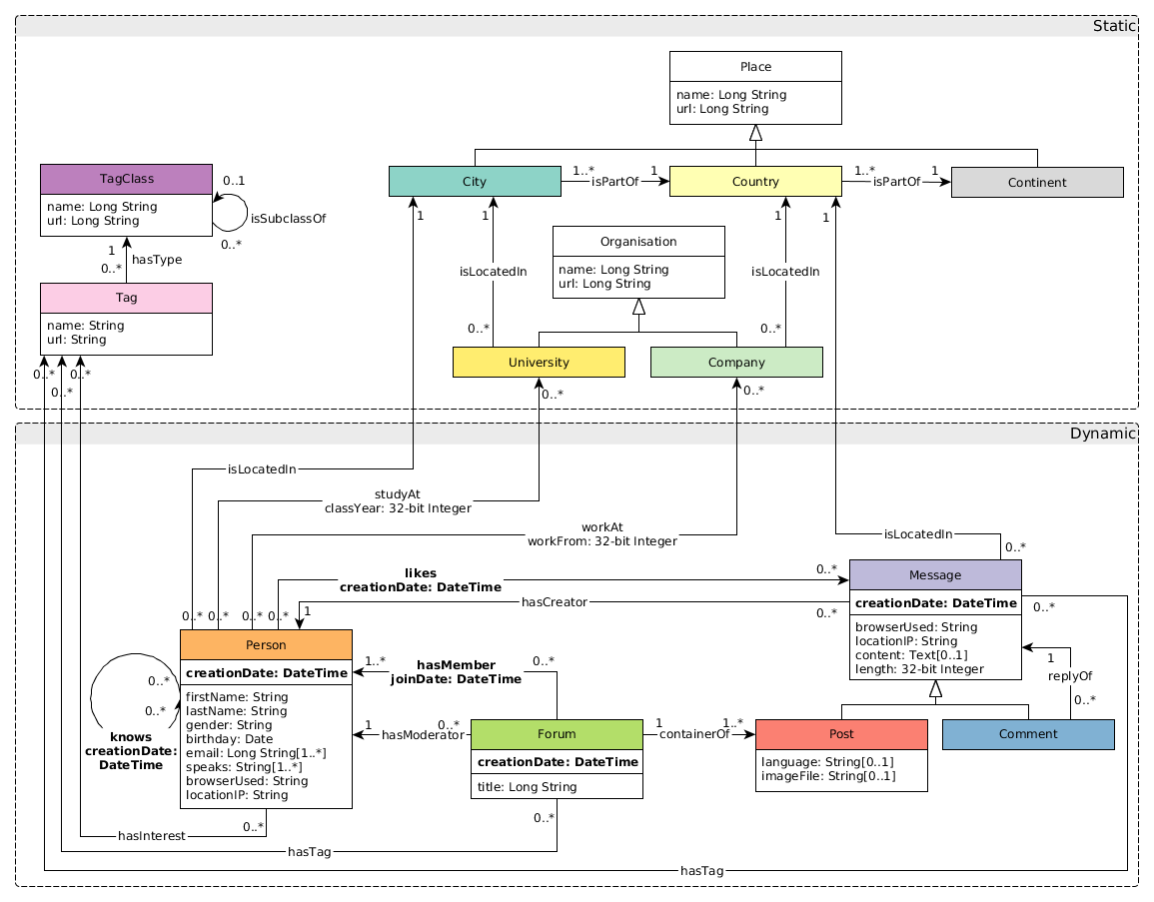

Schema

The K-Hop Out-Degree Distribution in LDBC

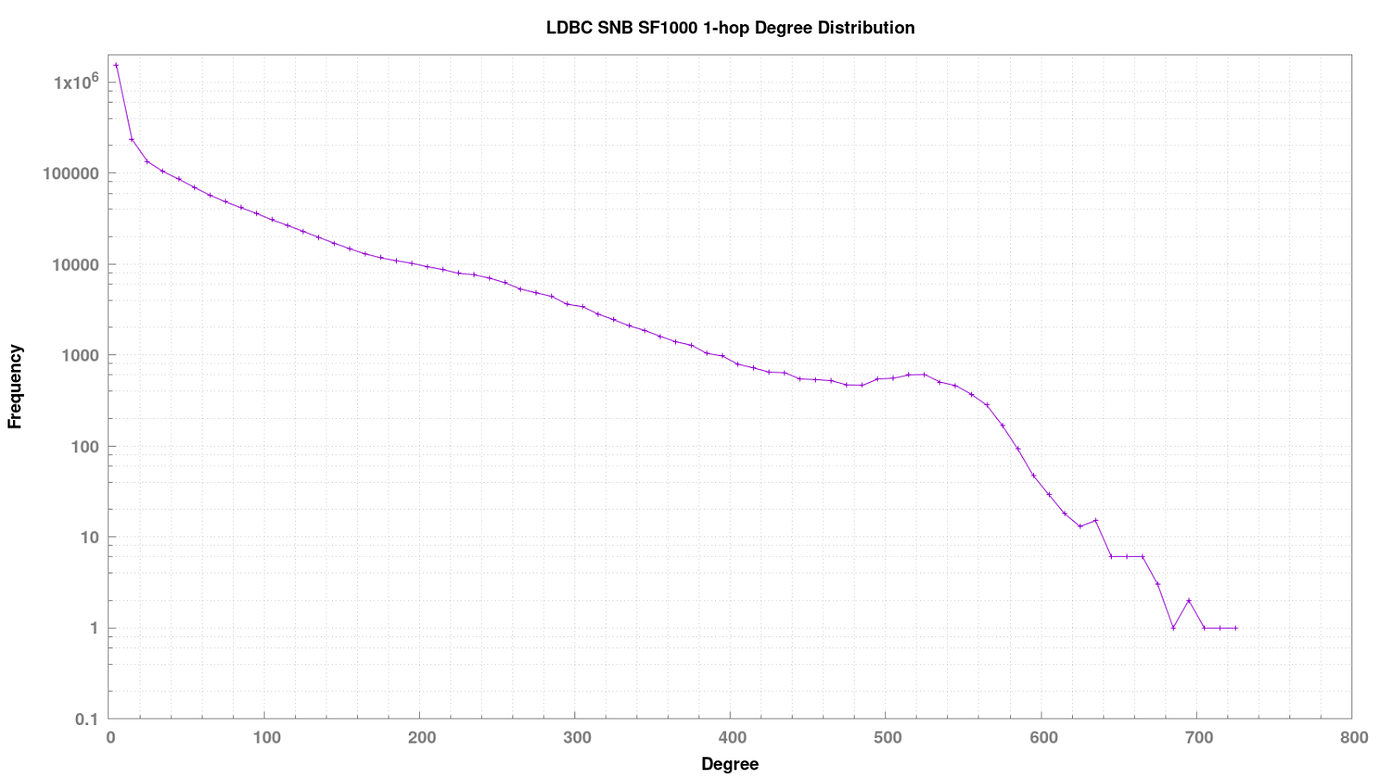

One-Hop Out-Degree Distribution

Most vertices have less than 10 outgoing edges. Some super vertices have 700 outgoing edges.

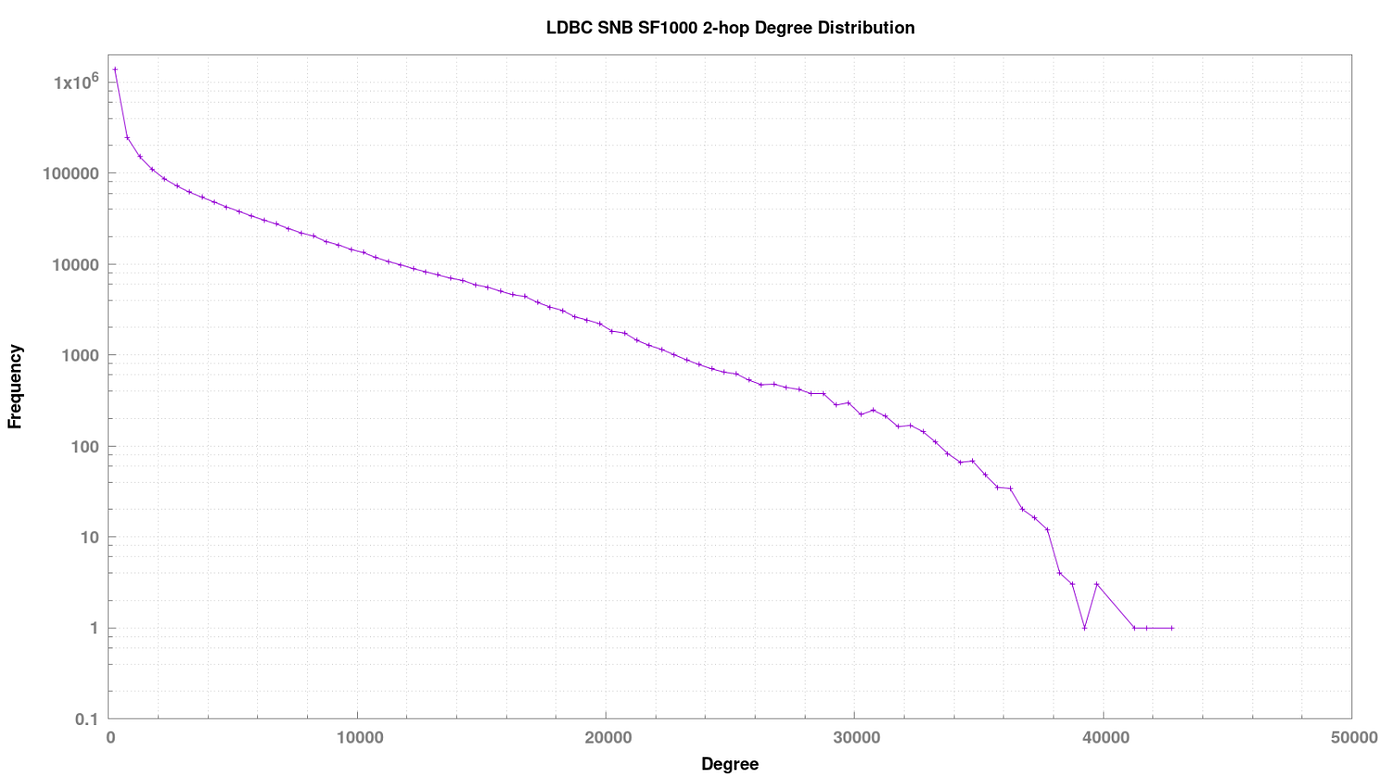

Two-Hop Out-Degree Distribution

Most vertices have less than 2000 two-hop adjacency nodes. Some super vertices have 40000 such nodes, though.

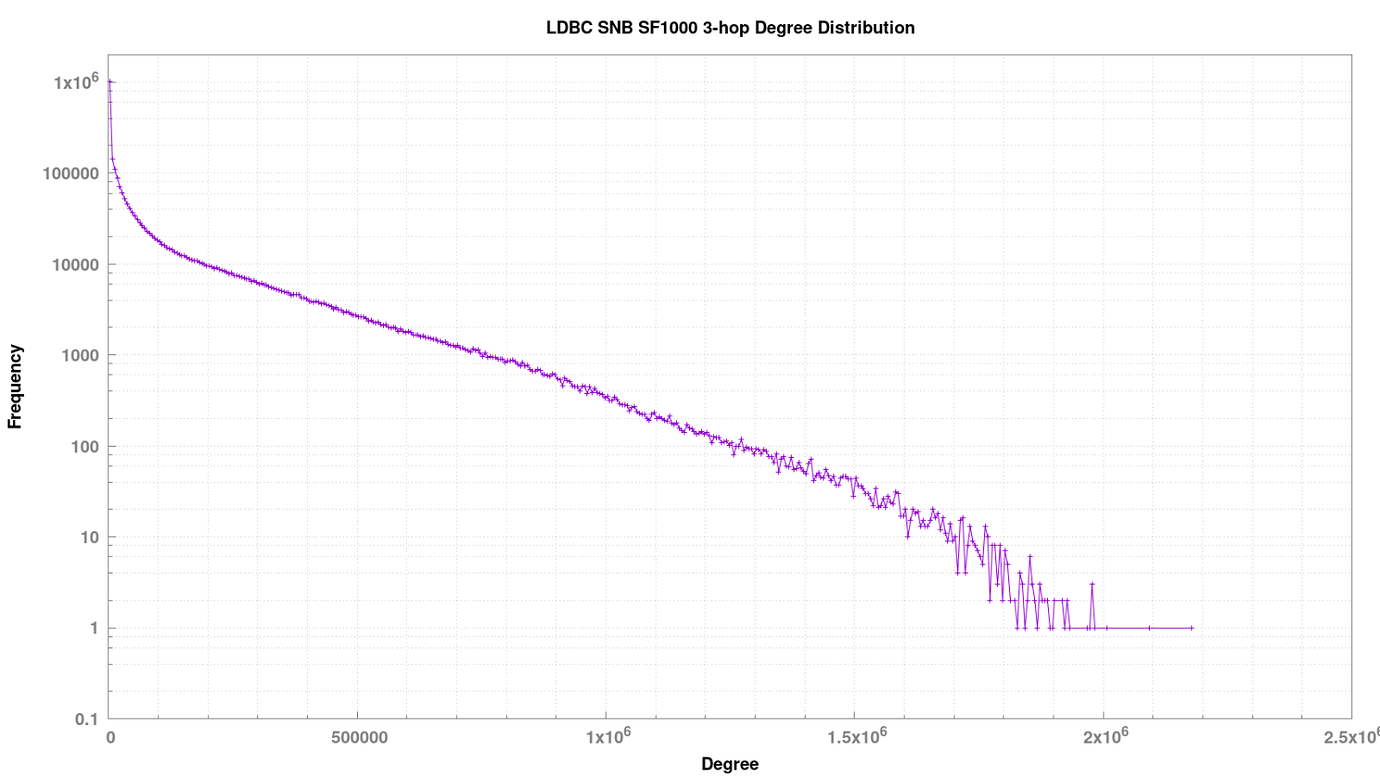

Three-Hop Out-Degree Distribution

Most vertices have less than 100,000 three-hop adjacency nodes. Some super vertices have 2,000,000 such nodes, though.

Query Samples

K-hop Without Retrieving Properties

Java





xxxxxxxxxx
1



1
GO 1 STEP FROM $ID$ OVER knows
2
GO 2 STEP FROM $ID$ OVER knows
3
GO 3 STEP FROM $ID$ OVER knows


K-hop With Retrieving Properties

Java





xxxxxxxxxx
1



1
GO 1 STEPS FROM $ID$ OVER knows YIELD knows.time, $$.person.first_name,\
2
   $$.person.last_name, $$.person.birthday
3

4
GO 2 STEPS FROM $ID$ OVER knows YIELD knows.time, $$.person.first_name,\
5
   $$.person.last_name, $$.person.birthday
6

7
GO 3 STEPS FROM $ID$ OVER knows YIELD knows.time, $$.person.first_name,\
8
   $$.person.last_name, $$.person.birthday


Note: The $ID$ in the statements is the placeholder of the starting vertex for a graph traverse. It will be substituted by the some random vertex ID upon query execution.

Testing Results

The results include the throughput and latency for each query.

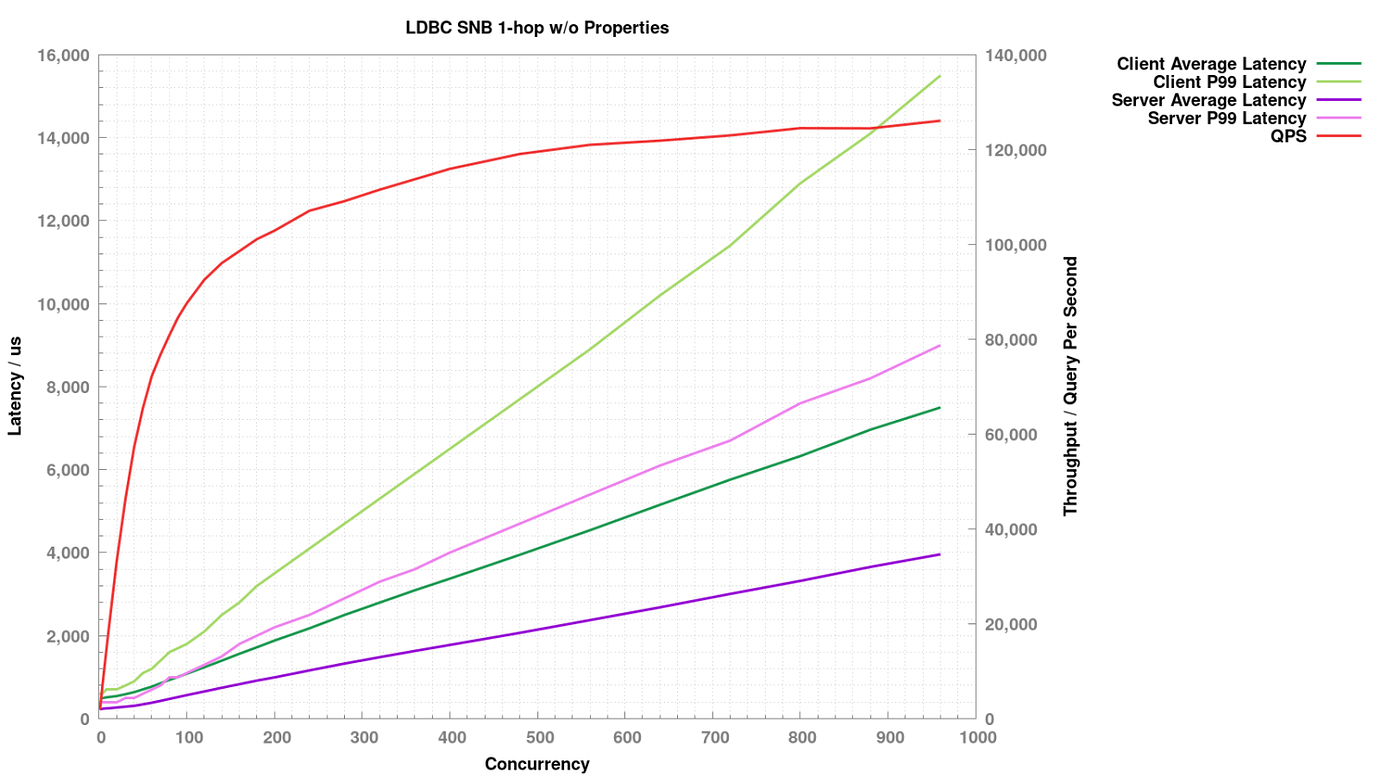

One-hop Results Without Properties

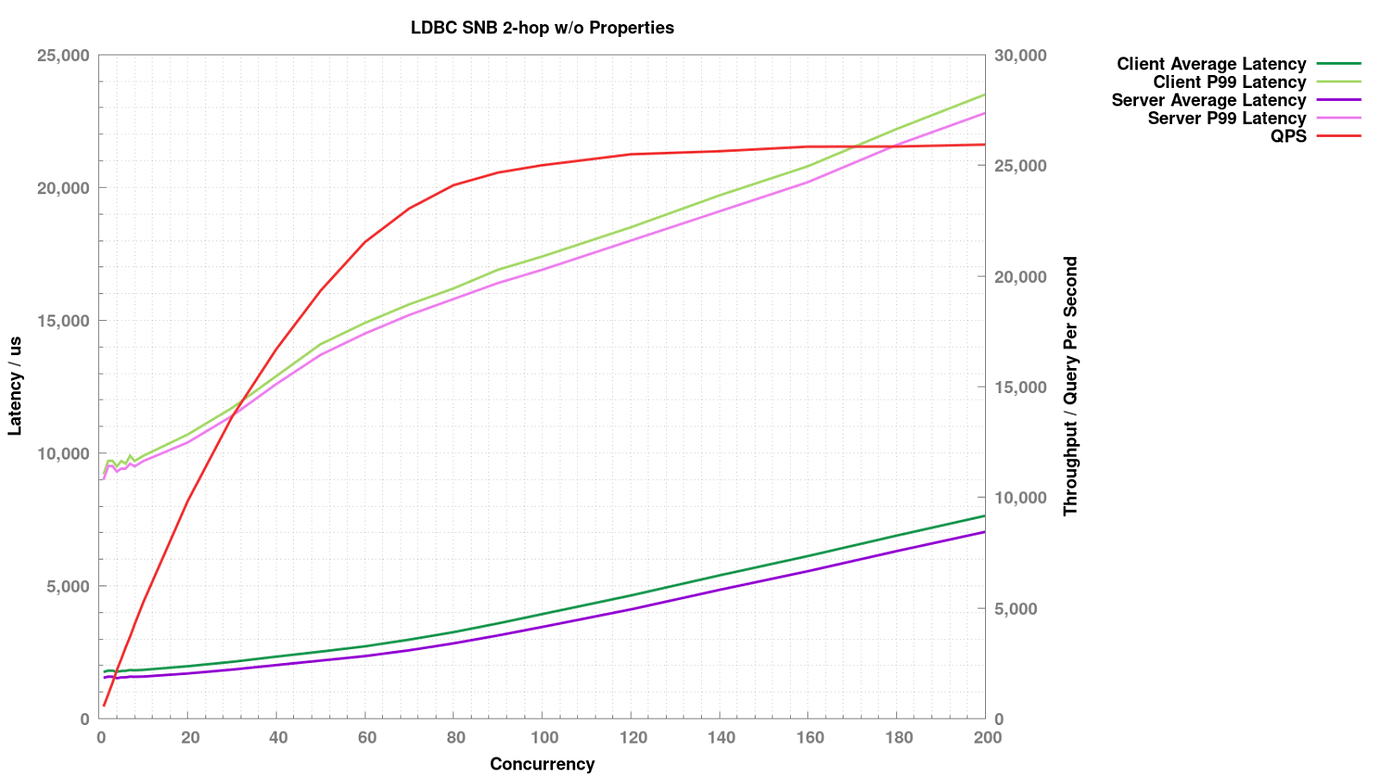

Two-hop Results Without Properties

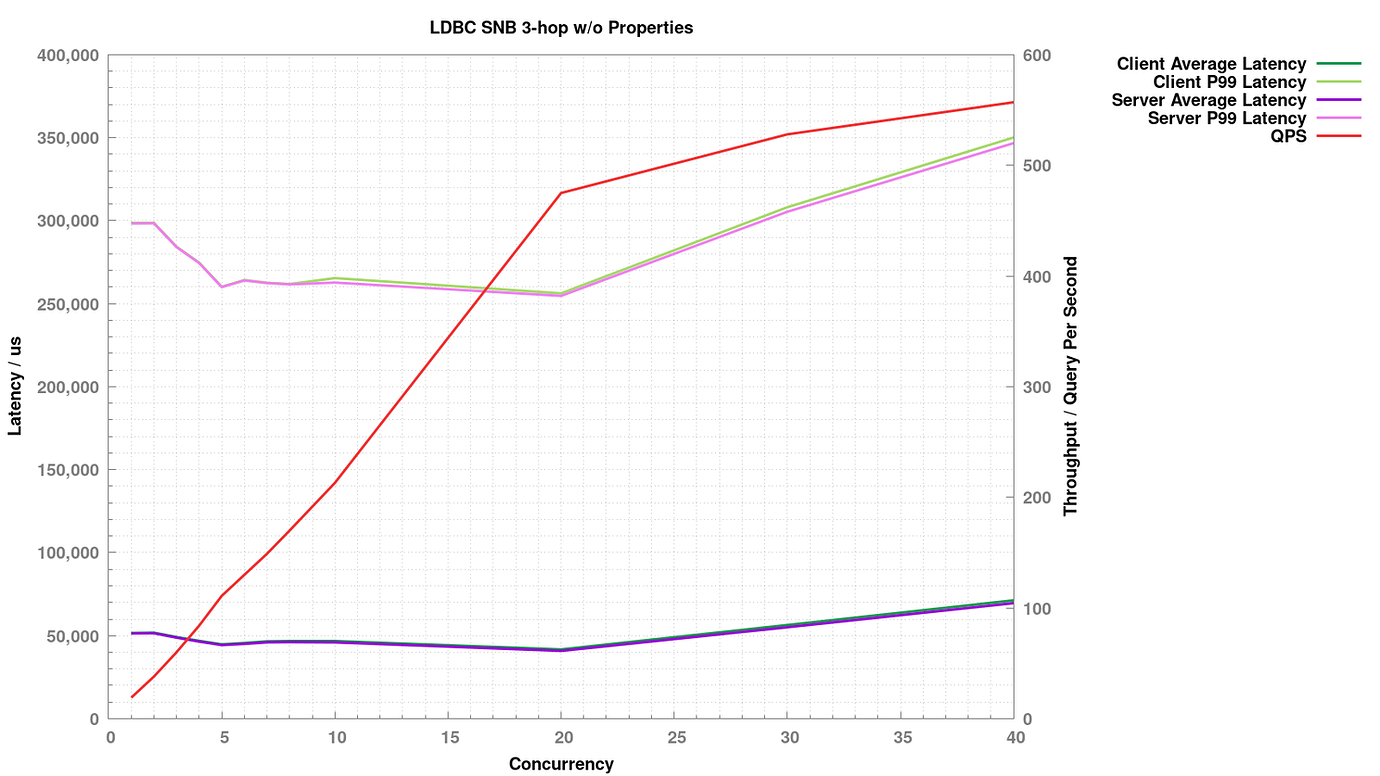

Three-hop Results Without Properties

One-hop Results With Properties

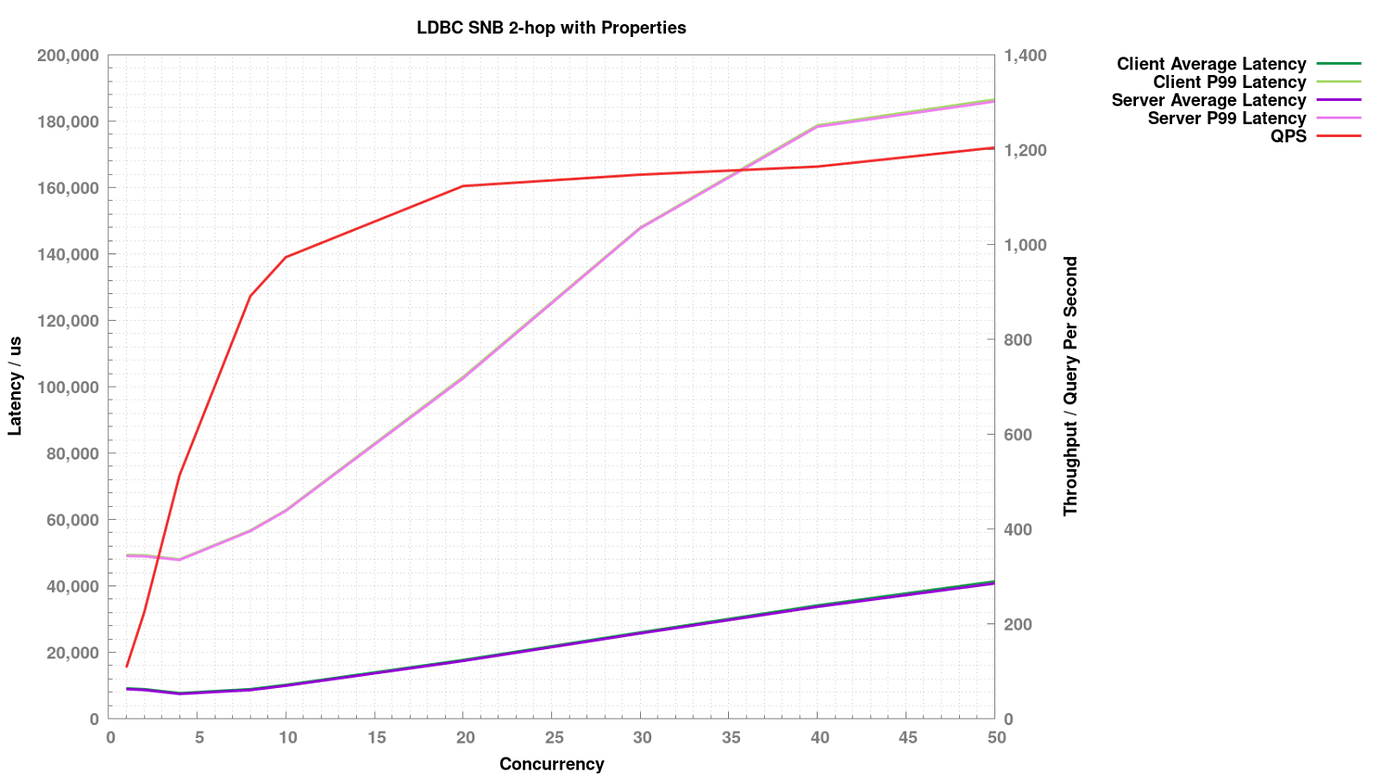

Two-hop Results With Properties

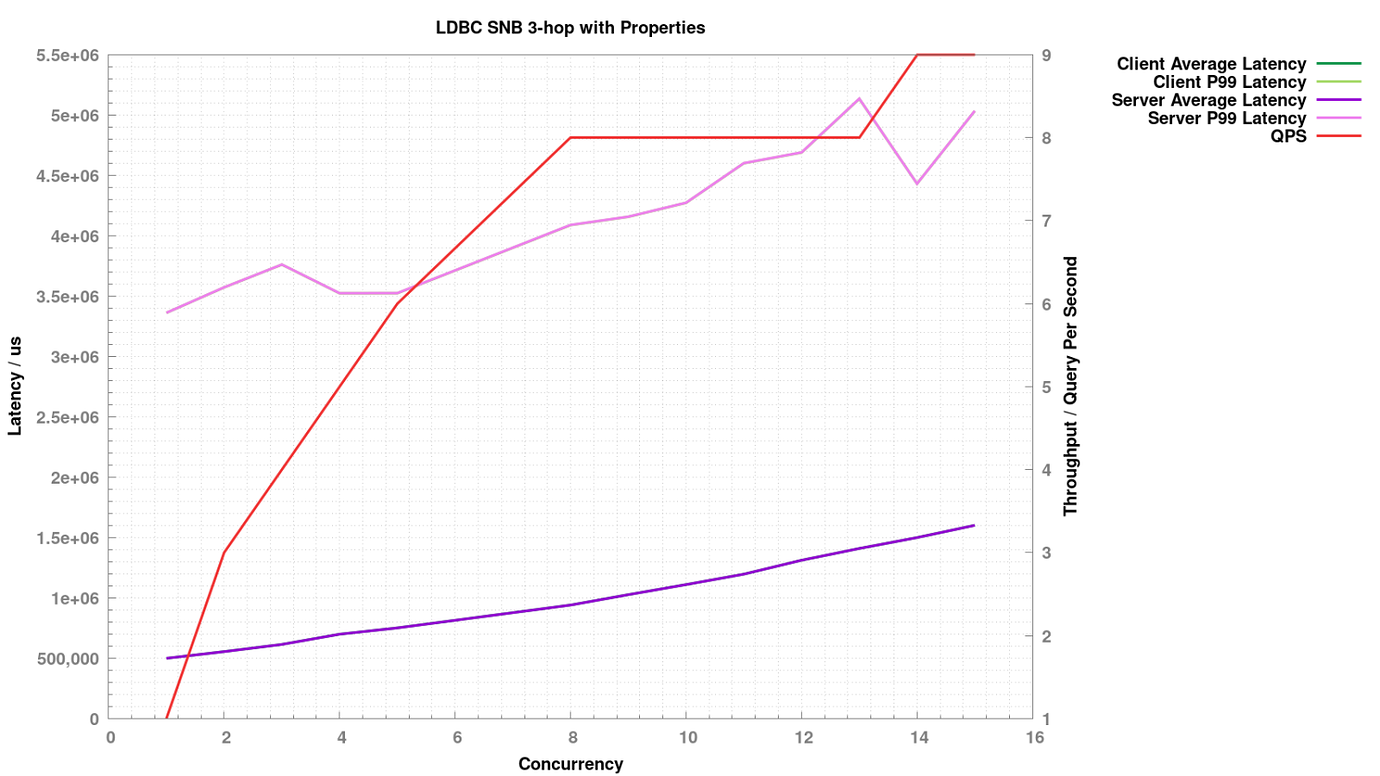

Three-hop Results With Properties

Cases 1 - 3 do NOT return the properties of vertices and edges to the client. Cases 4-6 return the properties.

We can find that:

  1. As the Goroutine concurrency (the testing stress) increases, the throughputs(QPS) increases linearly. And so does the latency. The only exceptions are Cases 3 & 6 (three-hop), which will fetch about 100,000 nodes by average. They two only scale to a low level of concurrency (about 10).
  2. The latency gap between the client side and the server side is not obvious, which indicates that most of the time is consumed on the server side (we will dig into it later to find out which one is the bottle neck, the graphd or the storaged)
  3. Further P99 latency is much larger than the average latency. We think it is because that there are more long-tail situations (super vertices)  in the LDBC graph (as explained in Section 2).
  4. Although this test is mainly focusing on read performance, we've also tried the write performance by two data load tools, i.e. go-importer and spark writer. As the NoSQL nature, roughly to say, it takes about four minutes (i.e. 400k QPS) to input 100 million rows (vertices or edges).

You can find the testing code and the nGQL queries in this repo: https://github.com/vesoft-inc/nebula-bench

For batch write performance, refer to the Spark Writer doc.

Share your thoughts by leaving comments below!
