Snake Game on the FRDM-KL25Z with Nokia 5110 Display

· IoT Zone

Discover how Cisco DevNet can help you create innovative applications for the Internet of Things leveraging Cisco APIs and platforms, brought to you in partnership with Cisco DevNet.

So I have a graphics driver for a Nokia display (see “Zero Cost 84×48 Graphical LCD for the Freedom Board“), I have a joystick shield (see “JoyStick Shield with the FRDM Board“) and I do have a Freescale Freedom board: why not creating a simple game for it? Snake!

Snake Game with FRDM-KL25Z Board

Snake Game with FRDM-KL25Z Board

My first mobile phone was a Nokia with a 84×48 black/white display, and I loved it for many reasons, including having the ‘Snake’ game (see http://en.wikipedia.org/wiki/Snake_%28video_game%29). An ARM Cortex M0+ is way overpowered for that simple game, still it is fun to make and game it :-).

The game is very simple: A snake is running around, and I can control it with the cursor/joystick with up, down, left and right. The snake has to ‘eat’ the ‘food’, and the snake gets longer the more food is eaten. But the snake shall *not* touch the outside border.

:idea: Usually there is another rule that the snake shall not touch itself. But I was too lazy to make it.

Snake with Food

Snake with Food

For the project I ordered a black joystick shield for $11.27, as the soldering quality of the previous ‘white’ one was very bad. The Nokia 5110 LCD I ordered from DX.com for $3.87 so it would directly match with the joystick shield. So makes $30 in total including the FRDM-KL25Z board.

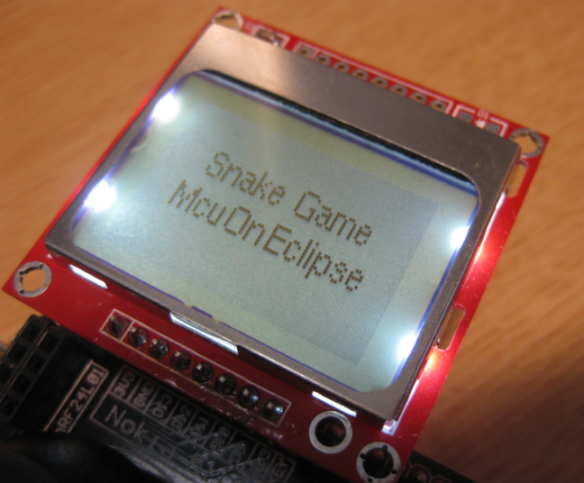

Startup Screen for Snake Game

Startup Screen for Snake Game

Ready to Play Snake Game

Ready to Play Snake Game

The video shows the game in action:

The Snake game runs as a FreeRTOS task. The drawing and graphics including fonts are implemented with Processor Expert components:

Graphical Display Driver

Graphical Display Driver

Font and Font Driver

Font and Font Driver

Summary

So I have another nice usage for my boards and the joystick shields :-). I need to admit that I’m not very good at the game. My daughter reached level 4 in the first attempt, while my max level is 2, maybe it is just the age ;-). But I’m too honest *not* to build in a cheat mode, or should I? Maybe ;-)

As always, the sources are available on GitHub.

Happy Snaking :-)
