I was thinking of adding tooltips using prototip but found a very good free solution in Opentip. This is a very nice library and very easy to integrate. I was able to integrate it with only a single modification to the script and that was to replace the default ajax support with the Tapestry’s own ajax support.

The component takes three arguments

  • tip: The tool tip to display.
  • tipTitle: The title of the tool tip
  • tipEvent: In case you want the tool tip to be retrieved using ajax then you can specify the event to respond to on a onmouseover event

The component is very simple as all the hard work has already been done by the authors of the script.

@Import(library = {"opentip/opentip.js", "opentip/opentip_init.js"}, stylesheet = "opentip/opentip.css")
public class ToolTip
   @Parameter(defaultPrefix = BindingConstants.LITERAL)
   private String tip;

   @Parameter(defaultPrefix = BindingConstants.LITERAL)
   private String tipTitle;

   @Parameter(defaultPrefix = BindingConstants.LITERAL)
   private String tipEvent;

   private ClientElement element;

   private JavaScriptSupport javaScriptSupport;

   private ComponentResources resources;

   void addJavascript()
      JSONObject params = new JSONObject();

      params.put("elementId", element.getClientId());
      params.put("tipTitle", tipTitle);
      params.put("tip", tip);

      if(tipEvent != null)
         params.put("url", createAjaxTipEvent());

      params.put("options", createOptionsFromInformalParameters());

      javaScriptSupport.addInitializerCall("setupOpentip", params);

   private String createAjaxTipEvent()
      return resources.createEventLink(tipEvent).toURI();

   private JSONObject createOptionsFromInformalParameters()
      JSONObject options = new JSONObject();

      for(String parameterName: resources.getInformalParameterNames())
            resources.getInformalParameter(parameterName, String.class));

      return options;


The initialization script is

Tapestry.Initializer.setupOpentip = function(params)
      params.options.ajax = {};
      params.options.ajax.url = params.url;

   $(params.elementId).addTip(params.tip, params.tipTitle, params.options);

A typical usage for an inline tooltip will be

<div t:mixins='tawus/tooltip' t:type='any' t:tip='My Tip'
     t:tipTitle='My Ajax Tooltip'>

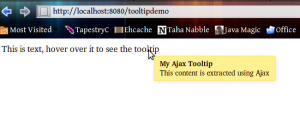

A ajax usage will be

<html xmlns:t='http://tapestry.apache.org/schema/tapestry_5_1_0.xsd' xmlns:p='tapestry:parameter'>

      <div t:mixins='tawus/tooltip' t:type='any'
           t:tipEvent='toolTip' t:tipTitle='My Ajax Tooltip'>
      This is text, hover over it to see the tooltip

      <t:block t:id='toolTip'>
         This content is extracted using Ajax


public class ToolTipDemo
   private Block toolTip;

   Object onToolTip()
      return toolTip;

Note if both tip and tipEvent are specified, the tipEvent takes precedence and ajax content is only shown
