Total Curvature of a Knot

Check out this practical application of the Fary-Milnor theorem.

John Cook user avatar by
John Cook
·
Oct. 03, 19 · Tutorial
Like (2)
Save
Tweet
Share
5.75K Views

Join the DZone community and get the full member experience.

Join For Free

knot-on-deck-of-dock


Tie a knot in a rope and join the ends together. At each point in the rope, compute the curvature (i.e. how much the rope bends, and integrate this over the length of the rope). The Fary-Milnor theorem says the result must be greater than 4π. This post will illustrate this theorem by computing numerically integrating the curvature of a knot.

You may also like: Fame, Difficulty, and Usefulness.

If p and q are relatively prime integers, then the following equations parameterize a knot.

    x(t) = cos(pt) (cos(qt) + 2)
    y(t) = sin(pt) (cos(qt) + 2)
    z(t) = -sin(qt)

This is, in fact, a torus knot because the curve stays on the surface of a torus (doughnut). We can get a trefoil knot, for example, by setting p = 2 and q = 3.

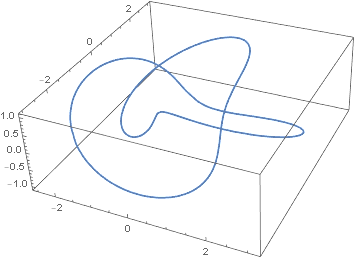

trefoil knot

Trefoil knot

We’ll use Mathematica to compute the total curvature of this knot and other examples. First the parameterization:

    x[t_, p_, q_] := Cos[p t] (Cos[q t] + 2)
    y[t_, p_, q_] := Sin[p t] (Cos[q t] + 2)
    z[t_, p_, q_] := -Sin[q t]


We can plot torus knots as follows:

    k[t_, p_, q_] := {
        x[t, p, q],
        y[t, p, q],
        z[t, p, q]
    }
    ParametricPlot3D[k[t, p, q], {t, 0, 2 Pi}]


Here’s a more complicated knot with p = 3 and q = 7.

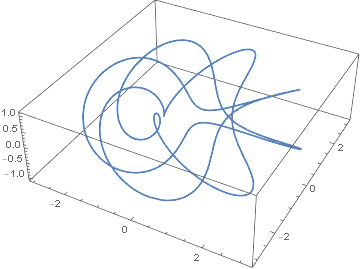

(3,7)-knot

(3, 7) knot

Before we can integrate the curvature with respect to arc length, we need an expression for an element of arc length as a function of the parameter t.

    ds[t_, p_, q_] :=  Sqrt[
        D[x[t, p, q], t]^2 +
        D[y[t, p, q], t]^2 +
        D[z[t, p, q], t]^2
    ]


Now, we can compute the total curvature.

    total[p_, q_] := NIntegrate[
        ArcCurvature[k[t, p, q], t] ds[t, p, q],
        {t, 0, 2 Pi}
    ]


We can use this to find that the total curvature of the (2,3) torus knot, the trefoil, is 17.8224, whereas 4π is 12.5664. So the Fary-Milnor theorem holds.

Let’s do one more example, this time a (1,4) knot.

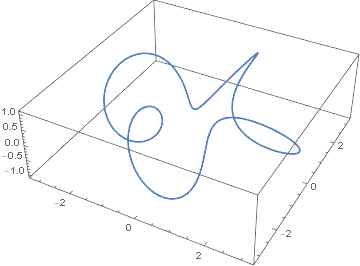

an unknot

An unknot

You can see that this is not actually knot. This doesn’t contradict what we said above because 1 and 4 are not relatively prime.

When we compute its total curvature we get 24.2737, more than 4π. The Fary-Milnor theorem doesn’t say that total curvature in excess of 4π is a sufficient condition for a loop to be knotted; it says it’s necessary. Total curvature less than 4π proves that something isn’t a knot, but curvature greater than 4π doesn’t prove anything.

If you change out the 2s in the parameterization with a larger number, it’s easier to see from the graphs that the curves are on a torus. For example, if we plot the (3,7) knot again, replacing 2’s with 5’s, we can kinda see a torus inside the knot.

    ParametricPlot3D[
         {Cos[3 t] (5 + Cos[7 t]),
          Sin[3 t] (5 +  Cos[7 t]),
          Sin[7 t]}, {t, 0, 2 Pi}]

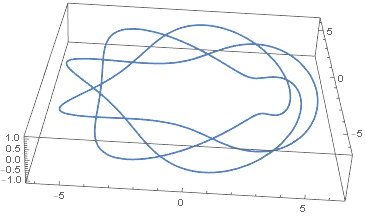

knot (3,7) with a larger radius

knot (3,7) with a larger radius



Further Reading

  • Introduction to R: The Statistical Programming Language.
  • How to Write R Script Explained with an Awesome Example.
  • How to Call Python From Mathematica, Including NumPy.
Knot
