Websockets Support for Apache & NGINX for PHP, Ruby and Node.js

· Performance Zone

See Gartner’s latest research on the application performance monitoring landscape and how APM suites are becoming more and more critical to the business, brought to you in partnership with AppDynamics.

In our previous article, we shared a more complex solution describing how to make your apps faster and more efficient by activating WebSockets support and placing an NGINX balancer in front of your application.

Nevertheless, sometimes such a method may contradict your requirements for some reason, while an application still needs this technology to be implemented. For such cases, Jelastic ensures the full WebSockets support within the available application servers, including both Apache (intended to serve PHP, Ruby and Python apps) and NGINX (for PHP and Ruby apps).

The process of WebSocket’s integration can vary from application to application, but as for the server-side settings, Jelastic provides you with a configuration sample for each of the abovementioned nodes, thus you only need to uncomment it and add a few minor edits according to your app’s specifications (e.g. listener port number).

So, in the step-by-step tutorial below, we’ll show you an example of such configurations for a simple PHP chat project, which is deployed within the environment without the balancer server and uses the WebSockets technology. Let’s get started from the very beginning.

Create Environment and Deploy Application

With the Jelastic Platform you can create the required environment in several clicks – just log into your Jelastic account and follow the steps below:

  1. Click on the New environment button at the top left dashboard corner.


2. Within the appeared Environment Wizard window, switch to the necessary programming language tab and choose the desired application server (we’ll use the Apache one for serving our PHP application). Then set the amount of allocated resources for it by means of cloudlet sliders, type name for your environment (apache-websockets in our case) and click Create.


3. In a few minutes, your new environment will appear at the dashboard.


4. Upload and deploy your application using the Jelastic Deployment Manager or via the remote GIT/SVN repository (the required instruction, according to the chosen engine, can be found in our Deployment Guide).

As a result, your deployed project will be listed inside the appropriate section at the environment’s panel.


Server and Application Configurations

The WebSockets support within the Apache server is provided by means of theproxy_wstunnel_module module, added to the default server’s build. As for the NGINX application server, it uses the embedded ability to proxy the WebSockets connection similarly to the way the NGINX-balancer does.

So it’s time to configure your application server.

  1. Click on the Config button next to your app server node:


2. In the opened Configuration Manager tab, perform the steps within one of the following instruction sections, according to the chosen server:

  • for Apache app server

Find the httpd.conf file inside the conf directory and uncomment the next strings at the very end of it (approximately at the 962nd line).

Location /ws>
 ProxyPass ws://<PORT>
 ProxyPassReverse ws://<PORT>

Now change both <PORT> parameters to the port number, which is listened by your WebSockets application (e.g. our uses the 9000 one).

Make sure it appears the same as the image below.


Save the made changes using the same-named button above the editor.

  • for NGINX app server

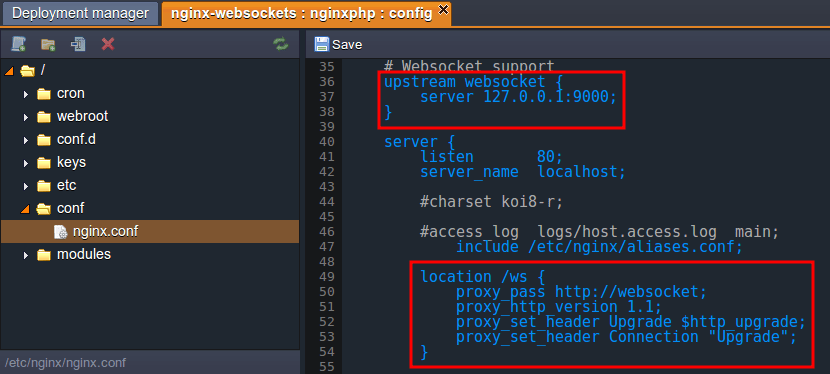

Find the #Websocket support section inside the nginx.conf file (located within the confdirectory) and uncomment the following lines:

upstream websocket {
location /ws {
        proxy_pass http://websocket;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "Upgrade";

Then substitute the <PORT> value with the corresponding port number (i.e. which is listened by your WebSockets application) and Save the performed changes.


3. That’s all the server configurations you need to do, so the only thing left is to configure your deployed application. For that, access your application’s configuration file, which is responsible for WebSockets settings, and adjust the ws path it contains according to the next format:



  • {env_url} should be substituted with your environment domain (can be seen under the environment name at the dashboard, apache-websockets.jelastic.com in our case)
  • {path_to_ws_file} needs to be changed according to the path to the file, that should be accessed upon establishing the WebSockets connection.

It should look similar to the image below:


4. Save the changes and Restart your application server with the corresponding button.


5. Great, now it’s done! Click on Open in browser to run your application in a new browser tab.


6. As you can see, our example chat app is working like a charm.


Even running such a simple chat application, you will still experience the benefits of blazingly fast transferring of messages, available due to the WebSockets protocol usage. Signup for a 2-week-free-trial and share your experience in the comments below.
