Working with Device Information in the Oracle Mobile Application Framework

DZone's Guide to

Working with Device Information in the Oracle Mobile Application Framework

· Java Zone
Free Resource

Learn how to troubleshoot and diagnose some of the most common performance issues in Java today. Brought to you in partnership with AppDynamics.

With the proliferation of new device models, form factors and operating systems, you may be thinking about the challenges to make your application work handle all of these different device properties information as there may be features that rely on specific characteristics or capabilities.
As an example, how frustrating it would be for the user trying to use a mapping feature if the device doesn't support geolocation? Or, just getting the device screen height and width to make sure the content fits nicely and also dynamically present different things on the smaller / larger real state you have available. As a developer, it's your responsibility to make sure everything works and looks good on all devices (even though this is a hard task).
The  Oracle Mobile Application Framework (MAF) utilizes  Apache Cordova to provide access to device properties, SMS, Email, Contacts, Camera, Pictures/Photo Library, Geolocation, Accelerometer, Network, etc. that can either be accessed from Java, JavaScript and Expression Languages in order to support these requirements on your mobile application.

Additionally, the most common functionality (sendEmail, getPicture, createContact, sendSMS, etc) is exposed as a Data Control and can be simply dragged-and-dropped onto an AMX page reducing the need for coding calls to the API and constructing the necessary screens.
The MAF  documentation covers all in details but here is a list of what's currently supported by the framework (through the embedded Apache Cordova API):
  • device.name
  • device.platform
  • device.version
  • device.os
  • device.model
  • device.phonegap
  • hardware.hasCamera
  • hardware.hasContacts
  • hardware.hasTouchScreen
  • hardware.hasGeolocation
  • hardware.hasAccelerometer
  • hardware.hasCompass
  • hardware.hasFileAccess
  • hardware.hasLocalStorage
  • hardware.hasMediaPlayer
  • hardware.hasMediaRecorder
  • hardware.networkStatus
  • hardware.screen.width
  • hardware.screen.height
  • hardware.screen.availableWidth
  • hardware.screen.availableHeight
  • hardware.screen.dpi
  • hardware.screen.diagonalSize
  • hardware.screen.scaleFactor

Most of the property names are self-explanatory and I won't go into the details of each one of them but there is a demo available for you that shows how to get started and use some of the information that the framework provides. Screenshots on both platforms are available below so you can take a peek what it looks like:

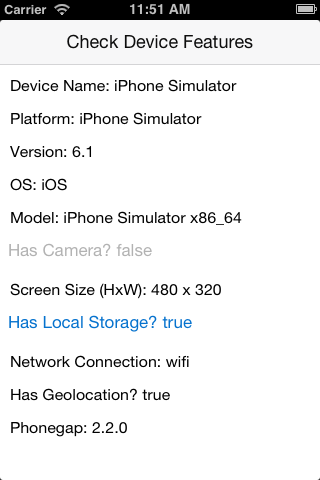

iOS Simulator
Android Emulator
The demo itself uses EL (expression languages) to get the values and then present them in different ways on the AMX page including outputText, buttons, etc and also change the availability of the component based on the feature capability.

In summary, integrating the device features into a Oracle MAF application is easy and flexible, the declarative drag and drop support suits most of the use cases and you can get deeper control programatically.

The source code is available here:  https://github.com/mjabali/DeviceFeatures

Have fun!
