Docker to Docker Networking Between TCP Client and Server

This article presents a step-by-step instructions on how to create a TCP client and server for IoT applications using Docker containers and networking.

By
Raghu N T
·
Updated Jan. 07, 20 · Tutorial
Post on X (opens in a new tab) Share on LinkedIn (opens in a new tab)
10.5K Views

Join the DZone community Save articles, join the discussion, and download Refcards and Trend Reports with a free account.

Join for free Already a member? Log in

telephone

Take a look at how two containers communicate


A TCP-based client and server are a frequently needed setup in IoT-based applications.

Presented in this article are:

  1. A method to create a Java-based client and server to send and receive binary data
  2. The client and server, each run inside a Docker container and communicating through Docker networking.

You may also enjoy: Understanding Docker Networking


Create a TCPClient.java as per the code provided below

Java





x
123



1
import java.net.*;
2
import java.io.*;
3
import java.security.SecureRandom;
4
import java.nio.charset.Charset;
5


6
public class TCPClient
7
{
8
  // initialize socket and input output streams
9
  private Socket socket    = null;
10
  private DataInputStream input = null;
11
  private DataOutputStream out   = null;
12

13
  private static final String CHAR_LOWER = "abcdefghijklmnopqrstuvwxyz";
14
  private static  final String CHAR_UPPER = CHAR_LOWER.toUpperCase();
15
  private static  final String NUMBER = "0123456789";
16


17
  private static final String DATA_FOR_RANDOM_STRING = CHAR_LOWER + CHAR_UPPER + NUMBER;
18
  private static SecureRandom random = new SecureRandom();
19


20
  // constructor to put ip address and port
21
  public TCPClient(String address, int port)
22
  {
23

24


25

26
    // establish a connection
27
    try
28
    {
29
      socket = new Socket(address, port);
30
      System.out.println("Connected");
31


32

33


34
    }
35
    catch(UnknownHostException u)
36
    {
37
      System.out.println(u);
38
    }
39
    catch(IOException i)
40
    {
41
      System.out.println(i);
42
    }
43


44
    // string to read message from input
45
    String line = "";
46
    int linecount = 0;
47


48
    // keep reading until "Over" is input
49
    while (linecount++ != 300)
50
    {
51

52

53
      try{
54
        String name = generateRandomString(8);
55


56
        InputStream is = new ByteArrayInputStream(name.getBytes(Charset.forName("UTF-8")));
57
        // takes input from terminal
58
        input = new DataInputStream(is);
59


60
        // sends output to the socket
61
        out = new DataOutputStream(socket.getOutputStream());
62
      }
63
      catch(UnknownHostException u)
64
      {
65
        System.out.println(u);
66
      }
67
      catch(IOException i)
68
      {
69
        System.out.println(i);
70
      }
71

72
      try
73
      {
74
        line = input.readLine();
75
        out.writeUTF(line);
76
      }
77
      catch(IOException i)
78
      {
79
        System.out.println(i);
80
      }
81
    }
82


83
    // close the connection
84
    try
85
    {
86
      input.close();
87
      out.close();
88
      socket.close();
89
    }
90
    catch(IOException i)
91
    {
92
      System.out.println(i);
93
    }
94
  }
95


96
    public static String generateRandomString(int length) {
97
        if (length < 1) throw new IllegalArgumentException();
98


99
        StringBuilder sb = new StringBuilder(length);
100
        for (int i = 0; i < length; i++) {
101


102
      // 0-62 (exclusive), random returns 0-61
103
            int rndCharAt = random.nextInt(DATA_FOR_RANDOM_STRING.length());
104
            char rndChar = DATA_FOR_RANDOM_STRING.charAt(rndCharAt);
105


106
            // debug
107
            System.out.format("%d\t:\t%c%n", rndCharAt, rndChar);
108


109
            sb.append(rndChar);
110


111
        }
112


113
        return sb.toString();
114


115
    }
116
  public static void main(String args[])
117
  {
118
    TCPClient client = new TCPClient("server", 5678);
119
  }
120
}
121





Create a manifest file for the TCPClient as is shown below:

Java





xxxxxxxxxx
1



1
Manifest-Version: 1.0
2
Created-By: Me
3
Main-Class: TCPClient



Create a Dockerfile for TCPClient as below:

Dockerfile





xxxxxxxxxx
1



1
FROM java:8
2
WORKDIR /
3
ADD TCPClient.jar TCPClient.jar
4
EXPOSE 5678
5
CMD java -jar TCPClient.jar




Create a TCPServer.java as per the code provided below:

Java





xxxxxxxxxx
1
74



1
import java.net.*;
2
import java.io.*;
3


4
public class TCPServer
5
{
6
  //initialize socket and input stream
7
  private Socket     socket = null;
8
  private ServerSocket server = null;
9
  private DataInputStream in   = null;
10
  private File file;
11
  private FileWriter fileWriter;
12


13
  // constructor with port
14
  public TCPServer(int port)
15
  {
16
    // starts server and waits for a connection
17
    try
18
    {
19
      server = new ServerSocket(port);
20
      System.out.println("Server started");
21


22
      System.out.println("Waiting for a client ...");
23


24
      socket = server.accept();
25
      System.out.println("Client accepted");
26


27
      // takes input from the client socket
28
      in = new DataInputStream(
29
        new BufferedInputStream(socket.getInputStream()));
30


31
      String line = "";
32
      int linecount = 0;
33

34
      file = new File("outfile.txt");
35
      fileWriter = new FileWriter(file);
36


37


38
      // reads message from client until "Over" is sent
39
      while (linecount++ != 300)
40
      {
41
        try
42
        {
43
          line = in.readUTF();
44
          System.out.println(line);
45
          fileWriter.write(line);
46


47


48


49
        }
50
        catch(IOException i)
51
        {
52
          System.out.println(i);
53
        }
54
      }
55
      System.out.println("Closing connection");
56
      fileWriter.flush();
57
      fileWriter.close();
58
      // close connection
59
      socket.close();
60
      in.close();
61
    }
62
    catch(IOException i)
63
    {
64
      System.out.println(i);
65
    }
66
  }
67


68
  public static void main(String args[])
69
  {
70
    TCPServer server = new TCPServer(5678);
71
  }
72
}



Create a manifest file for TCPServer as below:

Shell





xxxxxxxxxx
1



1
Manifest-Version: 1.0
2
Created-By: Me
3
Main-Class: TCPServer



Create a Dockerfile for TCPServer as below

Shell





xxxxxxxxxx
1



1
FROM java:8
2
WORKDIR /
3
ADD TCPServer.jar TCPServer.jar
4
EXPOSE 5678
5
CMD java -jar TCPServer.jar

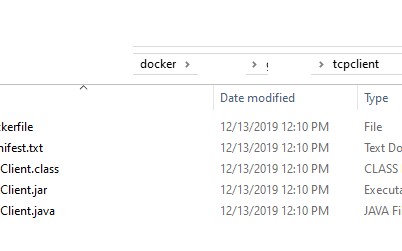

The directory structure should be as displayed as shown below:

Directory structure


Run the following commands at the unix prompt:

Shell





xxxxxxxxxx
1
41



1
javac TCPServer.java
2


3
javac TCPClient.java
4


5

6


7
jar cfm TCPServer.jar manifest.txt TCPServer.class
8


9
jar cfm TCPClient.jar manifest.txt TCPClient.class
10


11

12


13
docker build -t tcpserver .
14


15
docker build -t tcpclient .
16


17

18


19
docker images (to list the docker images)
20


21
docker tag 00c5f2d27133 docker.io/<your account name>/<repo name>:tcpserver
22


23
docker push docker.io/<your account name>/<repo name>:tcpserver
24


25

26


27
docker images (to list the docker images)
28


29
docker tag 00c5f2d27133 docker.io/<your account name>/<repo name>:tcpclient
30


31
docker push docker.io/<your account name>/<repo name>:tcpclient
32


33

34


35
docker pull docker.io/<your account name>/<repo name>:tcpserver
36


37
docker pull docker.io/<your account name>/<repo name>:tcpclient
38


39
docker run <your account name>/<repo name>:tcpserver
40


41
docker run <your account name>/<repo name>:tcpclient




Create the network:

Shell





xxxxxxxxxx
1



1
sudo docker network create client_server_network



Run the server:

Shell





xxxxxxxxxx
1



1
docker run --network-alias server --network client_server_network -it <your account name>/<repo name>:tcpserver



Run the client:

Shell





xxxxxxxxxx
1



1
docker run --network client_server_network -it <your account name>/<repo name>:tcpclient




You should see the client output as shown below:

Client output


And the server output should be as shown below:

Server output



Docker (software) Transmission Control Protocol
