Refcard #256

Getting Started With Ethereum Private Blockchain

Ethereum is a programmable blockchain that allows users to create their own operations. This Refcard highlights fundamental information on Ethereum Blockchain and demonstrates the steps to get a private blockchain up and running. By the end, you will be able to set up two running nodes on one local machine.

9,474
Free .PDF for easy Reference

Written by

Sebastian Ma Blockchain researcher, designer, and developer, TNO
Refcard #256

Getting Started With Ethereum Private Blockchain

Ethereum is a programmable blockchain that allows users to create their own operations. This Refcard highlights fundamental information on Ethereum Blockchain and demonstrates the steps to get a private blockchain up and running. By the end, you will be able to set up two running nodes on one local machine.

9,474
Free .PDF for easy Reference

Written by

Sebastian Ma Blockchain researcher, designer, and developer, TNO
Table of Contents

Introduction

Geth

Summary

Resources - Useful Links

Section 1

Introduction

Background

A blockchain is a distributed computing architecture where every node runs in a peer-to-peer topology, where each node executes and records the same transactions. These transactions are grouped into blocks. Each block contains a one-way hash value. Each new block is verified independently by peer nodes and added to the chain when a consensus is reached. These blocks are linked to their predecessor blocks by the unique hash values, forming a chain. In this way, the blockchain’s distributed dataset (a.k.a. distributed ledger) is kept in consensus across all nodes in the network. Individual user interactions (transactions) with the ledger are append-only, immutable, and secured by strong cryptography. Nodes in the network, in particular the public network, that maintain and verify the transactions (a.k.a. mining) are incentivized by mathematically enforced economic incentives coded into the protocol. All mining nodes will eventually have the same dataset throughout.

Ethereum is an open-source blockchain platform that allows anyone to build and use decentralized applications running on blockchain technology. Ethereum is a programmable blockchain - it allows users to create their own operations. These operations, coded as Smart Contracts, are deployed and executed by the Ethereum Virtual Machine (EVM) running inside every node.

The public blockchain is open to anyone who wants to deploy smart contracts and have their executions performed by public mining nodes. Bitcoin is one of the largest public blockchain networks today. As such, there is limited privacy in the public blockchain. Mining nodes in the public blockchain requires a substantial amount of computational power to maintain the distributed ledger at a large scale. In the Ethereum public blockchain, smart contract codes can be viewed openly.

A private blockchain can be set up within the safety confines of a private network within an organization. Hence, nodes participating in transactions are authenticated and authorized machines within the organizational network.

The following text of this Refcard highlights fundamental information on the Ethereum Blockchain and the basic steps to get a private blockchain up and running. At the end of this Refcard, you should be able to set up two running nodes on one local machine.

Further reading:

http://www.ethdocs.org/en/latest/introduction/what-is-ethereum.html

https://bitsonblocks.net/2016/10/02/a-gentle-introduction-to-ethereum/

Accounts and Contracts

There are 2 types of accounts in Ethereum:

  • External Account, which stores ETH balance – This contains the address of the User that was created using the Web3.js API, e,g, personal.newAccount(…). These accounts are used for executing smart contract transactions. ETH is your incentive received for using your account to mine transactions. The address of the account is the public key, and the password of the account is the private key.

A public example of an External account that stores ETH can be found here:
https://etherscan.io/address/0x2d7c76202834a11a99576acf2ca95a7e66928ba0

  • Contract Account, which stores ETH balance and has codes – This contains the address of an instance of Smart Contract codes. Instance(s) of smart contracts can be created programmatically or via Browser-Solidity using Web3 APIs.

A public example of a contract account that has a smart contract can be found here:
https://etherscan.io/address/0x900d0881a2e85a8e4076412ad1cefbe2d39c566c

Further reading:

https://github.com/ethereum/go-ethereum/wiki/Contracts-and-Transactions

https://github.com/ethereum/go-ethereum/wiki/Managing-your-accounts

Smart Contract Creation

Smart Contracts contain the program codes to be executed, and are analogous to a C++, C#, or Java class. It contains:

  • States variables

  • Functions

  • Events

Further reading:

http://solidity.readthedocs.io/en/develop/contracts.html?highlight=constructor#creating-contracts

Smart Contracts are compiled to bytecodes. These bytecodes are deployed as instances of Smart Contracts in the Ethereum Virtual Machine (EVM).

Image title

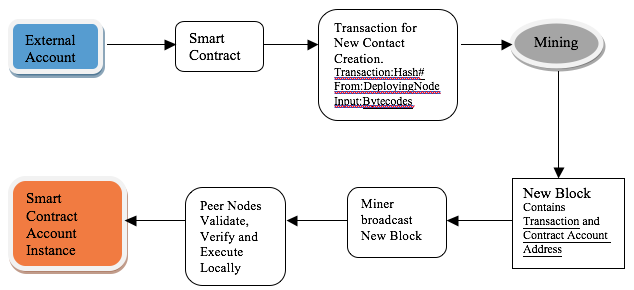

An instance of a Smart Contract is created by an External Account (or by the default account of the executing node):

  • The creation process triggers a Transaction.
  • The Transaction has to be mined to take effect. For example, later sections will show that you can check pending transactions using the API eth.pendingTransactions().
  • Mining is “competitively performed” by peer nodes. For example, later sections will show this by using the API miner.start().
  • On successful mining by a node, a new Block is created, which contains the Transaction and Contract Address.
  • The mining node will broadcast the new Block to peer nodes.
  • The new block will be validated and verified by peer nodes to be become an official block in their local blockchains.
  • The new instance of the Smart Contract contains a unique address. This address must be saved, recorded, or registered. It will be retrieved for subsequent "contract execution."

Smart Contract Execution

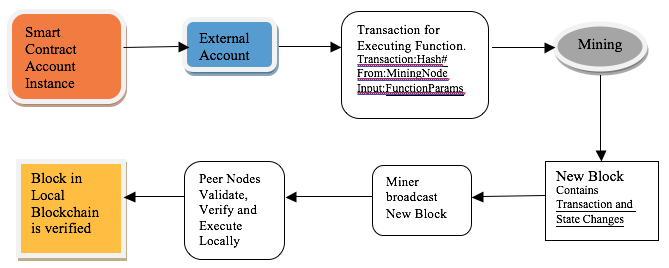

A Smart Contract contains functions that can be executed by an External Account or a Decentralized Application (DAPP). In the case of a DAPP, the executing node would have a default External Account.

Image title


  • To execute a function defined in the Smart Contract, the DAPP retrieves a unique instance of the Smart Contract by its address.

E.g.

> var address = "0xc7caf784fae5840bdc893b03b7391fce6efb6190"
> var myContract = eth.contract(abi).at(address)
  • Functions that change the state(s) of a contract will trigger a Transaction.

E.g.

> myContract.setTimeIn(“08:45”)
  • The Transaction has to be mined to take effect. For example, later sections will show that you can check pending transactions using the API eth.pendingTransactions().
  • Mining is “competitively performed” by peer nodes. For example, later sections will show this by using the API miner.start().
  • On successful mining by a node, a new Block is created, which contains the Transaction.
  • The mining node broadcasts the new Block to peer nodes.
  • The new block will be validated, verified, and its transaction executed locally by peer nodes to be become an official block in their local blockchains.
Section 2

Geth

Geth is an implementation of a full Ethereum node written in the Go programming language. It is a command line process.

Automated builds are available for stable releases and the unstable master branch.

Binary archives are published at https://geth.ethereum.org/downloads/

You will be executing geth from the command line. Set your search PATH accordingly.

For example, my geth was installed in a sub-directory, geth-alltools-windows-amd64-1.6.5-cf87713d. I set my path as:

set PATH=%PATH%;C:\dev\ethereum\geth-alltools-windows-amd64-1.6.5-cf87713d

Creating Your Private Blockchain

Assuming our current working folder is C:\dev\ethereum, create the following 3 sub-folders:

  • C:\dev\ethereum\geth\data\00 This folder contains the default Genesis block data.
  • C:\dev\ethereum\geth\data\01 This is the folder for the first geth node.
  • C:\dev\ethereum\geth\data\02 This is the folder for the second geth node.

The Genesis Block

The Genesis block is the root block, i.e. the first block in the blockchain.

The default genesis block can be provided in the form of a JSON file, as shown below.

Store the below JSON data in the file C:\dev\ethereum\geth\data\00\DefaultGenesis.json:

{
    "config":{
      "homesteadBlock":10
    },
    "nonce": "0x0000000000000042",
    "timestamp": "0x00",
    "parentHash": "0x0000000000000000000000000000000000000000000000000000000000000000",
    "extraData": "0x00",
    "gasLimit": "0x8000000",
    "difficulty": "0x400",
    "mixhash": "0x0000000000000000000000000000000000000000000000000000000000000000",
    "coinbase": "0x3333333333333333333333333333333333333333",
    "alloc": {}
}

Data Directories

If your data directories are not yet created, create a data directory for each node in your private blockchain.

For instance, below are two data directories for two running nodes in one machine.

C:\dev\ethereum\geth\data\01 This is the folder for the first geth node.

C:\dev\ethereum\geth\data\02 This is the folder for the second geth node.

Each data directory will therefore store an individual node’s blockchain data.

Initializing the Data Directory

Before starting up the geth nodes, their data directories must be initialized.

Below are the command lines to initialize the nodes with the default genesis data.

To initialize node 1:

geth --datadir "C:\dev\ethereum\geth\data\01" init "C:\dev\ethereum\geth\data\00\ DefaultGenesis.json"

To initialize node 2:

geth --datadir "C:\dev\ethereum\geth\data\02" init "C:\dev\ethereum\geth\data\00\ DefaultGenesis.json"

Starting Geth Node Instances

Below is the command line to start node 1. The default listening port is 30303, and the default rpc port is 8545. The ipcpath name must be a unique pipe name.

Note that --rpc and --rpccorsdomain must be specified. This is so that the geth node will accept the RPC protocol.

geth --datadir "C:\dev\ethereum\geth\data\01" --ipcpathgeth01 --nodiscover --networkid 1234 --rpc --rpccorsdomain "*" console 2> "C:\dev\ethereum\geth\data\01\console.log"

For node 2, the listening port 30304 and the rpc port must be explicitly specified.

geth --datadir "C:\dev\ethereum\geth\data\02" --ipcpathgeth02 --port 30304 --nodiscover --networkid 1234 --rpc --rpcport 8546 --rpccorsdomain "*" console 2> "C:\dev\ethereum\geth\data\02\console.log"

Attaching to Geth Node Instances

With both nodes started up, they are running as a server process, waiting for events and commands to be executed. You should not interrupt the server process by entering commands in its console window. Instead, you should send commands to it from another client process.

This is achieved by starting another geth process as a client and connecting it to the geth server process.

Once attached, you can then send interactive commands to the server process. You can do this by first attaching your geth client to a geth server process.

This command line attaches to geth node 1 via namepipe:

geth attach ipc:\\.\pipe\geth01

Attaching to geth node 2 via namepipe:

geth attach ipc:\\.\pipe\geth02

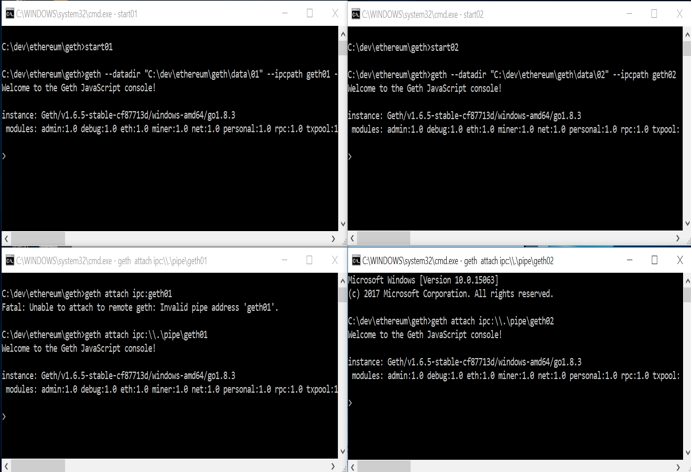

Below are four screenshots, where the top two console windows are geth server processes and the bottom two console windows are the geth clients.

Image title


Adding Peer Nodes Manually

The two running nodes do not know each other even though we have specified that they are in the same network, with id 1234. For now, we are not bootstrapping nodes on startup, i.e. not configuring known static nodes on startup. We will add a peer node manually.

To get the node information of node 1, enter the function admin.nodeInfo from the node 1 client console:

> admin.nodeInfo
{
  enode: "enode://b71b3f6e23f33a07d30b862dd53f3364e46057b85183b4d0d856a4f7…831ab@[::]:30303?discport=0",

To get the node information of node 2, enter the function admin.nodeInfo from the node 2 client console:

> admin.nodeInfo
{
  enode: "enode://deb200d8ea9c67dd9675b920072145576311d20cb229e80e544…eb7a131ee@[::]:30304?discport=0",
...

In node 1, you can add node 2 by using the admin.addPeer function by specifying the entire enode data of node 2 as below. This function will return "true":

>admin.addPeer("enode://deb200d8ea9c67dd9675b920072145576311…b8eb7a131ee@[::]:30304?discport=0")
true
>

Once added, both nodes will recognize each other. You can verify this using the admin.peers function.

From node 1:

> admin.peers
[{
    caps: ["eth/63"],
    id: "deb200d8ea9c67dd9675b920072145576311d20cb229e80e….3b9cbbf580ca261f85c3c642fbb7b8eb7a131ee",

From node 2:

> admin.peers
[{
    caps: ["eth/63"],
    id: "b71b3f6e23f33a07d30b862dd53f3364e46057b85183b4…db399c0c227ec9158512a5a8e2d883efab7831ab",

Add a New Account

We have to add our first account to the blockchain of node 1 so that the account can be used for executing transactions. This is the External account, owned by a person.

From node 1, enter the function personal.newAccount and provide your password. This function will return the address of the newly created account.

> personal.newAccount(<".....you password here.....">) "0x4799c873f6574b299854bfd831ae99ad2e664e30"

The string of numbers and letters is the address of the new account in node 1.

Important: There is no way to restore your account if you forget your password. Never forget your password. Keep it in a safe place, and do not store it on your machine.

Eventual Consistency

Below is a demonstration of eventual consistency between the two nodes.

Start mining on node 1 by using the function miner.start(1), where 1 refers to the number of threads. Note that the miner.start(n) function will always return "null." Unless you have many CPU cores, keep the thread number low to avoid high CPU usage. Note that mining without any pending transaction can still earn your default account incentive (ETH). It creates empty blocks, thus strengthening the integrity of the blockchain tree.

> miner.start(1)
null
> eth.blockNumber
8
> eth.blockNumber
8
> eth.blockNumber
9
> eth.blockNumber
10
...

Stop mining on node 1 by using the function miner.stop(). This function returns "true":

> miner.stop()
true

Both nodes will have the same number of blocks in their blockchain.

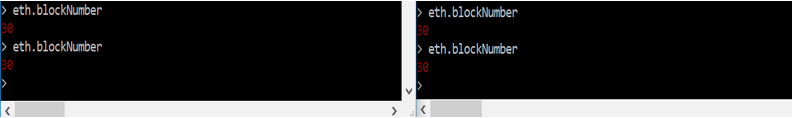

From either node, as shown below, you can query the number of blocks by using the function eth.blockNumber.

Image title


Both nodes will get the same block per block number, e.g. hash shown below, being mined by node 1:

> eth.getBlock(30)
{
  difficulty: 132864,
  extraData: "0xd983010605846765746887676f312e382e338777696e646f7773",
  gasLimit: 130340787,
  gasUsed: 0,
  hash: "0xab2afb75d7082e0f62432ed518e6596643e158343c83af4a6b20f60a08480f75",
  logsBloom: "0x0000000000000000000000000000000000…00000000000000000000000000000000000000000000000",
  miner: "0x4799c873f6574b299854bfd831ae99ad2e664e30",

Alternatively, you can pass in the last block number to the eth.getBlock function and get the miner address directly:

> eth.getBlock(eth.blockNumber).miner
"0x4799c873f6574b299854bfd831ae99ad2e664e30"

For any node to start mining, it requires an external account.

Hence, we now add a new external account in node 2’s client console:

> personal.newAccount(<"…your password here…">)
"0x5be060fa31a851a20a4739dc8d45619f6d292461"

The string of numbers and letters is the address of the new account in node 2. Once again, there is no way to restore your account if you forget your password. Keep it in a safe place, not stored on your machine.

Node 2 can start mining as per node 1. Effectively, both nodes can now compete to mine new blocks.

While both nodes have been issued the miner.start(1) function, you can query the last block’s miner from either the node 1 client or node 2 client console:

> eth.getBlock(eth.blockNumber).miner
"0x5be060fa31a851a20a4739dc8d45619f6d292461"   mined by node 2 account
> eth.getBlock(eth.blockNumber).miner
"0x5be060fa31a851a20a4739dc8d45619f6d292461"
> eth.getBlock(eth.blockNumber).miner
"0x5be060fa31a851a20a4739dc8d45619f6d292461"
> eth.getBlock(eth.blockNumber).miner
"0x4799c873f6574b299854bfd831ae99ad2e664e30"   mined by node 1 account
> eth.getBlock(eth.blockNumber).miner
"0x4799c873f6574b299854bfd831ae99ad2e664e30"

Further reading:

https://github.com/ethereum/go-ethereum/wiki/Private-network

Browser-Solidity: Preparing Your First Smart Contract

Solidity is the programming language used to write smart contract codes.

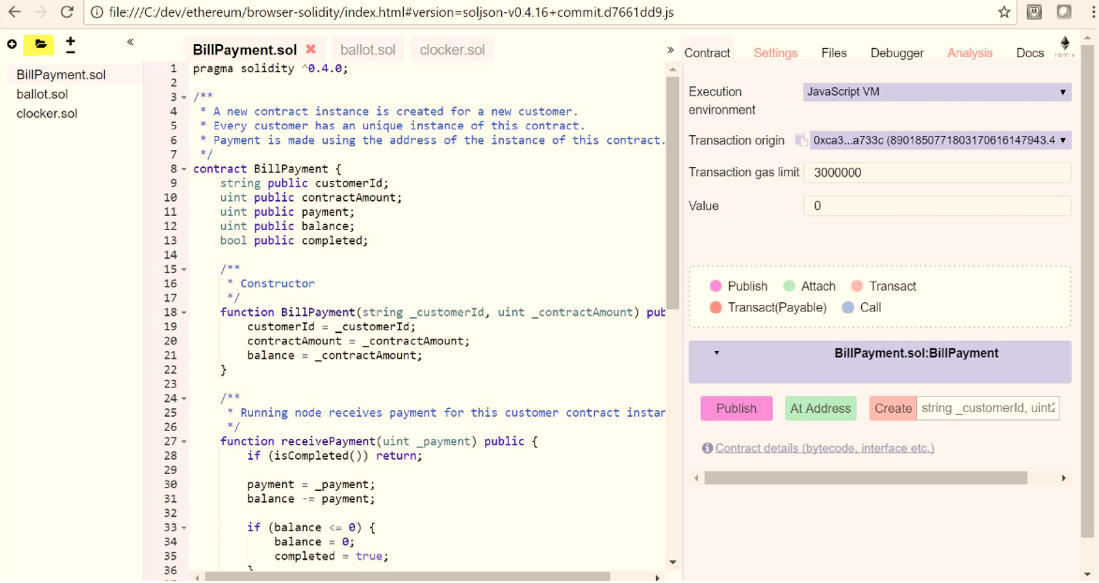

Browser-Solidity is a Web IDE environment to write smart contract codes, as well as compile and deploy them to your geth nodes.

You can download the built version from https://github.com/ethereum/browser-solidity.

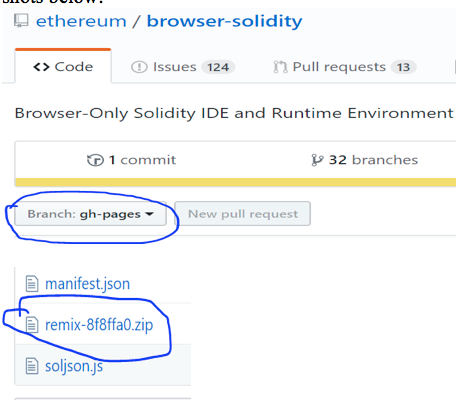

From the Branch drop-down button, select “gh-pages” and download the zip file. See the screen shots below.

Image title


Building Browser-Solidity From Source

You may want to build Browser-Solidity if you find that the above downloaded zip does not work as expected. For example, there was a bug concerning “Gas Limit” and the fix may not have made it to the published zip file. The latest source would have contained the fix.

I manually built from the master by following the README.md instructions in the Master Branch.

The pre-requisites to build are to have npm and Node.js installed on your machine.

Refer to https://docs.npmjs.com/getting-started/installing-node, and then the following steps (assuming my working directory is C:\dev\ethereum):

* git clone https://github.com/ethereum/browser-solidity

* cd browser-solidity

* npm install - fetches dependencies and executes npm run prepublish to build the application.

Starting Browser-Solidity

To start Browser-Solidity, run npm start and open http://127.0.0.1:8080 in your browser as shown below (assuming Browser-Solidity has been git cloned and built in the directory C:\dev\ethereum\browser-solidity):

cd C:\dev\ethereum\browser-solidity

C:\dev\ethereum\browser-solidity>npm start
> browser-solidity@0.0.0 start C:\dev\ethereum\browser-solidity
> npm-run-all -lpr serve watch onchange

[serve   ]
[serve   ] > browser-solidity@0.0.0 serve C:\dev\ethereum\browser-solidity
[serve   ] > execr --silent http-server .
...
[onchange] > browser-solidity@0.0.0 lint C:\dev\ethereum\browser-solidity
[onchange] > standard | notify-error
[onchange]
[onchange] standard: Use JavaScript Standard Style (http://standardjs.com)
[onchange]   C:\dev\ethereum\browser-solidity\src\app.js:61:7: 'settingsView' is assigned a value but never used.
[onchange]   C:\dev\ethereum\browser-solidity\src\universal-dapp.js:287:5: Move function declaration to function body root.

Now open http://127.0.0.1:8080 in your browser.

Alternatively, you can also open C:\dev\ethereum\browser-solidity\index.html directly in your browser.

Your First Smart Contract

This section describes the steps to write and deploy a simple smart contract to node 1.

A sample code of a Solidity smart contract named BillPayment.sol is given below. You can save it locally and open it from Browser-Solidity.

pragma solidity ^0.4.0;

/**
 * A new contract instance is created for a new customer.
 * Every customer has an unique instance of this contract.
 * Payment is made using the address of the instance of this contract.
 */
contract BillPayment {
    string public customerId;
uint public contractAmount;
uint public payment;
uint public balance;
bool public completed;

    /**
     * Constructor
     */
    function BillPayment(string _customerId, uint _contractAmount) public {
        customerId = _customerId;
  contractAmount = _contractAmount;
  balance = _contractAmount;
    }

    /**
     * Running node receives payment for this customer contract instance.
    */
    function receivePayment(uint _payment) public {
        if (isCompleted()) return;
  payment = _payment;
  balance -= payment;

  if (balance <= 0) {
balance = 0;
completed = true;
  }
    }

    /**
     * Get the customer ID.
     */
    function getCustomerId() constant returns (string) {
        return customerId;
    }

    /**
     * Get the contract amount.
     */
    function getContractAmount() constant returns (uint) {
        return contractAmount;
    }

    /**
     * Get the outstanding balance yet to be received.
     */
    function getBalance() constant returns (uint) {
        return balance;
    }

    /**
     * Get the last payment received.
     */
    function getPayment() constant returns (uint) {
        return payment;
    }

    /**
     * Indicates if contract is fully received.
     */
    function isCompleted() constant returns (bool) {
return completed;
    }
}

Further reading:

http://solidity.readthedocs.io/en/develop/introduction-to-smart-contracts.html

Deploy Your First Smart Contract

Open the BillPayment.sol smart contract code file from Browser-Solidity using the file open icon. Please note that you will need to be connected to the Internet, because Browser-Solidity will attempt the retrieve the latest solidity compiler.

Image title

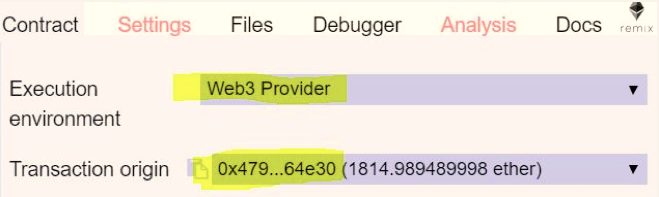

To deploy the smart contract to node 1, change the Execution environment drop-down selection to “Web3 Provider” as shown below. Accept the default Web3 Provider endpoint as

http://localhost:8545

Image title


Once switched, it uses the first account address for transaction execution (see Transaction origin).

Create Your First Smart Contract Instance

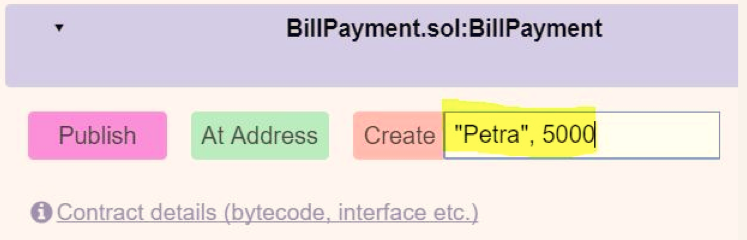

Our BillPayment smart contract constructor requires two parameters: the _customerId string and _contractAmount integer. To create an instance, you can provide these values in the textbox shown below, then click on the Create button.

Image title

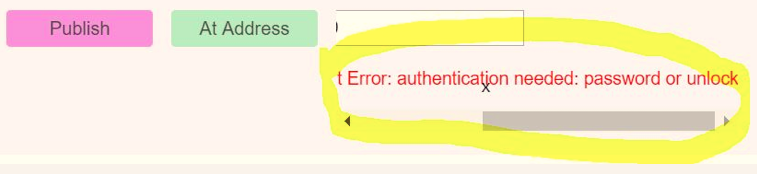

Notice the authentication Error message as displayed below. To create a new instance, you will have to provide the account address and its password.

Image title


From the node 1 client console, enter eth.accounts. This function will return a list of accounts, which we created earlier (in this case, we created only one external account).

> eth.accounts
["0x4799c873f6574b299854bfd831ae99ad2e664e30"]

We will unlock this account with its password in quotes " " using the personal.unlockAccount function.

> personal.unlockAccount(eth.accounts[0], <"...your password...">)
true

Once unlocked, click on the Create button again.

Image title

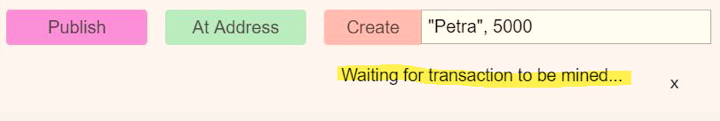

Now the new message “Waiting for transaction to be mined…” appears. Although our geth server processes for node 1 and node 2 are up and running, they are not actively mining any transaction(s). You can pass in parameters when starting the geth server so that mining threads are also started automatically.

To better understand blockchain mechanisms, we will do this manually and interactively. Follow the next section on “Mining your first Blockchain Transaction.”

Mining Your First Blockchain Transaction

This section will describe the steps to mine a blockchain transaction manually.

First, let’s query our pending transaction using the eth.pendingTransactions function.

From the node 1 client console, enter eth.pendingTransactions. It will return a list of transactions:

> eth.pendingTransactions
[{
    blockHash: null,
    blockNumber: null,
    from: "0x4799c873f6574b299854bfd831ae99ad2e664e30",
    gas: 506756,
    gasPrice: 18000000000,
    hash: "0xf325f2a17457151132975236734bb8c6a0f387c9feee4e05c325a7f99afa14fe",
    input: "0x6060604052341561000f57600080fd5b6040516106a03803806106a083398101…46101bc5780639d9…",
    nonce: 16,
    r: "0xf3800b099aaad5a4197eaca1dbff0dcc16b9ddc0f46a95bdd591ac4698bd8be9",
    s: "0x884d4e4995beedb7844b4a7060c24c917804f54597d2fce02f3f6e82a71c55a",
    to: null,
    transactionIndex: 0,
    v: "0x1b",
    value: 0
}]
>

Now enter miner.start(1), where 1 is the number of threads used for mining transactions.

Query eth.pendingTransactions again. If it returns an empty list [], it means the above transaction has been mined. Issue the miner.stop() function to stop mining.

> miner.start(1)
null
…
> eth.pendingTransactions
[]
> miner.stop()
true

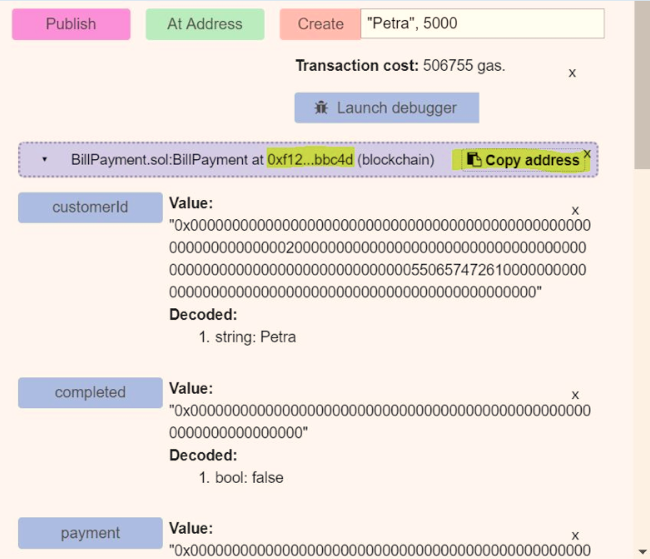

Notice that Browser-Solidity will refresh, with the BillPayment contract address displayed (see highlight below).

Image title


Again, we are doing these steps manually to demonstrate the procedures involved.

The first thing to do is to click on the ‘Copy address’ button to copy the Contract address “0xf125233002884fd827947d21b1fa377d4b6bbc4d.” Save this address in a text file for later use.

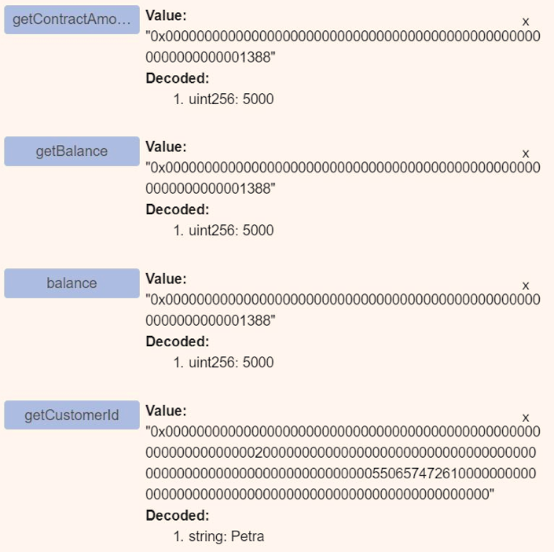

In Browser-Solidity, scroll until you see that the values of the contract instance properties initialized (as shown below).

Image title


Changing the State of a Contract Instance

Let us now try to change or update the state data of our contract instance.

Our BillPayment contract has a receivePayment function that accepts an integer amount.

From Browser-Solidity, scroll to the receivePayment function and enter 100 in its textbox and click on the function button.

Image title

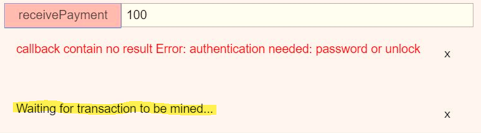

An authentication error is displayed again because changing the state of a smart contract instance will trigger a new transaction. You can unlock the account using the function personal.unlockAccount again (refer to the section, “Create Your Smart First Contract Instance”).

> personal.unlockAccount(eth.accounts[0], <"...your password...">)
true

Image title


Upon successfully unlocking your account, there is a transaction waiting to be mined again (see highlighted message above).

From the node 1 client console, you can query the pending transaction as shown:

> eth.pendingTransactions
[{
    blockHash: null,
    blockNumber: null,
    from: "0x4799c873f6574b299854bfd831ae99ad2e664e30",
    gas: 47193,
    gasPrice: 18000000000,
    hash: "0x2c3f24e19b8efb0c4d85705392f45bdf07c32492b72ab566c8c9feee31a8ced0",
    input: "0xe2eab4830000000000000000000000000000000000000000000000000000000000000064",
    nonce: 17,
    r: "0x91b6ac27df4d9ef372e1d28287e9f5f636fce6a62b23a015b0be9a98c41b83a",
    s: "0x6b148b18a7bfc814c3440757a7d8095fdf30821013fed8d35427f0e638a8732a",
    to: "0xf125233002884fd827947d21b1fa377d4b6bbc4d",
    transactionIndex: 0,
    v: "0x1c",
    value: 0
}]

To mine the transaction, enter the miner.start(1) function. Once successfully mined, stop the mining using miner.stop().

> miner.start(1)
…
> eth.pendingTransactions
[]
> miner.stop()

These are similar to the steps described in the section, “Mining Your First Blockchain Transaction.”

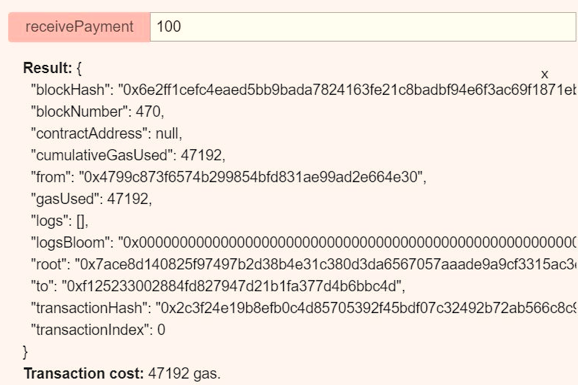

After the transaction is mined, Browser-Solidity will refresh with the result of the new block as shown below.

The contract states are also updated. Scroll and click on the getter functions to refresh their values (see highlights below).

Retrieving an Instance of a Contract

You have created an instance of a smart contract in Browser-Solidity. This section describes how you can retrieve it to query or update its state values.

Previously, at the end of “Mining Your First Blockchain Transaction,” you copied the address of the contract (e.g. in my example, the contract address is “0xf125233002884fd827947d21b1fa377d4b6bbc4d”).

In Browser-Solidity, scroll to the section below.

Image title


From the Interface textbox, copy the ABI.

ABI stands for Application Binary Interface. This is the interface between solidity contracts and the EVM (Ethereum Virtual Machine). The interface contains the properties and method signatures of a contract.

You can retrieve the contract instance using the contract address and its ABI.

From the node 1 client console, paste the ABI to a variable shown below.

> var abi = [{"constant":true,"inputs":[],"name":"getBalance","outputs
……………………
…:"nonpayable","type":"constructor"}]

Set the address variable from your copied/saved contract address.

> var myContractAddr = "0xf125233002884fd827947d21b1fa377d4b6bbc4d"
Undefined

Now, retrieve your contract using the below functions.

> var myContract = eth.contract(abi).at(myContractAddr)
Undefined

Finally, you can query the states of your contract instance as shown below. Note that read-only functions do not create any transactions as they do not change state.

> myContract.getBalance()
4900
> myContract.getPayment()
100
> myContract.getContractAmount()
5000

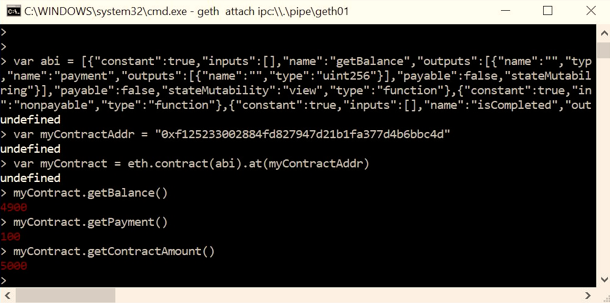

The screenshot below shows the function statements in the node 1 client console in its entirety.

Image title


Create a Transaction From Another Node

This section describes and demonstrates that mining nodes in your private blockchain network is synchronized and that it competes for mining transactions. Again, we will show this manually by:

  • Creating a transaction from node 2.
  • Mining the transaction from node 1.
  • Verifying the result from node 2.

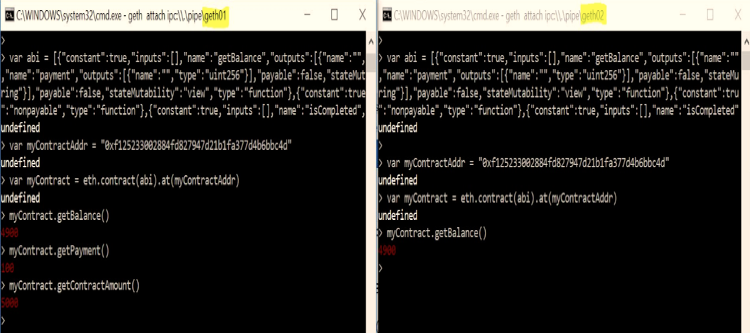

From both the node 1 and node 2 client consoles, which are attached to their respective server processes, enter the command functions shown in the screenshot below.

Image title


Both nodes retrieve the same instance of a smart contract, and both nodes have the same contract balance amount (using the getBalance() function).

Create a Transaction From Node 2

We use node 2 to receive a payment of 200 via the smart contract function, receivePayment(). Note that the receivePayment() function can accept a second parameter for the account address that is used to create this transaction. (Note that you can also set web3.eth.defaultAccount = "<…account address…>", after which you can just call receivePayment(200) with one parameter.)

The authentication error is highlighted and we resolve it by unlocking the account with its password.

> myContract.receivePayment(200, {from:eth.accounts[0]})

Error: authentication needed: password or unlock
at web3.js:3104:20
at web3.js:6191:15
at web3.js:5004:36
at web3.js:4061:16
at apply (<native code>)
at web3.js:4147:16
    at <anonymous>:1:1
> personal.unlockAccount(eth.accounts[0], <"...your password...">)
true

We call the receivePayment() function again, and this time it successfully returns a transaction hash value, “0x42…,” as shown below.

> myContract.receivePayment(200, {from:eth.accounts[0]})
"0x42bdf8d4ee6bc3ad7189989c0b266cdea9695a0865b10ecf6348f3493d5ab69c"
>

You can verify this transaction hash by looking at the hash value from the pending transactions.

> eth.pendingTransactions
[{
    blockHash: null,
    blockNumber: null,
    from: "0x5be060fa31a851a20a4739dc8d45619f6d292461",
    gas: 90000,
    gasPrice: 18000000000,
    hash: "0x42bdf8d4ee6bc3ad7189989c0b266cdea9695a0865b10ecf6348f3493d5ab69c",
    input: "0xe2eab48300000000000000000000000000000000000000000000000000000000000000c8",
    nonce: 1,
    r: "0x9105c46414ecd30d5008f7e42c3757bbeffa4dfc88c19cbc41b6fbc93d85f639",
    s: "0x51b9229643e7c39eefaca0fa7d04f4698529239a74c38a695e215ce4d2a409ee",
    to: "0xf125233002884fd827947d21b1fa377d4b6bbc4d",
    transactionIndex: 0,
    v: "0x1c",

Node 2 has now created the transaction, and is waiting to be mined.

Mine the Transaction From Node 1

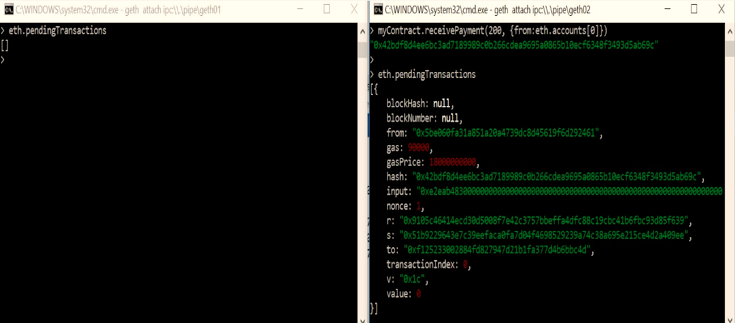

Since the transaction is created by node 2, it is pending only on node 2, not node 1. The screenshot below demonstrates this.

Image title


However, any node in the same private blockchain network can compete to mine the transaction. To demonstrate this, we let node 1 do the mining by issuing miner.start(1) on node 1.

> miner.start(1)
null

Verify the Results Using Node 2

Once node 1 has mined the transaction, we can verify the result in node 2.

From the node 2 client console, we check that its pending transaction is gone (check again by using eth.pendingTransactions), and we verify the expected values of the last payment and remaining balance of our contract (using our smart contract functions getPayment() and getBalance() respectively) are indeed correct.

> eth.pendingTransactions
[{
    blockHash: null,
    blockNumber: null,
    from: "0x5be060fa31a851a20a4739dc8d45619f6d292461",
    gas: 90000,
    gasPrice: 18000000000,
    hash: "0x42bdf8d4ee6bc3ad7189989c0b266cdea9695a0865b10ecf6348f3493d5ab69c",
    input: "0xe2eab48300000000000000000000000000000000000000000000000000000000000000c8",
    nonce: 1,
    r: "0x9105c46414ecd30d5008f7e42c3757bbeffa4dfc88c19cbc41b6fbc93d85f639",
    s: "0x51b9229643e7c39eefaca0fa7d04f4698529239a74c38a695e215ce4d2a409ee",
    to: "0xf125233002884fd827947d21b1fa377d4b6bbc4d",
    transactionIndex: 0,
    v: "0x1c",
    value: 0
}]
> eth.pendingTransactions
[]
> myContract.getPayment()

200

> myContract.getBalance()

4700

>

TIP: For any other node to mine a transaction, admin.peers must reflect the nodes are in the same network. If you have re-started your system, use admin.addPeer to add your node to the current peer again.

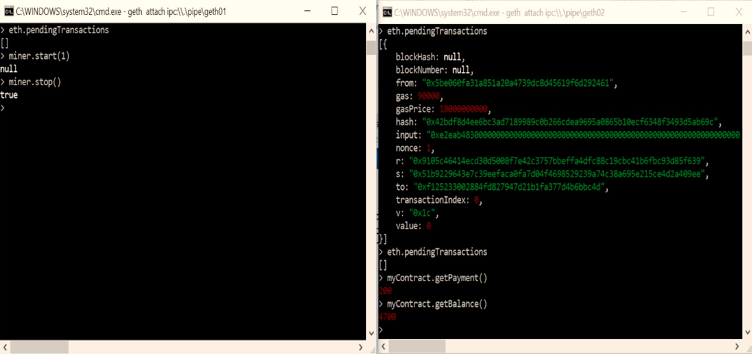

The final screenshot below shows node 1 and node 2 in their entirety.

Image title


Section 3

Summary

Read-only function calls do not create new Transactions. These functions do not change the state(s) of the contract instance. Therefore, as long as nodes have the address of the contract instance, they can call as many times as they want to retrieve the states.

Functions that change the state(s) of the contract instance require Transactions. Each invocation will create a new Transaction, waiting to be mined. Once mined, the new Block is broadcast. Peer nodes will validate and execute it to update its local blockchain.

This is yet another take on "distributed transactions," or in our case, adistributed-deferred-transaction with eventual consistency. All mining nodes will have the same copy of distributed ledgers.

{{ parent.title || parent.header.title}}

{{ parent.tldr }}

{{ parent.urlSource.name }}
