Refcard #103

Leveraging ColdFusion 9 Exposed Services from Java

CF-as-a-Service From Java

Written by

Mark Mandel Owner, Compound Theory

Expand your knowledge of ColdFusion with Exposed Services to unlock capabilities that other languages and technologies can take advantage of.

Free PDF
Section 1

What is ColdFusion?

ColdFusion is a Web application development server based on J2EE technology, that allows for system programming through the ColdFusion Markup language.

ColdFusion comes bundled with multiple services to simplify the development process of Web applications, including PDF manipulation, image manipulation, integrated search support, Microsoft Office integration, Caching, Encryption services and many more.

You can download and use ColdFusion 9 for free for 30 days


Section 2

ColdFusion 9 Exposed Services

ColdFusion Exposed Services are a series of Web Services that are available as a new core feature in ColdFusion 9, that expose many of its in built capabilities, so that other languages and technologies can take advantage of them.

These Web Services can be consumed as either SOAP based Web Services, or as REST Web Services, depending on what is the best fit for your system.

The following capabilities are exposed through the ColdFusion as a Service Web Services:

  • Creating PDFs from HTML
  • Editing exisinting PDFs, including:
    • merging PDFs
    • deleting pages
    • extracting pages
    • creating thumbnails
    • adding watermarks
    • processing DDX
  • Manipulating Images, including:
  • drawing on Images
  • croping
  • scaling
  • Retrieving meta data fr om Images
  • Sending and r eceiving Email

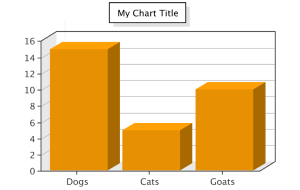

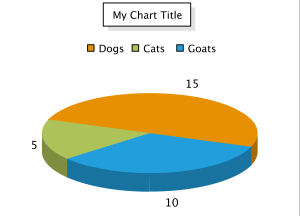

  • Generating Graphical Charts
Section 3

Setting up ColdFusion as a Service

By default,ColdFusion as a Service is not set up to be publicly available, for security reasons. To that end, we will need to go into the ColdFusion Administrator to enable access to these Web Services and set up a user who has access to the ColdFusion Web Services, and grant them access.

To create this user, point your browser to http://localhost/CFIDE/administrator, and log in with the password you set up when you first installed ColdFusion.

(We will assume that your ColdFusion install has been set up locally from here on in.)

Navigate to Security > User Manager through the left hand side menu.

side menu

Click the "Add User Button to open the form to add a User.

ad user button

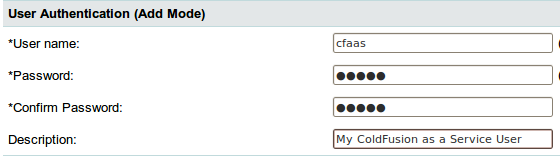

Under "User Authentication, fill in the user and password fields with "cfaas". This will create a new user named "cfaas" with a password of "cfaas". At a later date you may wish to change this to something more secure, but this serves well for demonstrative purposes.

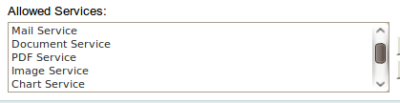

At the bottom of the page is a section entitled "Exposed Services, in which we want to move all the services from

"Prohibited Services to "Allowed Services. This gives our user "cfaas" access to all the Services that ship with ColdFusion.

services ready

Hit "Save" when this is complete to save the user. You have now successfully created the user for accessing the ColdFusion as a Service Web Services.

Hot Tip

The administration section named "Allowed IP Addresses"can also be used to limit the IP addresses the ColdFusion Services can be accessed from. Depending on your set up, you may need to set up access to the IP address the request is coming from.

Section 4

SOAP vs REST Web Services

Generally speaking, Web Services are accessed via SOAP, or they can be be accessed via REST. ColdFusion Services can actually be accessed via either, however for this Refcard, we will be accessing the Web Service via SOAP, as there are some limitations to what can be accomplished with ColdFusion Services via their REST interface.

Section 5

Generating the Web Service Code With WSImport

To generate the Java code to access the ColdFusion Web Services, we run the tool "wsimport" that comes with the Java SDK from the root of our Java project. There is an assumption that the Java source with be in a "src" directory, and the compiled .class files will be in a "bin" directory.

By pointing this tool at Web Services, it will generate all the Java code that is required to interact with the ColdFusion Web Services.

Hot Tip

If you are using ANT or Maven to build your Java projects there are integrated tasks for both of these build tools for executing wsimport against Web Services.

Since there are several end points for interaction with ColdFusion we will have to do this several times.

Also, since ColdFusion Services share components, it is easier to generate the Java code into separate packages for each service, than to use the default generated packages.

Hot Tip

For more information on wsimport and consuming Web Services with Java, see: http://java.sun.com/javase/6/docs/technotes/tools/share/wsimport.html

Section 6

Generating a PDF from HTML

First thing we will do is generate the required Java source for the Document package, like so:

wsimport http://localhost/CFIDE/services/document.cfc?wsdl -d bin/ -s
src/ -p com.coldfusion.document

This will create the required Java code to access the Document ColdFusion Web Service.

One of the easiest ways of creating a brand new PDF Document is by converting an HTML document into a PDF via ColdFusion's Document Web Service.

If you browse to http://localhost/CFIDE/services/document.cfc, you will get a basic view of the methods that are available on this Web Service, and also the arguments that you are able to take advantage of when calling this Web Service.

Except for "serviceusername" and "servicepassword", the Document Web Service's arguments corresponds directly to a ColdFusion Tag called "cfdocument", for which the documentation can be found http://help.adobe.com/en_US/ColdFusion/9.0/CFMLRef/WSc3ff6d0ea77859">here

You can see there are a variety of options for generating a PDF from HTML, which give us a lot of control over what gets generated in our PDF.

Let us attempt to generate a simple "Hello World!" PDF file. First we will write some HTML:

&lta href="String html = "&lthtml>"" +
"&lthead>" +
"&lttitle>Hello World!</title>" +
"&lthead>" +
"&ltbody>" +
"&ltp>Hello World!</p>" +
"</body>" +
"</html>";">String html = "&lthtml>" +
"&lthead>" +
"&lttitle>Hello World!</title>" +
"&lthead>" +
"&ltbody>" +
"&ltp>Hello World!</p>" +
"</body>" +

We create a new DocumentService, and request a Document object from it:

DocumentService service = new DocumentService();
Document document = service.getDocumentCfc();

There are a wide variety of parameters that can be passed into the "document.generate()" method, but there are only a few that we are concerned with at the moment:

  • serviceUsername - this is the username for our ColdFusion as a Service User.
  • servicePasswor d - this is the passwor d for our ColdFusion as a Service User.
  • content - the HTML content we ar e passing through.

Hot Tip

Pass "null" into the arguments of the ColdFusion Web Service methods in which you wish to use the defaults values.

String result = document.generate("cfaas", "cfaas", null, html, null,
null, null, null, null, null, null, null, null, null, null, null,
null, null, null, null, null, null, null, null, null, null, null,
null, null, null, null, null);

This will return a String, for example: http://localhost/CFFileServlet/_cfservicelayer/_cf3733600242229376232.pdf

Which is a URL to a temporary download of the PDF you have generated. If you browse to that URL, it should open a PDF that says "Hello World!".

To get more complicated with the PDF generation, we can add a header to our document.

To do this we need to cr eate a List of "DocumentItem", with some values set on the objects.

You can find the documentation for the "DocumentItem" object here: http://help.adobe.com/en_US/ColdFusion/9.0/CFMLRef/ WSc3ff6d0ea77859461172e0811cbec22c24-7758.html

For example:

Documentitem item = new Documentitem();
item.setContent("My Document Header");
List &ltDocumentitem> documentItems = new ArrayList &ltDocumentitem>();
String result = document.generate("cfaas", "cfaas", null, html, null,
null, null, null, null, null, null, null, null, null, null, null,
null, null, null, null, null, null, null, null, null, null, null,
null, null, null, null, documentItems);

This creates a header and puts the content of "My Document Header", and passes it through to "generate" method. If you browse to the URL that is r eturned, a PDF with the header specified should be displayed.

There are many other things we can use to control how we author our PDF as well, but this should give you some of the basics to get you started.

Section 7

Manipulating PDFs

Not only can ColdFusion Services create PDFs on the fly, it can also manipulate them in a variety of ways through the PDF ColdFusion Web Service.

To generate the required Java code to consume the PDF Web Service, run the following wsimport command:

wsimport http://localhost/CFIDE/services/pdf.cfc?wsdl -d bin/ -s src/
-p com.coldfusion.pdf

If you browse to http://localhost/CFIDE/services/pdf.cfc you will notice that with this command there are multiple methods that can be taken advantage of to manipulate PDFs.

  • addwatermark() - Add a watermark to the PDF.
  • deletepages() - Delete pages from a PDF.
  • extractPages() - Extract pages from a single PDF into a new PDF document.
  • getinfo() - Retrieve information about the PDF document.
  • mergeFiles() - Merge multiple PDFs into a single document.
  • mergespecificpages() - Merge specific pages from multiple documents into a single PDF.
  • processDDX() - Process DDX operations on PDF files to perform more complex actions on PDF documents.
  • protect() - Password protect PDFs, encrypt them and set security permissions.
  • removewatermark() - Remove a watermark from a PDF.
  • setinfo() - Set information about a PDF document.
  • Thumbnail() - Generate thumbnails from pages in a PDF document.

These operations correspond to the "CFPDF" ColdFusion Custom Tag, for which the documentation can be found here: http://help.adobe.com/en_US/ColdFusion/9.0/CFMLRef/WSc3ff6d0ea77859461172e0811cbec22c24-7995.html

The important thing to note with all of these PDF services is that the ColdFusion server will need to be able to access the file path that the PDF resides on.

To give you an example, the PDF service will be used to retrieve information about PDF that can be downloaded from Adobe.com, entitled "Installing and Using ColdFusion". Create a PDFService like you would do normally:

PdfService service = new PdfService();
Pdf pdf = service.getPdfCfc();

From there we use the "getInfo()" method to r etrieve a "Pdfinfo" object we can then introspect for data about the PDF:

Pdfinfo info = pdf.getinfo("cfaas", "cfaas", ""/home/mark/install.pdf",
System.out.println("Date Created: " + info.getCreated());
System.out.println("Application: " + info.getApplication());
System.out.println("Author: " + info.getAuthor());
System.out.println("Title: " + info.getTitle());
System.out.println("Total Pages: " + info.getTotalPages());
This should output the following:
Date Created: D:20070613135822Z
Application: FrameMaker 7.2
Author: Adobe Systems, Incorporated
Title: install.book
Total Pages: 112

Which gives us some basic data about the PDF in question.

Hot Tip

If the built in functions for manipulating PDFs don't fit all your needs, DDX XML syntax can be used to do more advanced PDF creation and editing. The DDX Reference can be found here: http://www.adobe.com/go/learn_lc_ddx_9

Section 8

Sending Email Through ColdFusion

Send email is something that ColdFusion does very well.

It comes built with an integrated mail system with logging capabilities, unsent email management and much more, which can be administered through the ColdFusion Administrator that was looked at earlier.

Before you can use the Mail Web Service, we will need to set up a SMTP server in the ColdFusion Administrator.

To configure the SMTP server, go to the ColdFusion Administrator and login as you did before. http://localhost/CFIDE/administrator

Navigate to Server Settings > Mail through the left hand side menu.

Server Settings

Normally ColdFusion will send email asynchronously, however the Mail Web Service does not currently expose that functionality. Therefore enter a valid SMTP server for the "Mail Server", as the Mail ColdFusion Web Service will throw an exception if the SMTP server cannot be reached.

Hot Tip

For development and/or testing, you can use a product like fakemail (http://sourceforge.net/projects/fakemail/), which is a SMTP server that will write incoming emails to a file.

To generate the required Java code to consume the Mail Web Service, run the following wsimport command:

wsimport http://localhost/CFIDE/services/mail.cfc?wsdl -d bin/ -s
src/ -p com.coldfusion.mail

Browsing to http://localhost/CFIDE/services/mail.cfc you will see there is only one method, "send" , that enables you to send an email.

This operation corresponds directly with the "cfmail" custom tag in ColdFusion, for which the documentation can be found here:


Once the Java Code has been generated, we create a MailService like we would normally:

MailService service = new MailService();
Mail mail = service.getMailCfc();

From there, we call the "send()" command on Mail object:

mail.send("cfaas", "cfaas", "", null, null, null, "mark.mandel@gmail.
com", "mark.mandel@gmail.com", null, null,
"This is my test email", "Hello from ColdFusion!\n\nFrom Mark.",
null, null, null, null, null, null, null, null, null, null, null,
null, null);
System.out.println("Email Sent!");

You will notice that the third argument is "", rather than null. There is an issue in the ColdFusion Mail Web Service that throws an error when "null" is passed into the SMTP server argument. To use the SMTP server as it is defined in the ColdFusion Administrator, we can pass in "".

An email should now have been sent to mark.mandel@gmail.com.

Section 9

Retrieving and Managing POP Email

ColdFusion also provides an easy way to use Web Service to check POP mail in-boxes, as well as delete email from them.

To generate the Java Code for

wsimport http://localhost/CFIDE/services/pop.cfc?wsdl -d bin/ -s src/ -p com.coldfusion.pop

Browsing to http://localhost/CFIDE/services/pop.cfc, we can see that there are several methods for interacting with POP mail boxes.

To get a list of all the headers that exist within a single POP mailbox, the method "getHeaderOnly" is available.

To get all the headers, we pass in the POP mail details, as well as the POP username and password.

List<Popheader> records = pop.getHeaderOnly("cfaas", "cfaas", "mail.
server.com", "110", "name@server.com", "password", null, null, null,
null, null);
for(Popheader header : records)
                System.out.println("Subject: " + header.getSubject() + ",
From: " + header.getFrom());

This will output all the email subjects and and sender email addresses that are currently in the POP mailbox.

This method is useful if you wish to simply list all the emails that are currently in a POP mailbox, without wasting the bandwidth to retrieve the full message contents, attachments and the other data that can be sent along with an email.

To retrieve all the details of an email, the "getAll" method is also available.

In this instance we are going to pass along the UID of an Email to only retrieve a single email, which is the last parameter of this method:

List <Poprecord> results = pop.getAll("cfaas", "cfaas", "mail.server.
com", "110", "name@server.com", "password", null, null, null, null,
Poprecord result = results.get(0);

Which will output both the subject and the full body of the Email. From the "Poprecord" object details such as attachments are also available, as well as much more.

Finally, if there is a need to delete a Mail record from the POP mailbox, the "delete" command is also available.

To delete the Mail message that was being read earlier, we can pass across the UID of that Email message.

pop.delete("cfaas", "cfaas", "mail.server.com", "110",
"name@server.com", "password", null, null, null, null,

For more details on this Web Service, it corresponds to the "cfpop" ColdFusion Custom tag, for which the documentation can be found here: http://help.adobe.com/en_US/ColdFusion/9.0/ CFMLRef/WSc3ff6d0ea77859461172e0811cbec22c24-7f96.html

Section 10

Image Manipulation

The Image ColdFusion Web Service provides a variety of methods for easily manipulating existing images, as well as retrieving meta information about images.

By browsing to http://localhost/CFIDE/services/image.cfc, you can view the full number of methods. The details of each of these methods can be viewed via the documentation for the "cfimage" custom tag that can be found here http://help.adobe.com/en_US/ColdFusion/9.0/CFMLRef/ WSc3ff6d0ea77859461172e0811cbec22c24-7945.html

For sample data, we will use a picture of an Australian Terrier I took:

Photo of doggy

As usual, the Java code is generated through the wsimport tool in the package "com.coldfusion.image":

wsimport http://localhost/CFIDE/services/image.cfc?wsdl -d bin/ -s
src/ -p com.coldfusion.image

Once that is completed, we can r etrieve the EXIF data from this image using the "GetEXIFMetaData" method that is available on the Image Web Service, like so:

ImageService service = new ImageService();
Image image = service.getImageCfc();
List<Element> results = image.getEXIFMetaData("cfaas", "cfaas", "/
for(Element result : results)
System.out.println(result.getKey() + ": " + result.

Hot Tip

Much like the PDF Web Service, the Imaging Web Service can only operate on Image files that are accessible from its local file path.

This will output a variety of EXIF information, such as:

White Balance: Auto white balance
Exposure Mode: Auto exposur
Focal Plane X Resolution: 73/912000 inches
Exposure Time: 0.02 sec
File Source: Digital Still Camera (DSC)
Shutter Speed Value: 1/50 sec
Make: Canon
Focal Length: 22.5 mm
Sensing Method: One-chip color area sensor
Compressed Bits Per Pixel: 3 bits/pixel
Y Resolution: 180 dots per inch
Compression: JPEG (old-style)
ISO Speed Ratings: 800
Color Space: sRGB
X Resolution: 180 dots per inch
F-Number: F4.9
Exif Version: 2.21
Exif Image Width: 2736 pixels
Model: Canon PowerShot S90
Aperture Value: F4.9
Date/Time: 2009:12:25 14:48:25

For an example of image manipulation, the original image will be converted to gray scale.

ImageService service = new ImageService();
Image image = service.getImageCfc();
String result = image.grayScale("cfaas", "cfaas", "/home/mark/00027.

A URL is returned from this method, which provides this image converted to gray scale.

Photo of doggy greyscale

There are many options for manipulating images via this Web Service, and this is just one example of the capabilities that are available.

Hot Tip

There is a "batchOperation" method for executing multiple image manipulation methods together.

Section 11

Graph and Chart Creation

ColdFusion also has an integrated Chart and Graph creation library that can be accessed via the ColdFusion as a Service Web Services.

There is only one method "generate" that is available on this Web Service, which can be viewed by browsing to: http://localhost/CFIDE/services/chart.cfc

>There is a wide variety of parameters that can be passed through to this service, but we will concentrate on the most used ones:

  • format - Charts can be generated either in Flash, Jpg or PNG formats. Of the thr ee, Flash tends to be the most aesthetically pleasing.
  • show3d - This parameter does nothing mor e than render the chart in 3d, which tends to be a nicer looking chart.
  • title - The title for the chart that is being cr eated.
  • Chartseries - The data for the chart that is being cr eated.

To generate a simple bar chart, we must first generate the Java source code for the Web Service:

wsimport http://localhost/CFIDE/services/chart.cfc?wsdl -d bin/ -s
src/ -p com.coldfusion.chart

To access the Chart Web Service, we create a "ChartService" like normal:

ChartService service = new ChartService();
Chart chart = service.getChartCfc();

However, providing the data for the "chart" object is a bit more complicated than usual.

First we need to create an instance of the Class "ArrayOfXsdAnyType", which is essentially the List of "Chartdata" items that are used to store the data that is used in the chart.

The "Chartdata" is created and added to our data collection like so:

Chartdata data = new Chartdata();
data = new Chartdata();
data = new Chartdata();

Next, this data needs to be stored in a "Chartseries" object. The job of this object is to define what sort of chart is to be created. In this instance, a bar chart will be cr eated.

Chartseries series = new Chartseries();

To pass the "Chartseries" into the Web Service "chart" object, we have to put it inside a "List<Chartseries>".

List<Chartseries> chartSeries = new ArrayList<Chartseries>();

Hot Tip

Multiple Chart Series can be used for charts such as line graphs to display multiple sets of data on the same chart.

Finally we pass this through to the "generate" function, also telling it to generate a Flash chart, to turn on 3D and add a title of "My Chart Title".

String result = chart.generate("cfaas", "cfaas", "", "", "", "", "",
"", "", "", "", "flash", "", "", "", "", "", "", "", "true", "", "",
"", "", "", "", "", "", "My Chart Title", "", "", "", "", "", "", "",

This will return a URL in which the Chart can be viewed.


It is very easy to switch this to an alternate chart type. For example, if the data above was to be displayed as a pie chart, the "type" attribute on the "Chartseries" object only need be changed to "pie":



Details on the CFCHART custom tag that this Web Service corresponds to can be found here: http://help.adobe.com/en_US/ColdFusion/9.0/CFMLRef/ WSc3ff6d0ea77859461172e0811cbec22c24-7930.html


  • Featured
  • Latest
  • Popular
Design Patterns
Learn design patterns quickly with Jason McDonald's outstanding tutorial on the original 23 Gang of Four design patterns, including class diagrams, explanations, usage info, and real world examples.
206.5k 595.1k
Core Java
Gives you an overview of key aspects of the Java language and references on the core library, commonly used tools, and new Java 8 features.
127.3k 350.7k
Getting Started with Ajax
Introduces Ajax, a group interrelated techniques used in client-side web development for creating asynchronous web applications.
101.9k 213k
Getting Started with Git
This updated Refcard explains why so many developers are migrating to this exciting platform. Learn about creating a new Git repository, cloning existing projects, the remote workflow, and more to pave the way for limitless content version control.
116.7k 274.9k
Foundations of RESTful Architecture
The Representational State Transfer (REST) architectural style is a worldview that elevates information into a first-class element of architectures. REST allows us to achieve the architectural properties of performance, scalability, generality, simplicity, modifiability, and extensibility. This newly updated Refcard explains main HTTP verbs, describes response codes, and lists libraries and frameworks. It also gives additional resources to further explore each topic.
101.3k 170.9k
Spring Configuration
Catalogs the XML elements available as of Spring 2.5 and highlights those most commonly used: a handy resource for Spring context configuration.
103.7k 264k
Core CSS: Part I
Covers Core principles of CSS that will expand and strengthen your professional ability to work with CSS. Part one of three.
90.6k 198.7k
Scrum is a framework that allows people to productively and creatively deliver products of the highest possible value. With over 70% of Agile teams using Scrum or Scrum hybrid, learn more about its benefits in managing complex product development. This newly updated Refcard explores the details of Scrum, including theory, values, roles, and events. It also includes a sample of a popular approach to deliver Integrated Increments in a scaled environment.
94.1k 249.6k
jQuery Selectors
Introduces jQuery Selectors, which allow you to select and manipulate HTML elements as a group or as a single element in jQuery.
93.5k 356.8k
Core Java Concurrency
Helps Java developers working with multi-threaded programs understand the core concurrency concepts and how to apply them.
90.6k 193k
Getting Started with Eclipse
Eclipse IDE is a cross-platform, multi-purpose, open-source Integrated Development Environment. It is widely used to develop projects in Java, JavaScript, PHP, C++, Scala, and many others. This newly updated Refcard breaks down installing, setting up, and getting started with Eclipse. It also covers productivity tips, creating new projects and files, accessing Source Control Managers, and debugging configurations.
79.2k 215.4k
Core CSS: Part II
Covers Core principles of CSS that will expand and strengthen your professional ability to work with CSS. Part two of three.
73.9k 141.9k
{{ card.title }}
{{card.downloads | formatCount }} {{card.views | formatCount }}

Dev Resources & Solutions Straight to Your Inbox

Thanks for subscribing!

Awesome! Check your inbox to verify your email so you can start receiving the latest in tech news and resources.


{{ parent.title || parent.header.title}}

{{ parent.tldr }}

{{ parent.urlSource.name }}
