Refcard #132

Mastering Portals with a Portlet Bridge

Learn to Configure JBoss Portlet Bridge

Written by

Wesley Hales Portlet Bridge Lead, JBoss

Learn to configure the JBoss Portlet Bridge, which will alow you to run application frameworks in a portal environment without worrying about the underlying portlet API or portlet concepts.

Free PDF
Section 1

About Portlet Bridges

Portals have long been a thorn in the side of many developers who want to stay cutting edge—but must focus on the needs of the enterprise. And 99% of the time, a portal is the only answer for aggregating many applications into one UI.

A port let bridge allows you to run application frameworks like JSF in a portal environment without worrying about the underlying portlet API or portlet concepts.

The JSR-301/329 port let bridge boasts ease of transition, ease of initiation, and seamless mappings from JSF to the portal environment. Overall, a port let bridge is a must-have mediator when working with portals, and it allows developers to learn a new technology painlessly.

Section 2

About the JBoss Portlet Bridge

This ref card shows specific configurations for the JBoss Portlet Bridge. The JBoss Portlet Bridge is a non-final draft implementation of the JSR-329 specification which supports the JSF 1.2 and 2.0 runtime within a JSR 168 or 286 port let and with added enhancements to support other web frameworks (such as Seam and RichFaces).

The project follows the spec from JSR-301 to JSR-329 and now maintains an alpha version (3.0) compatible with JSF 2.0 and RichFaces 4.0.


Since this port let bridge spans four different JSRs and supports two additional JSF frameworks, understanding versions can be a little daunting. i.e. Just because the port let bridge is versioned at 2.0 does not mean it covers the JSF 2.0 specification.

JBoss Portlet Bridge Latest Versions Compatible Frameworks
2.1.0.FINAL JSR-286 Portlets, JSF 1.2, RichFaces 3.3.3.FINAL,Seam 2.2.1.CR2
3.0.0.ALPHA SR-286 Portlets, JSF 2.0, RichFaces 4.0
Section 3

In the Beginning, There Were Portlets

It would only be fair (and cruel in some states) if I gave you a brief primer on portal anport letet technologies. There will come a day when you will need to understand what an ActionRequest is and what you can pull from your FacesContext.ExternalContext() while running as a JSport letet.

Portal Terminology


Hosts the presentation layer for personalization, single sign on and content aggregation.

Portlet Container

A portal can host multiple port let containers, and each port let container has its own runtime environment.

Portal Page: Aggregation of port lets, organized and displayed on a single page.

Portlet: A port let is a Java technology-based web component, managed by a port let container, that processes requests and generates dynamic content.

Portlet Instance: A port let instance can be placed on multiple pages and will show the same state in regards to the current mode.

Portlets vs. Servlets

Most rookie portlet developers have their roots in the servlet world. So it’s important to know the key differences in what you’re about to dive into from what you’ve been dealing with. Portlets generate a portion or “fragment” of the HTML page they’re being displayed upon. This is the first big bullet point in understanding differences between servlets port letslets. UI wise, they cannot make use of the same html (for instance the standard <html> <head> <title> and <body> are forbidden in port lettlet markup). The job of writing these tags belongs to the Portal Page and not you, the developer.

Points To Remember

  • Portlet URLs, which are used as links to other pages within your Portlet window, are dynamically pre-generated by the Portlet code and passed into the markup.
  • Although servlets port letslets are in some respects similar, their containers life cyclescles differ.
  • On the front eport letslets are HTML fragments that compose a larger page which they are unaware of. Servlets provide the entire page.
  • Portlets cannot be accessed by use of a single URL, the way in which servlets are accessed. Instead, the URL points to the page where many port lets may be contained.
  • The portal request paradigm is completely different. There are two requests instead of one. This is talked about in the next section.
  • You now have mode and state buttons that allow you to “minimize” or “maximport lete portlet window or enter “help” mode.
  • Portlets support two scopes within the session (PORTLET_SCOPE and APPLICATION_SCOPE). This allows for cases like sharing data port lete portlet to another.
  • Portlets are not allowed to set character encoding on the response, set HTTP headers, or manipulate the URL of the client request to the portal.

Portlet Lifecycle

Once you wrap your head around the fact that there are two requests and the Portal sends them for you, the rest is a piece of cake. What I’m about to explain makes total sense, but it’s a huge change from the way things are done in a Servlet-based web app. In the Servlet world, a Servlet owns the process of receiving an entire web request and rendering output at the same time in one big response. In the Portlet world, the Portal receives the web request then makes separate calls to indport lets portlets. This separation allows for a different lifecycle method to be introduced in Portlets. The two requests are called Action and Render, and each have their own request and response. You must first keep in mind that when you click a link or submit button in the port let window, it has been generated by the portal API. Thus, the portal needs to control/remember things like which window is sending the request, modes, parameters, window states, etc. So when an Action link is clicked, the portal will get this information and run processAction() along with a few other methods in your port let. You are guaranteed that this action will be complete before the rendering phase starts. Once this is done, the portal now needs to re-render the page along with all the other port lets on that page. The best thing to keep in mind is port lets may be asked to render, even when the user is not interacting with them. Conceptually, this makes sense to have the two requests. However, developers have been naturally forced to do both of these things at the same time in the servlet world.

In most cases, when converting an existing servlet based application to a port let, you must use a port let bridge so that URLs are generated for the port let world—along with other framework functionality.

Section 4

Giving Portlets a Second Chance

If You Skipped The First Page...

It’s okay because the port let bridge is created to mask all of those hairy details from the developer so you only have to worry about your web application. You can now take your existing JSF-based application and plug it into a portal painlessly.

Getting Started

Use the following maven archetype command:

mvn archetype:generate

Frame 1

Choose from the available projects and you will have everything you need to start develport let new portlet. If you are moving an existing appliport letto a port let, this will serve as a reference point for configuration.

Archetype Options

You will also see other configuration options like “makeremotable” and “richfaces-javascript-namespace” in the archetype generate phase.

Option Purpose
make-remotable Boolean property that will create the configuration for running this port let remotely over WSRP
richfaces-javascriptnamespace Boolean property that allows for namespacing dynamically generated RichFaces javascript.
Section 5


The portlet bridge is a mediator between your web application and the portal worlds. It is not a portlet. So here we will review the changes you must make to convert your current JSF application into a portlet.

Core JSF Portlet Setup


The following config is the backbone of your port let. It shows where the supplied GenericFacesPortlet is and which JSF pages to render when clicking on the mode buttons (i.e. help, edit, etc...).


When preserveActionParams is set to TRUE, the bridge must maintain any request parameters assigned during the port let’s action request. You should set this as true if your application is not receiving request parameters that were set when a button or link was clicked.



The PortletViewHandler ensures that each JSF port let instance is properly namespaces. Your application will use a combined portal and JSF namespace.



The following setting tells your port let to use the FaceletPortletViewHandler when using RichFaces.


ALWAYS_DELEGATE Indicates the bridge should not render the view itself but rather always delegate the rendering. This is the default setting for Facelets. If strictly using .jsp, then set the following to NEVER_DELEGATE.


RichFaces Portlet Configuration


RichFaces maintains dynamic scripts and styles that are injected in the page at render. The recommended settings for a portal environment are:


RichFaces does not account for multiple components on the same portal page by default. This following parameter renders all RichFaces component javascript to be portal friendly.


Seam automatically configures your Ajax4JSF/RichFaces Filter, so if you are running a Seam port let, you do not need the following Filter config.

        <display-name>Ajax4jsf Filter</display-name>


Seam Portlet Configuration

Hot Tip

It’s important to remember that your port let may be rendered many times. Since Seam page actions are performed on the RenderRequest, you should only define your navigation in pages.xml.

The SeamExceptionHandler is used to clean Seam contexts and transactions after errors.

Section 6

Using Portlet 2.0 Coordination with JSF

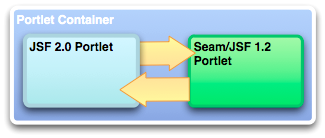

Portlet container

Portlet 2.0 coordination gives us two ways to communicate between port lets (events and public render parameters). This means you can deploy a JSF 2 war and another JSF 1.2/Seam 2 ear and they can send events and messages to each other.

One very important thing to note before using either of the following mechanisms is that you must have the proper 2.0 schema and xsd definition at the top of your portlet.xml.

<portlet-app xmlns=”http://java.sun.com/xml/ns/portlet/portletapp_

Hot Tip

Portlet events and public render parameters cannot be set during Ajax requests.

Sending and Receiving Events

The bridge is designed by default to defer to normal port let processing when sending events. You should set the following parameters allowing port let events to be sent directly to the bridge (autoDispatchEvents) and which class should process received port let events (bridgeEventHandler).


For now, you must dispatch the event in the JSF or Seam backing bean. Future versions of the bridge should automate the dispatching and consuming of events.

if (response instance of StateAwareResponse) {
        StateAwareResponse stateResponse = (StateAwareResponse)
        stateResponse.setEvent(Foo.QNAME, new Bar());

Then you must also create the event handler class by implementing the BridgeEventHandler interface to process the event payload.

public class BookingEventHandler implements BridgeEventHandler
public EventNavigationResult handleEvent(FacesContext context,
Event event)
                //process event payload here

Public Render Parameters

Public Render Parameters (or PRPs) are one of the most powerful and simple Portlet 2.0 features. Several port lets (JSF or not) can share the same render parameters. This feature can be used to present a cohesive UI to the user across all port lets on the page (i.e., using an employee ID to display relative data).

The bridge maps a render parameter to a backing bean using settings in your faces-config.xml and portlet.xml. A clear and working example can be found below.

You must define the following init params in your portlet.xml.


Create a managed bean and public-parameter-mapping in your faces-config.xml. This should be a simple bean that you can bind the passed parameter to a string with getter and setter.



Hot Tip

The <parameter> must contain the name of your port let followed by the parameter name defined in <supportedpublic- render-parameter> from the portlet.xml.

You can set the public render parameter in the JSF or Seam backing bean as follows:

if (response instance of StateAwareResponse) {
        StateAwareResponse stateResponse = (StateAwareResponse) response;

And finally, in the receiving port let, you must also implement the BridgePublicRenderParameterHandler interface to process any updates from the received parameter.

public void processUpdates(FacesContext context)
ELContext elContext = context.getELContext();
BookingPRPBean bean = (BookingPRPBean) elContext.getELResolver().
getValue(elContext, null, “bookingPRP”);
if(null != bean){
  //Do something with bean.getHotelName());
} else {

Hot Tip

You can find a working example using all coordination features running on JSF 1.2, RichFaces and Seam here: http://bit.ly/seambooking
Section 7

Serving JSF Resources, the Portlet Way

The below example shows how to create a simple bean that uses the port let resource serving mechanism within a JSF port let.

By creating a simple class (and defining it in your faces-config.xml) that implements the java.util.Map interface, you can create a “ResourceBean” that will make life much easier on the UI.

public String get(Object key) {
        FacesContext facesContext = FacesContext.getCurrentInstance();
        String url = null;
        if(null == key){
                url = null;
        } else if(null != facesContext){
                url = facesContext.getApplication().getViewHandler().
 getResourceURL(facesContext, key.toString());
                url = facesContext.getExternalContext().encodeResourceURL(url);
        } else {
                url = key.toString();
          return url;

From here, you can serve images and other resources based in your web application by using:


The source for this example can be found here: http://bit.ly/resourcebean

Section 8

Developer Tips & Tricks

Excluding Attributes from the Bridge Request Scope

When your application uses request attributes on a per request basis and you do not want that particular attribute to be managed in the extended bridge request scope, you must use the following configuration in your faces-config.xml. Below you will see that any attribute namespaces as foo.bar or any attribute beginning with foo.baz(wildcard) will be excluded from the bridge request scope and only be used per that application’s request.


Hot Tip

“From The Spec...” To support Faces, the bridge is responsible for encoding port let (action) responses in a manner that allows it (and Faces) to reestablish the request environment that existed at the end of the corresponding action phase during subsequent render requests that are identified as pertaining to that action (or event). The term used to describe the scope of this managed data is the bridge request scope.

Supporting PortletMode Changes

A PortletMode represents a distinct render path within an application. There are three standard modes: view, edit and help. The bridge’s ExternalContext.encodeActionURL recognizes the query string parameter javax.portlet.faces.PortletMode and uses this parameter’s value to set the port let mode on the underlying port let actionURL or response. Once processed, it then removes this parameter from the query string. This means the following navigation rule causes one to render the \edit.jspx viewId in the port let edit mode:


Hot Tip

PortletMode changes require an ActionRequest, so they cannot change modes during an Ajax or ResourceRequest.

Navigating to a Mode’s Last ViewId

By default a mode change will start in the mode’s default view without any (prior) existing state. One common port let pattern when returning to the mode one left after entering another mode (e.g.. view -> edit -> view) is to return to the last view (and state) of this origin mode. The bridge will explicitly encode the necessary information so that when returning to a prior mode it can target the appropriate view and restore the appropriate state. The session attributes maintained by the bridge are intended to be used by developers to navigate back from a mode to the last location and state of a prior mode. As such, a developer needs to describe a dynamic navigation: “from view X return to the last view of mode y”. This is most easily expressed via an EL expression. E.g.


Hot Tip

You should always wildcard your viewId’s as shown in the above from-view-id. Developers are encouraged to use such wildcarding to ensure they execute properly in the broadest set of bridge implementations.

Clearing The View History When Changing Portlet Modes

By default, the bridge remembers the view history when you switch to a different port let mode (like “Help” or “Edit”). You can use the following parameter in your portlet.xml to use the default viewId each time you switch modes.


General Error Handling

Hot Tip

If you’re developing a Seam port let, you can continue to use pages.xml for all error handling.

The following configuration may be used to handle exceptions. This is also useful for handling session timeout and ViewExpiredExceptions. Pay attention to the location element. It must contain the /faces/ mapping to work properly.


Custom Ajax Error Handling

By default, error handling is sent to a standard servlet page for Ajax requests. To handle the error inside the port let, use the following javascript:

<script type=”text/javascript”>
  A4J.AJAX.onError = function(req,status,message){
        window.alert(“Custom onError handler “+message);
  A4J.AJAX.onExpired = function(loc,expiredMsg){
        if(window.confirm(“Custom onExpired handler “+expiredMsg+” for a
location: “+loc)){
                return loc;
        } else {
                return false;

Also, add the following to web.xml.


Hot Tip

Remember to provide a link to the normal flow of your JSF application from your error page. Otherwise, the same error page will be displayed forever.

Communication Between Your Portlets

There are roughly 4 different ways to send messages, events, and parameters between port lets which are contained in different ears/wars or contained in the same war. The Portlet Container does not care if you have 2 port lets in the same war or if they are separated, because each port let has a different HttpSession.

Of course, with the Portlet 2.0 spec, the recommended way to share a parameter or event payload between 2 or more port lets are the Section 3.4.2, “Public Render Parameters” and Section 3.4.1, “Sending and Receiving Events” mechanisms. This allows you to decouple your application from surgically managing objects in the PortletSession.APPLICATION_SCOPE.

But, if these do not meet your use case or you have a different strategy, you can use one of the following methods.

Storing Components in PortletSession.APPLICATION_SCOPE

Sometimes, it makes sense to store your Seam components in the port let APPLICATION_SCOPE. By default, these objects are stored in the PORTLET_SCOPE; but with the annotation below, you can fish this class out of the PortletSession and use its values in other port lets across different Seam applications.


Then you would pull the state full object from the session:

YourSessionClass yourSessionClass = (YourSessionClass)

Using the PortletSession

If you need to access the PortletSession to simply share a parameter/value across multiple port lets, you can use the following to do so.

Object objSession = FacesContext.getCurrentInstance().

        if (objSession instance of PortletSession)
                PortletSession portalSession = (PortletSession)objSession;
                portalSession.setAttribute(“your parameter name”,”parameter

Then, in your JSP or Facelets page, you can use:
#{httpSessionScope[‘your parameter name’]}

Linking to Portlet/JSF Pages Using h:outputink

For linking to any JSF/Facelets page within your port let web application, you may use the following.

<h:outputLink value=”#{facesContext.externalContext.
<f:param name=”javax.portlet.faces.ViewLink” value=”true”/>
navigate to the test page

Redirecting to an External Page or Resource

To link to a non JSF view (i.e. jboss.org), you can use the following parameter.

<h:commandLink actionListener=”#{yourBean.yourListenr}”>
<f:param name=”javax.portlet.faces.DirectLink” value=”true”/>
navigate to the test page

Then in your backing bean, you must call a redirect().


Using Provided EL Variables

All EL variables found in the JSR-329 (Portlet 2.0) specification are available in the JBoss Portlet Bridge. For example, you can use the following to edit the port let preferences on the UI.

  <h:inputText id=”pref” required=”true” value=”#{mutablePortletPrefe
rencesValues[‘userName’].value}” />
  <h:commandButton actionListener=”#{myBean.savePref}” value=”Save
Preferences” />

Then in your backing bean, you must call the PortletPreferences.store() method.

Object request = FacesContext.getCurrentInstance().
PortletRequest portletRequest = (PortletRequest)request;
if (request instance of PortletRequest) {
   try {
         PortletPreferences portletPreferences = portletRequest.

Remote Portlet Navigation Using Portlet Events

When you send events, you can also leverage the EventNavigationResult and return a JSF navigation rule. For example, by returning:

new EventNavigationResult(“fromAction”,”Outcome”);

The fromAction can be a wildcard “/*” or a nav rule defined in your faces-config.xml and outcome can be the from-outcome node defined in the faces-config.xml navigation rule.

Section 9


With all the bitter sweetness that JSF and portal technologies offer, the port let bridge does a good job of keeping everything in check. It also gives you possibilities that may not have been thought of when your JSF app was first created. Some examples are integration of legacy applications to leverage existing investments and the ability to develop newer frameworks and technologies without regression.


  • Featured
  • Latest
  • Popular
Design Patterns
Learn design patterns quickly with Jason McDonald's outstanding tutorial on the original 23 Gang of Four design patterns, including class diagrams, explanations, usage info, and real world examples.
216.2k 650.7k
Core Java
Gives you an overview of key aspects of the Java language and references on the core library, commonly used tools, and new Java 8 features.
137.1k 382k
Getting Started with Git
This updated Refcard explains why so many developers are migrating to this exciting platform. Learn about creating a new Git repository, cloning existing projects, the remote workflow, and more to pave the way for limitless content version control.
135.2k 308.8k
Getting Started with Ajax
Introduces Ajax, a group interrelated techniques used in client-side web development for creating asynchronous web applications.
103.2k 218.3k
Foundations of RESTful Architecture
The Representational State Transfer (REST) architectural style is a worldview that elevates information into a first-class element of architectures. REST allows us to achieve the architectural properties of performance, scalability, generality, simplicity, modifiability, and extensibility. This newly updated Refcard explains main HTTP verbs, describes response codes, and lists libraries and frameworks. It also gives additional resources to further explore each topic.
109.9k 191.1k
Spring Configuration
Catalogs the XML elements available as of Spring 2.5 and highlights those most commonly used: a handy resource for Spring context configuration.
106k 274.9k
Scrum is a framework that allows people to productively and creatively deliver products of the highest possible value. With over 70% of Agile teams using Scrum or Scrum hybrid, learn more about its benefits in managing complex product development. This newly updated Refcard explores the details of Scrum, including theory, values, roles, and events. It also includes a sample of a popular approach to deliver Integrated Increments in a scaled environment.
98.6k 265k
Core CSS: Part I
Covers Core principles of CSS that will expand and strengthen your professional ability to work with CSS. Part one of three.
92.3k 204.2k
jQuery Selectors
Introduces jQuery Selectors, which allow you to select and manipulate HTML elements as a group or as a single element in jQuery.
94.8k 364k
Core Java Concurrency
Helps Java developers working with multi-threaded programs understand the core concurrency concepts and how to apply them.
93.4k 208k
Getting Started with Eclipse
Eclipse IDE is a cross-platform, multi-purpose, open-source Integrated Development Environment. It is widely used to develop projects in Java, JavaScript, PHP, C++, Scala, and many others. This newly updated Refcard breaks down installing, setting up, and getting started with Eclipse. It also covers productivity tips, creating new projects and files, accessing Source Control Managers, and debugging configurations.
83.2k 231.2k
Core CSS: Part II
Covers Core principles of CSS that will expand and strengthen your professional ability to work with CSS. Part two of three.
75.3k 144.9k
{{ card.title }}
{{card.downloads | formatCount }} {{card.views | formatCount }}

{{ parent.title || parent.header.title}}

{{ parent.tldr }}

{{ parent.urlSource.name }}
