A Step-By-Step Guide to Data Migration: Unlocking Distributed Database Potential With ShardingSphere

This blog will delve into ShardingSphere's data migration function and provide a comprehensive, step-by-step guide to building a distributed database.

By
Xinze Guo user avatar
Xinze Guo
·
Jul. 10, 23 · Tutorial
Likes (1)
Comment
Save
Tweet
Share
2.1K Views

Join the DZone community and get the full member experience.

Join For Free
As the business continues to develop, the volume of data and concurrency reach a certain level. Traditional standalone databases may experience performance, scalability, and availability issues. In response to this, the industry has proposed NoSQL solutions to address these problems through data sharding and horizontal scaling. However, NoSQL databases usually do not support transactions and SQL.

Apache ShardingSphere is a distributed database ecosystem that provides data migration solutions to facilitate the smooth transition of traditional single-node databases to ShardingSphere. It allows the conversion of standalone databases into distributed databases and enhances the original database through capabilities such as data sharding, elastic scaling, and encryption.
In this blog post, we will delve into ShardingSphere's data migration function and provide you with a comprehensive, step-by-step guide on how to build a distributed database. Assuming little prior knowledge, we'll explore the intricacies of data migration, allowing you to leverage ShardingSphere's power for seamless database transitions.

Data Migration With ShardingSphere: A Closer Look

Let's now explore one of the core features of ShardingSphere — data migration — and gain insights into its functionality and benefits. Whether it is for database upgrades or backups, you can directly use the built-in data migration functionality in ShardingSphere-Proxy. There is no need to introduce additional modules so that the project's development and maintenance process can be simplified. In this section, we'll focus on using MySQL as the target database and provide a step-by-step demonstration of the entire migration process.

Scope of Data Migration Support

Currently, ShardingSphere data migration supports the following database types:
  • MySQL
  • PostgreSQL
  • openGauss
Furthermore, ShardingSphere facilitates data migration across homogeneous and heterogeneous databases that support the aforementioned protocols. This flexibility allows businesses to seamlessly migrate data between different database systems, regardless of their underlying architecture.

Supported Database Versions and Configuration Examples

To ensure compatibility, ShardingSphere provides data migration support for various database versions. The table below showcases the database versions and offers configuration examples for a smooth migration:

Database

Supported Version

Required Environment

Required Permission


MySQL

v5.1.15 ~ v8.0.x


my.cnf configuration

log-bin=binlog

binlog-format=row

binlog-row-image=full

GRANT REPLICATION SLAVE,REPLICATION

CLIENT ON .TO ${usernamet}@${host}

PostgreSQL

v9.4 and above


postgresql.conf configuration

wal_level = logical

max_wal_senders = 10

max_replication_slots = 10

max_connections = 600

pg_hba.conf configuration

host all ${username} 0.0.0.0/0 md5


openGauss

v2.0.1 ~ v3.1.x

postgresgl.conf configuration

wal_level = logical

max_wal_senders = 10

max_replication_slots = 10

max_connections = 600

wal_sender_timeout = 0

pg_hba.conf configuration

host all ${username} 0.0.0.0/0 md5

To fully grasp the data migration process in ShardingSphere, it's important to familiarize yourself with some key concepts. Understanding these concepts will enable you to navigate the migration journey seamlessly. Let's explore these concepts:
  • Source Database: The source database refers to the storage cluster where the original data resides. This is the database that you intend to migrate from.
  • Target Database: The target database represents the storage cluster where the original data will be migrated to. This is the database you aim to migrate your data into, transforming it into a distributed database.
  • Stock Data: Stock data refers to the existing data present in the database node before initiating the migration process. This data forms the foundation of the migration process and serves as the starting point for data transfer.
  • Incremental Data: Incremental data comprises the new data generated in the business system during the migration process. As migration unfolds, the business system continues to generate new data. Capturing and transferring this incremental data is crucial to ensuring data integrity and consistency during the migration process.
By understanding these key concepts, you'll be better equipped to embark on a successful data migration journey using ShardingSphere.
Data Migration ProcessData Migration Process

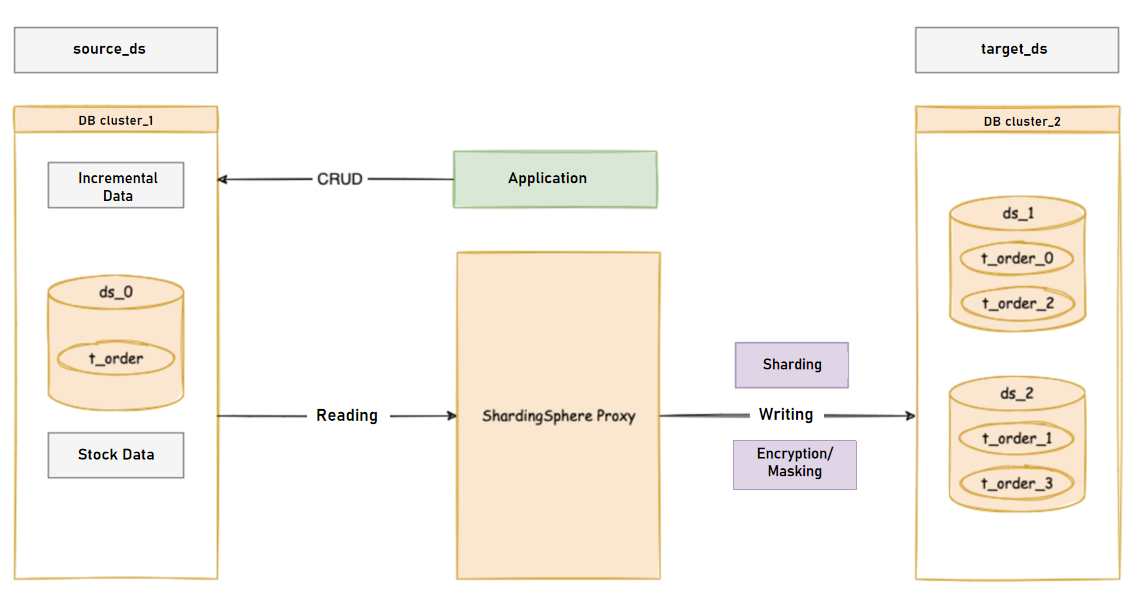

The figure above provides an overview of the entire migration process in which ShardingSphere-Proxy reads the full and incremental data from the source database and writes them to the target database. During data writing, operations like data sharding, data encryption, and data masking can be performed to your needs.

Deployment Architecture

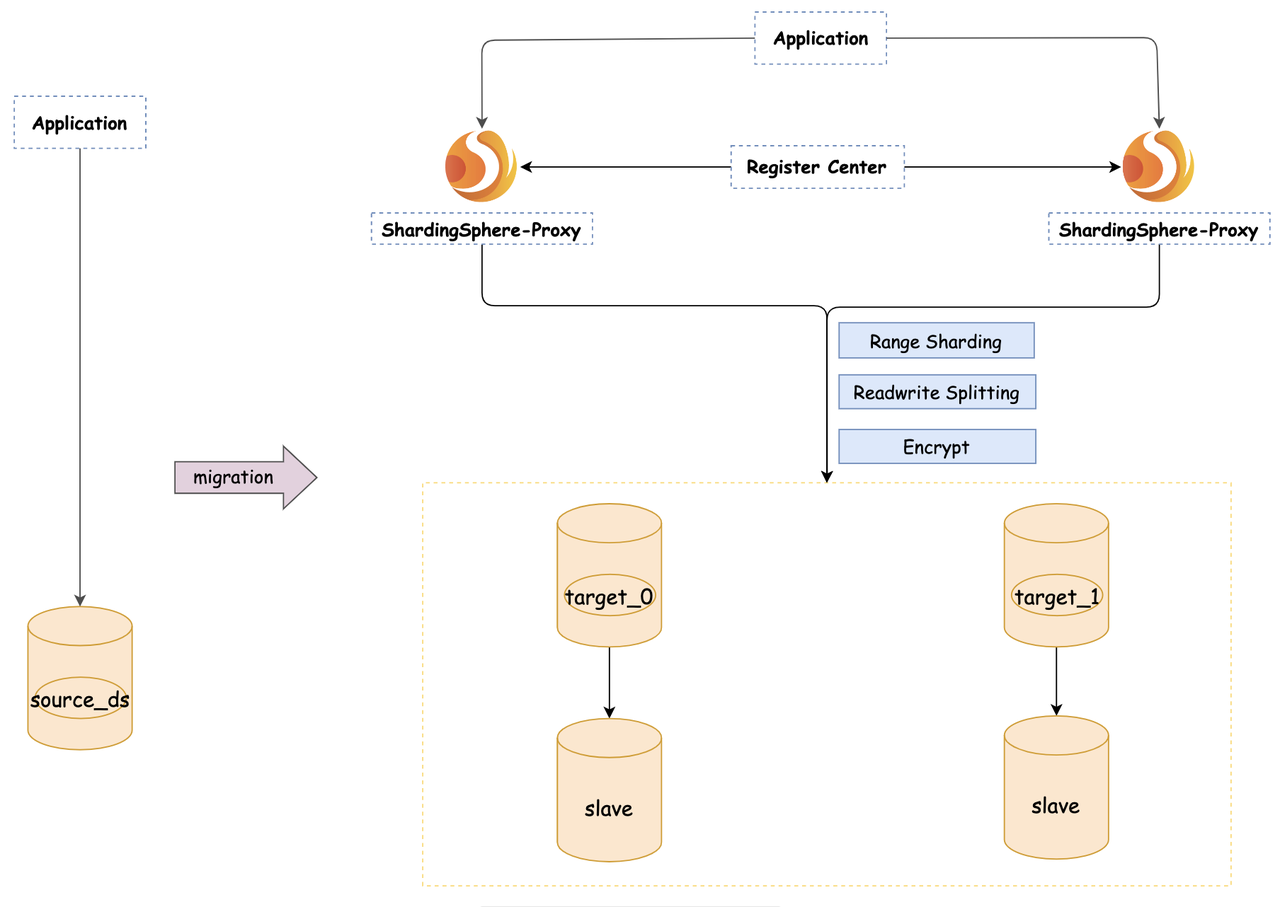

In the architecture of ShardingSphere, ShardingSphere-Proxy serves as the computing node, while MySQL functions as the storage node. ShardingSphere-Proxy plays a crucial role in data migration and database operations, while MySQL serves as the underlying storage for the distributed database.
Deployment ArchitectureDeployment Architecture

Data Migration Stages

To help you navigate the process of performing data migration, we have outlined practical steps below in the following figure. These steps will guide you through the process seamlessly.
Data Migration StagesData Migration Stages
The stages breakdown below will guide you through the process seamlessly:

Environment Preparation

Before diving into the data migration process, ensure you have the following components set up:

  • ShardingSphere Version: Make sure you have ShardingSphere version 5.4.0 or above installed. Alternatively, you can use the master branch version. Additionally, ensure that you are operating in cluster mode.
  • MySQL Databases: Prepare one source database and two target databases—a master database and a replica. These databases will be involved in the data migration process.
  • Register Center: Utilize ZooKeeper version 3.8.0 as the registry center for ShardingSphere cluster mode. This will facilitate seamless communication and coordination within the cluster.

Data Migration Process

  • Preparation Stage: In this initial stage, the data migration module performs several tasks, including checking the connectivity and authority of the data source. It also conducts data stock statistics, logs recording sites, and initializes tasks to prepare for the migration process.
  • Stock Data Migration: During this stage, JDBC queries are employed to directly read data from the source database and write it to the target database based on the configured sharding rules. This migration ensures that existing stock data is transferred accurately and securely.
  • Incremental Data Migration: As the migration of stock data may take varying amounts of time due to factors like data volume and parallel processing, it is essential to synchronize the newly generated incremental data. For MySQL databases, this synchronization is achieved by subscribing to and parsing binlog logs. Once the initial synchronization of incremental data is complete, continuous traffic can be switched to the target database.
  • Traffic Switching: Upon completion of the data migration process, users can switch the read or write traffic to ShardingSphere, effectively utilizing the newly built distributed database.
  • Monitoring and Data Consistency Verification: Throughout the migration process, users can monitor the progress in real-time using DistSQL. Additionally, the data consistency verification feature allows you to compare the data before and after migration, ensuring the accuracy and consistency of the migrated data.

Data Migration Steps

Let's first start by granting the relevant permissions.

Database Permission Configuration

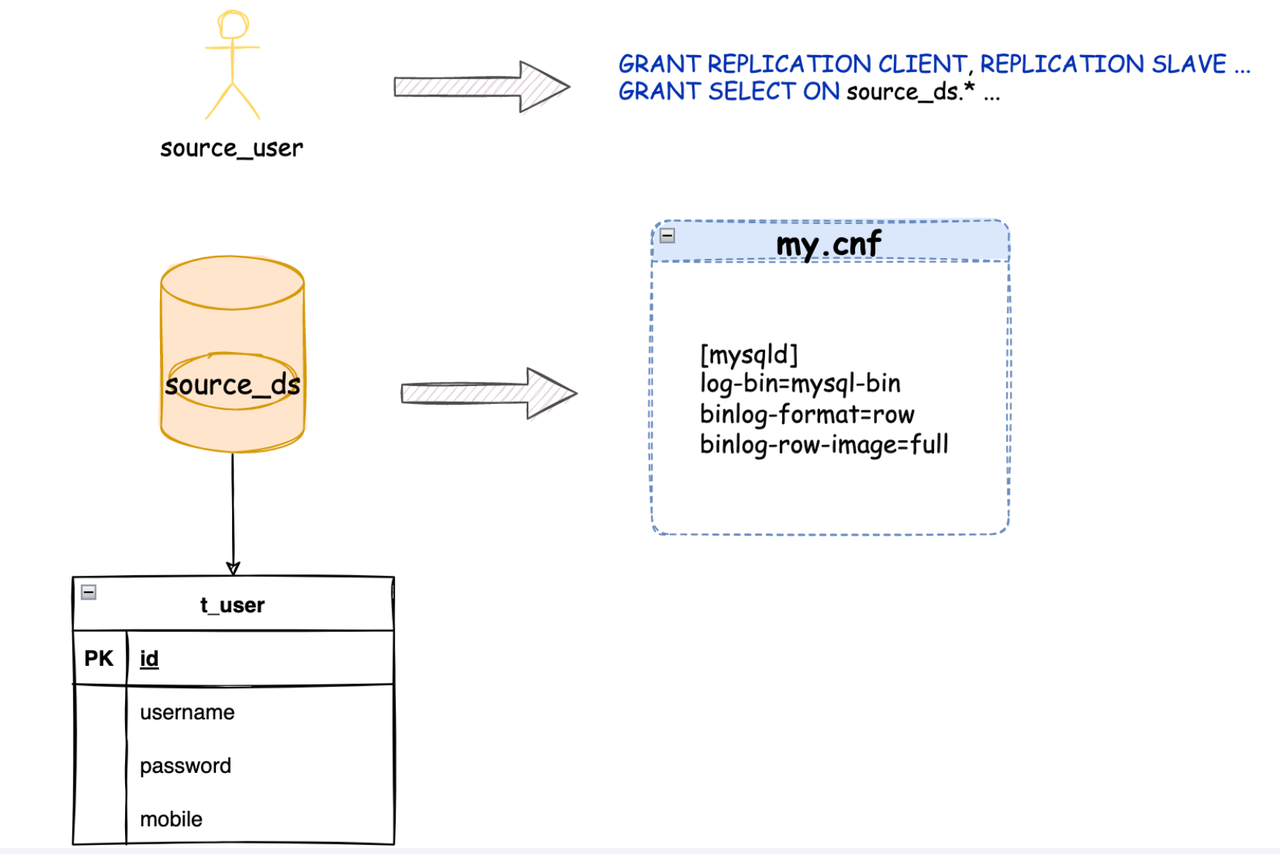

It is necessary to configure migration permissions on the source database, for the administrator account is generally not used for data migration.
Database Permission ConfigurationDatabase Permission Configuration
During the data migration process, if the target database is using a regular account (non-administrator account), in order to successfully perform automatic table and index creation operations, it is necessary to grant the corresponding permissions to this account in advance.
SQL

GRANT CREATE, ALTER, DROP, SELECT, INSERT, UPDATE, DELETE, INDEX ON target_ds_0.* TO target_user;
GRANT CREATE, ALTER, DROP, SELECT, INSERT, UPDATE, DELETE, INDEX ON target_ds_1.* TO target_user;


Steps To Perform Data Migration

Step 1: Initialize Data in the Source Database

To begin with, you should initialize tables in the source database.

Initialize tables in the source database: Create the necessary tables in the source database and populate them with initial data.

SQL

CREATE TABLE t_user
(
    id       int auto_increment,
    username varchar(64)  null,
    password varchar(255) null,
    mobile   varchar(64)  null,
    constraint t_user_pk primary key (id)
);


Simulate initial data: Generate simulated data to ensure the source database contains representative information for migration.

SQL

INSERT INTO t_user (id, username, password, mobile) VALUES (1, 'jack', '123456', '13111111111');
INSERT INTO t_user (id, username, password, mobile) VALUES (2, 'rose', '234567', '13111111112');
INSERT INTO t_user (id, username, password, mobile) VALUES (3, 'mike', 'aaa123', '13111111113');
INSERT INTO t_user (id, username, password, mobile) VALUES (4, 'bob', 'aaabbb', '13111111114');


Step 2: Initialize ShardingSphere-Proxy Rules

Start ShardingSphere Proxy in cluster mode, log in through the database client, and execute the command to create the database.
SQL

mysql> create database sharding_db;
Query OK, 0 rows affected (0.12 sec)

mysql> use sharding_db
Database changed


Use DistSQL to add storage units: Configure the storage units for ShardingSphere-Proxy.

SQL

REGISTER STORAGE UNIT target_ds_0  (
     URL="jdbc:mysql://localhost:3306/target_ds_0?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true",
     USER="target_user",
     PASSWORD="root"
);
REGISTER STORAGE UNIT target_ds_1  (
     URL="jdbc:mysql://localhost:3306/target_ds_1?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true",
     USER="target_user",
     PASSWORD="root"
);
REGISTER STORAGE UNIT read_ds_0  (
     URL="jdbc:mysql://localhost:3308/target_ds_0?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true",
     USER="target_user",
     PASSWORD="root"
);
REGISTER STORAGE UNIT read_ds_1  (
     URL="jdbc:mysql://localhost:3308/target_ds_1?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true",
     USER="target_user",
     PASSWORD="root"
);


Initialize Rule Definition

Initialize read/write splitting rules.

SQL

CREATE READWRITE_SPLITTING RULE rw_ds_0 (
    WRITE_STORAGE_UNIT=target_ds_0,
    READ_STORAGE_UNITS(read_ds_0),
    TYPE(NAME="random")
);
CREATE READWRITE_SPLITTING RULE rw_ds_1 (
    WRITE_STORAGE_UNIT=target_ds_1,
    READ_STORAGE_UNITS(read_ds_1),
    TYPE(NAME="random")
);

Initialize sharding rules.
SQL

CREATE SHARDING TABLE RULE t_user(
        STORAGE_UNITS(rw_ds_0, rw_ds_1),
        SHARDING_COLUMN=id,
        TYPE(NAME="hash_mod",PROPERTIES("sharding-count"="4")),
        KEY_GENERATE_STRATEGY(COLUMN=id,TYPE(NAME="snowflake"))
);

Initialize encryption rules.

SQL

CREATE ENCRYPT RULE t_user (
    COLUMNS((NAME=password,CIPHER=password_cipher,ENCRYPT_ALGORITHM(TYPE(NAME='AES',PROPERTIES('aes-key-value'='123456abc'))))
));

Now, configurations of the target database are all initialized.

Step 3: Start Data Migration Job

Add the source of migration data: Register the source database as an external data source with DistSQL.

SQL

REGISTER MIGRATION SOURCE STORAGE UNIT source_ds (
    URL="jdbc:mysql://${source_database_url:port}/source_ds?serverTimezone=UTC&useSSL=false",
    USER="root",
    PASSWORD="root"
);


Execute the migration command: Use the appropriate command to begin the data migration process. The command should specify the source database and the target cluster.

SQL

MIGRATE TABLE source_ds.t_user INTO sharding_db.t_user;

source_ds here indicates the data from the source database registered in the previous step, and sharding_dbindicated the database created in ShardingSphere-Proxy. Here is the example result:
SQL

mysql> MIGRATE TABLE source_ds.t_user INTO sharding_db.t_user;
Query OK, 0 rows affected (1.06 sec)


Check Migration Progress

Query the migration list: Use the commandSHOW MIGRATION LISTto retrieve a list of active migration jobs, including their IDs, tables being migrated, and job statuses.

SQL

mysql> SHOW MIGRATION LIST;
+--------------------------------------------+------------------+----------------+--------+---------------------+-----------+
| id                                         | tables           | job_item_count | active | create_time         | stop_time |
+--------------------------------------------+------------------+----------------+--------+---------------------+-----------+
| j0102p000041c4912117c302e9facd92f9a74a478c | source_ds.t_user | 1              | true   | 2023-06-24 09:44:51 | NULL      |
+--------------------------------------------+------------------+----------------+--------+---------------------+-----------+
1 row in set (0.03 sec)


Check migration status: Use the commandSHOW MIGRATION STATUS jobidto query job details. Here is the example result:
SQL

mysql> SHOW MIGRATION STATUS j0102p000041c4912117c302e9facd92f9a74a478c;
+------+-------------+------------------+--------------------------+--------+-------------------------+-------------------------------+--------------------------+---------------+
| item | data_source | tables           | status                   | active | processed_records_count | inventory_finished_percentage | incremental_idle_seconds | error_message |
+------+-------------+------------------+--------------------------+--------+-------------------------+-------------------------------+--------------------------+---------------+
| 0    | source_ds   | source_ds.t_user | EXECUTE_INCREMENTAL_TASK | true   | 4                       | 100                           | 321                      |               |
+------+-------------+------------------+--------------------------+--------+-------------------------+-------------------------------+--------------------------+---------------+
1 row in set (0.04 sec)


During the migration process, data integrity can be ensured by connecting the full data migration and the incremental data migration. When generating INSERT SQL written into the target database,  SQL will be rewritten to make sure that the insertion operation for the same data is idempotent. This avoids repeated consumption when the job is restarted, considering that the register center may not be up-to-date.

Step 4: Check Data Consistency

ShardingSphere data migration provides the ability to check data consistency through DistSQL. This is especially efficient when dealing with large amounts of data, as the data sources before and after migration are independent.
To check data consistency, ensure the following preconditions are met:
  • Incremental data migration has started.
  • The business read-only window period with sufficient time is available.
The result will show the tables, the consistency check result, and additional details about the check process:
SQL

mysql> CHECK MIGRATION j0102p000041c4912117c302e9facd92f9a74a478c BY TYPE (NAME='DATA_MATCH');
Query OK, 0 rows affected (0.48 sec)

mysql> SHOW MIGRATION CHECK STATUS j0102p000041c4912117c302e9facd92f9a74a478c;
+------------------+--------+---------------------+---------------------+-------------------+-------------------------+-------------------------+------------------+---------------+
| tables           | result | check_failed_tables | finished_percentage | remaining_seconds | check_begin_time        | check_end_time          | duration_seconds | error_message |
+------------------+--------+---------------------+---------------------+-------------------+-------------------------+-------------------------+------------------+---------------+
| source_ds.t_user | true   |                     | 100                 | 0                 | 2023-06-24 10:05:28.483 | 2023-06-24 10:05:29.821 | 1                |               |
+------------------+--------+---------------------+---------------------+-------------------+-------------------------+-------------------------+------------------+---------------+
1 row in set (0.06 sec)


Step 5: Submit the Migration Job

Once the consistency check is completed, you can submit the migration job to finalize the migration process. This step also includes necessary operations such as cleaning up PostgreSQL Replication Slot and refreshing table metadata:
SQL

mysql> COMMIT MIGRATION j0102p000041c4912117c302e9facd92f9a74a478c;
Query OK, 0 rows affected (2.79 sec)

With the migration job submitted, you can now switch the traffic to the tables migrated by ShardingSphere-Proxy, effectively utilizing the distributed database.

Summary

Traditional standalone databases often become bottlenecks due to their large table data size and rapid data growth. Scaling up the application server is ineffective in such cases, making database scaling-out necessary. ShardingSphere aims to reduce the impact on business operations by providing a comprehensive data migration solution, allowing traditional standalone databases to seamlessly transition to ShardingSphere and transform into distributed databases.
By leveraging the power of ShardingSphere, businesses can overcome the limitations of traditional databases and unlock the full potential of a distributed architecture. ShardingSphere offers features like data sharding, read/write splitting, and data encryption to enhance the capabilities of MySQL databases and provide improved performance, scalability, and security.

For any questions or suggestions related to ShardingSphere, feel free to share them on GitHub or join the ShardingSphere Slack discussions. We are here to support you in your data migration endeavors.
Data consistency Data integrity Data migration Database Distributed database Data (computing) sql

Published at DZone with permission of Xinze Guo. See the original article here.

Opinions expressed by DZone contributors are their own.

Related

  • Implement a Distributed Database to Your Java Application
  • Why Database Migrations Take Months and How to Speed Them Up
  • How Doris Connects to Multiple Databases for Federated Analytics and Data Migration
  • Data Privacy and Security: A Developer's Guide to Handling Sensitive Data With DuckDB

Partner Resources

×

Comments
Oops! Something Went Wrong

The likes didn't load as expected. Please refresh the page and try again.

ABOUT US

  • About DZone
  • Support and feedback
  • Community research
  • Sitemap

ADVERTISE

  • Advertise with DZone

CONTRIBUTE ON DZONE

  • Article Submission Guidelines
  • Become a Contributor
  • Core Program
  • Visit the Writers' Zone

LEGAL

  • Terms of Service
  • Privacy Policy

CONTACT US

  • 3343 Perimeter Hill Drive
  • Suite 100
  • Nashville, TN 37211
  • support@dzone.com

Let's be friends:

Likes
There are no likes...yet! 👀
Be the first to like this post!
It looks like you're not logged in.
Sign in to see who liked this post!
