Architecture Patterns: Publish/Subscribe

The Publish/Subscribe (Pub/Sub) pattern is a widely-used software architecture paradigm, particularly relevant in the design of distributed, messaging-driven systems. The communication framework is decoupled, scalable, and dynamic, making it useful for addressing complex software requirements in modern application development.

At its core, the Pub/Sub pattern is about decoupling the message producer (publisher) from the message consumer (subscriber). In this framework, publishers broadcast messages without the knowledge of subscribers, and subscribers receive messages based on their interest without knowing about publishers. This decoupling is facilitated through a central component known as the message broker or event bus, which manages the delivery of messages.

Key Components

• Publisher: Responsible for producing and sending messages to the message broker.
• Subscriber: Receives messages from the message broker based on subscribed topics or patterns.
• Message Broker/Event Bus: Mediates communication between publishers and subscribers. It filters messages and routes them from publishers to appropriate subscribers.
• Topic: Messages in Pub/Sub systems typically have a topic or subject and a payload. The topic categorizes the message, aiding the broker in message filtering and routing.

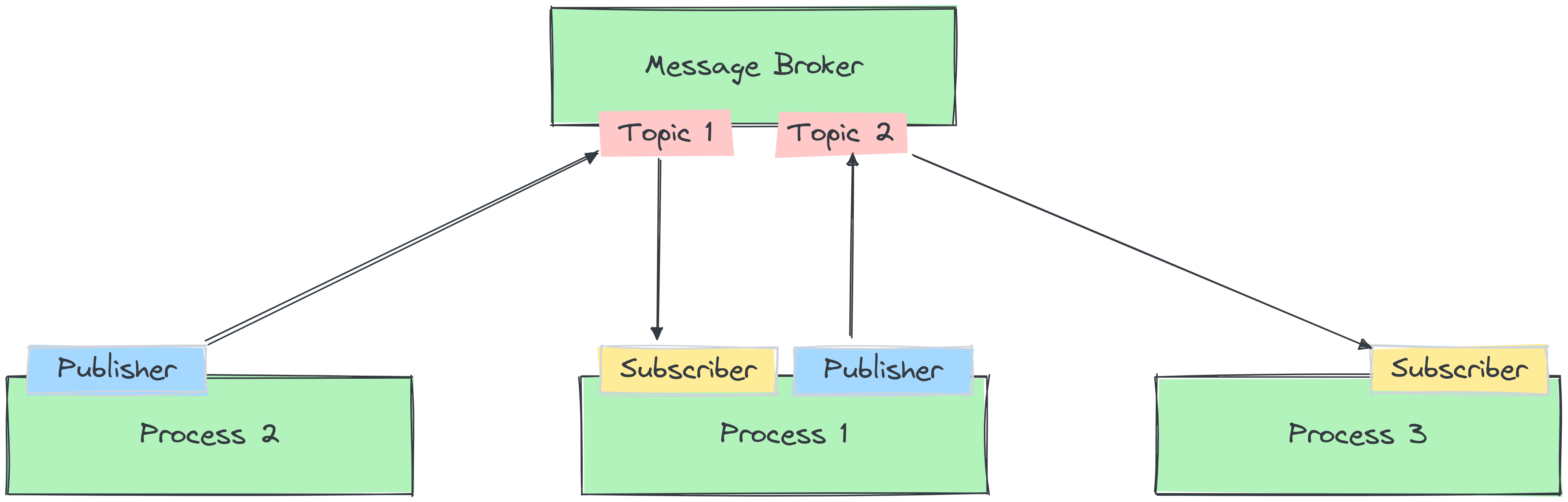

A simple representation could look likes that:

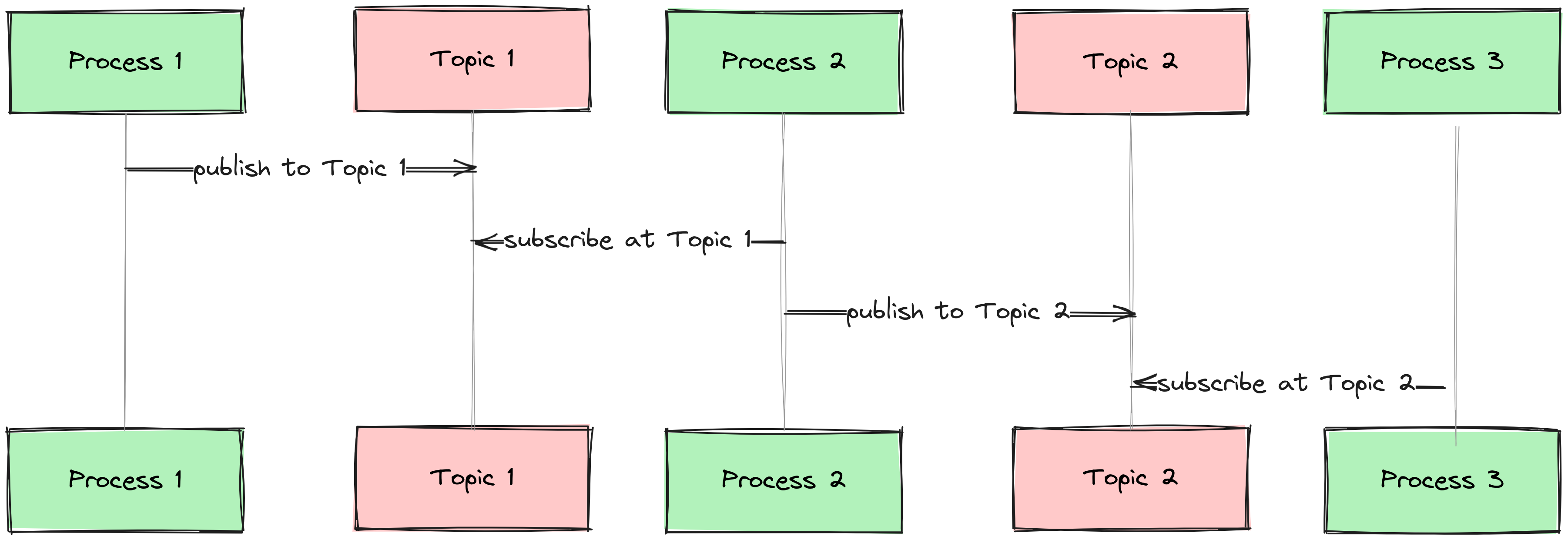

This leads to the following sequence schema:

In comparison, a more traditional approach that links each step together would have led to the following representation :

The Asynchronous process makes it easier to introduce concepts such as parallelization, scalability, and resilience. However, it is important to note that this comes at a cost.

Benefits

• Decoupling: Publishers and subscribers operate independently. This separation enhances system maintainability and scalability.
• Flexibility: New subscribers or publishers can be added without disrupting the existing system.
• Scalability: The pattern supports horizontal scaling, allowing systems to handle a high volume of messages and numerous subscribers.
• Resilience and Fault Tolerance: The system can tolerate and recover from component failures, as the components are loosely coupled.
• Asynchronous Communication: Enhances system responsiveness and efficiency.

Trade-Offs

• Complexity in Message Management: Ensuring message consistency and handling duplicate messages can be challenging. Teams new to event architectures may find compensation strategies challenging.
• Dependency on Broker: System performance and reliability heavily depend on the broker’s capabilities. This is a counterbalance of system resilience. You rely heavily on your broker for system dependency, as well as in a vendor-locking manner.
• Message Serialization and Deserialization: May require additional processing power and handling logic.

Use Cases

Event-Driven Architectures

The Publish/Subscribe pattern is exceptionally well-suited for systems built around event-driven architectures. In such architectures, components react to various events or state changes. By implementing this pattern, these systems can efficiently manage and respond to a high volume of events in real-time, ensuring that each component receives only relevant information without being overwhelmed by unnecessary data.

Microservices Communication

In a microservices architecture, where each service functions independently, effective communication is key. The Pub/Sub pattern plays a pivotal role here by facilitating seamless and efficient communication between microservices. It allows individual services to publish or subscribe to specific messages, enabling them to interact and exchange data without creating direct dependencies or tight coupling, thus maintaining the autonomy and scalability of each microservice.

Real-Time Data Distribution

The pattern finds extensive use in scenarios demanding real-time data distribution. This is particularly relevant in domains like financial markets for stock tickers, where immediate dissemination of stock price changes is crucial, or in Internet of Things (IoT) environments, where sensor data needs to be efficiently routed to various processing and monitoring systems. By employing the Pub/Sub pattern, systems can ensure that this time-sensitive data is broadcasted promptly and consumed by relevant parties in real-time, enhancing the overall responsiveness and efficiency of these systems.

Conclusion

The Publish/Subscribe pattern stands as a fundamental element in designing modern distributed systems that are responsive, resilient, and scalable. Its ability to effectively decouple the message producers (publishers) from message consumers (subscribers) revolutionizes the way communication is handled in complex architectures. This pattern enables the creation of flexible and dynamic communication structures, which are essential in accommodating the ever-evolving needs of modern software systems. However, while the benefits of the Pub/Sub pattern are substantial, architects and developers must carefully navigate its complexities. These include managing message consistency, handling the added latency due to broker use, and the system's reliance on the capabilities of the message broker. Understanding and addressing these trade-offs is crucial for leveraging the full potential of the Publish/Subscribe pattern in various software architecture designs, ensuring systems are not only efficient in their message handling but also robust and adaptable to changing requirements.
