Event-Driven Business Architecture

"Event-driven business architecture" is the idea of a software architecture that centers business applications on events and processes. In the following, I will explain its core concepts and describe how building business applications around events can enhance architectural flexibility.

What Is an Event?

When we talk about "event-driven business architecture," one of the first questions that naturally arises is: what exactly is an event? Let’s examine the characteristics of an event in detail.

First of all, an event is something that happens, either unexpectedly or as a planned occurrence. Events are omnipresent in our business world — from a new customer request to the sending of an invoice or the receipt of a payment. When these events occur regularly and follow a defined sequence, we speak of a process. For example, the three events mentioned could be part of an order process.

From a technical perspective, an event has several properties that describe its nature. The most fundamental property is the timestamp indicating when the event occurred. Another crucial property is the actor who initiated the event — this could be a customer submitting a new request, an employee creating an invoice, or a technical system such as a transport system’s control unit sending tracking information. Last but not least, we have the kind of event that describes the business context in which it occurred. This typically relates to what we call a "business process" and defines the formal framework the event is bound to.

Architectural Impact of Event-Driven Thinking

What does an event mean in the context of software architecture? Modern software architectures are already knowing various kinds of events. The most common use of events in software systems is monitoring a system state. Logging and monitoring systems are fundamentally based on events. Even message broker systems like Kafka operate on an event-driven paradigm.

However, in business architecture, an event is tightly coupled to a business process that defines specific business goals. This represents the key distinction between technical events and events in a business context. Consider an outgoing invoice process in a company: you have an event when the invoice is created, another when it is sent to the customer, and potentially several events when payments are received. All these events are bound to the context of the "Invoice Process" — the business process that defines and orchestrates these activities.

In contrast to the typical data-centric approach to building business applications, an event-driven business architecture focuses on business processes and their events. This does not mean that we ignore data — events are inherently bound to data. The key difference is that the primary focus lies on the event itself — something that has happened as an immutable fact. We cannot change these facts; we can only react to them. This paradigm leads to a fundamentally different approach to software design, where we focus on managing and responding to events rather than merely modeling real-world objects.

This shift in perspective fundamentally changes how we design our systems. In a traditional data-centric architecture, we typically model our system around data entities that can be created, updated, and deleted (CRUD). However, in an event-driven architecture, we capture a sequence of immutable facts — events that have occurred and cannot be changed or deleted.

For example, instead of updating a customer’s address in a database, we record an AddressChanged event with the new address details. If we need to know a customer’s current address, we look at the most recent address change event. Another illustrative example is the budget approval process: instead of simply storing the final approval status of a budget request, we capture each approval step from different stakeholders. This shows us not only whether a budget was approved, but also who approved it, in which sequence, and how long each approval step took. This approach allows us to understand not just the current state but also the significant business events that led to it. We gain insights into not just "what is" but also "how did we get here?".

This immutability principle has profound implications for system design. We move from thinking about state management to thinking about state derivation through event streams. Our systems become more resilient, easier to audit, and better at capturing the true nature of business processes.

Real-World Applications of Event-Driven Architecture

The principles of event-driven business architecture can be found in various modern business applications. One prominent example is workflow engines based on BPMN (Business Process Model and Notation). These systems naturally implement the event-driven paradigm through their handling of BPMN catch-and-throw events, making them an excellent demonstration of event-based principles in practice.

However, event-driven thinking extends beyond workflow engines. Consider customer relationship management systems that track customer interactions, supply chain management systems responding to inventory events, or financial systems processing payment events. Each of these domains benefits from focusing on business events as the core architectural concept.

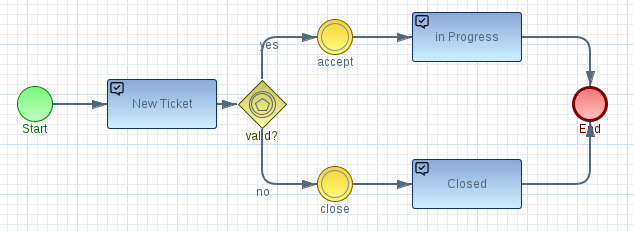

Let’s look more closely at workflow engines, as they provide a particularly clear illustration of event-driven principles. In a BPMN engine, each task represents a specific business state, while events trigger transitions between these states.

These events capture not just the state change itself, but also essential business context such as the initiator, the timestamp, and the business process context.

For instance, in an invoice processing workflow, such a system captures events like invoice creation, submission for approval, and payment receipt. Each event not only moves the process forward but also maintains a clear record of who did what and when. This aligns perfectly with an event-driven architecture, where business events serve as the primary drivers of process flow and system behavior.  An example, that demonstrates how business processes can be modeled entirely through events is the Imixs-Workflow engine which is an event-driven engine focusing on human-centric workflows.

Conclusion

Event-driven business architecture represents a paradigm shift in how we design and implement business applications. By focusing on events rather than just data, we create systems that better reflect the dynamic nature of business processes. This approach not only provides greater flexibility in handling business workflows but also enables better traceability and understanding of business operations.

As demonstrated by workflow engines and other business applications, event-driven thinking is already proving its value in real-world scenarios. The key benefits — improved process transparency, better auditability, and more natural alignment with business operations — make it a compelling architectural choice for modern business applications.

As businesses continue to digitalize and automate their processes, the importance of event-driven architectures will likely grow. The ability to capture, process, and react to business events in real-time becomes increasingly crucial for maintaining a competitive advantage in today’s dynamic business environment.
