How To Create a Date Dimension Using Databricks

This article will show how to build an extensive version of the date dimension table using Spark Scala in Databricks.

aakash jain

Jan. 10, 23 · Tutorial

Likes (1)

Comment

Save

3.7K Views

When creating a data lake solution, it is important to think through all the corresponding tables part of the data model; whether we go for a Star or Snowflake schema, one of the important dimensions which will be needed is the Date Dimension.

This article will show how to build an extensive version of the date dimension table using Spark Scala in Databricks.

Login to community Databricks

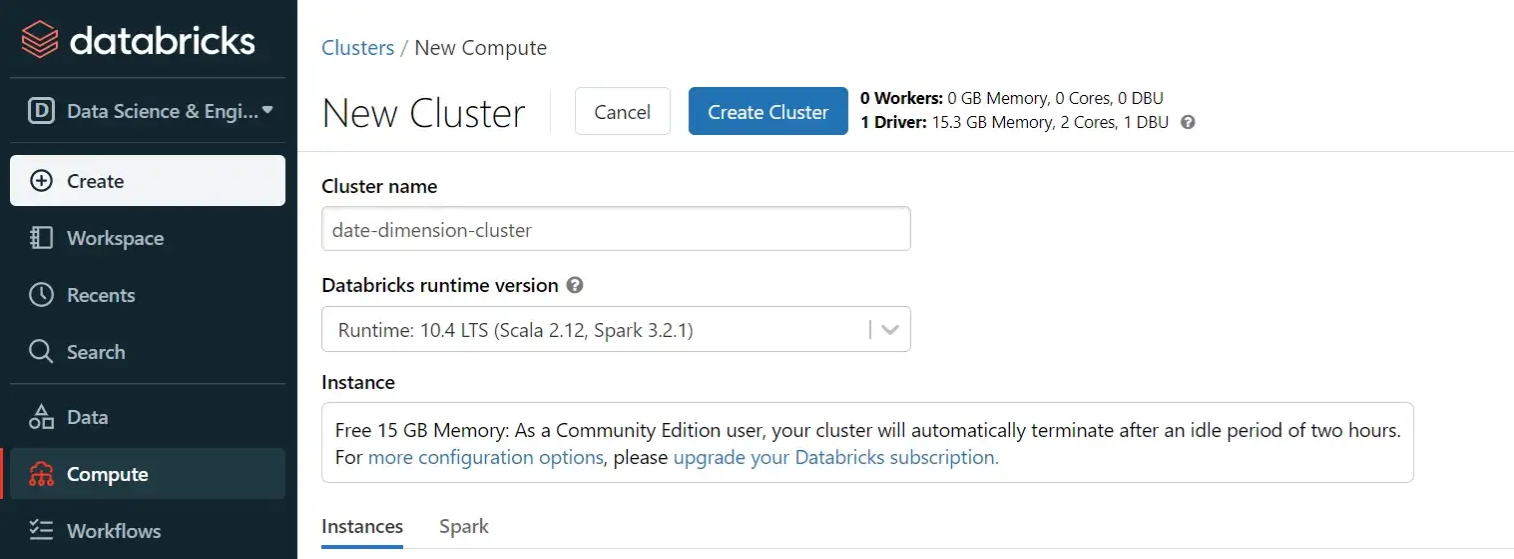

Create a cluster by clicking Create Cluster option in the Compute option on the left panel.

Final Sample Data

Column Name	Value
date_key	20190927
date	27-09-2019
day	27
day_suffix	th
week_day	6
week_day_name	Friday
week_day_name_short	FRI
week_day_name_first_letter	F
day_of_year	270
week_of_month	4
week_of_year	39
month	9
month_name	September
month_name_short	SEP
month_name_first_letter	S
quarter	3
quarter_name	Q3
year	2019
yyyymm	201909
month_year	2019 SEP
is_weekend	0
is_holiday	0
first_date_of_year	01-01-2019
last_date_of_year	31-12-2019
first_date_of_quarter	01-07-2019
last_date_of_quarter	30-09-2019
first_date_of_month	01-09-2019
last_date_of_month	30-09-2019
first_date_of_week	22-09-2019
last_date_of_week	28-09-2019
last_12_month_flag	0
last_6_month_flag	0
last_month_flag	0
load_date	2022-12-26T16:09:43.004+0000

The next step is to create the basic template for the date-dimension columns. For this, we are going to create a scala case class; you can create it in the same main notebook or as a separate notebook.

     Scala



   case class dim_date_schema(
                       date_key: Int,
                       date: String,
                       day: Int,
                       day_suffix: String,
                       week_day: Int,
                       week_day_name: String,
                       week_day_name_short: String,
                       week_day_name_first_letter: String,
                       day_of_year: Int,
                       week_of_month: Int,
                       week_of_year: Int,
                       month: Int,
                       month_name: String,
                       month_name_short: String,
                       month_name_first_letter: String,
                       quarter: Int,
                       quarter_name: String,
                       year: Int,
                       yyyymm: String,
                       month_year: String,
                       is_weekend: Int,
                       is_holiday: Int,
                       first_date_of_year: String,
                       last_date_of_year: String,
                       first_date_of_quarter: String,
                       last_date_of_quarter: String,
                       first_date_of_month: String,
                       last_date_of_month: String,
                       first_date_of_week: String,
                       last_date_of_week: String,
                       last_12_month_flag: Int,
                       last_6_month_flag: Int,
                       last_month_flag: Int
                     )


Once we have the template ready for the table, then we will start working on writing logic to populate the respective columns. For this, we will create a utils object

     Scala



   import java.time.LocalDate
import java.time.format.DateTimeFormatter
import scala.collection.mutable.ListBuffer

object date_time_utils {
  val default_format = "yyyy-MM-dd"

  def check(start_date: String, end_date: String): Boolean = {
    val start = LocalDate.parse(start_date, DateTimeFormatter.ofPattern(default_format))
    val end = LocalDate.parse(end_date, DateTimeFormatter.ofPattern(default_format))
    end.isAfter(start)
  }


  def convert_string_to_date(current_date: String, input_format: String, output_format: String) = {
    val input_formatter = DateTimeFormatter.ofPattern(input_format)
    val output_formatter = DateTimeFormatter.ofPattern(output_format)
    output_formatter.format(input_formatter.parse(current_date))
  }

  def get_day_suffix(current_date: String) = {
    val day = convert_string_to_date(current_date, default_format, "d").toInt
    day match {
      case 1 => "st"
      case 21 => "st"
      case 31 => "st"
      case 2 => "nd"
      case 22 => "nd"
      case 3 => "rd"
      case 23 => "rd"
      case _ => "th"
    }
  }

  def get_quater_name(current_date: String) = {
    val quater = convert_string_to_date(current_date, default_format, "Q").toInt
    quater match {
      case 1 => "Q1"
      case 2 => "Q2"
      case 3 => "Q3"
      case 4 => "Q4"
    }
  }

  def is_weekend(current_date: String) = {
    val week_day_name = convert_string_to_date(current_date, default_format, "EEEE")
    week_day_name match {
      case "Saturday" => 1
      case "Sunday" => 1
      case _ => 0
    }
  }

  def get_date_of_year(current_date: String, position: String) = {
    val year = convert_string_to_date(current_date, default_format, "u")
    position match {
      case "first" => year + "-01-01"
      case "last" => year + "-12-31"
    }
  }

  def get_first_date_of_quarter(current_date: String) = {
    val quater = convert_string_to_date(current_date, default_format, "QQ")
    val year = convert_string_to_date(current_date, default_format, "u")
    quater match {
      case "01" => year + "-01-01"
      case "02" => year + "-04-01"
      case "03" => year + "-07-01"
      case "04" => year + "-10-01"
    }
  }

  def get_last_date_of_quarter(current_date: String) = {
    val quater = convert_string_to_date(current_date, default_format, "QQ")
    val year = convert_string_to_date(current_date, default_format, "u")
    quater match {
      case "01" => year + "-03-31"
      case "02" => year + "-06-30"
      case "03" => year + "-09-30"
      case "04" => year + "-12-31"
    }
  }

  def get_first_date_of_month(current_date: String) = {
    val month = convert_string_to_date(current_date, default_format, "MM")
    val year = convert_string_to_date(current_date, default_format, "u")
    year + "-" + month + "-01"
  }

  def get_last_date_of_month(current_date: String) = {
    val converted_date = LocalDate.parse(current_date, DateTimeFormatter.ofPattern(default_format))
    val last_day_of_month = converted_date.withDayOfMonth(converted_date.getMonth.length(converted_date.isLeapYear))
    last_day_of_month.toString
  }

  def get_first_date_of_week(current_date: String) = {
    val converted_date = LocalDate.parse(current_date, DateTimeFormatter.ofPattern(default_format))
    val day_backward = convert_string_to_date(current_date, default_format, "e").toInt - 1
    converted_date.minusDays(day_backward).toString
  }

  def get_last_date_of_week(current_date: String) = {
    val converted_date = LocalDate.parse(current_date, DateTimeFormatter.ofPattern(default_format))
    val day_forward = 7 - convert_string_to_date(current_date, default_format, "e").toInt
    converted_date.plusDays(day_forward).toString
  }

  def get_last_12_month_list() = {
    var last_12_month_list = ListBuffer[String]()
    var i = 0
    for( i <- 1 to 12){
      last_12_month_list += DateTimeFormatter.ofPattern("yyyyMM").format(LocalDate.now.minusMonths(i))
    }
    last_12_month_list
  }


  def get_last_12_month_flag(yyyyMM: String) = {
    if (get_last_12_month_list().contains(yyyyMM)) 1 else 0
  }

  def get_last_6_month_flag(yyyyMM: String) = {
    if (get_last_12_month_list().slice(0,6).contains(yyyyMM)) 1 else 0
  }

  def get_last_month_flag(yyyyMM: String) = {
    if (get_last_12_month_list()(0).equals(yyyyMM)) 1 else 0
  }

  def get_calendar_end_date(plus_month:Int) = {
    get_last_date_of_month(DateTimeFormatter.ofPattern("yyyy-MM-dd").format(LocalDate.now.plusMonths(plus_month)))
  }
}


Now when we have all the basic functions defined to generate rows for the date dimension, we will create the dim date generator notebook

     Scala



   def dim_date_generator(current_date: String): dim_date_schema ={
  val default_format = "yyyy-MM-dd"
  val date_key = date_time_utils.convert_string_to_date(current_date, default_format, "yyyyMMdd").toInt
  val date = current_date
  val day = date_time_utils.convert_string_to_date(current_date, default_format, "d").toInt
  val day_suffix = date_time_utils.get_day_suffix(current_date)
  val week_day = date_time_utils.convert_string_to_date(current_date, default_format, "e").toInt
  val week_day_name = date_time_utils.convert_string_to_date(current_date, default_format, "EEEE")
  val week_day_name_short = date_time_utils.convert_string_to_date(current_date, default_format, "E").toUpperCase
  val week_day_name_first_letter = date_time_utils.convert_string_to_date(current_date, default_format, "E").substring(0, 1)
  val day_of_year = date_time_utils.convert_string_to_date(current_date, default_format, "D").toInt
  val week_of_month = date_time_utils.convert_string_to_date(current_date, default_format, "W").toInt
  val week_of_year = date_time_utils.convert_string_to_date(current_date, default_format, "w").toInt
  val month = date_time_utils.convert_string_to_date(current_date, default_format, "M").toInt
  val month_name = date_time_utils.convert_string_to_date(current_date, default_format, "MMMM")
  val month_name_short = date_time_utils.convert_string_to_date(current_date, default_format, "MMM").toUpperCase
  val month_name_first_letter = date_time_utils.convert_string_to_date(current_date, default_format, "MMM").substring(0, 1)
  val quarter = date_time_utils.convert_string_to_date(current_date, default_format, "Q").toInt
  val quarter_name = date_time_utils.get_quater_name(current_date)
  val year = date_time_utils.convert_string_to_date(current_date, default_format, "u").toInt
  val yyyyMM = date_time_utils.convert_string_to_date(current_date, default_format, "yyyyMM")
  val month_year = date_time_utils.convert_string_to_date(current_date, default_format, "yyyy MMM").toUpperCase
  val is_weekend = date_time_utils.is_weekend(current_date)
  val is_holiday = 0
  val first_date_of_year = date_time_utils.get_date_of_year(current_date, "first")
  val last_date_of_year = date_time_utils.get_date_of_year(current_date, "last")
  val first_date_of_quarter = date_time_utils.get_first_date_of_quarter(current_date)
  val last_date_of_quarter = date_time_utils.get_last_date_of_quarter(current_date)
  val first_date_of_month = date_time_utils.get_first_date_of_month(current_date)
  val last_date_of_month = date_time_utils.get_last_date_of_month(current_date)
  val first_date_of_week = date_time_utils.get_first_date_of_week(current_date)
  val last_date_of_week = date_time_utils.get_last_date_of_week(current_date)
  val last_12_month_flag = date_time_utils.get_last_12_month_flag(yyyyMM)
  val last_6_month_flag = date_time_utils.get_last_6_month_flag(yyyyMM)
  val last_month_flag = date_time_utils.get_last_month_flag(yyyyMM)
  dim_date_schema(date_key, date, day, day_suffix, week_day, week_day_name, week_day_name_short, week_day_name_first_letter,
    day_of_year, week_of_month, week_of_year, month, month_name, month_name_short, month_name_first_letter, quarter,
    quarter_name, year, yyyyMM, month_year, is_weekend, is_holiday, first_date_of_year, last_date_of_year, first_date_of_quarter,
    last_date_of_quarter, first_date_of_month, last_date_of_month, first_date_of_week, last_date_of_week, last_12_month_flag, last_6_month_flag, last_month_flag)
}


The last and the final step is to create the final notebook, we are starting our dimension start date from “2017–01–01” till current year + 5, https://tinyurl.com/dim-date-t

     Scala



   import org.apache.spark.sql.functions._
import org.apache.spark.sql.DataFrame

def create_final_df(): DataFrame = {

  //Start Date
  var start_date = "2017-01-01"

  //End Date
  val end_date = date_time_utils.get_calendar_end_date(60)

  //Mutable list to store dim date
  var dim_date_mutable_list = new ListBuffer[dim_date_schema]()

  while (date_time_utils.check(start_date, end_date)) {
    val dim_date_schema_object = dim_date_generator(start_date)
    dim_date_mutable_list += dim_date_schema_object
    start_date = LocalDate.parse(start_date, DateTimeFormatter.ofPattern("yyyy-MM-dd")).plusDays(1).toString
  }

  val dim_date_list = dim_date_mutable_list.toList
  val dim_date_df = spark.createDataset(dim_date_list)
  dim_date_df.select(col("date_key")
    , col("date").cast("date")
    , col("day")
    , col("day_suffix")
    , col("week_day")
    , col("week_day_name")
    , col("week_day_name_short")
    , col("week_day_name_first_letter")
    , col("day_of_year")
    , col("week_of_month")
    , col("week_of_year")
    , col("month")
    , col("month_name")
    , col("month_name_short")
    , col("month_name_first_letter")
    , col("quarter")
    , col("quarter_name")
    , col("year")
    , col("yyyymm")
    , col("month_year")
    , col("is_weekend")
    , col("is_holiday")
    , col("first_date_of_year").cast("date")
    , col("last_date_of_year").cast("date")
    , col("first_date_of_quarter").cast("date")
    , col("last_date_of_quarter").cast("date")
    , col("first_date_of_month").cast("date")
    , col("last_date_of_month").cast("date")
    , col("first_date_of_week").cast("date")
    , col("last_date_of_week").cast("date")
    , col("last_12_month_flag")
    , col("last_6_month_flag")
    , col("last_month_flag")
    , current_timestamp().as("load_date"))
}


You can download the complete set of notebooks from the git repository

The creation of a date dimension is very important for a Data Analytics solution in order to create filters on the front-end dashboard built on either PowerBI, Tableau, or QlikView.
