Solving Real-Time Event Correlation in Distributed Systems

Modern digital platforms operate as distributed ecosystems — microservices emitting events, APIs exchanging data, and asynchronous communication becoming the norm. In such environments, correlating events across multiple sources in real time becomes a critical requirement.

Think of payments, orders, customer metadata, IoT sensors, logistics tracking — all flowing continuously.

These events rarely arrive in order, rarely originate from one system, and often must be joined before downstream processing. This leads to a crucial question:

How do we join two streaming event sources (left and right streams) by key and time window using plain Spring Boot, without Kafka Streams, Spark, or Flink?

This blog explains a clean, production-ready way to implement:

• Real-time stream join
• Event-time based correlation
• Watermarking to drop late events
• Sliding/Tumbling window joins
• In-memory state store
• REST API-based ingestion

Why Do We Need a Streaming Join Engine?

In enterprise systems, operations often depend on combining information from multiple event producers.

1. Order + Customer Metadata

• Left stream: Order event from OMS.
• Right stream: Customer country/geo from User Service. This is needed for real-time enrichment before invoicing or fraud detection.

2. Payment Event + Fraud Score Event

• Payment attempt arrives.
• Fraud score arrives from ML model. Join is required within 5–10 seconds to allow real-time approval decisions.

3. IoT Sensor Fusion

• Temperature event
• Humidity event. Must be joined within milliseconds for accurate predictions.

4. Telecom Real-Time Monitoring

• Subscriber movement.
• Tower signal. Join is needed for real-time network-performance metrics.

These joins cannot rely on nightly batch jobs, because decisions must be:

• Real-time
• Event-driven
• Low-latency
• Correct, even if events arrive out of order

Core Challenge: Event-Time Disorder and Late Arrivals

In real systems:

• Network jitter delays events
• Services are produced at different speeds
• Clock skew causes timestamp variations
• Event bursts cause uneven flow
• Events can arrive seconds to minutes late

A naïve "join the last event you saw" strategy will break.

Example

Left Event (Order)

• t = 10:00:05

Right Event (CustomerMeta)

• t = 10:00:02 (arrives late at 10:00:08)

→ Without event-time logic, this join fails.
→ Business logic says it should match.

This is why we need:

• Event-time based windows
• Watermarking
• Late-event handling

Architecture: Event-Time Join Engine With Watermarking

Event Models

Left Event

public class LeftEvent {
    private String key;
    private long eventTime; // epoch millis
    private String orderId;
    private double amount;
}

Right Event

public class RightEvent {
    private String key;
    private long eventTime; // epoch millis
    private String country;
}

How the Join Works: Step-by-Step

1. Accept Event via REST

@PostMapping("/left")  → engineService.acceptLeft(e);
@PostMapping("/right") → engineService.acceptRight(e);

Events are added to:

• leftStore
• rightStore

2. Update Maximum Event Time

maxEventTime = max(maxEventTime, event.eventTime)

3. Compute Watermark

Allowed lateness = 10 seconds → 10000 ms

watermark = maxEventTime - 10000

Events older than this are discarded.

4. Perform Join

On the arrival of a new Left Event:

scan RightStore[key]
match if |leftTime - rightTime| <= joinWindow

Same for Right Event.

5. Emit Joined Output

A sample join result:

{
  "key": "CUST-1002",
  "orderId": "ORD-9002",
  "amount": 1989.75,
  "country": "India",
  "joinedAt": 1700000105000
}

6. Cleanup Using Watermark

Any event older than the watermark is removed from memory.

Example API Requests and Outputs

POST /api/left

{
  "key": "CUST-1002",
  "eventTime": 1700649000202,
  "orderId": "ORD-9002",
  "amount": 1989.75
}

Response: accepted.

State:

leftStore["CUST-1002"] = [{ORD-9002, 1989.75}]
rightStore["CUST-1002"] = []

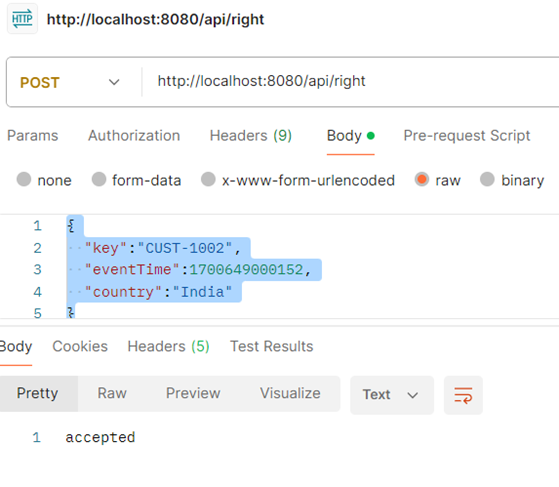

POST /api/right

{
  "key": "CUST-1002",
  "eventTime": 1700649000152,
  "country": "India"
}

Joined Output

{
  "key": "CUST-1002",
  "orderId": "ORD-9002",
  "amount": 1989.75,
  "country": "India",
  "joinedAt": 1700000105000
}

Watermark Example

• Max event time: 1700000105000
• Allowed lateness: 10s
• Watermark: 1700000095000

API endpoint: GET /api/watermark

Response: 1700000095000

REST Controller (Final Version)

@RestController
@RequestMapping("/api")
public class EventController {

    private final EngineService engineService;

    public EventController(EngineService engineService) {
        this.engineService = engineService;
    }

    @PostMapping("/left")
    public ResponseEntity<?> postLeft(@RequestBody LeftEvent e) {
        engineService.acceptLeft(e);
        return ResponseEntity.ok().body("accepted");
    }

    @PostMapping("/right")
    public ResponseEntity<?> postRight(@RequestBody RightEvent e) {
        engineService.acceptRight(e);
        return ResponseEntity.ok().body("accepted");
    }

    @GetMapping("/watermark")
    public ResponseEntity<?> watermark() {
        return ResponseEntity.ok().body(engineService.getWatermark());
    }
}

Endpoints

Why Not Use a Database JOIN?

Because database joins are:

• Based on stored/batch data
• High latency (seconds to minutes)
• Order-dependent (arrival order matters)
• Cannot handle late events.
• Cannot scale for streaming workloads

Our Spring Boot join engine provides:

• Millisecond joins
• Accurate event-time semantics
• In-memory performance
• Watermark-based cleanup
• No external streaming infrastructure

Practical Real-Time Use Case: E-Commerce Order Enrichment

Business Flow

1. Order Service emits:

• orderId
• amount
• eventTime
• customerId (key)

2. Customer Profile Service emits:

• customerId
• country
• eventTime

Business Need

Before routing an order to:

• Tax engine
• Fraud decisioning
• Payment gateway
• Invoicing pipeline

It must be enriched with the customer’s country.

Join Logic

• Join window: 10 seconds
• Join based on: event-time, not arrival time

Why?

• The customer profile may arrive late.
• Order service may be faster.
• Network latency varies.
• A message queue (Kafka/SQS) might delay only one stream.

Example Timeline

Both timestamps fall within the 10-second window.

→ Join event created.

Real-Time Benefits

• Sub-second join processing. Accurate even when events arrive out of order.
• No Kafka, Flink, Spark required.
• Stateless REST producers → State held centrally.
• Runs on any environment (VM, on-prem, Kubernetes).
• Production-ready with watermark-based cleanup

Where This Is Used in the Real World

• Fraud detection: Join payment events with risk-score events.
• Real-time order enrichment: Join orders with customer metadata (country, geo, segment).
• Logistics/fleet tracking: Join GPS location with route updates.
• IoT sensor fusion: Combine temperature + humidity into a unified sensor reading.
• Telecom analytics: Join subscriber session with tower signal events.
• Online gaming: Join user action events with current session metadata.

Final Summary

You now have a complete:

• Real-time streaming join engine
• Event-time window correlation
• Watermarking and cleanup
• REST-based ingestion
• In-memory state store
• Real-world business use case
• Ready-to-deploy Spring Boot implementation

This is a lightweight, efficient alternative to Kafka Streams/Flink for small-to-medium-scale real-time joins.
