Refcard #140

Mule 3.3

Simplifying SOA

Learn how to deply on this SOA. If you are a new user, it will serve as a handy reference when building your integration flows in Mule. If you are an existing user, especially of Mule 2, it will help ease your transition into using Mule 3.

Free PDF for Easy Reference
refcard cover

Written By

author avatar John D'Emic
Chief Architect, OpSource
Table of Contents
► About Mule ► Mule XML ► Messages ► Connectivity ► Modules ► Expressions ► Annotations ► Handling Errors ► Functional Testing ► Conclusion
Section 1

About Mule

By John D’Emic

Mule is the world’s most widely used open-source integration platform and Enterprise Services Bus (ESB). Mule is designed to support high-performance, multi-protocol transactions between heterogeneous systems and services. It provides the basis for service-oriented architecture. It is lightweight and can run standalone or embedded directly in your application.

This Refcard covers the use of Mule 3. If you are a new user, it will serve as a handy reference when building your integration flows in Mule. If you are an existing user, especially of Mule 2, it will help ease your transition into using Mule 3.

Section 2

Mule XML

The programming model for Mule is XML using namespaces that provide a DSL authoring environment to orchestrate your integration applications. The diagram below demonstrates the structure of a typical Mule configuration.


<?xml version=”1.0” encoding=”UTF-8”?>
<mule xmlns=”http://www.mulesoft.org/schema/mule/core”
xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance”
xmlns:vm=”http://www.mulesoft.org/schema/mule/vm”
xmlns:jms=”http://www.mulesoft/org/schema/mule/jms”
xmlns:file=”http://www.mulesoft.org/schema/mule/file”
xsi:schemaLocation=”
http://www.mulesoft.org/schema/mule/core
http://www.mulesoft.org/schema/mule/core/3.1/mule.xsd
http://www.mulesoft.org/schema/mule/vm
http://www.mulesoft.org/schema/mule/vm/3.1/mule-vm.xsd
http://www.mulesoft.org/schema/mule/jms
http://www.mulesoft.org/schema/mule/jms/3.1/mule-jms.xsd
http://www.mulesoft.org/schema/mule/file
http://www.mulesoft.org/schema/mule/file/3.1/mule-file.xsd
“>

<description>Demonstrate Mule Configuration Elements</description>

<jms:connector name=”jmsConnector”
connectionFactory-ref=”connectionFactory”
username=”guest”
password=”guest”/>

<file:connector name=”fileConnector” streaming=”true”/>

<flow name=”Route messages dynamically using a message property”>
  <vm:inbound-endpoint path=”input”/>
  <vm:outbound-endpoint path=”#[header:INBOUND:destination-queue]”/>
</flow>

<simple-service name=”random-number-service”
address=”http://localhost:8080/rest”
component-class=”com.mulesoft.refcard.
RandomNumberResource”
type=”jax-rs”/>
</mule>

Mule XML consists of the following:

  • An opening mule element containing the namespaces used in the configuration.
  • A description of the purpose of the configuration.
  • Connector definitions.
  • Global configuration elements like endpoints, transformers and notification listeners.
  • Flows, patterns and services.

Flows

Flows, new to Mule 3, provide a free-form method of orchestrating message processing in Mule. A flow consists of a message source, typically an inbound-endpoint, followed by a sequence of message processors.

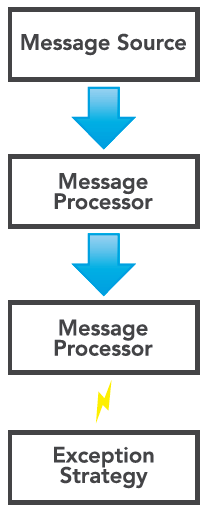

Flow Chart

Message Processor

Message Processors are used in flows to route, transform, filter and perform business logic on messages. MessageProcessor is a single method interface implemented by almost everything in a Flow.

Exception Strategy

An exception strategy can be added to the end of the flow to route errors that occur during the flow’s execution.

Hot Tip

Optionally end a flow with an outbound router or endpoint to send to another flow or external service.

Sending a JMS Message with a Flow

Sending a JMS message is easy with a flow. Here’s how you can use a flow to read files from a directory and send their payload to a JMS queue.


<flow name=”File to JMS Message”>
<file:inbound-endpoint path=”data/files”>
<byte-array-to-string-transformer/>
</file:inbound-endpoint>
<jms:outbound-endpoint queue=”output”/>
</flow>

The file:inbound-endpoint will read files from the given path, transforming their contents into Strings. The content is then passed as JMS TextMessages to the “output” queue.

Using Patterns

Mule Configuration Patterns, extending the Enterprise Integration Patterns, encapsulate common integration paradigms in a compact configuration format.

Creating a RESTful Web Service

A RESTful web service can be quickly created using the simple service pattern.


<simple-service name=”random-number-service”
address=”http://localhost:8080/rest”
componentclass=”org.refcard.RandomNumberResource”
type=”jax-rs”/>

In this case, we are using the simple-service pattern to expose a JAX-RS resource that returns a random number from an HTTP GET request.

Hot Tip

Flows and patterns now supersede services, which were the predominant integration paradigm in Mule 2. While services will always be supported, you should favor flows and patterns for new applications.
Section 3

Messages

Messages encapsulate data entering and leaving Mule. The content of a message is called its payload. The payload is typically a Serializable Java class, an InputStream or an array of bytes.

Attachments

A message can have zero or more mime attachments in addition to the payload. These can be used to associate files, documents and images with the message.

Properties

Properties, also called headers, are metadata associated with a message. Mule, the various transports and you the developer can add properties to a message. Examples of message properties are JMS message headers, HTTP response headers or Mule-specific headers like MULE_MESSAGE_ID. The following table contains examples of message properties set by Mule.

Property Description
MULE_MESSAGE_ID A GUID assigned to the message.
MULE_CORRELATION_ID A GUID assigned to a group of messages.
MULE_CORRELATION_GROUP_SIZE The amount of messages expected in the correlation group.
MULE_CORRELATION_SEQUENCE The order of a correlation group.
MULE_SESSION A property that holds encoded session data./td>

Scopes

Properties are scoped differently depending on when they’re set or accessed during message processing. The following table contains the available scopes.

Scope Description
inbound Set by message sources, typically an inbound-endpoint.
outbound Any properties in this scope will get attached to an outbound or response message. Properties set by the messageproperties- transformer default to the outbound scope.
session Properties in the session scope are available between flows and services without explicit propagation.
invocation Used internally by Mule and lasts only for an invocation of a flow or service.
Section 4

Connectivity

Mule connects to over 100 applications, protocols and APIs. Mule endpoints enable connectivity to protocols such as JMS, HTTP and JDBC. Cloud Connectors enable connectivity to applications and social media like SalesForce and Twitter.

Endpoints

Messages can be received with an inbound endpoint and sent with an outbound endpoint. Inbound and outbound endpoints are configured using the XML namespace prefix of the transport.

Connectors

A connector is used to configure connection properties for an endpoint. Most endpoints don’t require a connector. However, some (like JDBC or JMS) do require connector configuration, as we’ll see below.

Configuring an SMTP connector

The following example illustrates how an SMTP connector is configured.


<smtp:connector name=”smtpConnector”
fromAddress=”user@foo.com”
bccAddresses=”admins@foo.com”
subject=”A Message from Mule” />

The SMTP connector allows you to specify properties that will be shared across SMTP endpoints. In this case, the connector sets the “from” and “bcc” addresses as well as the subject of the messages. A connector is referenced by its name, allowing you to define multiple connectors for the same transport.

Endpoints can be generically referenced using an endpoint URI as well as having specific XML configuration elements.

The following table describes some common endpoints supplied by Mule.

Endpoint Description
http://[host]:[port]:[path]?[query] Send and receive data over HTTP.
ajax://[channel] Pub / Sub to browser apps using CometD.
file://[path] Read and write files.
ftp://[user]@[host]:[port]/[path] Read and write files over FTP or SFTP.
jms://[type]:[destination]?[options] Full support for JMS topics and queues.
smtp://[user]@[host]:[port] Send email over SMTP.
imap://[user]@[host]:[port]/[folder] Receive email via IMAP.
jdbc://[sql query] Send and receive data from a SQL database.
vm://[path] Uses memory-based queues to send between services and flows.

The full list of transports is available in the Mule documentation.

Hot Tip

Use exchange patterns to define how a message is received by an endpoint. For endpoints that generate a response(synchronous) use the request-response, for asynchronous endpoints use the one-way exchange pattern.

Cloud Connectors

Cloud connectors enable easy access to SaaS, social media and infrastructure services such as Amazon WS and Facebook.

These connectors can be used anywhere in a flow to invoke a remote service. A cloud connector usually has a ‘config’ element where service credentials are set and then one or more elements that invoke service methods. The following demonstrates how the Twitter cloud connector can be used to post a tweet:


curl –-data “status=go mule!” http://localhost
<twitter:config name=”twitter” format=”JSON”
consumerKey=”${twitter.consumer.key}”
consumerSecret=”${twitter.consumer.secret}”
oauthToken=”${twitter.access.token}”
oauthTokenSecret=”${twitter.access.secret}” />

<flow name=”updateStatusFlow”>
<http:inbound-endpoint host=”localhost” port=”80”/>
<twitter:update-status
status=”#[header:INBOUND:status]”/>

</flow>

We can now post a tweet to the inbound-endpoint with curl:


curl –-data “status=go mule!” http://localhost

Polling

Mule has a poll tag that allows data from a remote service to be received periodically. To get updates from a Twitter timeline:


<flow name=”getStatusFlow”>
<poll>
<twitter:public-timeline />
</poll>
</flow>

Section 5

Modules

Modules extend Mule’s functionality by providing namespace support for a certain set of message processors. The following table contains some of the modules provided by Mule.

Module Description
JSON JSON support, including marshaling, transformation and filtering.
CXF SOAP support via Apache CXF
Jersey JAX-RS support for publishing RESTful services.
Scripting Support for JSR-223 compliant scripting language, like Groovy or Rhino.
XML XML support, including XML marshaling, XPath and XSLT support.

The full list of available modules is available in the official Mule documentation. Additional modules are available on MuleForge.

Hot Tip

Use MuleForge.org to locate community-written extensions.

Bridging REST to SOAP

The following demonstrates how the CXF module can be used to bridge a RESTful service to a SOAP service.

The inbound-endpoint accepts HTTP POST requests to http://localhost:8080/service. The POST data is then sent to the SOAP service defined by the CXF jaxws-client.

Routers

Routers implement the Enterprise Integration patterns (EIP) and determine how messages are directed in a flow.

The following table contains commonly used routers

Router Description
all Sends the message to each endpoint.
choice Sends the message to the first endpoint that matches.
recipient-list Sends the message to all endpoints in the expression evaluated with the given evaluator.
round-robin Each message received by the router is sent to alternating endpoints.
wire-tap Sends a copy of the message to the supplied endpoint then passes the original message to the next processor in the chain.
first-successful Sends the message to the first endpoint that doesn’t throw an exception or evaluates the failureExpression to true.
splitter Will split the current message into parts using an expression or just split elements of a List.
aggregator Will collect related messages and create a message collection.

Transformers

Transformers modify the message and pass it to the next message in the chain.

The following table contains commonly used transformers.

Name Description
message-propertiestransformer Adds and removes properties from a message, optionally specifying their scope.
byte-array-to-stringtransformer Many basic type transformers are included.
xml:jaxb-xml-to-objecttransformer Transforms JAXB objects explicitly.
auto-transformer Will automatically find the best transformer for a specified type.
xml:xslt_transformer Transforms a message using the given stylesheet.
json:object-to-jsontransformer Transforms message payloads to and from JSON.
gzip-compresstransformer Compresses and uncompress message payloads using gzip.
encrypt-transformer Encrypts and decrypts message payloads.

Hot Tip

Endpoints often include their own transformers. JMS for instance, allows transformers to convert message payloads to and from JMS messages automatically.

Components

Components allow business logic to be executed in a flow. Any Java object or script can be used as a component. Components are configured by either identifying the class or providing a reference to a Spring bean for dependency injection.

The following snippet shows how a class called MyService can be configured as a component using a class and via dependency injection via Spring.


<bean class=”com.acmesoft.service.MyService”/>

<flow name=”test”>
<http:inbound-endpoint host=”foo.com”>
<component>
<spring-object bean=”myService”/>
</component>
</flow>

Mule will use the type of the payload of the message being processed to determine what method to invoke. It’s often necessary, however, to explicitly specify the method to invoke. Entry point resolvers are used for this purpose. The following table contains a list of available resolvers.

Resolver Description
method-entry-point-resolver Resolves the method using the specified name.
property-entry-point-resolver Resolves the method using the specified message property.
custom-entry-point-resolver A Java class that implements org.mule.api.model.EntryPointResolver or extends org.mule.model.resolvers. AbstractEntryPointResolver.

The use of entry point resolvers allows you to use POJO’s as components, decoupling your code from Mule. Sometimes, you will want access to the MuleMessage or MuleContext when processing a message. In cases like this, you can implement the org.mule.api.lifecycle.Callable interface. Callable includes a single method, onCall, to implement that provides direct access to the MuleMessage when the method is invoked.

In addition to custom components, Mule provides the following utility components.

Component Description
<log-component> Logs messages.
<echo-component> Returns and passes along.
<test:component> Helps test message flows (in the test namespace).

Hot Tip

Try to avoid implementing Callable to keep your component code decoupled from Mule’s API.

Filters

Filters selectively pass messages to the next processor in the chain.
The following table contains commonly used filters.

Name Description
expression-filter Passes messages using any of the expressions languages supported by Mule.
regex-filter Decides what messages to pass by applying the supplied regular expression to the message payload.
payload-type-filter Passes messages only of the given type.
custom-filter Specifies the class of a custom filter that implements the org.mule.api.routing.filter.Filter interface.
and-filter, or-filter, not-filter Logic filters that work with other filters.

Using Filters with XPath

The following example demonstrates how the xpath-filter can be used to only pass certain XML documents. In this case, only order XML documents containing a certain ZIP code are allowed to pass.


<flow name=”Filter messages using the XPath filter”>
<vm:inbound-endpoint path=”input”/>
<mulexml:xpath-filter pattern=”/order/zipCode”
expectedValue=”11209”/>
<vm:outbound-endpoint path=”output”/>
</flow>
Section 6

Expressions

Mule provides a rich expression language to evaluate data at runtime using the message currently being processed.

Evaluators

The following are commonly used expression evaluators.

Name Description
path Query the message payload using XPath
payload Use the message’s payload for evaluation.
map-payload A Java class that implements org.mule.api.model. EntryPointResolver or extends org.mule.model.resolvers. AbstractEntryPointResolver.
regex Perform a regular expression evaluation against a message payload.
bean Evaluates the message payload as a JavaBean.
groovy Use Groovy to evaluate an expression. Mule provides certain variables, like payload, properties and muleContext, to the script context to aid in evaluation.
header:[scope] Return the given header for a specific scope, as demonstrated below

Routing Messages Dynamically

The following illustrates how a message can be dynamically routed to a JMS queue passed on a message header.


<flow>
<vm:inbound-endpoint path=”input”/>
<jms:outbound-endpoint
queue=”#[header:INBOUND:destination-queue]”/>
</flow>

This example accepts a message off the given VM queue. The outbound-endpoint uses the header evaluator to dynamically route the message to the queue defined by an inbound message property called “destination-queue”.

Section 7

Annotations

Annotation support, introduced in Mule 3, further simplifies Mule configuration by reducing or eliminating the XML needed to configure components and transformers.

The following table contains a list of commonly used annotations.

Name Type Description
@Transformer Method Indicates the method can be used as a transformer.
@ContainsTransformerMethods Class Indicates the annotated class contains transformation methods.
@Schedule Method Schedules a method for periodic execution.
@Lookup Field,Parameter Looks up the annotation field or parameter for dependency injection from the Mule registry.
@Payload Parameter (component or transformer) Injects the payload into a method. If the param type is different from the payload type, Mule will attempt to transform it.
@InboundHeaders Parameter (component or transformer) Injects any inbound headers at runtime. Can be filtered by name and used to inject individual headers.
@OutboundHeaders Parameter (component or transformer) Injects a Map of outbound headers that can be used to add headers to the outgoing message.
@Inbound Attachments Parameter (component or transformer) Injects any inbound attachments at runtime. Can be filtered by name.
@Outbound Attachments Parameter (component or transformer) Injects a Map of outbound attachments that can be used to add attachments to the message.

You can use the Mule 3 annotation support to quickly implement transformers and components.

Implementing a Transformer with Annotations

Here’s an example of a transformer that lowercases a message’s payload.


@ContainsTransformerMethods
public class LowercaseTransformer {

@Transformer
public String toLowercase(String string) {
return string.toLowerCase();
}
}

This class can be used a message source in a flow to generate a timestamp every minute.

Implementing a Component with Annotations

Components can also be implemented with annotations. The following class demonstrates how the @Schedule annotation can be used to periodically generate data.


public class HeartbeatMessageSource {
@Schedule(interval = 60000)
public long pulse() {
return new Date().getTime();
}
}

This class can be used as a message source in a flow to generate a timestamp every minute.

Section 8

Handling Errors

Exceptions thrown during message processing are handled by exception strategies. The default-exception-strategy, configured at the end of the flow, allows you to route the exception to another endpoint for handling.

Sending Messages to a DLQ

Messages that can’t be delivered, for instance if an exception is thorn during their processing, it can be sent to a Dead Letter Queue (DLQ). The following example will send any errors that occur in the flow to the “dlq” VM queue.


<flow>
<vm:inbound-endpoint path=”input”/>
<vm:outbound-endpoint
path=”#[header:INBOUND:destination-queue]”/>
<default-exception-strategy>
<vm:outbound-endpoint path=”dlq”/>
</default-exception-strategy>
</flow>

Building upon the previous example, the default-exceptionstrategy will route messaging failures (for example, when the destination-queue inbound header is null) to the VM queue named “dlq”.

Hot Tip

Exceptions routed by the default-exceptionstrategy are instances of org.mule.api.message. ExceptionMessage, which gives you access to the Exception that was thrown along with the payload of the message.
Section 9

Functional Testing

Functional testing is an important part of testing Mule applications. Mule provides a helper class, org.mule.tck. FunctionalTestCase, which you can extend to simplify setting up a TestCase.

Functionally Testing a Flow


public class XPathFilterFunctionalTestCase extends FunctionalTestCase
{
@Override
protected String getConfigResources() {
return “xpath-filter-config.xml”;
}

public void testMessageNotFiltered() throws Exception {
String xml = “<order><zipCode>11209</zipCode></order>”;

MuleClient client = new MuleClient(muleContext);
client.dispatch(“vm://input”, xml, null);

assertNotNull(client.request(“vm://output”, 15000).
getPayloadAsString());
}

public void testMessageIsFiltered() throws Exception {
String xml = “<order><zipCode>11210</zipCode></order>”;

MuleClient client = new MuleClient(muleContext);
client.dispatch(“vm://input”, xml, null);

assertNull(client.request(“vm://output”, 5000));
}
}

Hot Tip

The test-component can be used to simulate remote services during functional testing.
Section 10

Conclusion

This Refcard is just a glimpse into what you can do with Mule 3. Consult the full documentation on the MuleSoft website. The full code and test cases for the examples used in this Refcard are available on GitHub:

https://github.com/johndemic/essential-mule-refcard

Like This Refcard? Read More From DZone

related article thumbnail

DZone Article

Apache Kafka as Cloud-Native iPaaS Integration Middleware
related article thumbnail

DZone Article

Install R Shiny Server on CentOS 7
related article thumbnail

DZone Article

A Deep Dive Into Firmware Over the Air for IoT Devices
related article thumbnail

DZone Article

Agentic AI for Automated Application Security and Vulnerability Management
related refcard thumbnail

Free DZone Refcard

GraphQL Essentials
related refcard thumbnail

Free DZone Refcard

API Integration Patterns
related refcard thumbnail

Free DZone Refcard

Getting Started With Cross-Platform Heterogeneous Computing
related refcard thumbnail

Free DZone Refcard

Introduction to Digital Asset Management via APIs

ABOUT US

  • About DZone
  • Support and feedback
  • Community research
  • Sitemap

ADVERTISE

  • Advertise with DZone

CONTRIBUTE ON DZONE

  • Article Submission Guidelines
  • Become a Contributor
  • Core Program
  • Visit the Writers' Zone

LEGAL

  • Terms of Service
  • Privacy Policy

CONTACT US

  • 3343 Perimeter Hill Drive
  • Suite 100
  • Nashville, TN 37211
  • support@dzone.com

Let's be friends:
