Section 1

Introduction

MySQL is the standard query language used by tech professionals to handle multiple databases. Being one of the most popular open-source database management systems, MySQL ensures high security, availability, and ease of use. This Refcard will help you understand the fundamental concepts of MySQL, including core features, common applications, installation steps, and more.

But before we dive into MySQL, let’s review the basics of databases and database management systems.

Section 2

Overview of Databases and DBMSs

“Data” originated from the Latin word “datum” meaning something given in the mid 18th century. It is the plural form of datum, meaning facts collected about something for further analysis. These chunks of data are stored in storage systems called “databases.”

Databases are like vessels in which you can store data. To pick the chunks of data and manage them, we often require a database management system (DBMS). 

Types of DBMSs

Database management systems are software applications used to handle databases. So, you can understand that a DBMS serves as an interface between the end user and the database(s). It takes inputs from the end user, performs actions on the databases, and displays the results.

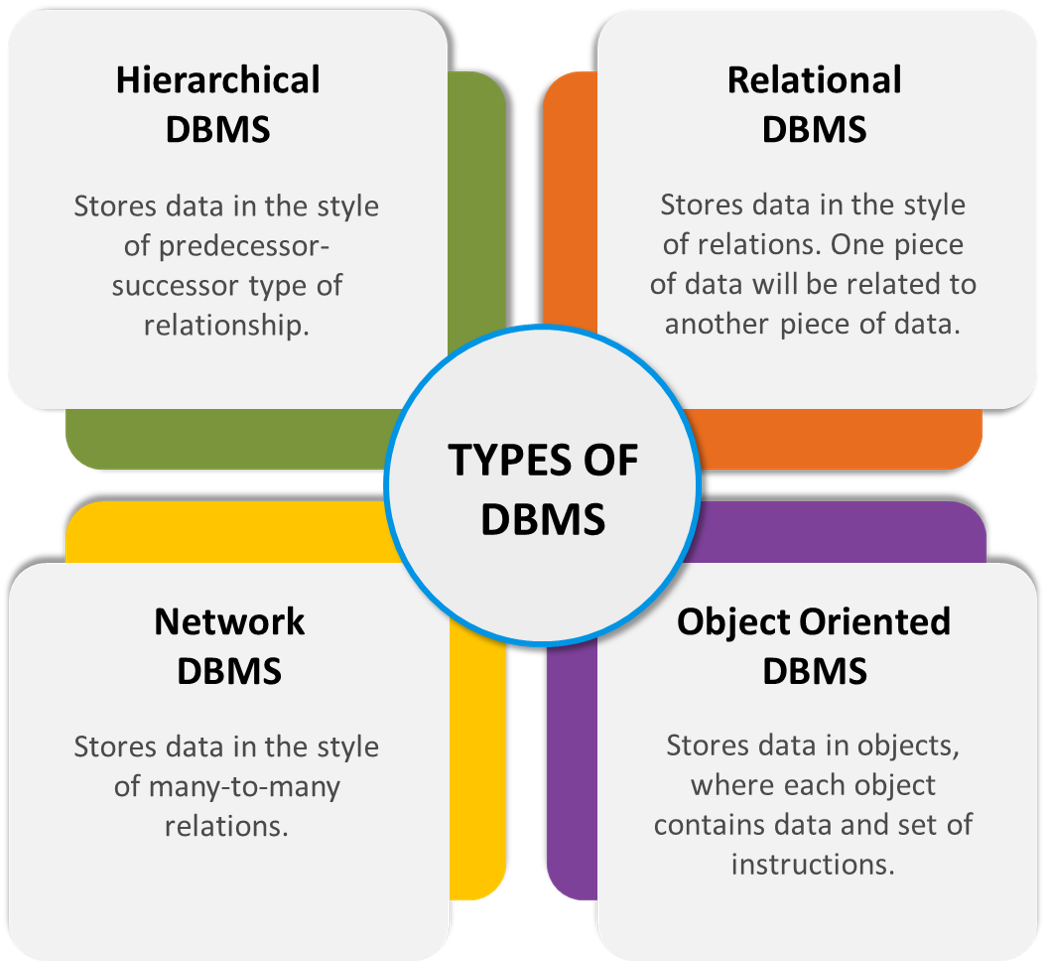

There are four types of database management systems present in the market:

Figure 1


Section 3

What Is SQL?

SQL, also known as the Structured Query Language, is the standard language used to deal with relational databases. Developed by Donald Chamberlin and Raymond F Boyce at IBM in the early 1970s, SQL allows users to access, manipulate, and store data in databases. 

In 1986, SQL became the standard of the American National Standards Institute (ANSI), followed by the International Organization for Standardization (ISO) in 1987. 

Today, SQL is used worldwide in various versions to insert, delete, update, and retrieve records. The most popular relational database — MySQL — uses the Structured Query Language to perform actions.

Let’s further dive into MySQL, what it is, core features, and more.

Section 4

About MySQL

In this section of the Refcard, we will discuss the following basics of MySQL:

  • What is MySQL 
  • MySQL features 
  • Applications of MySQL 
  • MySQL installation steps

What Is MySQL?

MySQL is the most popular open-source relational database management system developed, supported, and distributed by the Oracle corporation. The MySQL database server supports multi-user access and is very easy, fast, and reliable. It follows the client-server architecture and supports multiple client programs, back ends, etc. through multithreading.

MySQL Features 

  • Open source and scalable – Supports multiple platforms and continuous scaling through replication, clustering, and/or sharding to store large databases.
  • High data security — Protects your data using authentication plugins, SSL protocol, and data maskings to prevent cyber attacks.
  • Low cost and no downtime – Comes with low license and hardware costs along with no downtime guaranteed.
  • Ease of availability and management – Executes coordinator and worker configurations and allows users to schedule tasks.
  • High performance and transactional support – Supports fast load utilities with table index partitioning and distinct memory caches. Also, it follows the ACID property to allow multi-version support.

Applications of MySQL 

Being one of the most popular open-source database management systems, MySQL makes it easy for the users to create and use database-driven applications. Popular applications of MySQL are shown below:

Figure 2

MySQL Installation

MySQL can be installed on Linux using the following repositories:

  • Yum Repository
  • MySQL SLES Repository
  • MySQL APT Repository

MySQL Installation on Linux Using the Yum Repository

With the MySQL Yum repository, you can install the MySQL client, MySQL server, MySQL router, MySQL workbench, MySQL utilities, MySQL shell, etc., on the Red Hat Enterprise Linux, CentOS, Oracle Linux, and Fedora.

  1. Navigate to MySQL Yum repository in the URL: https://dev.mysql.com/downloads/repo/yum/
  2. Download the repository setup package based on your platform
  3. Now install the downloaded package by mentioning the command: sudo yum install platform-and-version-specific-package-name.rpm. Example: For an EL6-based system: sudo yum install mysql80-community-release-el6-{version-number}.noarch.rpm
  4. To check whether the MySQL Yum repository is added or not, use the following command: yum repolist enabled | grep "mysql.*-community.*"In case you wish to go by the default MySQL series, skip the steps below.
    Note: When you use the Yum repository, the latest MySQL series is selected by default. If you wish to choose another version, then complete the following steps:
    1. Check the subrepositories currently enabled or disabled in the Yum repository using: yum repolist all | grep mysql
    2. Disable the current MySQL series by mentioning its name: sudo yum-config-manager --disable mysql57-community
    3. Enable the series you wish to use by mentioning its name: sudo yum-config-manager --enable mysql80-community
    4. Verify whether the correct subrepositories have been enabled or not using: yum repolist enabled | grep mysql
    5. Next, you must disable the MySQL module and make the MySQL repository packages visible: sudo yum module disable mysql
    6. Now install MySQL: sudo yum install mysql-community-serverThis will install the MySQL server, MySQL client, shared client libraries, etc.
  5. Start the MySQL Serversystemctl start mysqld and check its status: systemctl status mysqld
    • At the initial startup of the server, the server is initialized, and the SSL certificate and key files are generated in the directory.
    • A superuser account 'root'@'localhost' is created
    • The password validation component is installed
    • You can view all the MySQL components available from the MySQL Yum repository: sudo yum --disablerepo=\* --enablerepo='mysql*-community*' list available
    • Install any packages by replacing package-name with name of the package: sudo yum install package-name. Example: sudo yum install mysql-workbench-community

Now let’s install MySQL using the SLES repository.

MySQL Installation on Linux Using the SLES Repository

With the MySQL SLES repository, you can install the MySQL components on SUSE Linux Enterprise Server (SLES).

  1. Navigate to MySQL SLES repository in the URL: https://dev.mysql.com/downloads/repo/suse/.
  2. Download the repository setup package based on the platform
  3. Now install the downloaded package by mentioning the command: sudo rpm -Uvh package-name.rpmExample: For an SLES 15-based system, use: sudo rpm -Uvh mysql80-community-release-sl15-#.noarch.rpm
  4. Import the MySQL GnuPG key to check the signatures of the downloaded packages from the SLES repository: sudo rpm --import /etc/RPM-GPG-KEY-mysql-2022In case you wish to go by the default MySQL series, skip the section below:
    1. When you use the SLES repository, the latest GA series is enabled by default and all other series are disabled
    2. View the enabled or disabled series using: zypper repos | grep mysql.*community
    3. You can enable another series by disabling the current series. Example: sudo zypper modifyrepo -d mysql80-community
    4. Now enable the desired series by mentioning its name: sudo zypper modifyrepo -e mysql57-community
    5. Verify whether the correct subrepositories have been enabled or not: zypper repos -E | grep mysql.*community
    6. Finally refresh the enabled subrepository: sudo zypper refresh
    7. Now install MySQL: sudo zypper install mysql-community-serverThis will install the MySQL server along with other required packages
  5. Start the MySQL Serversystemctl start mysql and check its status: systemctl status mysql
    1. At the initial startup of the server, the server is initialized, and the SSL certificate and key files are generated in the directory
    2. A superuser account 'root'@'localhost' is created
    3. The password validation component is installed
    4. You must secure the MySQL installation for MySQL 5.6 version only by using the command: mysql_secure_installation
    5. You can list all the subrepositories in MySQL SLES repository: zypper repos | grep mysql.*community
    6. To list all the MySQL components in a subrepository, use the command: zypper packages subrepo-name
    7. Install any packages by replacing package-name with name of the package: sudo zypper install package-nameExample: sudo zypper install mysql-community-bench

Now let's install MySQL using the APT repository.

MySQL Installation on Linux Using the APT Repository

With the MySQL APT repository, you can install the MySQL components on the Debian and Ubuntu releases:

  1. Navigate to MySQL APT repository in the URL: https://dev.mysql.com/downloads/repo/apt/
  2. Download the repository setup package based on the platform
  3. Now install the downloaded package by mentioning the command: sudo dpkg -i /PATH/version-specific-package-name.deb. Example: For the 0.8.22-1 version: sudo dpkg -i mysql-apt-config_0.8.22-1_all.deb.
  4. You will be asked to choose the versions of MySQL components that you wish to install. Select all of the components and click on OK to complete the installation of the release package
  5. Next install the MySQL serversudo apt-get install mysql-server and check the status of the server: systemctl status MySQL
    Note: When you use the APT repository, the latest MySQL series is enabled by default and all other series are disabled. You can switch to another supported major release series by reconfiguring the installation: sudo dpkg-reconfigure mysql-apt-config:
    1. Update package information from the MySQL APT repositorysudo apt-get update
    2. Now install the package you wish by replacing the package_name with the package name: sudo apt-get install package-nameExample: sudo apt-get install mysql-workbench-community

With this, we’ve concluded the installation of MySQL on Linux using various repositories. You can also download MySQL on Windows and MacOS.

Section 5

Fundamentals of MySQL

This section of the Refcard will cover fundamental concepts of MySQL such as:

  • MySQL data types
  • Common MySQL commands

MySQL Data Types

MySQL offers a varied range of data types segregated into various categories. The following table will brief you on each category's types, summary, and storage requirements. 

Data Type Category Description Storage (Bytes)
TINYINT(size)   Numeric Represents integer values. Supported range is:  -128 to 127 signed values;
0 to 255 signed values. 
1

SMALLINT(size)

Numeric Represents integer values.  Supported range is: -32768 to 32767 signed values;
0 to 65535 signed values.
2

MEDIUMINT(size)

Numeric

Represents integer values. Supported range is: 
-8388608 to 8388607 signed values;

0 to 16777215 signed values. 

3

INT(size)

Numeric

Represents integer values. Supported range is: -2147483648 to 2147483647 signed values;

0 to 4294967295 signed values.

4

BIGINT(size)

Numeric

Represents integer values. Supported range is: -2 to 2^63 - 1 signed values;

0  to 2^64 -1 unsigned values

8

FLOAT(precision, scale)

Numeric

Stores approximate numeric data values. 

4
DOUBLE(precision, scale)   Numeric

Stores approximate numeric data values. 

8
DECIMAL(precision, scale)   Numeric

Stores exact numeric data values. 

Varies
BIT(X)  Numeric

Stores X- bit values from 1 to 64.

Maximum 4
DATE Date and Time Used for values containing only dates represented in “YYYY-MM-DD” format. The supported range is “1000-01-01” to “9999-12-31.”

3 as of MySQL 5.6.4

TIME Date and Time

Used for values containing only time represented in “hh:mm:ss” format. The supported range is: - 838:59:59 to 838:59:59.

3 + fractional seconds storage as of MySQL 5.6.4

DATETIME Date and Time

Used for values containing both date and time represented in “YYYY-MM-DD hh:mm:ss”format. The supported range is “1000-01-01 00:00:00” to “9999-12-31 23:59:59.”

5 + fractional seconds storage as of MySQL 5.6.4
TIMESTAMP Date and Time

Used for values containing both date and time. The supported range is “1970-01-01 00:00:01” UTC to “2038-01-19 03:14:07” UTC.

4 + fractional seconds storage as of MySQL 5.6.4
YEAR Date and Time

Used to represent year values in YYYY format. The supported range is 1901 to 2155 and 0000.

1 as of MySQL 5.6.4

CHAR(length)

String

Used to store fixed character strings with length ranging from 0 to 255. 

(Length of characters * number of bytes ) <=255

VARCHAR(length)

String

Used to store variable length strings with length ranging from 0 to 65535. 

Length + 1 bytes if column require 0 - 255 bytes, else L + 2

TINYTEXT String

Used to store strings with maximum 255 characters.

Length + 1 where Length < 2^8

TEXT String

Used to store strings with maximum 65,535 characters.

Length + 2 where Length < 2^16

MEDIUMTEXT String

Used to store strings with maximum 16,777,215 characters.

Length + 3 where Length < 2^24

LONGTEXT String

Used to store strings with maximum 4,294,967,295 characters.

Length + 4 where Length < 2^32

TINYBLOB

String

Used to store variable amounts of binary objects data. The maximum range is 255 bytes.

Length + 1 where Length < 2^8

BLOB String

Used to store variable amounts of binary objects data. The maximum range is 65,535 bytes.

Length + 2 where Length < 2^16

MEDIUMBLOB  String

Used to store variable amounts of binary objects data. The maximum range is 16,777,215 bytes.

Length + 3 where Length < 2^24

LONGBLOB String

Used to store variable amounts of binary objects data. The maximum range is 4,294,967,295 bytes.

Length + 4 where Length < 2^32

ENUM(‘val1’, ‘val2’, …)

String

Stores list of values with the maximum as 65,535.

1 / 2 depending on the number of enum values (65,535 values maximum)

SET(‘val1’, ‘val2’, …)

String

Stores list of values with the maximum as 64. It can also store duplicate values.

1 / 2 / 3 / 4 / 8 depending on the number of set members (64 members maximum)

These are some basic data types that you should know. There are two more advanced data types used in MySQL — spatial and JSON. The spatial data type is used to store, analyze, and generate geographic features. The JSON data type enables easy access to data stored in JSON documents. 

Now that you know the data types used in MySQL, let us explore the common MySQL commands with syntax and examples.

Common MySQL Commands With Syntax and Examples 

This section of the Refcard will help you understand the most used MySQL commands with examples.

Command DESCRIPTION Syntax Example

CREATE USER 

Creates users to access databases.

MySQL

CREATE USER UserName IDENTIFIED BY 'Password'; 


MySQL

CREATE USER Dzone123 IDENTIFIED BY 'DzoneRefcard@123';  


CREATE DATABASE 

Creates a new database.

MySQL

CREATE SCHEMA DatabaseName;


MySQL

CREATE SCHEMA InsuranceDetails;


CREATE TABLE

Creates a new table.

MySQL

CREATE TABLE TableName (
Column_1 Datatype,
Column_2 Datatype,
  ....
);


MySQL

CREATE TABLE CarInsurance
(
PolicyID int,
PolicyName varchar(255),
EffectiveDate datetime, 
ExpiryDate datetime, 
PaymentOption varchar(255),
Amount double,
Status bool 
);

DROP USER 

Delete users from the database server.

MySQL

DROP USER UserName; 
MySQL

DROP USER Dzone123; 

DROP DATABASE 

Deletes the database along with the data present in it.

MySQL

DROP SCHEMA DatabaseName;
MySQL

DROP SCHEMA InsuranceDetails;

DROP TABLE

Deletes the table along with the data present in it.

MySQL

DROP TABLE TableName;
MySQL

DROP TABLE CarInsurance;

SHOW USER 

Displays a list of users who have access to the database.

MySQL

SELECT USER FROM
MYSQL.DatabaseName; 
MySQL

SELECT USER FROM MYSQL.InsuranceDetails; 

SHOW DATABASE 

Displays a list of databases created until present.

MySQL

SHOW DATABASES;
MySQL

SHOW DATABASES;

SHOW TABLE 

Displays a list of tables created in the database until present.

MySQL

SHOW TABLES;
MySQL

USE InsuranceDetails;
SHOW TABLES; 

SHOW COLUMNS

Displays all the columns present in the database.

MySQL

SHOW COLUMNS FROM TableName FROM DatabaseName;


Or:  

MySQL

SHOW COLUMNS FROM DatabaseName.
TableName; 
MySQL

SHOW COLUMNS FROM CarInsurance FROM InsuranceDetails;  


Or:

MySQL

SHOW COLUMNS FROM InsuranceDetails.
CarInsurance; 

USE DATABASE

Tells the system which database to be chosen to perform actions.

MySQL

USE DatabaseName;
MySQL

USE InsuranceDetails;

ALTER TABLE

Modifies tables by adding, deleting, or modifying data in columns.

MySQL

ALTER TABLE TableName
ADD Column_1 datatype;


MySQL

ALTER TABLE CarInsurance
ADD PolicyCreatedDate datetime;

DESCRIBE TABLE

Displays the structure of the table consisting of column names, data types, keys, and default values.

MySQL

DESCRIBE TableName;
MySQL

DESCRIBE CarInsurance;

TRUNCATE TABLE

Deletes only the data present in tables without deleting the table.

MySQL

TRUNCATE TABLE TableName;
MySQL

TRUNCATE TABLE CarInsurance;

RENAME  DATABASE 

Renames a database.

MySQL

RENAME TABLE Database1 TO Database2;
MySQL

RENAME TABLE InsuranceDetails TO Insurances;

RENAME TABLE 

Renames a table.

MySQL

RENAME TABLE Table1 TO Table2;
MySQL

RENAME TABLE CarInsurance TO CarInsuranceDetails;

CHANGE COLUMNS

Changes column names of a table.

MySQL

ALTER TABLE TableName   
CHANGE COLUMN OldColumn NewColumn DataType;

Or:
To change multiple column names with the CHANGE query:

MySQL

ALTER TABLE TableName  (
CHANGE COLUMN OldColumn NewColumn DataType,
CHANGE COLUMN OldColumn NewColumn DataType);
MySQL

ALTER TABLE CarInsurance  
CHANGE COLUMN PolicyName PName VARCHAR(255);

Or:
To change multiple column names with the CHANGE query:

MySQL

ALTER TABLE CarInsurance(
CHANGE COLUMN PolicyName PName VARCHAR(255),
CHANGE COLUMN EffectiveDate EDate DateTime);

RENAME COLUMNS

Renames columns present in a table.

MySQL

ALTER TABLE TableName   
RENAME COLUMN OldColumn TO NewColumn;  

Or:

To change multiple column names with RENAME query:

MySQL

ALTER TABLE TableName   (
RENAME COLUMN OldColumn TO NewColumn,
RENAME COLUMN OldColumn TO NewColumn); 
MySQL

ALTER TABLE CarInsurance    
RENAME COLUMN PolicyName TO PName;  

Or:

MySQL

ALTER TABLE CarInsurance(
RENAME COLUMN PolicyName TO PName,
RENAME COLUMN EffectiveDate TO EDate);

INSERT INTO

Inserts new records into a table.

MySQL

INSERT INTO TableName (Column_1, Column_2, ...)
VALUES (Value_1, Value_2,...);

 Or:

MySQL

INSERT INTO TableName
VALUES (Value_1, Value_2);

UPDATE TABLE

Modifies the existing data items in a table.

MySQL

UPDATE TableName
SET Column1 = Value1, Column2 = Value2, ...
WHERE condition;


MySQL

UPDATE CarInsurance
SET PaymentOption = 'Credit Card'
WHERE PolicyID = '567';

DELETE COLUMNS

Deletes column in the table.

MySQL

ALTER TABLE TableName   
    DROP COLUMN Column_1;

Or:

To drop multiple columns:

MySQL

ALTER TABLE TableName   (
    DROP COLUMN Column_2,
    DROP COLUMN Column_3);
MySQL

ALTER TABLE CarInsurance  
    DROP COLUMN PaymentOption;

Or:

To drop multiple columns:

MySQL

ALTER TABLE TableName   (
    DROP COLUMN PolicyName,
    DROP COLUMN ExpiryDate);
ADD COLUMN

Adds a new column in the table.

MySQL

ALTER TABLE TableName   
    ADD COLUMN NewColumn_1 DataType;

Or:

To add after a particular column:

MySQL

ALTER TABLE TableName   
    ADD COLUMN NewColumn_1 DataType AFTER Column_2;

Or:
 To add multiple columns:

MySQL

ALTER TABLE TableName   (
    ADD COLUMN NewColumn_1 DataType AFTER Column_2,
    ADD COLUMN NewColumn_1 DataType AFTER Column_2 );
MySQL

ALTER TABLE CarInsurance   
    ADD COLUMN DOB datetime;

Or:

To add after a particular column:

MySQL

ALTER TABLE CarInsurance   
    ADD COLUMN DOB datetime AFTER PaymentOption;

Or:

To add multiple columns:

MySQL

ALTER TABLE CarInsurance (  
    ADD COLUMN DOB datetime AFTER PaymentOption,
    ADD COLUMN Description varchar(255));

SELECT

Selects data values from a database and stores the data returned as output in the result set.

MySQL

SELECT Column_1, Column_2, ...
FROM TableName;
MySQL

SELECT PolicyID, PolicyName FROM CarInsurance;

SELECT FROM

Retrieves data values from a table.

MySQL

SELECT Column_1, Column_2, ...
FROM TableName;
MySQL

SELECT PolicyID, PolicyName FROM CarInsurance;
SELECT DISTINCT

Returns only distinct values from the database.

MySQL

SELECT DISTINCT Column_1, Column_2, ...
FROM TableName;
MySQL

SELECT PolicyID, PolicyName FROM CarInsurance;

SELECT WHERE

Filters data based on conditions.

MySQL

SELECT Column_1, Column_2, ...
FROM TableName WHERE Conditions;


MySQL

SELECT PolicyName, EffectiveDate
FROM CarInsurance WHERE PolicyID = '567';
Section 6

Conclusion

Database administrators, data analysts, data scientists, and many other professionals use MySQL daily to generate meaningful insights and make informed decisions. We hope you found this Refcard informative and now understand the essentials of MySQL. Practice these commands and take your MySQL knowledge to the next level.

{{ parent.title || parent.header.title}}

{{ parent.tldr }}

{{ parent.urlSource.name }}
