From Relational to Graph: A Developer's Guide

Your Guide to Moving From RDBMS to Neo4j's Open-Source, NoSQL Graph Database

Written by

Michael Hunger Head of Spring Integration and Developer Advocate, Neo Technology

We live in a connected world, and representing connected data shouldn’t feel odd. Enter the graph database: a flexible and expressive model that ditches table-based schemae in favor of a more natural approach that treats connections as first-class citizens. In this Refcard, developers familiar with relational databases will get an introduction to the wonderful world of graph databases with working examples in Neo4j.

Free PDF
Brought to you by Neo4J
Section 1


Today's business and user requirements demand applications that connect more and more of the world's data, yet still expect high levels of performance and data reliability.

Many applications of the future will be built using graph databases like Neo4j. This Refcard was written to help you—a developer with relational database experience—through every step of the learning process. We will use the widely adopted property graph model and the open Cypher query language in our explanations, both of which are supported by Neo4j.

When Relational Databases Don't Fit Into Today’s Application Development

For several decades, developers have tried to manage connected, semi-structured datasets within relational databases. But, because those databases were initially designed to codify paper forms and tabular structures—the "relation" in relational databases refers to the definition of a table as a relation of tuples—they struggle to manage rich, real-world relationships.

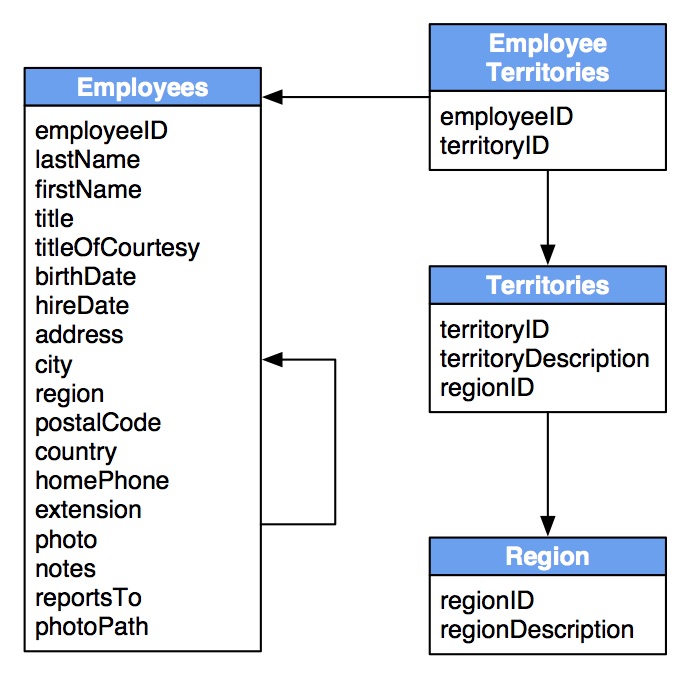

For example, take a look at the following relational model:

Image title

The Northwind application exerts a significant influence over the design of this schema, making some queries very easy and others more difficult. While the strength of relational databases lies in their abstraction— simple mathematical models work for all use cases with enough JOIN— in practice, maintaining foreign key constraints and computing more than a handful of JOINs becomes prohibitively expensive.

Although relational databases perform admirably when asked questions such as "What products has this customer bought?," they fail to answer recursive questions such as "Which customers bought this product who also bought that product?"

Graph Databases: Advantages of a Modern Alternative

Relationships Should Be First-class Citizens

Graph databases are unlike other databases that require you to guess at connections between entities using artificial properties such as foreign keys or out-of-band processing like MapReduce. In the graph model, however, relationships are first-class citizens.

Creating connected structures from simple nodes and their relationships, graph databases enable you to build models that map closely to your problem domain. The resulting models are both simpler and more expressive than those produced using relational databases.

JOINs Are Expensive

JOIN-intensive query performance in relational databases deteriorates as the dataset gets bigger. In contrast, with a graph database, performance tends to remain relatively constant, even as the dataset grows. This is because queries are localized to a portion of the graph. As a result, the execution time for each query is proportional only to the size of the part of the graph covered to satisfy that query, rather than the size of the overall data.

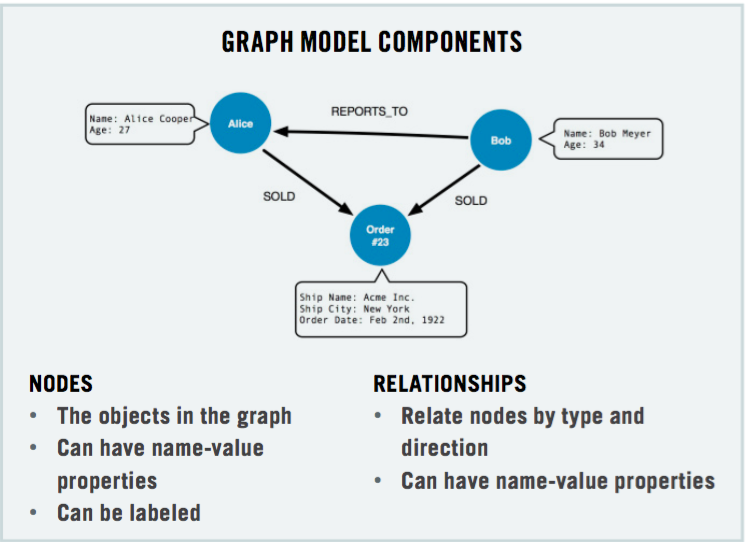

Graph Model Components

Image title

Data Modeling: Relational and Graph Models

If you're experienced in modeling with relational databases, think of the ease and beauty of a well-done, normalized entity-relationship diagram: a simple, easy-to-understand model you can quickly whiteboard with your colleagues and domain experts. A graph is exactly that: a clear model of the domain, focused on the use cases you want to efficiently support.

The Northwind Dataset

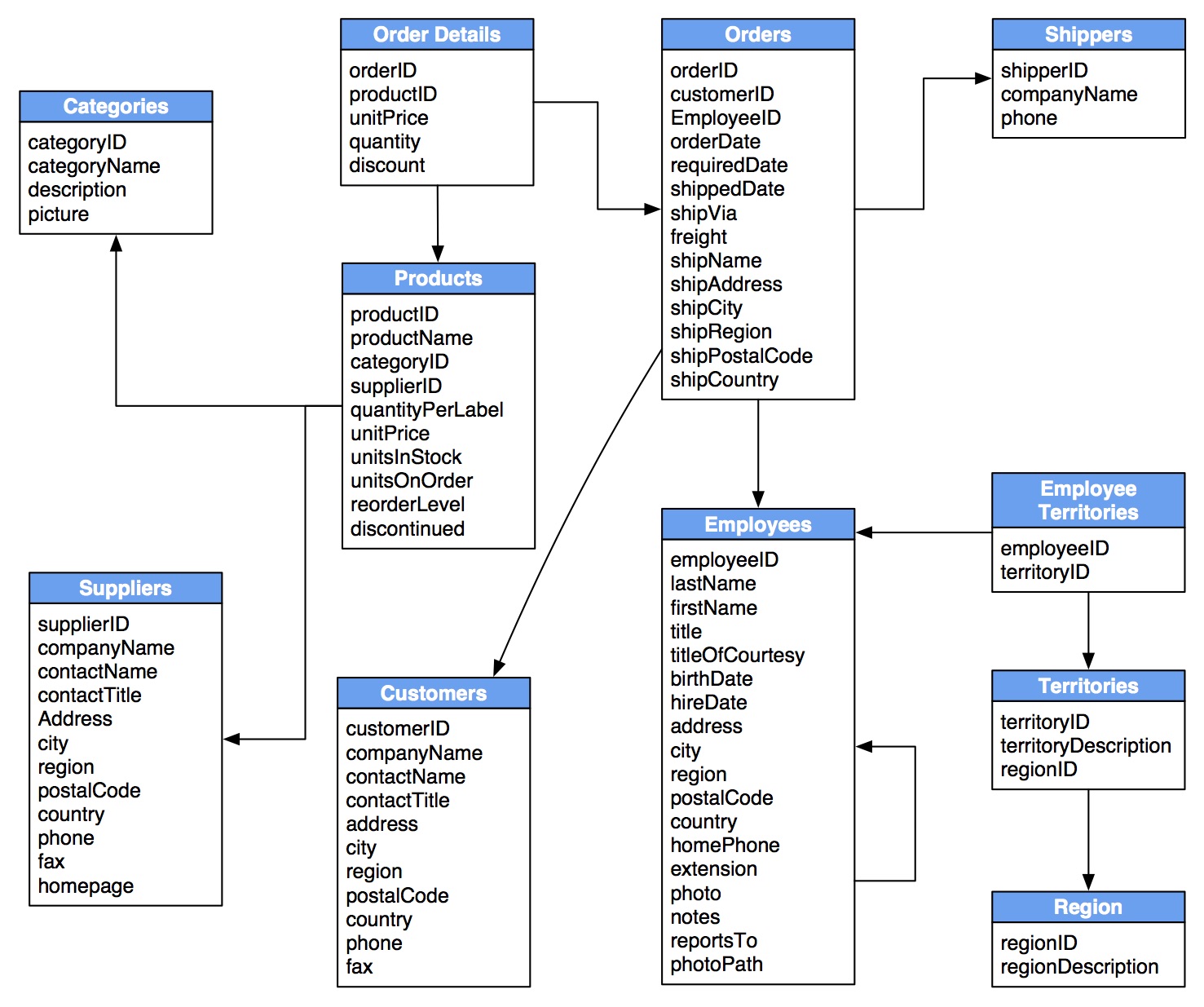

This guide will be using the Northwind dataset, commonly used in SQL examples, to explore modeling in a graph database:

Image title

Developing the Graph Model

The following guidelines describe how to adapt this relational database model into a graph database model:

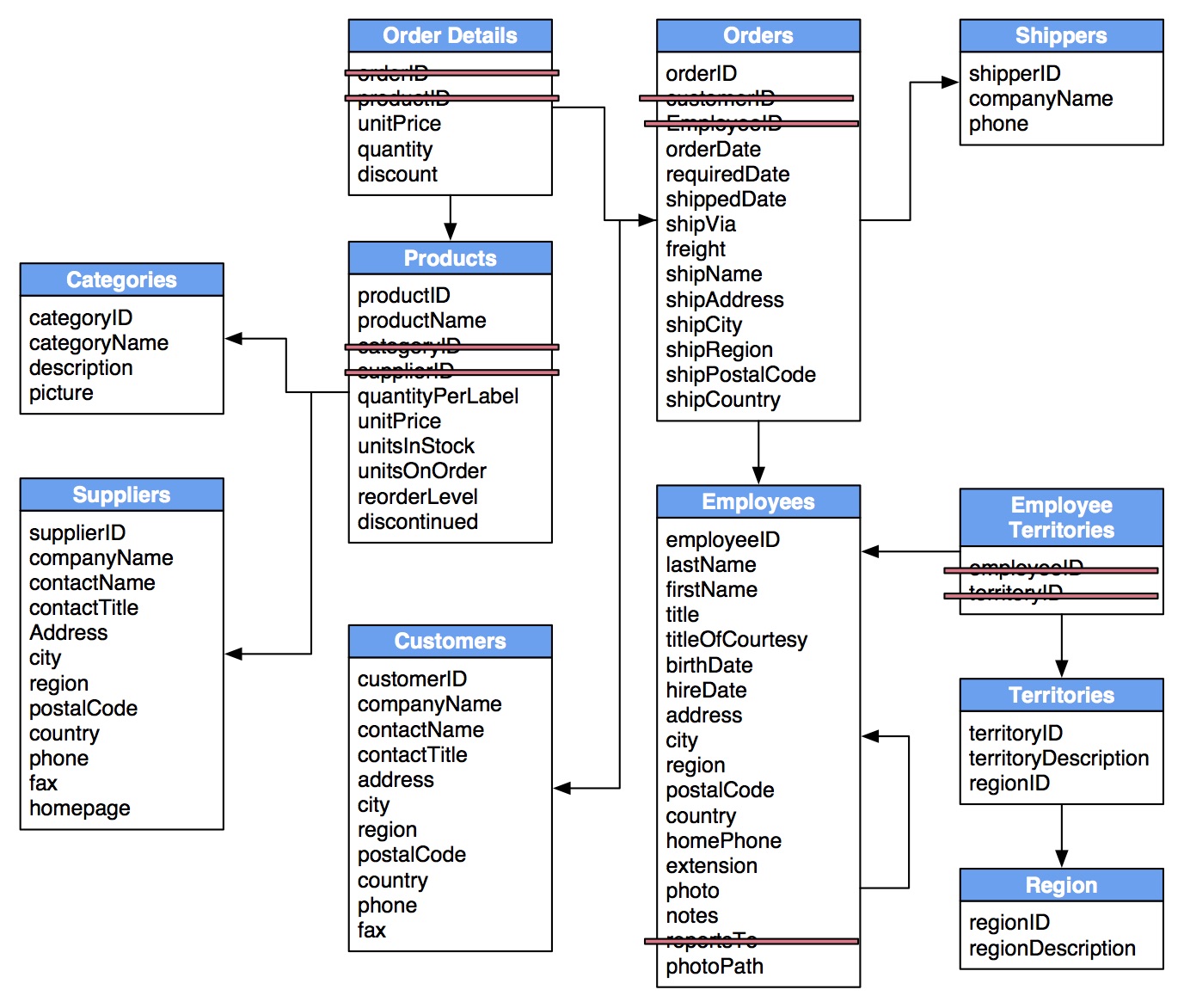

Locate Foreign Keys

Image title

Foreign Keys Become Relationships

Image title

Simple JOIN Tables Become Relationships

Image title

Attributed JOIN Tables Become Relationships with Properties

Image title

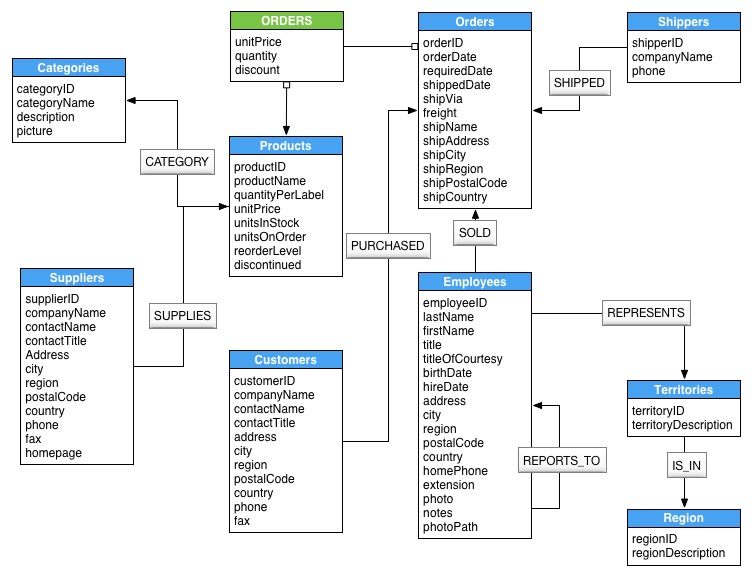

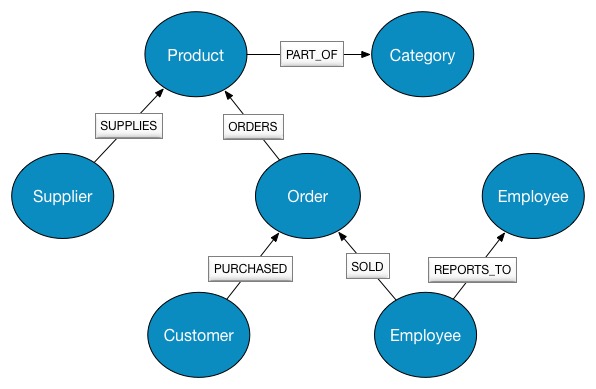

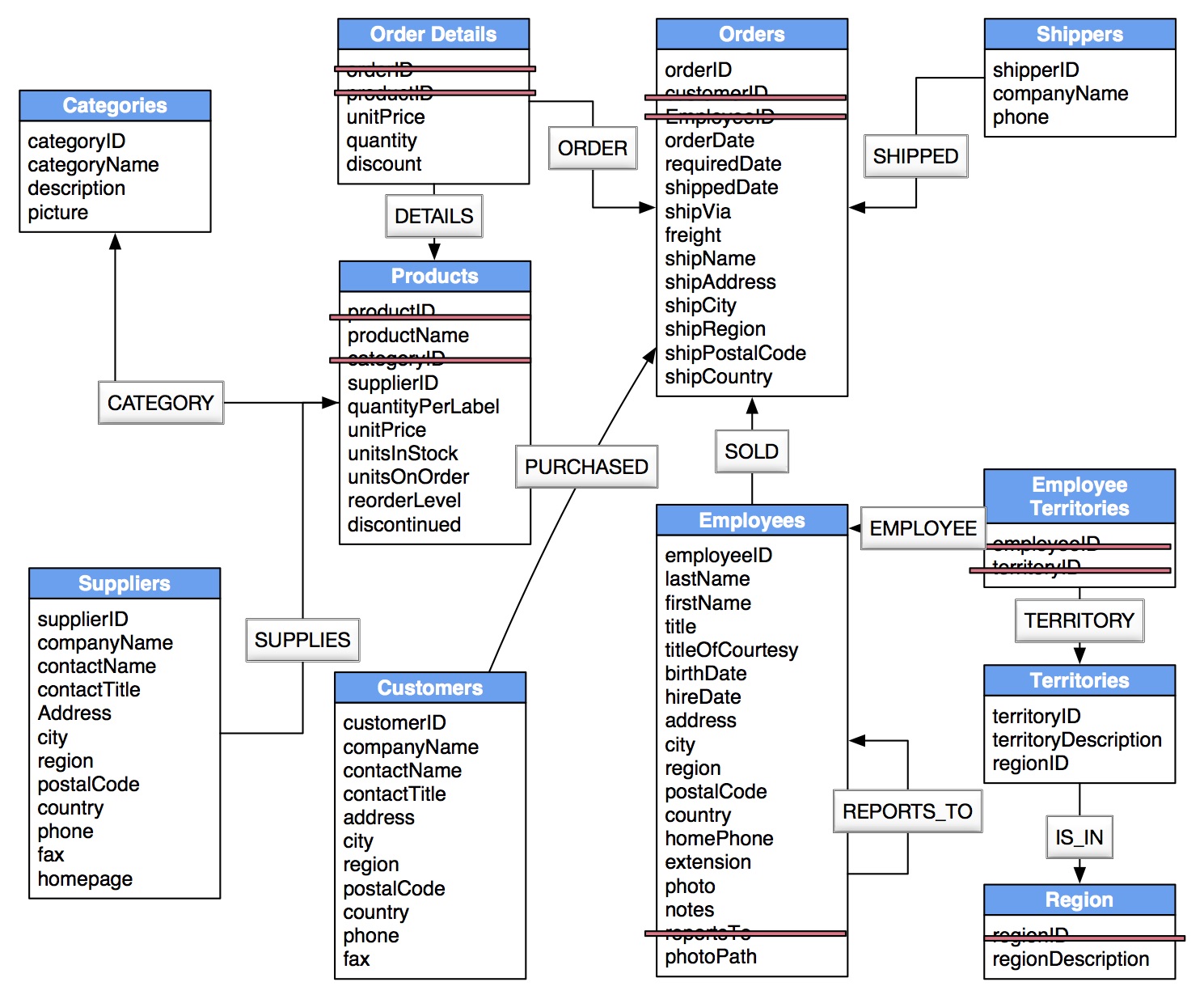

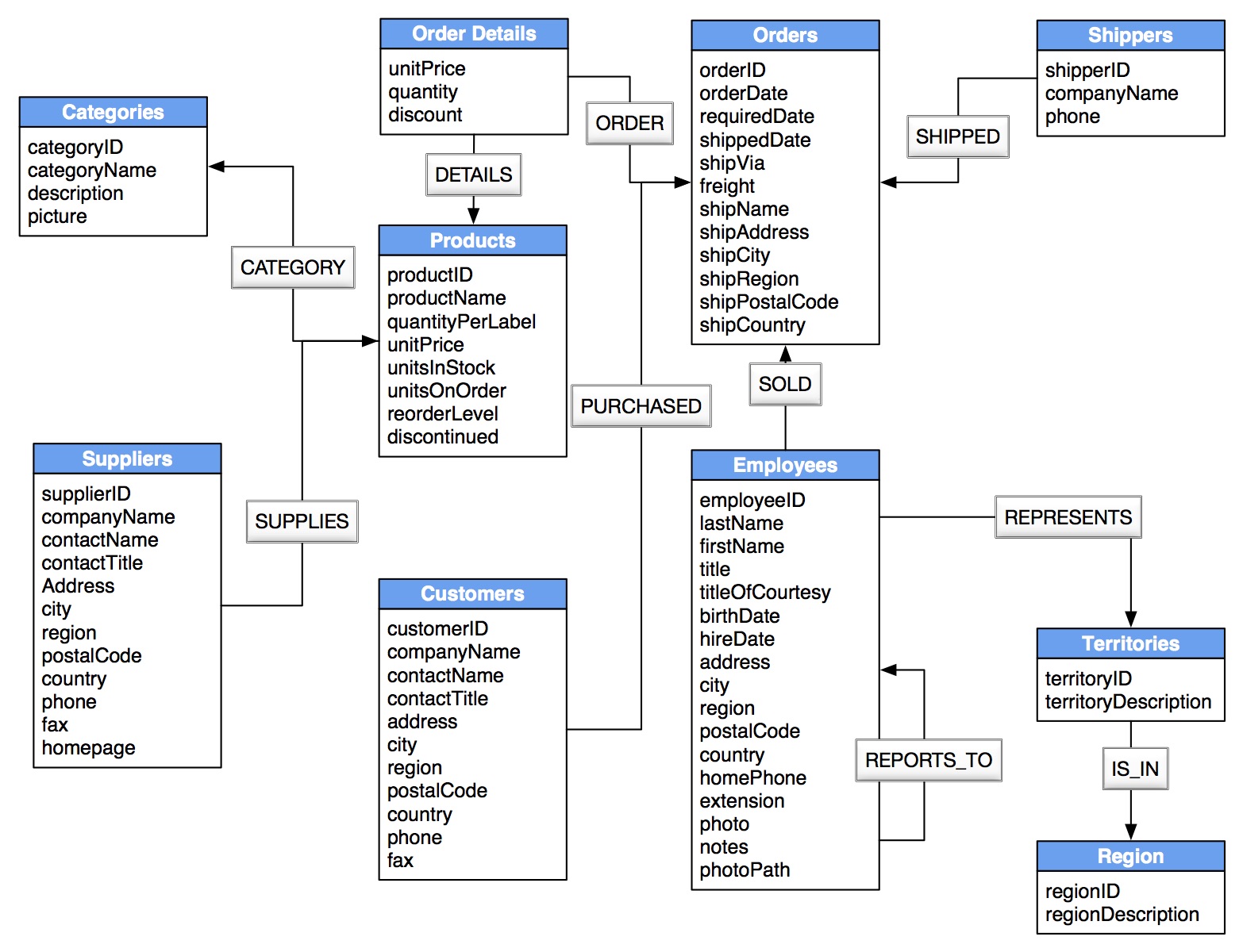

The Northwind Graph Data Model

Image title

How does the Northwind Graph Model Differ from the Relational Model?

  • No nulls: non-existing value entries (properties) are just not present
  • The graph model has no JOIN tables or artificial primary or foreign keys
  • Relationships are more detailed. For example, it shows an employee SOLD an order without the need of an intermediary table.

Exporting the Relational Data to CSV

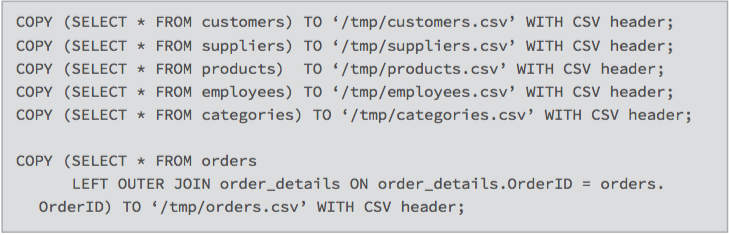

With the model defined and the use case in mind, data can now be extracted from its original database and imported into a Neo4j graph database. The easiest way to start is to export the appropriate tables in CSV format. The PostgreSQL copy command lets us execute a SQL query and write the result to a CSV file, e.g., with

psql -d northwind < export_csv.sql: export_csv.sql

Image title

Bulk-Importing CSV Data Using the neo4j-import Tool

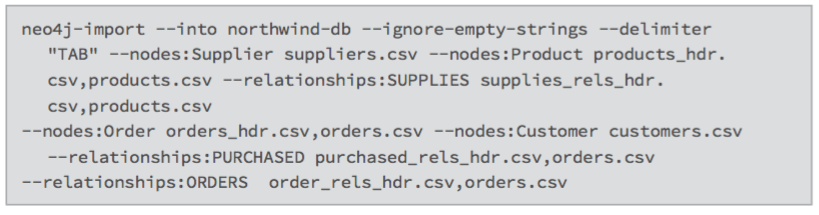

Neo4j provides a bulk import tool that can import billions of nodes and relationships. It utilizes all CPU and disk resources, adding at least one million records per second into the database. It consumes large, also compressed CSV files with a specific header configuration to indicate mapping instructions.

Import Tool Facts

  • Files can be repeatedly used for both nodes and relationships.
  • Files can be compressed.
  • A header that provides information on the data fields must precede each input.
  • Header and raw data can optionally be provided using multiple files.
  • Fields without corresponding information in the header will be ignored.
  • UTF–8 encoding is used.
  • Indexes are not created during the import.
  • Bulk import is only available for initial seeding of a database.



The import tool assumes that node identifiers are unique across node files. If this isn't the case then you can define groups, defined as part of the ID field of node files.

For example, to specify the Person group you would use the field header ID(Person) in your persons node file. You also need to reference that exact group in your relationships file, i.e., START_ID(Person) or END_ID(Person).

In this Northwind example, the suppliers.csv header would be modified to include a group for Supplier nodes:

Original Header:

Image title

Modified Header:

Image title

Property Types

Property types for nodes and relationships are set in the header file (e.g., :int, :string, :IGNORE, etc.). In this example, supplier.csv would be modified like this:

Image title

Labeling Nodes

Use the LABEL header to provide the labels of each node created by a row. In the Northwind example, one could add a column with header LABEL and content Supplier, Product, or whatever the node labels are. As the supplier.csv file represents only nodes for one label (Supplier), the node label can be declared on the command line.

Image title


Relationship data sources have three mandatory fields:

  • TYPE: The relationship type to use for the relationship
  • START_ID: The id of the start node of the relationship to create
  • END_ID: The id of the end node of the relationship to create

In the case of this dataset, the products.csv export from the relational database can be repurposed to build the (:Supplier)-[:SUPPLIES]->(:Product) relationships in the graph database.

Original products.csv header:

Image title

Products.csv header modified to create the supplies_rels_hdr.csv header:

Image title

As every row in the input file is of the same relationship type, the TYPE is set on the command line.

Applying the same treatment to the customers.csv and orders.csv and creating purchased.csv and orders_rels.csv allows for the creation of a usable subset of the data model. Use the following command to import the data:Image title

Image title

Updating the Graph

Now that the graph has data, it can be updated using Cypher, Neo4j's open graph query language, to generate categories based on the categoryID and categoryName properties in the product nodes. The query below creates new category nodes and removes the category properties from the product nodes.

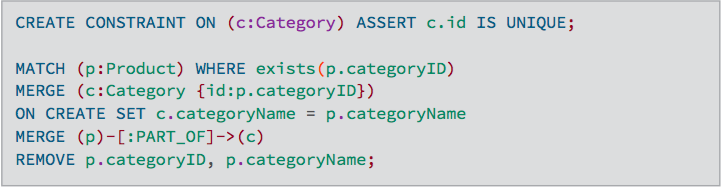

Image title

Query Languages: SQL vs. Cypher

Language Matters

Cypher is about patterns of relationships between entities. Just as the graph model is more natural to work with, so is Cypher. Borrowing from the pictorial representation of circles connected with arrows, Cypher allows any user, whether technical or non-technical, to understand and write statements expressing aspects of the domain.

Graph database models not only communicate how your data is related, but they also help you clearly communicate the kinds of questions you want to ask of your data model.

Graph models and graph queries are two sides of the same coin.

SQL vs. Cypher Query Examples

Find All Products

Select and Return Records

Image title

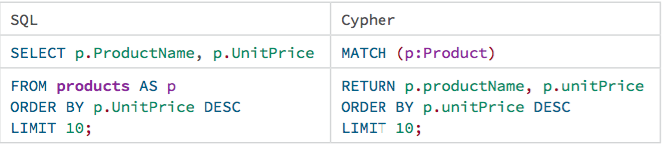

In SQL, just SELECT everything from the products table. In Cypher, MATCH a simple pattern: all nodes with the label :Product, and RETURN them.

Field Access, Ordering, and Paging

It is more efficient to return only a subset of attributes, like ProductName and UnitPrice. You can also order by price and only return the 10 most expensive items.

Image title

Image title

Find Single Product by Name

Filter by Equality

Image title

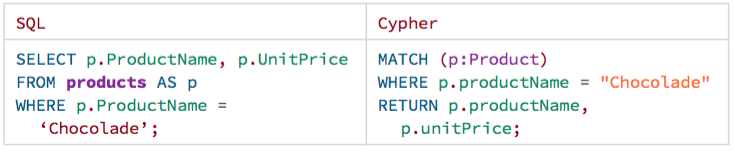

To look at only a single Product, for instance, Chocolade, filter the table in SQL with a WHERE clause. Similarly, in Cypher the WHERE belongs to the MATCH statement. Alternatively, you can use the following shortcut:

Image title

You can also use any other kind of predicates: text, math, geospatial, and pattern comparisons. Read more on the Cypher Refcard.

Joining Products With Customers

JOIN Records, DISTINCT Results

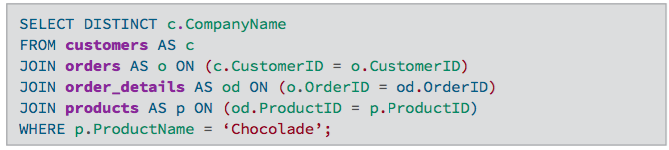

In order to see who bought Chocolade, JOIN the four necessary tables (customers, orders, order_details, and products) together:

Image title

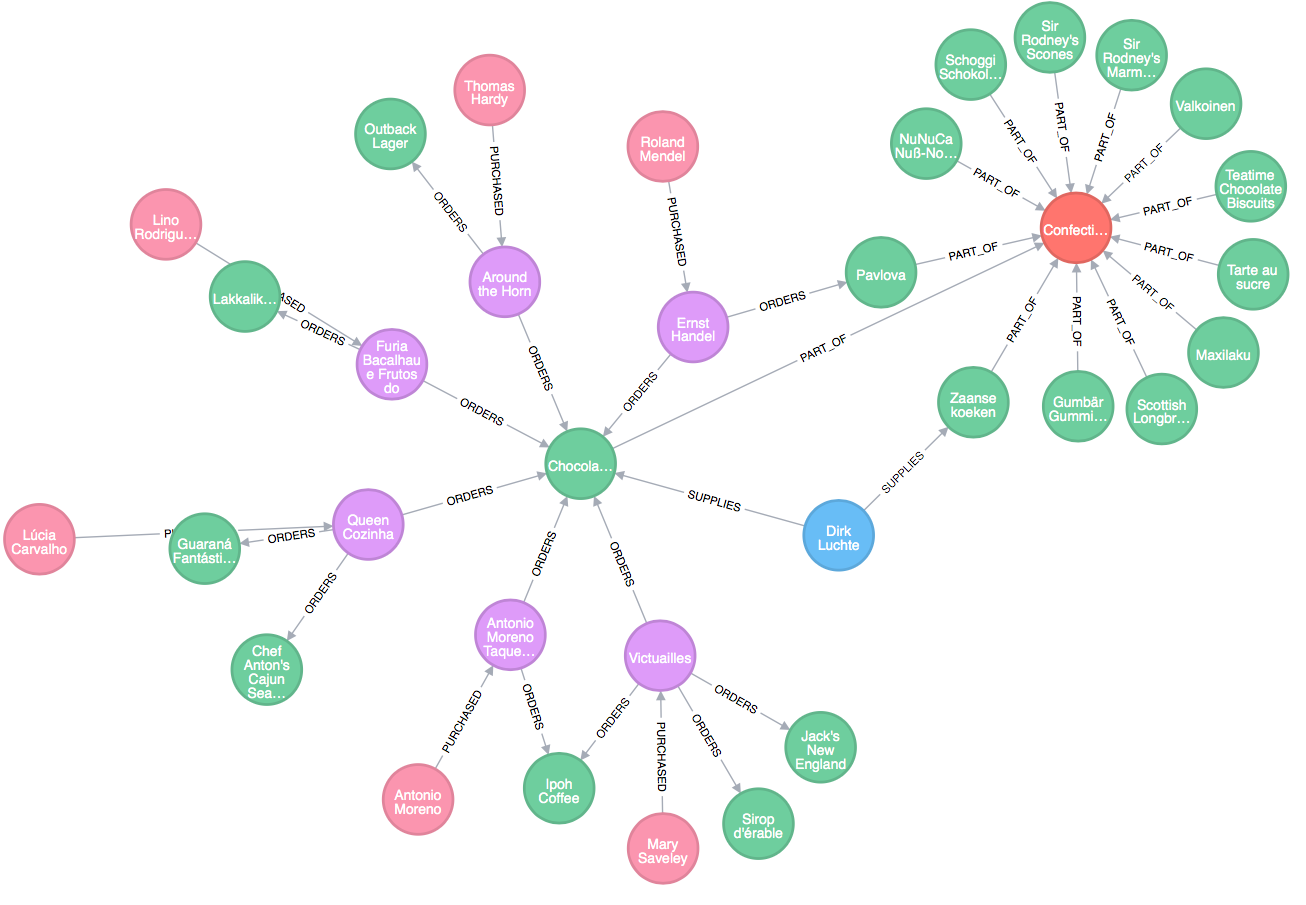

The graph query is much simpler:

Image title

New Customers Without Orders

Outer JOINs and Aggregation

To ask the relational Northwind database What have I bought and paid in total? use a similar query to the one above with changes to the filter expression. However, if the database has customers without any orders and you want them included in the results, use OUTER JOINs to ensure results are returned even if there were no matching rows in other tables.

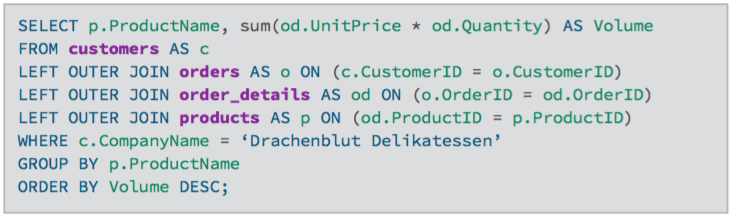

Image title

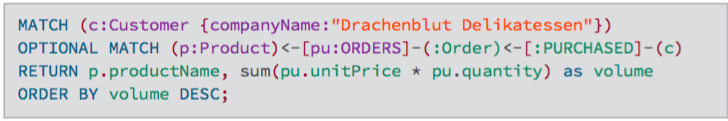

In the Cypher query, the MATCH between customer and order becomes an OPTIONAL MATCH, which is the equivalent of an OUTER JOIN. The parts of this pattern that are not found will be NULL.

Image title

As you can see, there is no need to specify grouping columns. Those are inferred automatically from your RETURN clause structure.

When it comes to application performance and development time, your database query language matters.

SQL is well-optimized for relational database models, but once it has to handle complex, connected queries, its performance quickly degrades. In these instances, the root problem lies with the relational model, not the query language.

For domains with highly connected data, the graph model and their associated query languages are helpful. If your development team comes from an SQL background, then Cypher will be easy to learn and even easier to execute.

Importing Data Using Cypher's LOAD CSV

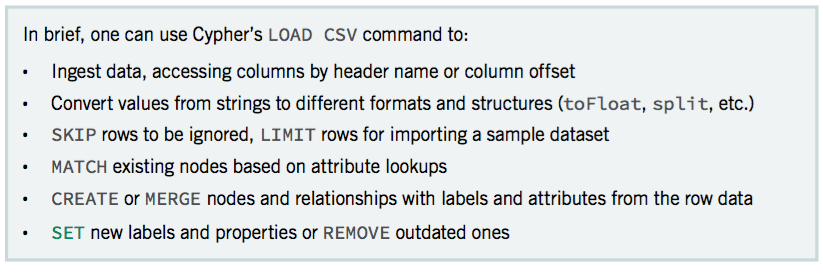

The easiest (though not the fastest) way to import data from a relational database is to create a CSV dump of individual entity-tables and JOIN-tables. After exporting data from PostgreSQL, and using the import tool to load the bulk of the data, the following example will use Cypher's LOAD CSV to move the model's remaining data into the graph. LOAD CSV works both with single-table CSV files as well as with files that contain a fully denormalized table or a JOIN of several tables. The example below uses the LOAD CSV command to:

  • Add Employee nodes
  • Create Employee-Employee relationships

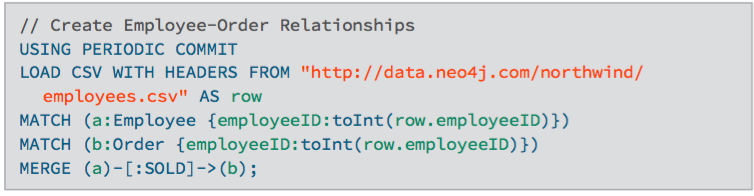

  • Create Employee-Order relationships

Create Constraints

Unique constraints serve two purposes. First, they guarantee uniqueness per label and property value combination of one entity. Second, they can be used for determining nodes of a matched pattern by property comparisons.

Create constraints on the previously imported nodes (Product, Customer, Order) and also for the Employee label that is to be imported:

Image title

Note that a constraint implies an index on the same label and property. These indices will ensure speedy lookups when creating relationships between nodes.

Create Indices

To quickly find a node by property, Neo4j uses indexes on labels and properties. These indexes are also used for range queries and text search.

Image title

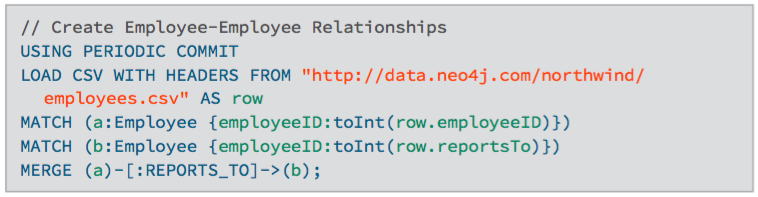

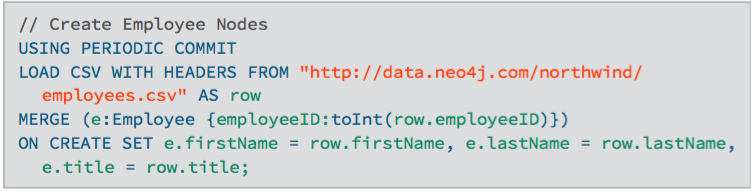

Create Employee Nodes and Relationships

Image title

Image title

Image title

Image title

Image title

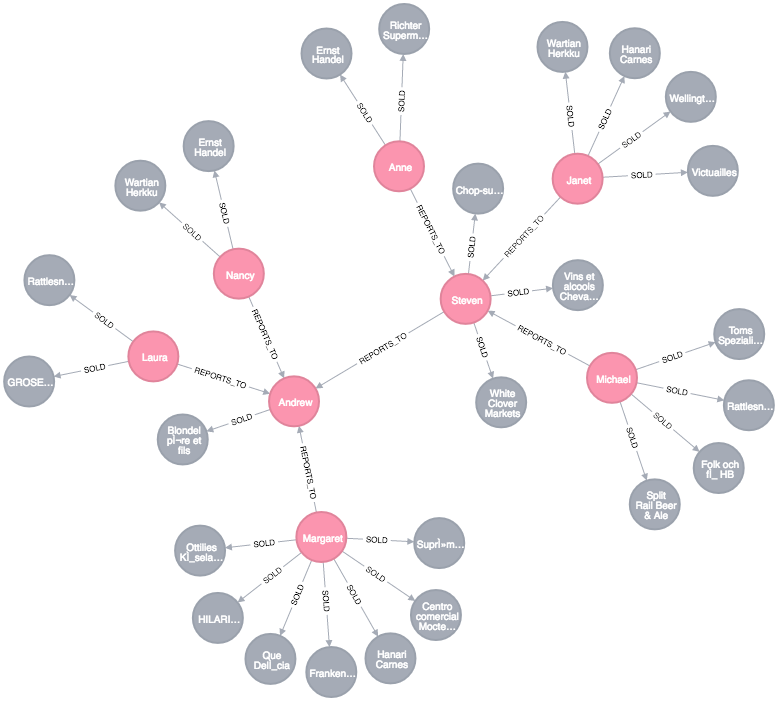

Image title

Updating the Graph

To update the graph data, find the relevant information first, then update or extend the graph structures.

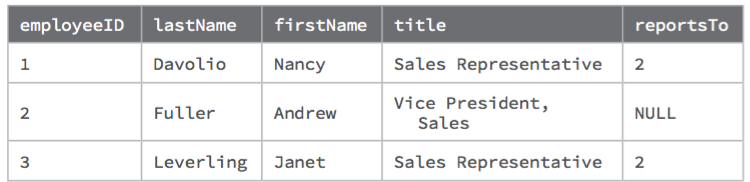

Janet is now reporting to Steven

Find Steven, Janet, and Janet's REPORTS_TO relationship. Remove Janet’s existing relationship and create a REPORTS_TO relationship from Janet to Steven.

Image title

Image title

This single relationship change is all you need to update a part of the organizational hierarchy. All subsequent queries will immediately use the new structure.

LOAD CSV Considerations

  • Provide enough memory (heap and page-cache)
  • Test with small batch first to verify the data is clean
  • Create indexes and constraints upfront
  • Use Labels for matching
  • Use DISTINCT, SKIP, and/or LIMIT on row data, to control input data volume
  • Use PERIODIC COMMIT for larger volumes (> 20k)

Drivers and Neo4j: Connecting to Neo4j With Language Drivers


If you've installed and started Neo4j as a server on your system, you can interact with the database via the console or the built-in Neo4j Browser application. Neo4j's Browser is the modern answer to old-fashioned relational workbenches, a web application running in your web browser to allow you to query and visualize your graph data.

Naturally, you'll still want your application to connect to Neo4j through other means—most often through a driver for your programming language of choice. The Neo4j Driver API is the preferred means of programmatic interaction with a Neo4j database server. It implements the Bolt binary protocol and is available in four officially supported drivers for C#/.NET, Java, JavaScript, and Python. Community drivers exist for PHP, C, Go, Ruby, Haskell, R, and others.

Bolt is a connection-oriented protocol that uses a compact binary encoding over TCP or web sockets for higher throughput and lower latency. The API is defined independently of any programming language. This allows for a high degree of uniformity across languages, which means that the same features are included in all the drivers. The uniformity also influences the design of the API in each language. This provides consistency across drivers, while retaining affinity with the idioms of each programming language.

Connecting to Neo4j Using the Official Drivers

Getting Started

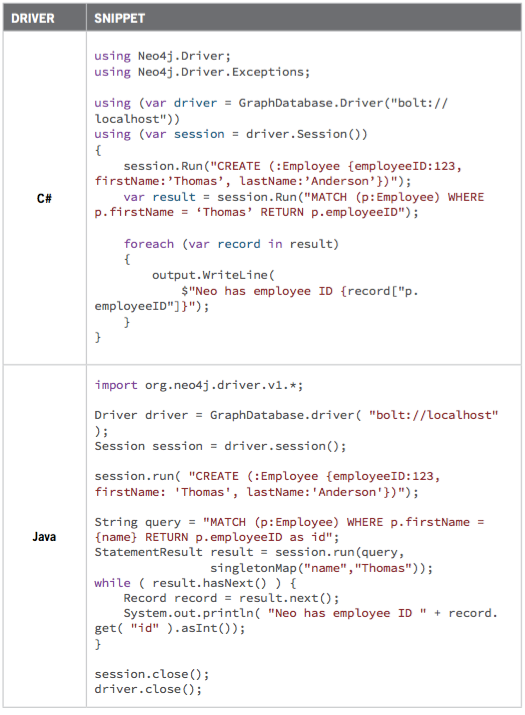

You can download the driver source or acquire it with one of the dependency managers of your language.

Language Snippet


Using NuGet in Visual Studio:

PM> Install-Package Neo4j.Driver-1.0.0


When using Maven, add this to your pom.xml file:








For Gradle or Grails, use:

compile ‘org.neo4j.driver:neo4j-java-driver:1.0.0’

For other build systems, see information available at Maven Central.

JavaScript npm install neo4j-driver@1.0.0
Python pip install neo4j-driver==1.0.0

Using the Drivers

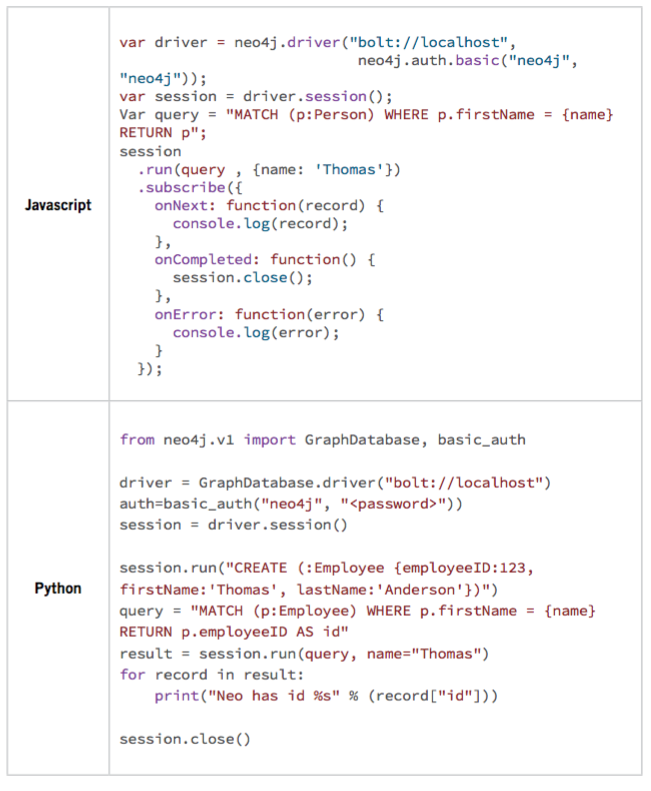

Each Neo4j driver uses the same concepts in its API to connect to and interact with Neo4j. To use a driver, follow this pattern:

  1. Ask the database object for a new driver.
  2. Ask the driver object for a new session.
  3. Use the session object to run statements. It returns a statement result representing the results and metadata.
  4. Process the results, optionally close the statement.
  5. Close the session.


Image title

Image title

A Closer Look: Using Neo4j Server With JDBC

If you’re a Java developer, you’re probably familiar with Java Database Connectivity (JDBC) as a way to work with relational databases. This is done either directly or through abstractions like Spring’s JDBCTemplate or MyBatis. Many other tools use JDBC drivers to interact with relational databases for business intelligence, data management, or ETL (Extract, Transform, Load).

Cypher—like SQL—is a textual and parameterizable query language capable of returning tabular results. Neo4j easily supports large parts of the JDBC APIs through a Neo4j-JDBC driver. The Neo4j-JDBC driver is based on the Java driver for Neo4j’s binary protocol and offers read and write operations, transaction control, and parameterized prepared statements with batching.

JDBC Driver Example

Connection con = DriverManager.getConnection("jdbc:bolt://localhost");

String query = "MATCH (p:Product)<-[:ORDERS]-()<-[:PURCHASED]-(c) " +
 "WHERE p.productName = {1} RETURN c.name,
count(*) as freq";
try (PreparedStatement stmt = con.prepareStatement(query))
    ResultSet rs = stmt.executeQuery();
    while (rs.next()) {
        System.out.println(rs.getString("c.name")+" "+rs.getInt("freq"));

Development and Deployment: Adding Graphs to Your Architecture

Make sure to develop a clean graph model for your use case first, then build a proof of concept to demonstrate the added value for relevant parties. This allows you to consolidate the import and data synchronization mechanisms. When you're ready to move ahead, you'll integrate Neo4j into your architecture both at the infrastructure and the application level.

Deploying Neo4j as a database server on the infrastructure of your choice is straightforward, either in the cloud or on premise. You can use our installers, the official Docker image, or available cloud offerings. For production applications you can run Neo4j in a clustered mode for high availability and scaling. As Neo4j is a transactional OLTP database, you can use it in any end-user facing application.

Using efficient drivers to connect from your applications to Neo4j is no different than with other databases. You can use Neo4j's powerful user interface to develop and optimize the Cypher queries for your use case and then embed the queries to power your applications.

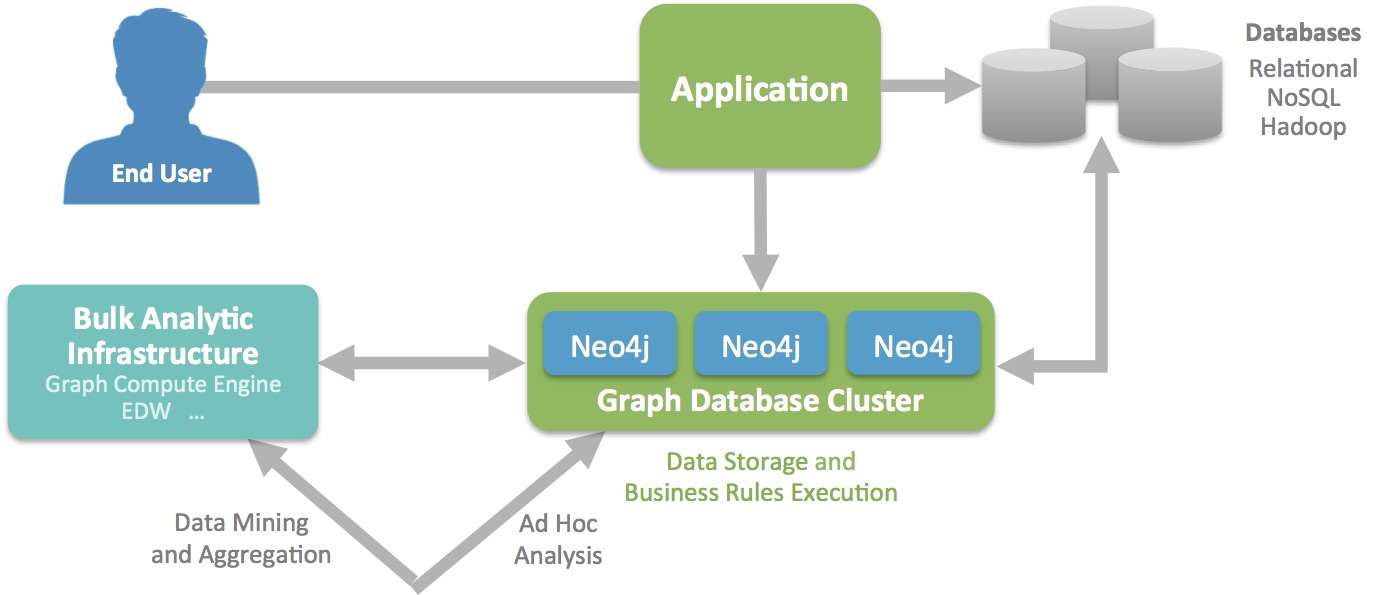

Image title

If you augment your existing system with graph capabilities, you can choose to either mirror or migrate the connected data of your domain into the graph. Then you would run a polyglot persistence setup, which could also involve other databases, e.g., for textual search or offline analytics.

If you develop a new graph-based application or realize that the graph model is the better fit for your needs, you would use Neo4j as your primary database and manage all your data in it.

Architectural Choices

Image title

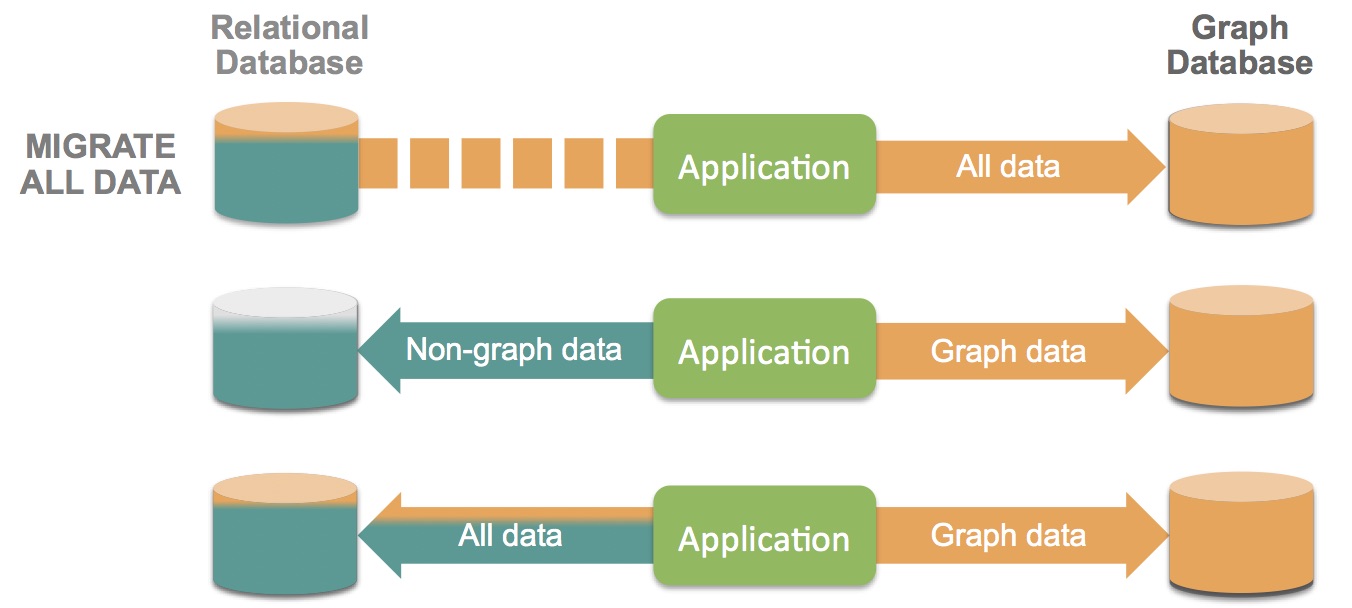

The three most common paradigms for deploying relational and graph databases

For data synchronization, you can rely on existing tools or actively push to or pull from other data sources based on indicative metadata.

Additional Resources

Relational Databases vs. Graph Databases

A relational model of data for large shared data banks (PDF)

Graph Databases Book

Relational to Graph e-Book

SQL vs. Cypher

From SQL to Cypher

Cypher Query Language

Cypher Refcard

Data Import

Neo4j Bulk Import Tool Documentation

Guide to importing data

Neo4j Bolt Drivers

Introducing Bolt, Neo4j’s Upcoming Binary Protocol

Neo4j JDBC Driver 3.x: Bolt it with LARUS!

Neo4j Deployment and Development

Neo4j Integration Tools

What is Polyglot Persistence?


  • Featured
  • Latest
  • Popular
Design Patterns
Learn design patterns quickly with Jason McDonald's outstanding tutorial on the original 23 Gang of Four design patterns, including class diagrams, explanations, usage info, and real world examples.
205.9k 591k
Core Java
Gives you an overview of key aspects of the Java language and references on the core library, commonly used tools, and new Java 8 features.
127k 349.7k
Getting Started with Ajax
Introduces Ajax, a group interrelated techniques used in client-side web development for creating asynchronous web applications.
101.8k 212.7k
Getting Started with Git
This updated Refcard explains why so many developers are migrating to this exciting platform. Learn about creating a new Git repository, cloning existing projects, the remote workflow, and more to pave the way for limitless content version control.
116.4k 274.2k
Foundations of RESTful Architecture
The Representational State Transfer (REST) architectural style is a worldview that elevates information into a first-class element of architectures. REST allows us to achieve the architectural properties of performance, scalability, generality, simplicity, modifiability, and extensibility. This newly updated Refcard explains main HTTP verbs, describes response codes, and lists libraries and frameworks. It also gives additional resources to further explore each topic.
101k 169.5k
Spring Configuration
Catalogs the XML elements available as of Spring 2.5 and highlights those most commonly used: a handy resource for Spring context configuration.
103.6k 263.5k
Core CSS: Part I
Covers Core principles of CSS that will expand and strengthen your professional ability to work with CSS. Part one of three.
90.5k 198.4k
Scrum is a framework that allows people to productively and creatively deliver products of the highest possible value. With over 70% of Agile teams using Scrum or Scrum hybrid, learn more about its benefits in managing complex product development. This newly updated Refcard explores the details of Scrum, including theory, values, roles, and events. It also includes a sample of a popular approach to deliver Integrated Increments in a scaled environment.
93.9k 248.6k
jQuery Selectors
Introduces jQuery Selectors, which allow you to select and manipulate HTML elements as a group or as a single element in jQuery.
93.4k 356.4k
Core Java Concurrency
Helps Java developers working with multi-threaded programs understand the core concurrency concepts and how to apply them.
90.5k 192.3k
Getting Started with Eclipse
Eclipse IDE is a cross-platform, multi-purpose, open-source Integrated Development Environment. It is widely used to develop projects in Java, JavaScript, PHP, C++, Scala, and many others. This newly updated Refcard breaks down installing, setting up, and getting started with Eclipse. It also covers productivity tips, creating new projects and files, accessing Source Control Managers, and debugging configurations.
79.2k 215.1k
Core CSS: Part II
Covers Core principles of CSS that will expand and strengthen your professional ability to work with CSS. Part two of three.
73.8k 141.6k
{{ card.title }}
{{card.downloads | formatCount }} {{card.views | formatCount }}

Dev Resources & Solutions Straight to Your Inbox

Thanks for subscribing!

Awesome! Check your inbox to verify your email so you can start receiving the latest in tech news and resources.


{{ parent.title || parent.header.title}}

{{ parent.tldr }}

{{ parent.urlSource.name }}
