Refcard #002

Getting Started with Ajax

Unlocking Unobtrusive JavaScript

Written by

Dave Crane Snr Developer, Sunwheel

Introduces Ajax, a group interrelated techniques used in client-side web development for creating asynchronous web applications.

Free PDF
Section 1

Getting Started

The standard way to do Ajax is to use the XMLHttpRequest object, known as XHR by its friends. Use XHR directly, or via one of the helpful Ajax libraries such as Prototype or jQuery. How do we use XHR "by hand"? To start with, we need to get a reference to it:

if (window.XMLHttpRequest) {
    xhr = new XMLHttpRequest();
  } else if (window.ActiveXObject) {
    xhr = new ActiveXObject("Microsoft.XMLHTTP");

We can then open a connection to a URL:


Specify a callback function to receive the response:

xhr.onreadystatechange = function(){

and then send the request:


The server may be busy, or the network may be slow. We don't want to sit around doing nothing until the response arrives, and because we've assigned the callback function, we don't have to. That's the five-minute guide for the impatient. For those who like to know the details, we've listed the fuller details of the XHR object below.

Method Name Parameters and Descriptions
open(method, url, async) open a connection to a URL method = HTTP verb (GET, POST, etc.) url = url to open, may include querystring async = whether to make asynchronous request
onreadystatechange assign a function object as callback (similar to onclick, onload, etc. in browser event model)
setRequestHeader (namevalue) add a header to the HTTP request
send(body) send the request body = string to be used as request body
abort() stop the XHR from listening for the response
readyState stage in lifecycle of response (only populated after send() is called)
httpStatus The HTTP return code (integer, only populated after response reaches the loaded state)
responseText body of response as a JavaScript string (only set after response reaches the interactive readyState)
responseXML body of the response as a XML document object (only set after response reaches the interactive readyState)
getResponseHeader (name) read a response header by name
getAllResponseHeaders() Get an array of all response header names
Section 2

Getting to Know HTTP

To make use of the XHR to its fullest, we recommend you become familiar with the workings of the HTTP protocol. Using Ajax, you have much more control over HTTP than with classic web app development.

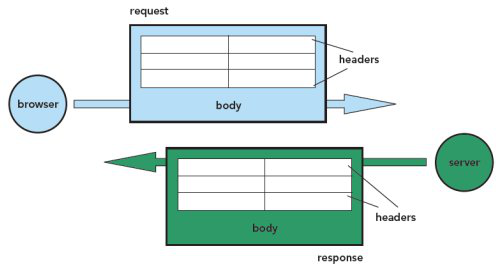

Request and Response Diagram

HTTP is a stateless request-response protocol.

  • Both request and response contain headers and an optional body, which is free text.
  • Only a POST request contains a body.
  • A request defines a verb or method.
  • The Mime type of request and response can be set by the header Content-type

Common HTTP Verbs

99% of the time, you'll only need GET and POST. Many other verbs are used by WebDAV, Subversion over HTTP, and other niche applications, but not all web servers will understand them.

Verb Notes
GET Strictly speaking, should be used only to fetch data, not to effect changes on the server. GET requests contain no body. Parameters are passed in the querystring of the URL.
POST Should be used to update data on the server. Parameters/data passed in the body.
HEAD Will fetch the headers of the response only, not the body. Useful for finding out how large a resource is (read the Content-length header) or how old it is (read the Last-modified header), for example.

If you're using the increasingly popular REST approach to web services, the HTTP verb is used to indicate the type of operation being performed. The most commonly used HTTP verbs in REST map onto the CRUD (create, read, update, delete) approach:

HTTP Verb CRUD operation Notes
PUT Create Add a new object instance to the domain model.
GET Read Get an existing domain object from the server.
POST Update Modify an existing domain object.
DELETE Delete Remove an existing object from the domain model.

Common Mime Types

Setting the right mime type for your request and response is good manners it's also vital to get the app to behave correctly!

Mime Type Meaning Usage
application/x-www-form-urlencoded Body is an encoded querystring of key-value pairs Sending request from HTML form or Ajax. Required in order for server to decode parameters into $_GET, servlet parameters, or HttpRequest.Form.
text/xml, application/xml Body is an XML document Can be used anywhere ' request or response. Must set response to one of these in order to use XHR.responseXML property.
text/plain Body is plain unformatted text
text/html, text/xhtml Body is (X)HTML content Standard web pages sent from server, or content fragments sent to Ajax apps.
text/javascript Body is a piece of JavaScript code Standard .js files, JavaScript fragments sent to Ajax apps.
image/png, image/jpeg, image/gif Body is a binary image Images sent by server.
Section 3

Tips for Using XHR

  • Always set async to true when calling open(). Synchronous Ajax requests block the browser UI, giving the stop-start behaviour we were trying to get away from in the first place!
  • XHR can be fussy about order of setting-up. Always set the callback handler before calling send()
  • To send HTML-form like data
    • Use encodeURI() to encode all data values
    • Set the mime-type of the request to application/x-www- form-urlencoded
  • Set the response mime type to application/xml or text/xml if you want to use the responseXML property

Handling the Response

We've assigned a callback handler function to our XHR object. This function will get called several times as the response comes in. Typically, we only want to parse the response once it has fully arrived, i.e. the readyState is complete.

    if (xhr.readyState==4){
      if (xhr.status==200){
        //handle the HTTP error...

XHR ReadyState Values

State Value Comments
0 Uninitialized The request hasn't yet been sent
1 Loading The response hasn't yet arrived
2 Loaded Response headers can be read
3 Interactive Response body is incomplete, but can be read
4 Complete Response body is complete

So, what might the parseResponse() method look like? We have a lot of freedom in the types of response we send. Let's look at some of the common ones.

Handling a HTML Response

The server can send pre-assembled HTML content, which we just stitch into the web page.

<table class='item selected'>
<td rowspan='3' valign='top'><div class='itemIcon'><img
<td class='itemTitle'>The Moon on a
<td valign='top'>What every project
manager wants - and they want it yesterday!
<br/><br/><i>NB: Stick not included.</i></td>
<td><div class='price'>$365.00</div></td>

function parseResponse(xhr){
  var div=document

Handling a JSON Response

JSON is a simple text-markup that's extremely easy for JavaScript to digest! It doesn't come so naturally to server-side languages, but there are JSON libraries for most servers these days'see http://www.json.org. Most Ajax libraries now provide support for JSON.

  imgSrc: "kmoon.png",
  title: "The Moon on a Stick",
  description: "What every project manager wants
        - and they want it yesterday!<br/><br/><i>
        NB:     Stick not included.</i>",
  price: "365.00"

function parseResponse(xhr){
  var jsonObj=eval(

Handling an XML Response

XML is a more natural fit for most server technologies. XHR supports XML by giving us the responseXML property, but parsing this using the DOM is hard work.

<item imgSrc="kmoon.png" price="365.00">
  <title>The Moon on a Stick</title>
  <description><![CDATA[What every project manager wants
         - and they want it yesterday!<br/><br/><i>NB:
         Stick not included.</i>]]></description>

function parseResponse(xhr){
  var xmlDoc=xhr.responseXML;
  var item=xmlDoc.getElementsByTagName('item')[0];
  var imgSrc=item.getAttribute('imgSrc');
  var title=item.getElementsByTagName('title')[0]

Some browsers also support XPath as a more pleasant way to parse XML. Sarissa and mozXPath.js both provide cross-browser XPath support.

<item imgSrc="kmoon.png" price="365.00">
  <title>The Moon on a Stick</title>
  <description><![CDATA[What every project manager wants
        - and they want it yesterday!<br/><br/><i>NB:
        Stick not included.</i>]]></description>

function parseResponse(xhr){
  var xmlDoc=xhr.responseXML;
  var imgSrc=xmlDoc.selectSingleNode('/item/@imgSrc').value;
  var title=xmlDoc.selectSingleNode

Handling a JavaScript Response

Another approach to Ajax is to generate scripts on the server, and send them to the client to be evaluated. Care should be taken here to define a suitably high-level API on the client against which the generated script is to run, otherwise tight coupling between server and client code can result.

setTitle("The Moon on a Stick");

function parseResponse(xhr){

Handling Mixed Responses

Some Javascript libraries allow mixing of these dialects of Ajax within a single response. The Prototype Ajax.Updater, for example, can accept a response as HTML, into which <script> tags are embedded. The script will be extracted and evaluated, while the rest of the content is embedded into a target DOM element.

Section 4

Ajax and Architecture

Does Ajax only affect the client-side? Certainly not! Particularly if your server is responding with data rather than HTML fragments, you'll want to refactor to some extent.

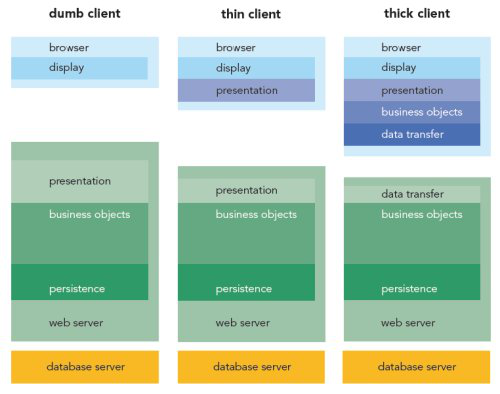

Dumb Client vs. Thin Client vs. Thick Client

Dumb client and thick client above are extremes. In between, there is a thinner (but still intelligent) client, that will suffice in many cases. No single model is right for all cases. Try out these rules of thumb:

  • To add small Ajax features to an existing app, stick with the thin client approach. Thick client is for complex, line-of-business app replacements.
  • Your client-side code is visible, and runs on somebody else's machine. Don't expose details of your business tier. Keep it coarse-grained.
  • Some functionality MUST be kept on the server, such as data validation. Simple, fast validation on the client is an addition, not a replacement!
  • Treat your client-side code well. Use the patterns and practises that you would use on the server to keep your code clean and maintainable.
  • Most projects have a legacy system behind them. How can you introduce Ajax with minimal disruption? Does it speak XML, or generate HTML from components? Can you re-use that?
Section 5

Ajax Toolkits

Toolkits and frameworks will make your life easier in several ways:

  • Providing tried-and-tested solutions to common problems
  • Abstracting away cross-browser incompatibilities and annoyances
  • Providing higher level abstractions such as ready-made UI widgets and networking stacks

However, it's a jungle out there, with many different types of toolkits on the market. Let's divide them into broad families.

Client-side vs. Server-side

Some toolkits are JavaScript-only, others include a back-end system too. Client-side toolkits will give more flexibility, but may require more work on the server-side too.

High-level vs. Low-level

JavaScript is a flexible language, and some toolkits are geared towards enhancing the language itself in a variety of ways. Others are more concerned with higher-level issues such as simplifying XHR, or providing drop-in widgets such as trees, tables and drag-and-drop.

Some Popular Ajax Toolkits

Name Client/ Server High/ Low-level Comments
Prototype (http://prototypejs.org) Client Low Remodels and extends JavaScript following the Ruby scripting language. Many features for arrays, functions, XHR, DOM and forms.
Scriptaculous (http://script.aculo.us) Client High Special effects, drag and drop, and widgets built on top of prototype.
dojo (http://dojotoolkit.org) Client Low-high Comprehensive set of libraries covering everything from packaging & language features through Ajax to UI widgets.
Yahoo User Interface (YUI) (http://developer.yahoo.com/yui/) Client Low-high Another comprehensive set of libraries covering many aspects of Ajax development.
Ext (http://extjs.com) Client High Widget-based set of user interface components with Ajax support.
sarissa (http://sarissa.sf.net) Client Low Rich library for working with XML, providing cross-browser XPath and XSLT.
Mochikit (http://mochikit.com) Client Low-high General-purpose Ajax and DHTML library, inspired by Python.
jQuery (http://jquery.com) Client Low Small, concise Ajax and DOM helper library.
MooTools (http://mootools.net) Client Low-high Modular library covering everything from core classes to special effects. A promising newcomer.
Ruby on Rails (http://www.rubyonrails.org) Server Low-high Primarily a server-side toolkit, but has first-rate support for Ajax, using Prototype and Scriptaculous. Allows large parts of the client tier to be written on the server, in Ruby.
GWT (http://code.google.com/webtoolkit) Client High Java framework that allows Ajax client tier to be written in Java.
JSF (various vendors) Server High Various JSF vendors have Ajax-enabled some of their components, again allowing some Ajax functionality without hand-writing JavaScript.

We haven't time to show you how to make Ajax calls with all of these toolkits, but let's pick two of the most popular: Prototype and jQuery.

The Basics: Making an Ajax Request

Prototype jQuery

new Ajax.Request(
  { method: "post",
    params: { id: myId },
    onComplete: function(response){

  { id: myId },

  • No need to create your own XHR object
  • Use high-level, meaningful callbacks rather than onreadystatechange
  • Sensible defaults provided for all the options you don't want to specify yourself

Loading HTML Content Into a DOM Node

Prototype jQuery

new Ajax.Updater(
  { method: "post",
    params: { id: myId }

  { id: myId }

  • No need to provide a callback function at all

Working With JSON Responses

Prototype jQuery

new Ajax.Request(
  { method: "post",
    params: { id: myId },
    onComplete: function(response,json){

  { id: myId }

  • JSON response returned to our callback already parsed
Section 6

General JavaScript Programming Tips

JavaScript is a loosely-typed scripting language with support for object-oriented and functional programming styles. Although it looks like Java and C-family languages, it's quite different under the hood. Here are a few survival tips to get you through your first serious encounter with this language:

  • Objects can be extended at runtime with new properties. Think of Javascript objects as associative arrays.
  • Functions are first-class objects, and can be passed as arguments into other functions (see the numerous callback functions earlier).
  • JavaScript functions support closures. That is, variables that are in scope when a function is defined can still be referenced inside the function, even if it is invoked later.

Ajax User Interfaces

Before Ajax, the UI was nearly always delivered as declarative HTML, and the Document Object Model, or DOM, was only used in moderation. With Ajax'especially single-page applications' the DOM can play a much bigger role.

Working with the DOM is a two-stage process:

  • Finding the elements we want to work with
  • Modifying their contents or reorganizing them

Finding DOM Elements

The DOM standard itself gives us a few basic tools to work with. Enterprising JavaScript library developers have built on top of these to provide a much richer set of functionality.

Function arguments returns notes
document. getElementById() string DOM Element find single element on page. Id attribute must be unique in page
document. getElementsByTagName()
element. getElementsByTagName()
string collection of DOM elements find all elements on page of a particular HTML tag type e.g. H1, IMG, LI. Use as a method of element to search a subtree of the document
element.childNodes none collection of DOM elements find node's immediate children
element.parentNode none DOM Element find node's immediate parent
none DOM Element allow traversal of sibling nodes

The id attribute is often too specific'adding one to each element we may need to locate becomes tedious, and clutters the markup. Tag names, on the other hand, are not specific enough to be useful in many cases. The most common solution is to use CSS classes to locate elements. We can make these as specific or general as we need.

Finding DOM Elements Using Prototype

Function arguments returns notes
$() string, many strings, or elements DOM element, or array of elements powerful and concise superset of getElementById()
document. getElementsByClassName()
element. getElementsByClassName()
string (a CSS class) array of DOM elements version 1.5+ simple analogue to getElementsByTagName()
$$() string (selector rule) array of DOM elements version 1.5+ accepts CSS selector rules, and xpath queries
element.select() string (selector rule) array of DOM elements version 1.6 analogue to $$(), syntactically neater
selector rules, counts (both optional) DOM Element powerful positional navigation methods, that can work with selectors


$("myList") selects the element with id=myList
.select("li.new") selects all DOM elements of type <LI> with CSS class new within subtree beneath myList
$("widget") selects element with id="widget"
.down("img div.handle",2) internally returns list of all tags that are children of a DIV with CSS class handle, and returns the second one

Finding DOM Elements Using jQuery

Function arguments returns notes
$() string (selector rule) jQuery object wrapping array of elements although only one method is listed here, jQuery is exceptionally powerful in this regard. The selector rules encompass CSS3, xpath (optional) and a range of custom selectors too!


$("div") select all nodes by tag type
$("#myList") select by unique id
$("ul#myList li.new") complex CSS selector

Hot Tip

DOM elements can be assigned to multiple CSS classes. When finding elements using a selector mechanism, you may use the same CSS classes that determine the look of your page, or you may assign separate marker classes, i.e. CSS classes that have no visual effect on the page.

Modifying the DOM

Again, the DOM standard gives us a basic set of tools to work with, and browser vendors have effectively standardized a few more.

Function arguments returns notes
document. createElement() string (tag name) DOM Element create new content slowly and painfully!
document. createTextNode() string (content of node) DOM text node create new content slowly and painfully!
element. innerHTML n/a n/a use the browser's built-in HTML parser to shortcut the creation of new content
element. appendChild() DOM element null add a DOM node as child of another node
element. removeChild() DOM element null remove a child DOM node from the parent
element. insertBefore() DOM element null add a DOM node in relation to other siblings, not just at the end

Modifying the DOM with Prototype

Prototype favors the use of innerHTML to modify the DOM. It enhances this with the Insertion namespace, and, more recently, an insert method on the DOM element class itself.

Function arguments notes
DOM element, string (HTML content) version 1.5: Object that inserts HTML content into element alongside existing content.
Element.update() string (HTML content) version 1.6: overwrites content in element
Element.insert() HTML content or hash of content version 1.6: Can insert a single piece of content, or multiple pieces in one go
Element.remove() none all versions: removes the calling element (and its children) from the page

Prototype provides no support for building DOM elements programmatically, but the Scriptaculous library adds a DOMBuilder object to the mix.

Modifying the DOM with jQuery

jQuery is based around selecting sets of DOM elements, and it provides methods for manipulating sets of DOM elements in bulk. (These can be used on sets of one element too!) The methods here all operate on a set of DOM nodes returned from a selector.

Function arguments notes
$.html() string (HTML content) simple wrapper around innerHTML, will duplicate content for each element in the set
string (HTML content) insert content into node(s) alongside existing content
string (selector rule) or DOM element argument is the target element or elements, to which the current node will be moved to. If multiple targets are present, the nodes being appended will be copied to each one
$.remove() none remove all elements in set from the page
$.empty() none empty all elements in the set of their content
$.wrap() string (HTML) or DOM element wrap each element in set individually with a copy of the content provided in argument
$.wrapAll() string (HTML) or DOM element wrap all elements in the set as a single unit with the content provided in argument
Section 7

Widgets vs. Behaviors

Both jQuery and Prototype (and its sister Scriptaculous) tend towards a style of UI called Unobtrusive Javascript, in which the content of the page is declared as HTML, and subsequently made interactive. Selectors play an important role in this approach, in locating the elements to which to add behavior. There is an alternative approach to developing Ajax UIs, much more akin to desktop application development, in which the DOM elements are created programmatically by javascript components, which the designer then wires together using layouts and containers. Qooxdoo and Ext2 are both examples of this style of UI development.

Section 8

Tools of the Trade

In an ideal world, choosing the right framework makes development a breeze, but in practice, you'll need to go under the hood from time to time to figure out what's going on. We recommend the following tools to keep your Ajax development on track.

FireBug FF www.getfirebug.com Swiss army knife for developers, incorporating DOM & CSS inspector, interactive debugger, network monitor and profiler.
Web Developers Toolkit IE searchmicrosoft.com Closest thing to Firebug for IE, minus the debugger.
Script Debugger IE searchmicrosoft.com Free Javascript debugger for IE, (also check out Visual Studio express' debugger).
Fiddler IE/any www.fiddlertool.com Powerful network monitor with programmable interface for modifying requests in many ways. Tight integration with IE, but can work with any browser.
LiveHTTP Headers FF livehttpheaders.mozdev.org Network monitor extension for Firefox.
JSUnit any www.jsunit.net The original unit testing framework for Javascript.
Selenium FF/any www.openqa.org Powerful unit testing tool for Javascript, featuring interactive test recorder IDE (Firefox only) and browser automation tool (most browsers).
YSlow FF developer.yahoo.com/yslow Comprehensive performance analysis for web pages, runs as a plugin to Firebug!


  • Featured
  • Latest
  • Popular
Getting Started With Industrial Internet
Gets you in the Industrial Internet mindset, preparing you for unique IIoT elements like sensors and actuators, human-machine interfaces, real-time streaming data, device security, and more.
1,072 512
Getting Started With Docker
Teaches you typical Docker workflows, building images, creating Dockerfiles, and includes helpful commands to easily automate infrastructure and contain your distributed application.
10.5k 7,855
Getting Started With Real User Monitoring
Teaches you how to use new web standards—like W3C’s Beacon API—to see how your site is performing for actual users, letting you better understand how to improve overall user experience.
4,564 3,970
Core Java
Gives you an overview of key aspects of the Java language and references on the core library, commonly used tools, and new Java 8 features.
104.3k 264.9k
JavaFX 8
Gives you what you need to start using the powerful JavaFX 8 UI and graphics tool with code snippets and visual examples of shapes and controls.
6,909 9,305
Continuous Delivery With Jenkins Workflow
Provides an introduction to the Jenkins Workflow plugin, a tool that extends the popular CD application to manage even the most complex software pipelines and help you continuously deliver more efficiently.
8,795 10.2k
Functional Programming in JavaScript
Explains functions, data types, and techniques to demonstrate the functional paradigm through the familiar JavaScript language.
12.1k 8,995
Java Caching
Explores the building blocks of JCache and other caching APIs, as well as multiple strategies for implementing temporary data storage in your application.
10.6k 10.9k
Getting Started With Microservices
Still re-deploying your entire application for one small update? Microservices deploy modular updates and increase the speed of application deployments.
13.9k 14.6k
Getting Started With MQTT
Explores the fundamentals of MQTT, including message types, QoS levels, and security.
6,149 7,461
Monitoring NGINX
Overcome dropped connections, server errors, and more by efficiently monitoring your NGINX web server.
4,907 3,971
Getting Started With Apache Tomcat
Learn Apache Tomcat, a pure Java open-source web server that implements the Java Servlet, JavaServer Pages, and Expression Language specifications.
8,942 7,497
{{ card.title }}
{{card.downloads | formatCount }} {{card.views | formatCount }}

{{ parent.title || parent.header.title}}

{{ parent.tldr }}

{{ parent.urlSource.name }}
