JavaFX 8

The UI Toolkit for Java-Based Client Applications

Written by

Hendrik Ebbers Software Engineer, Canoo Engineering AG
Michael Heinrichs Software Engineer, Canoo Engineering AG

Gives you what you need to start using the powerful JavaFX 8 UI and graphics tool with code snippets and visual examples of shapes and controls.

Free PDF
DOWNLOAD
Section 1

General

JavaFX is the new UI toolkit for Java-based client applications running on desktop, embedded, and mobile devices. It is part of the JDK 8 and is provided as a pure Java API. Among others, the following features are supported:

  • Accelerated 2D and 3D graphics

  • UI controls, layouts, and charts

  • Audio and video support

  • Effects and animations

  • HTML5 support

  • Bindings, CSS, FXML, and more...

To provide maximum performance, JavaFX uses different native rendering engines depending on the platform it is running on. On Windows for example, Direct3D is used, while on most other systems it uses OpenGL.

Section 2

“Hello World” JavaFX Application

This "Hello World" example will show a window with a button. Clicking the button will print "Hello World" to the console.

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.layout.StackPane;
import javafx.stage.Stage;

public class HelloWorld extends Application {

    @Override
    public void start(Stage primaryStage) {
        Button button = new Button("Hello World");
        button.setOnAction (e -> System.out.println("Hello World"));
        StackPane myPane = new StackPane();
        myPane.getChildren().add(button);

        Scene myScene = new Scene(myPane);

        primaryStage.setScene(myScene);
        primaryStage.setWidth(400);
        primaryStage.setHeight(300);
        primaryStage.show();
    }

    public static void main(String[] args) {
        launch(args);
    }
}

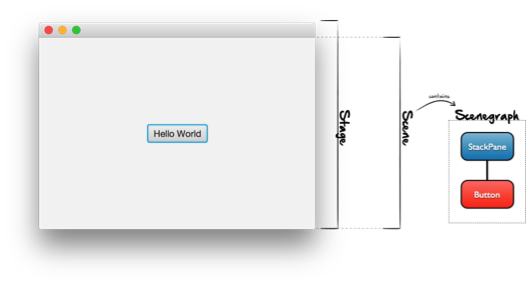

The following diagram shows the structure of the program. The main window corresponds to a Stage, which contains a Scene, which contains a scene graph. The scene graph is a tree of UI nodes.

The following diagram shows the structure of the program. The main window corresponds to a Stage, which contains a Scene, which contains a scene graph. The scene graph is a tree of UI nodes.

Image title

A JavaFX application runs in the default JavaFX lifecycle that is defined by the Application class. The init() method is called before the JavaFX application thread is created, therefore no UI-specific operations are allowed.

Image title

Each JavaFX application needs at least one stage with an internal scene graph. At runtime, one can add new windows by creating new stage instances.

Section 3

JavaFX Properties

JavaFX properties are based on regular JavaBeans properties. The JavaFX runtime provides default implementations for all property types, which can be used in one’s own class. The following code example shows the definition of the "size" property.

private final IntegerProperty size =
            new SimpleIntegerProperty(this, "size", 42);

public int getSize() {
    return size.get();
}
public void setSize(int newValue) {
    size.set(newValue);
}
public IntegerProperty sizeProperty() {
    return size;
}
Section 4

Binding API

JavaFX offers the possibility to create bindings between properties. Bindings synchronize the values of two properties automatically, avoiding the error-prone boilerplate code that is otherwise needed.

Properties can be bound unidirectonally or bidirectionally, implemented by the methods bind() and bindBidirectional() respectively. If a property A is unidirectionally bound to a property B, property A will always have the same value as B. Property A becomes read-only in this case. If the properties A and B are bound bidirectionally, changes are propagated in both directions.

In additon to binding two properties directly, it is also possible to bind a property against an expression. If one of the operands of the expression changes, the expression is re-evaluated automatically and the result is assigned to the property.

High-Level Binding API

There are two approaches to define complex bindings. The high-level API allows bindings to be defined for many typical use cases in an easy way.

Operations

Examples

Type

Arithmetic Operations

num1.add(num2)
Bindings.divide(num1, num2)
num1.negate()

Number

Boolean Operations

Bindings.or(bool1, bool2)
bool1.not()

Boolean

Comparisons

obj1.isEqualTo(obj2)
Bindings.notEqual(obj1, obj2)

All

num1.greaterThan(num2)
num1.lessThanOrEqualTo(num2)

Number,
String

Bindings.equalIgnoreCase(s1, s2)
s1.isNotEqualToIgnoreCase(s2)

String

Conversions

obj.asString()

All

num.asString(format)
Bindings.format(format, val...)

Number,
Object

Null Check

obj.isNull()
Bindings.isNotNull(obj)

Object,
String

String Operations

Bindings.concat(s1, s2)
s.length()

String

Min / Max

Bindings.min(num1, num2)
Bindings.max(num1, num2)

Number

Collections

Bindings.valueAt(list, index)
Bindings.size(collection)

Collection

Select Binding

Bindings.select(root, properties...)


Ternary Expression

Bindings.when(cond).then(val1).otherwise(val2)


Low-Level Binding API

With the low-level API, one can define bindings for arbitrary expressions. The following code sample shows how a binding can be defined that calculates the length of a vector (x, y) where x and y are two DoubleProperties.

length = Bindings.createBinding(
    () -> Math.sqrt(x.get() * x.get() + y.get() * y.get()),
    x, y
);
Section 5

UI Components

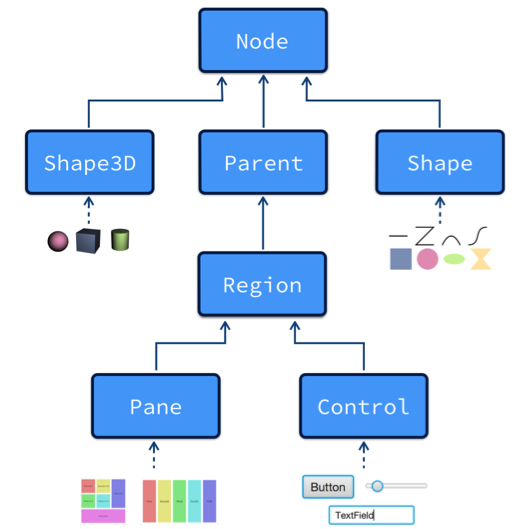

All UI components in JavaFX extend the base class Node. There are different types of nodes, as can be seen in the following class hierarchy:

Image title

All geometric shapes, and text (which is just a very complex shape), extend either the class Shape or Shape3D. These are leaf nodes in the scene graph. The possibility to contain other nodes as children is defined in the abstract class Parent. UI controls and layout panes extend this class. Besides the properties that define the specific behavior of a node, all of them provide support for event handling and CSS styling.

Section 6

Shapes

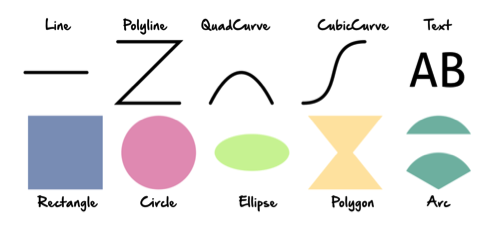

Shapes define the most basic nodes that can be shown in a JavaFX scene graph. The Shape class is the superclass of all geometric primitives and defines these basic features:

Image title

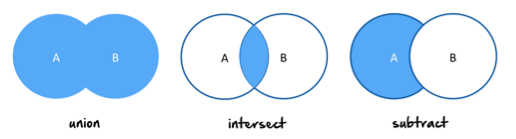

In addition, this class provides the boolean operations union, intersect, and subtract to create new shapes.

Image title

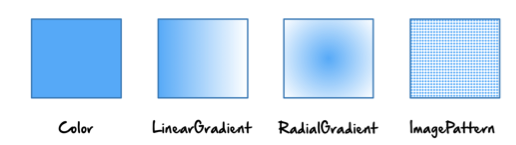

Beyond just setting the stroke and the fill of a shape to a color, you can use the Paint class’s four implementations:

Image title

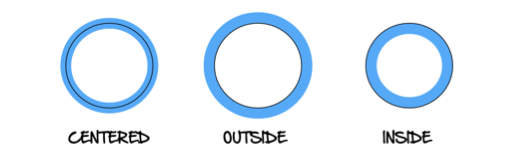

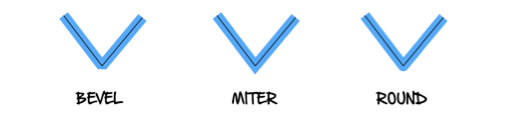

The stroke can further be configured by modifiying the properties strokeType, strokeLineJoin, and strokeLineCap. It is also possbile to define a dashing pattern.

Image title

Image title

Image title

Section 7

Controls

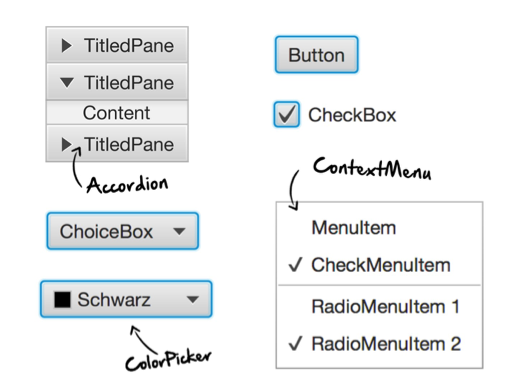

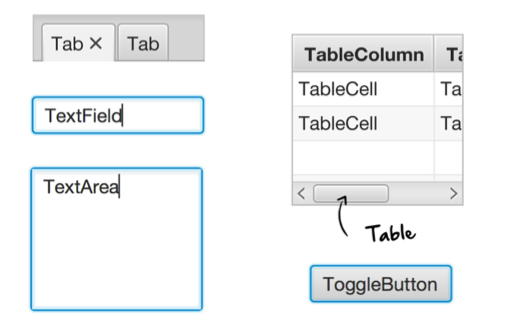

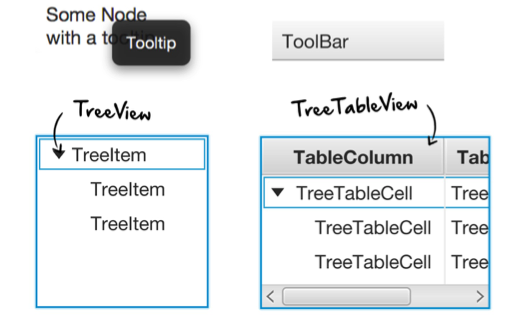

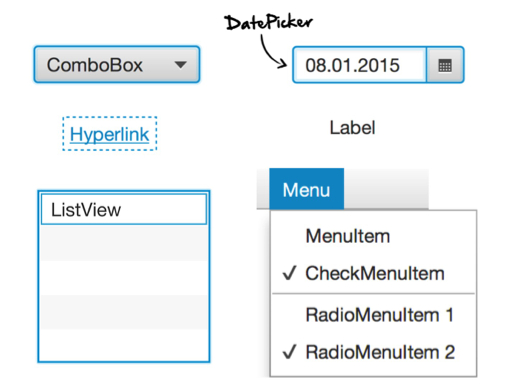

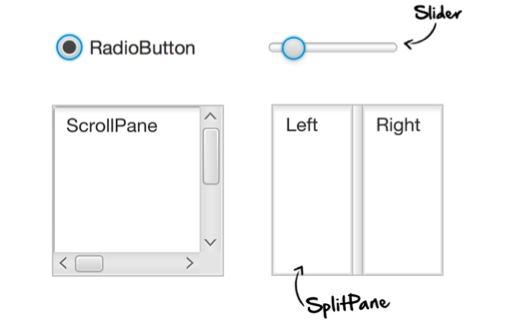

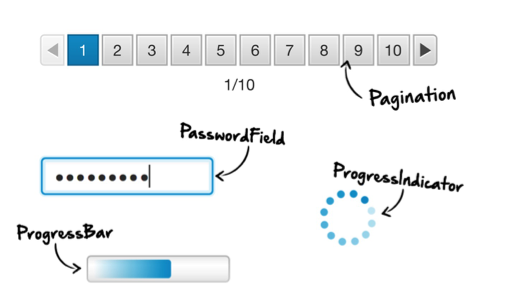

Controls are the JavaFX UI nodes that a developer will use most of the time. All controls—like buttons, textfields, or tables—extend the Control class. By default, JavaFX controls will be rendered in a consistent and system-independent theme.

Image title

Image title

Image title

Image title

Image title

Image title

The specific style of a control is defined with CSS. The default CSS theme in JavaFX, which is used to style all controls, is called "Modena."  Internally, all controls are made up of primitive UI nodes like shapes and panes.  In other words, each JavaFX control is vector-based and can be scaled without losing any sharpness or looking pixelated.

A tooltip can be specified for each control. A tooltip can contain any UI node, so you can place a pane with any content in a tooltip and create an awesome visual help dialog. For example, it is possible to add a MediaView to a tooltip and play a video instead of only showing text.

Size of a Control

The position and size of a control is defined by its parent node, which is typically a layout pane. A developer can influence size by setting the minimum, maximum, and preferred size of a control. By default, these values are calculated by the control. For example, the preferred width of a button depends on the text the button contains. JavaFX calculates a width and height that ensures the complete text fits into the button.


Section 8

Dialogs and Alerts

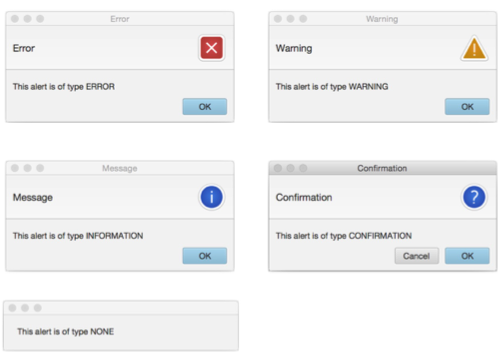

JavaFX provides several alert types.

Image title

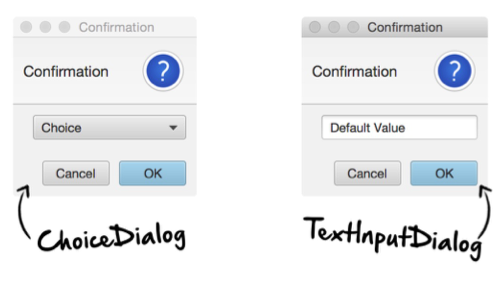

In addition to standard notification alerts, JavaFX also contains special dialogs that allow you to request a value.

Image title

Section 9

Layout Panes

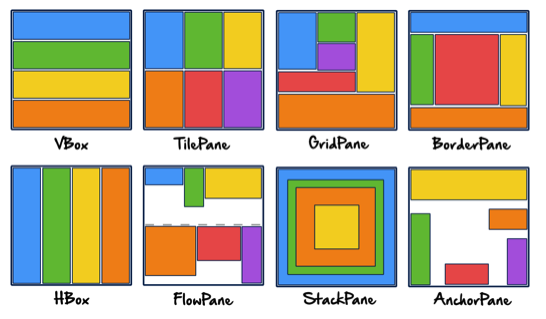

JavaFX provides several layouts out of the box, which can be seen in the following diagram:

Image title

A layout is a parent node in the scene graph that modifies the position of the child and—if the child is resizable—also the size. For each layout—and for resizable components in general—three sizes can be specified: the preferred, the minimum, and the maximum size. Each layout algorithm tries to optimize the size of the child nodes toward the preferred size and will shrink or expand the child nodes according to the available space (adhering to the minimum and maximum bounds). Each pane stores its children in an ObservableList. In several pane types (e.g. HBox, FlowPane, and StackPane) the index in this list defines the position of the child in the pane. The basic Node class provides the methods toFront() and toBack() to put a child to the first or last position.

Section 10

Additional Components

In addition to shapes, layout panes, and controls, JavaFX provides several UI components for specific needs.

ImageView

Two classes are required to show an image. The Image class encapsulates the raw data of an image and its properties. The ImageView class is a scene graph node, and it is responsible for showing the image on screen. This split is needed because it allows JavaFX to show an image several times on screen, while the data is kept in memory only once.

Image image = new Image("path/to/image");
ImageView imageView = new ImageView(image);
myPane.getChildren().add(imageView);

MediaView

The MediaView class can be used to show a video on screen or play an audio file. JavaFX supports MP3, AIFF, WAV, and MPEG-4 as audio codecs and FLV (Flash Video) or MPEG-4 (H.264/AVC) as video codecs. Two classes are required to play an audio stream: similar to the Image class, the Media class encapsulates the raw data, while MediaPlayer provides functionality to control the playback and contains other useful media information. To play a video, a third class is needed: MediaView. It is a regular scene graph node, which means one can even apply effects and animate videos.

Media media = new Media("path/to/media");
MediaPlayer player = new MediaPlayer(media);
MediaView mediaView = new MediaView(player);

player.setVolume(0.5);
player.play();

Charts

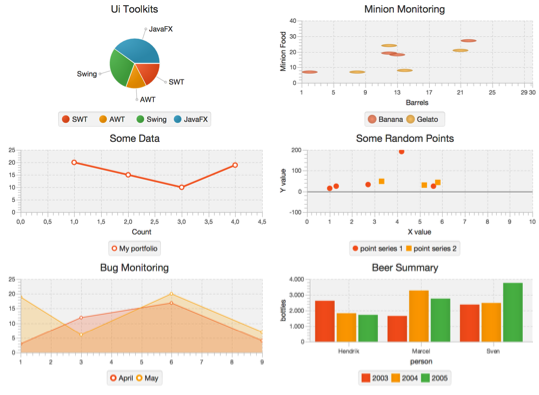

JavaFX contains a full-fledged Charts API that allows it to define and visualize charts. The following figure shows the type of charts that are available in the standard JDK:

Image title

Canvas

In some situations, it is more efficient to have full control over rendering and draw to the screen directly. JavaFX provides the Canvas class for these scenarios. It provides a GraphicsContext with several methods to draw geometric figures or images directly. The Canvas component is comparable to HTML Canvas or the Java2D Graphics2D functionality.

WebView

The JavaFX WebView class can be used to embed any web content in your application. WebView uses WebKit internally to render web content and provide interaction with that content. Even rich HTML5 applications can be wrapped in a JavaFX window or pane. WebView provides a WebEngine object that allows the developer to directly interact with the HTML content and, for example, inject JavaScript or manipulate the DOM.

WebView webView = new WebView();
WebEngine engine  = webView.getEngine();

//Load a web page
engine.load("http://www.guigarage.org");

//Add the web view to the JavaFX view
myPane.getChildren().add(webView);

// Inject JavaScript
engine.executeScript("history.back()");
Section 11

CSS

JavaFX provides styling by CSS. CSS support is based on the W3C CSS version 2.1, but there are some minor differences that can be found in the JavaFX CSS documentation (http://docs.oracle.com/javase/8/javafx/api/javafx/scene/doc-files/cssref.html).

In JavaFX, a stylesheet can be applied to the scene graph or to a specific node. A stylesheet that is applied to the scene graph will affect all nodes in the scene graph. If the stylesheet is applied to a node, it will affect this node and all its children (recursively). Several stylesheets can be applied to the scene graph or a node. The following code snippet shows how you can set a stylesheet for a scene graph or a node:

// load the stylesheet
String style = getClass().getResource("style.css").toExternalForm();

// apply stylesheet to the scene graph
myScene.getStylesheets().addAll(style);

// apply stylesheet to a node
parentPanel.getStylesheets().addAll(style);

JavaFX also supports inline stylesheets for nodes. Here you can define the CSS rules directly in your Java code as a string, which can be helpful for debuging and testing. The Node class provides a method that can be used to set an inline style for a Node instance:

button.setStyle("-fx-background-color: green;");

A CSS rule is applied to a node if its selector matches. In the selector, one can use a combination of ID, element classes, style classes, and pseudo classes. A JavaFX  node can have exactly one ID:

mySaveButton.setId(„my-save-button“);

Here is an example of a CSS rule that styles exactly this button:

/* The # sign in the selector defines an id */
#my-save-button {
    -fx-background-color: blue;
}

In addition to the ID, a node can have several style classes:

button.getStyleClass().add(“toolbar-button“);

All nodes that have the "toolbar-button" style class can be styled with a single rule in CSS:

/* The . sign in the selector defines a style class */
.toolbar-button {
    -fx-background-color: blue;
}

Pseudo classes can be defined for any node, too. Pseudo classes are activated and deactivated by using the Java API:

 // Define the pseudo class
PseudoClass myPseudoClass = PseudoClass.getPseudoClass("active");

//activate the pseudo class
myNode.pseudoClassStateChanged(myPseudoClass, true);

//deactivate the pseudo class
myNode.pseudoClassStateChanged(myPseudoClass, false);

In CSS you can use the pseudo class in a selector to define a specific style:

/* A colon signals a pseudo class */
.control:active {
    -fx-background-color: blue;
}
Section 12

FXML

FXML is an XML-based language that defines the structure and layout of JavaFX UIs. It is tool-agnostic and can be edited with any editor, but it’s especially helpful to use SceneBuilder, a WYSIWYG editor for FXML.

Image title

<?xml version="1.0" encoding="UTF-8"?>
<?import javafx.scene.control.*?>
<?import java.lang.*?>
<?import javafx.scene.layout.*?>

<StackPane maxHeight="-Infinity" maxWidth="-Infinity" minHeight="-Infinity" minWidth="-Infinity" prefHeight="400.0" prefWidth="600.0" xmlns="http://javafx.com/javafx/8" xmlns:fx="http://javafx.com/fxml/1">
   <children>
      <Button mnemonicParsing="false" text="ButtonTitle" />
   </children>
</StackPane>

Once the FXML view is created, it can be loaded with the FXMLLoader class:

FXMLLoader loader = new FXMLLoader(getClass().getResource("demo.fxml"));
StackPane view = loader.load();

A Java-based controller can be bound to the FXML file. The @FXML annotation can be used to inject view nodes directly into the controller class. An injectable node must be marked with a unique fx:id in FXML:

<Button fx:id="myButton" mnemonicParsing="false" text="ButtonTitle"/>

Once this is done, the Button instance can be injected in the controller by using the fx:id as the field name:

public class ViewController {

    @FXML
    private Button myButton;
}

When loading the FXML stream, the controller can be passed to the loader. In this case, the FXMLLoader will automatically inject all fields that are annotated with @FXML:

ViewController controller = new ViewController();
FXMLLoader loader = new FXMLLoader(getClass().getResource("demo.fxml"));
loader.setController(controller);
StackPane view = loader.load();

In addition, the FXML specification supports several other features, like resource bundles, event handler linking, or nesting FXML files.

Section 13

JavaFX and Swing

It is possible to use JavaFX components within a Swing application—and to use Swing components in a JavaFX application.

JavaFX in a Swing Application

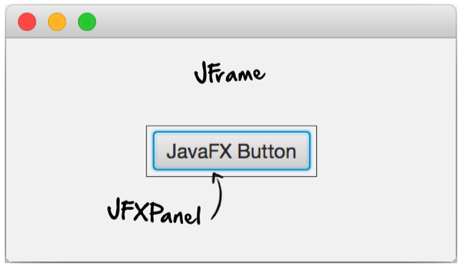

JFXPanel extends Swing's JComponent and can therefore be integrated into any Swing application. The scene property of JFXPanel allows you to set a JavaFX Scene, which will be visualized within the JFXPanel.

Image title

Swing in a JavaFX Application

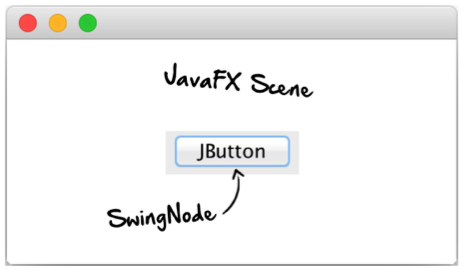

A SwingNode can be used to add Swing components to a JavaFX application. SwingNode is a regular node and can be added anywhere in the scene graph. It has a content property that can take any JComponent.

Image title

Threading

Unfortunately, both Swing and JavaFX require their own main application thread, and changes have to be made on the right thread. This can be achieved with the helper methods Platform.runLater() and SwingUtilities.invokeLater(), respectively.

Section 14

Packaging and Deployment

Java 8 offers support to deploy your JavaFX application as a native app. In this case, the JRE will be bundled with your application. A native executable will be created (e.g., an EXE on Windows or a DMG on Mac), and a user can execute it without the need for Java on the client system. Additional information, like meta data or application icons, can be defined for the native app, too. The bin folder of the JDK contains the javafxpackager executable that must be used to create such a bundled application. There are plugins for Ant, Maven, and Gradle available to support this feature automatically in your build.

Section 15

Tools

Since JavaFX is completely Java based, you can use any Java IDE—or just a text editor and the JDK—to create JavaFX applications. Beyond that, there are also some nice tools, which are part of the JavaFX ecosystem, that can help you create JavaFX applications. The following table gives a short overview of some of these tools:

Tool

Description

Scene Builder

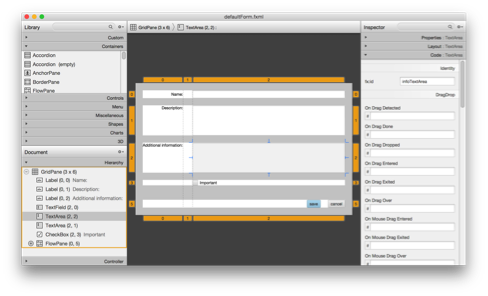

Scene Builder is an open-source WYSIWYG editor for JavaFX that creates FXML-based views. It also has very good CSS support and contains a CSS analyzer.

Scenic View

Scenic View is a tool that helps you debug your application. The tool finds running JavaFX applications and allows you to navigate through scene graphs and inspect the properties of specific nodes.

JavaFX Ensemble

This application provides demos and examples for most JavaFX features, including their sources. Most of the demos are interactive and let you directly test how a feature behaves at runtime.

e(fx)clipse

A plugin for Eclipse that adds a lot of useful JavaFX support to the IDE.

Publications

  • Featured
  • Latest
  • Popular
DOWNLOAD
Design Patterns
Learn design patterns quickly with Jason McDonald's outstanding tutorial on the original 23 Gang of Four design patterns, including class diagrams, explanations, usage info, and real world examples.
198.9k 535.8k
DOWNLOAD
Core Java
Gives you an overview of key aspects of the Java language and references on the core library, commonly used tools, and new Java 8 features.
122.2k 321.6k
DOWNLOAD
Getting Started with Ajax
Introduces Ajax, a group interrelated techniques used in client-side web development for creating asynchronous web applications.
100.4k 196.6k
DOWNLOAD
Getting Started with Git
This updated Refcard explains why so many developers are migrating to this exciting platform. Learn about creating a new Git repository, cloning existing projects, the remote workflow, and more to pave the way for limitless content version control.
108.7k 241.8k
DOWNLOAD
Spring Configuration
Catalogs the XML elements available as of Spring 2.5 and highlights those most commonly used: a handy resource for Spring context configuration.
101.7k 254k
DOWNLOAD
Core CSS: Part I
Covers Core principles of CSS that will expand and strengthen your professional ability to work with CSS. Part one of three.
88.7k 191.5k
DOWNLOAD
jQuery Selectors
Introduces jQuery Selectors, which allow you to select and manipulate HTML elements as a group or as a single element in jQuery.
92k 347.8k
DOWNLOAD
Foundations of RESTful Architecture
Introduces the REST architectural style, a worldview that can elicit desirable properties from the systems we deploy.
90.6k 132.9k
DOWNLOAD
The Ultimate Scrum Reference Card
Provides a concise overview of roles, meetings, rules, and artifacts within a Scrum organization. Updated for 2016.
84.5k 222.5k
DOWNLOAD
Core Java Concurrency
Helps Java developers working with multi-threaded programs understand the core concurrency concepts and how to apply them.
88.1k 179.3k
DOWNLOAD
Core CSS: Part II
Covers Core principles of CSS that will expand and strengthen your professional ability to work with CSS. Part two of three.
72.3k 137.8k
DOWNLOAD
Getting Started with Eclipse
Gives insights on Eclipse, the leading IDE for Java, which has a rich ecosystem of plug-ins and an open-source framework that supports other languages.
72k 182.6k
{{ card.title }}
{{card.downloads | formatCount }} {{card.views | formatCount }}

The best of DZone straight to your inbox.

SEE AN EXAMPLE
Please provide a valid email address.

Thanks for subscribing!

Awesome! Check your inbox to verify your email so you can start receiving the latest in tech news and resources.
Subscribe

{{ parent.title || parent.header.title}}

{{ parent.tldr }}

{{ parent.urlSource.name }}
