Jetty, an open-source web server hosted by the Eclipse foundation, is a full-fledged HTTP server and Servlet container that can be easily configured to serve static and dynamic content. You can very easily embed Jetty into your own applications using Java or XML-based configuration or run Jetty directly from Maven. Additionally, you can use Jetty in many different high-demand areas such as Yahoo Hadoop Cluster, Google AppEngine, and Yahoo! Zimbra. This RefCard refers primarily to Jetty 8; however, most of the configuration discussed will work on Jetty 7.

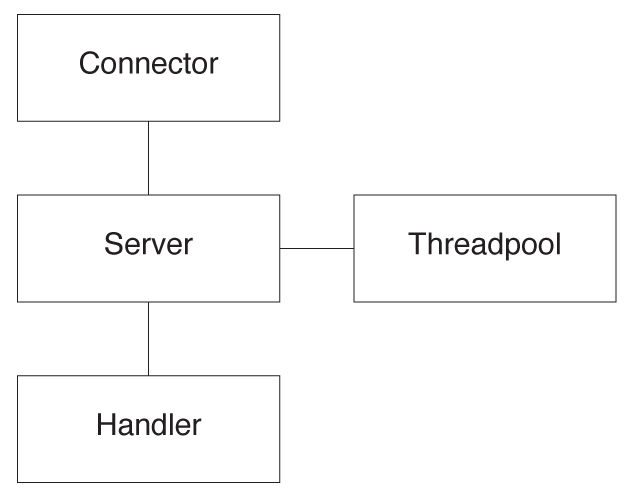

It's important to understand the architecture behind Jetty. The main architecture of Jetty consists out of the following four components.

Server

The server is the container class for all the other components of the architecture. A server contains a number of connectors that listen on a specific port and accepts connections (e.g., HTTP, HTTPS, or AJP13) from clients. A server also contains a set of handlers that process the client requests from the connectors and produce responses that are returned to the client. Threads retrieved from the configured threadpool do this processing.

Connector

Jetty provides a number of connectors that accept requests from clients to be processed by the handlers. Jetty comes with the following set of default connectors.

Handler

The handler is the component that deals with requests received by a
connector. There are three types of handlers in Jetty.

• Coordinating handlers route requests to other handlers.


• Filtering handlers modify a request and pass it on to other
  handlers.


• Generating handlers create content.


• Jetty provides the following handlers.

Threadpool

The threadpool provides threads to the handlers, the work done by the connnectors and the handlers. Jetty comes with the following threadpools.

When you configure Jetty, you create and configure a set of connectors and handlers. You can do this using XML or plain java.

XML Configuration

Jetty provides an XML-based configuration language based on the Java Reflection API. When starting Jetty with an XML configuration, Jetty will parse this XML and create and configure the specified objects. The following is a basic configuration using the XML syntax with a server, connector, handler, and threadpool.

<Configure id="Server" class="org.eclipse.jetty.server.Server">
<Set name="threadPool">
<New class="org.eclipse.jetty.util.thread.QueuedThreadPool">
<Set name="minThreads">10</Set>
<Set name="maxThreads">10</Set>
</New>
</Set>
<Call name="addConnector">
<Arg>
<New class="org.eclipse.jetty.server.nio.SelectChannelConnector">
<Set name="port">8080</Set>
</New>
</Arg>
</Call
<Set name="handler">
<New class="org.eclipse.jetty.server.handler.HandlerList">
<Set name="handlers">
<Array type="org.eclipse.jetty.server.Handler">
<Item>
<New class="org.eclipse.jetty.server.handler.ResourceHandler">
<Set name="directoryListed">true</Set>
<Set name="resourceBase">./files</Set>
</New>
</Item>
<Item>
<New class="org.eclipse.jetty.server.handler.DefaultHandler"/>
</Item>
</Array>
</Set>
</New>
</Set>

This code creates a ResourceHandler that shows the files from the "./files" directory. The DefaultHandler takes care of the unhandled request. You can start this server using the following java code:

  Public class JettyExample {
  public static void main(String[] args) throws Exception {
  Resource fileCfg = Resource.newSystemResource("example.xml");
  XMLConfiguration config = new
  XMLConfiguration(fileCfg.getInputStream());
  Server.start();
  Server.join();
  }
 }

The following elements can be used to configure Jetty.

Java Configuration

Using java for the configuration of your Jetty server is very simple and is done in the same manner as we've shown for the XML configuration. Instead of using the XML elements to instantiate the objects, you can now do this directly from java. You can rewrite the previous XML configuration to the following piece of java.

public static void main(String[] args) throws Exception {
  Server server = new Server();
  QueuedThreadPool pool = new QueuedThreadPool();
  pool.setMinThreads(10);
  pool.setMaxThreads(10);
  server.setThreadPool(pool);
  SelectChannelConnector connector = new SelectChannelConnector();
  connector.setPort(8080);
  server.addConnector(connector);
  HandlerList handlers = new HandlerList();
  ResourceHandler resourceHandler = new ResourceHandler();
  resourceHandler.setDirectoriesListed(true);
  resourceHandler.setResourceBase("./files");
  DefaultHandler defaultHandler = new DefaultHandler();
  handlers.setHandlers(new Handler[]
  {resourceHandler, defaultHandler});
  server.setHandler(handlers);
  server.start();
  server.join();
 }

This section describes how to use Jetty for a number of basic use cases.

Serving Static Content

scripting to change bar colors on a chart based on plotted data. When running Jetty as an embedded web server in your own application, it can be useful to be able to serve static content (e.g., documentation). The easiest way to server static content is by using a ResourceHandler:

<New class="org.eclipse.jetty.server.handler.ResourceHandler">
  <Set name="directoryListed">true</Set>
  <Set name="resourceBase">./files</Set>
 </New>

The ResourceHandler can be configured with the following properties:

If you want the ResourceHandler to listen on a specific context, you can wrap this Handler in a ContextHandler:

<New class="org.eclipse.jetty.server.handler.ContextHandler">
  <Set name="contextPath">/documentation</Set>
  <Set name="handler">
  <New class="...ResourceHandler">...</New>
  </Set>
 </New>

SSL Configuration

To configure Jetty to use HTTPS, you can use one of the SSL-enabled connectors: SslSelectChannelConnector or SSLSocketConnector. The following listing defines two-way ssl (client authentication):

Call name="addConnector">
  <Arg>
  <New class="org.eclipse...SslSelectChannelConnector">
  <Arg>
  <New class="org.eclipse.jetty.http.ssl.SslContextFactory">
  <Set name="keyStore">etc/keystore</Set>
  <Set name="keyStorePassword">OBF:1vny1zlo1x8e1vnw1</Set>
  <Set name="keyManagerPassword">OBF:1u2u1wml1z7s1z/Set>
  <Set name="trustStore">/etc/keystore</Set>
  <Set name="trustStorePassword">OBF:w11x8g1zlu1vn4</Set>
  <Set name="needClientAuth">true</Set>
  </New>
  </Arg>
  <Set name="port">8443</Set>
  </New>
  </Arg>
 </Call>

The following properties are used:

There are more advanced properties available. For these, see the Javadocs for the SslContextFactory.

Servlets and the ServletContextHandler

Jetty allows you to easily configure servlets without having to use a web. xml. To do this, you can use a ServletContextHandler, which allows for easy construction of a context with a ServletHandler. The following properties can be set on a ServletContextHandler.

A servlet on this context can be added using the addServlet operation (which can also be done through XML).

addServlet(String className,String pathSpec)
  addServlet(Class<? extends Servlet> servlet,String pathSpec)
 addServlet(ServletHolder servlet,String pathSpec)

Using Existing WAR Files and Layout

Jetty allows you to directly use existing WAR files (and exploded WAR files) through the WebAppContext. This is especially useful during development.

Directly from a WAR:

Server server = new Server(8080);
  WebAppContext webapp = new WebAppContext();
  webapp.setContextPath("/");
  webapp.setWar(jetty_home+"/webapps/test.war");
 server.setHandler(webapp);

From an Exploded WAR (e.g During Development):

Server server = new Server(8080);
  WebAppContext context = new WebAppContext();
  context.setDescriptor(webapp+"/WEB-INF/web.xml");
  context.setResourceBase("../test-jetty-webapp/src/main/webapp");
  context.setContextPath("/");
  context.setParentLoaderPriority(true);
 server.setHandler(context);

You can also configure a WebAppContext in jetty.xml using the XMLbased configuration or in a context.xml file.

Security Realms

Security Realms allow you to protect your web applications. Jetty provides a number of standard LoginServices you can use to secure your web application.

To use a LoginServices, you configure it in the jetty.xml file.

<Call name="addBean">
  <Arg>
  <New class="org.eclipse.jetty.security.HashLoginService">
  <Set name="name">RefCardRealm</Set>
  <Set name="config">etc/realm.properties</Set>
  <Set name="refreshInterval">0</Set>
  </New>
  </Arg>
 </Call>

The real-name defined in the jetty.xml can now be referenced from the web.xml.

<login-config>
  <auth-method>FORM</auth-method>
  <realm-name>RefCardRealm</realm-name>
  <form-login-config>
  <form-login-page>/login/login</form-login-page>
  <form-error-page>/login/error</form-error-page>
  </form-login-config>
 </login-config>

JNDI Usage

Jetty has support for java:comp/env lookups in web applications.

Setup JNDI

The JNDI feature isn't enabled by default. To enable JNDI, you have to set the following configurationClasses on your WebAppContext or WebAppDeployer:

Configure id="wac" class="org.eclipse.jetty.webapp.WebAppContext">
  <Array id="plusConfig" type="java.lang.String">
  <Item>org.eclipse.jetty.webapp.WebInfConfiguration</Item>
  <Item>org.eclipse.jetty.webapp.WebXmlConfiguration</Item>
  <Item>org.eclipse.jetty.webapp.MetaInfConfiguration</Item>
  <Item>org.eclipse.jetty.webapp.FragmentConfiguration</Item>
  <Item>org.eclipse.jetty.plus.webapp.EnvConfiguration</Item>
  <Item>org.eclipse.jetty.plus.webapp.PlusConfiguration</Item>
  <Item>org.eclipse.jetty.webapp.JettyWebXmlConfiguration</Item>
  <!-- next one not needed for Jetty 8 -->
  <Item>org.eclipse.jetty.webapp.TagLibConfiguration</Item>
  </Array>
  <Set name="war">location/of/webapp</Set>
  <Set name="configurationClasses"><Ref id="plusConfig"/></Set>
 </Configure>

You can now use , , and entries in your web.xml to point to resources stored in the JNDI context.

Binding Objects to JNDI

Jetty allows you to bind POJOs, a java.naming.Reference instance, an implementation of java.naming.Referenceable, and a link between a name in the web.xml and one of these other objects. These objects can be configured from Java or in the jetty.xml configuration files.

<New class=type of naming entry>
  <Arg>scope</Arg>
  <Arg>name to bind as</Arg>
  <Arg>the object to bind</Arg>
 </New>

The scope defines where the object is visible. If left empty, the scope is set to the Configure context this entry is defined in. This scope can also be set to point to a specific server of webapplication.

<Arg><Ref id='wac'/></Arg>

The following environment types are supported:

Jetty-env.xml

You can store environment settings in a jetty.xml file that is stored in your WEB-INF directory.

<Configure class="org.mortbay.jetty.webapp.WebAppContext">
  <!-- Add entries only valid for this webapp -->
 </Configure>

This section describes a couple of advanced configurations for Jetty.

Integration with CDI

When creating applications, it's very useful to use context and dependency injection (CDI). With JEE6, this is a standard feature of an application server. You can also use CDI with Jetty. The following configuration can be used to configure Weld (the CDI reference implementation) for a specific web application on Jetty.

<Configure id="webAppCtx"
   class="org.eclipse.jetty.webapp.WebAppContext">
   <New id="BManager" class="org.eclipse.jetty.plus.jndi.Resource">
   <Arg><Ref id="webAppCtx"/></Arg>
   <Arg>BeanManager</Arg>
   <Arg>
   <New class="javax.naming.Reference">
   <Arg>javax.enterprise.inject.spi.BeanManager</Arg>
   <Arg>org.jboss.weld.resources.ManagerObjectFactory</Arg>
   <Arg/>
   </New>
   </Arg>
   </New>
 </Configure>

The beanmanager is available on java:comp/env/BeanManager.

Running Jetty Behind a Reverse Proxy

Jetty can be configured to run behind a reverse proxy, such as Apache with mod_proxy or mod_proxy_ajp. The preferred way is to use mod_ proxy with a normal HTTP connector. However, it's also possible to create a connector for the AJP protocol used by the mod_proxy_ajp modules.

<Call name="addConnector">
<Arg>
<New class="org.eclipse.jetty.ajp.Ajp13SocketConnector">
<Set name="port">8009</Set>
</New>
</Arg>
</Call>

For more information on running Jetty as a reverse proxy, see: http:// wiki.eclipse.org/Jetty/Howto/Configure_mod_proxy

Websockets

Jetty has support for websockets. You can create your own websockets servlet by extending WebSocketServlet.

public class ExampleWSServlet extends WebSocketServlet {
  protected void doGet(HttpServletRequest request,
  HttpServletResponse response)
  throws ServletException ,IOException {
  getServletContext().getNamedDispatcher("default")
  .forward(request,response);
  }
  protected WebSocket doWebSocketConnect(
  HttpServletRequest request, String protocol) {
  return new ExampleWebSocket();
  }
  class ExampleWebSocket implements WebSocket {
  private Outbound outbound;
  public void onConnect(Outbound outbound) {
  this.outbound=outbound;
  }
  public void onMessage(byte frame
  ,byte[] data,int offset, int length) {
  // handle binary data
  }
  public void onMessage(byte frame, String data) {
  // handle String data
  }
  public void onDisconnect() {}
  }
 }

Session Clustering

Jetty uses two components for session management. First, a session ID manager ensures that the session IDs are unique across all web applications. Second, a session manager handles the session lifecycle. If you want to cluster your sessions, Jetty provides a JDBC-based SessionIDManager and SessionManager.

Configure the JDBCSessionIdManager:

JDBCSessionIdManager idMgr = new JDBCSessionIdManager(server); idMgr.setWorkerName("fred"); idMgr.
  setDriverInfo("com.mysql.jdbc.Driver", "jdbc:mysql://127.0.0.1:3306/sessions?user=janb"); idMgr.setScavengeInterval(60);
 server.setSessionIdManager(idMgr);

This JDBCSessionIdManager needs to be configured on each cluster node with a unique workerName. Once you've defined this ID manager, you can can configure the JDBCSessionManager.

WebAppContext wac = new WebAppContext();
  … //configure your webapp context
  JDBCSessionManager jdbcMgr = new JDBCSessionManager(); jdbcMgr.setIdManager(server.getSessionIdManager());
  wac.setSessionHandler(jdbcMgr);

SPDY Support

SPDY is an experimental protocol whose goal it is to reduce the latency of web pages. Jetty can support this protocol through the HTTPSPDYServerConnector class.

<Configure id="Server" class="org.eclipse.jetty.server.Server">
  <New id="sslContextFactory" class="...util.ssl.SslContextFactory">
  <Set name="keyStorePath">your_keystore.jks</Set>
  <Set name="keyStorePassword">storepwd</Set>
  <Set name="protocol">TLSv1</Set>
  </New>
  <Call name="addConnector">
  <Arg>
  <New class="..http.HTTPSPDYServerConnector">
  <Arg><Ref id="sslContextFactory"/></Arg>
  <Set name="Port">8443</Set>
  </New>
  </Arg>
  </Call>
  </Configure>

This section shows how to run an application based on a number of popular Java web frameworks using an embedded Jetty. This is especially useful during development for a quick compile-build-test cycle or when you want to run your application in a debugger with hot-code replace. If your favorite web application framework isn't listed here, these examples should point you in the right direction to get Jetty working with your framework.

JSF 2.0

JSF2 scans the WEB-INF/classes directories for beans. Before you can use an embedded Jetty to directly launch a JSF application, you have to make sure you configure your project to output its class files to the WEB-INF/ classes directory in your project. After that, you can use the standard WebAppContext to run your JSF 2.0 web application directly from Jetty.

WebAppContext handler = new WebAppContext();
  handler.setResourceBase("src/main/webapp");
  handler.setDescriptor("src/main/webapp/WEB-INF/web.xml");
  handler.setContextPath("/");
 handler.setParentLoaderPriority(true);

Spring Web

Spring Web can be run directly from an exploded WAR file using a standard WebAppContext (see GWT). You can also configure the Spring DispatcherServlet directly.

ServletContextHanderl context = new ServletContextHandler
  (server, "/", Context.SESSIONS);
  DispatcherServlet dispatcherServlet = new DispatcherServlet();
  dispatcherServlet.setContextClass(
  AnnotationConfigWebApplicationContext.class);
  ServletHolder holder = new ServletHolder(dispatcherServlet);
  holder.setInitOrder(1);
  context.addServlet(holder, "/example/*");
  context.setInitParameter("contextConfigLocation"
 ,"classpath*:resources/spring/*.xml");

This context can be added as a handler to a server instance.

Grails

Grails already provides Jetty functionality out of the box. To run grails using an embedded Jetty container, you can use the grails run-app command.

Wicket

To run Wicket from Jetty, you can configure the WicketServlet with the applicationClassName you want to start.

ServletContextHandler context = new ServletContextHandler
  (server, "/", Context.SESSIONS);ServletHolder ServletHolder holder = new ServletHolder(new WicketServlet());
  holder.setInitParameter(
  "applicationClassName","dzone.refcard.Application");
  // set init order to initialize when handler starts
  holder.setInitOrder(1);
 context.addServlet(servletHolder, "/*");

This context can be added as a handler to a server instance.

GWT, Vaadin and Tapestry

You can directly run a GWT or a Vaadin application from an exploded WAR file using a standard WebAppContext.

WebAppContext handler = new WebAppContext();
  handler.setResourceBase("./apps/TheGWTApplication");
  handler.setDescriptor("./apps/TheGwtApplication/WEB-INF/web.xml");
  handler.setContextPath("/");
 handler.setParentLoaderPriority(true);

This context can be added as a handler to a server instance.

If you want to configure the standard Jetty distribution and not run Jetty embedded from your own application, you can configure Jetty using the following XML files.

More information on running Jetty standalone can be found at the Jetty Wiki: http://wiki.eclipse.org/Jetty/Feature/Start.jar

Jetty is also often used in a maven build file to easily run and test a webapp project. When running from Maven, you can configure Jetty using the configuration elements provided by the plugin.

The Jetty plugin defines the following goals.

For a complete overview of the available options look at the documentation for the Jetty maven plugin at: http://wiki.eclipse.org/ Jetty/Feature/Jetty_Maven_Plugin
