Silverlight is Microsoft's offering for designing, developing, and delivering rich interactive applications over the internet. These applications can run on all major platforms and in all major browsers. In this refcard we'll cover the System.Windows.Browser namespace in a whirlwind tour that includes: calling managed code from JavaScript, using managed code to control the HTML DOM, and accessing the user's browser window. But first, you will see how to actually create an instance of the Silverlight plug-in.

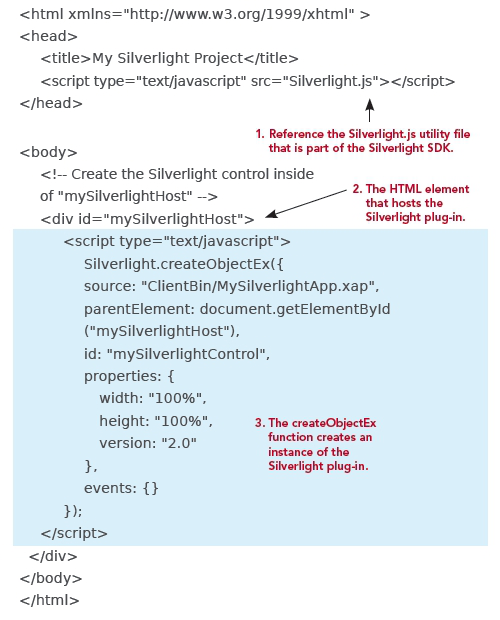

Silverlight is a browser-based plug-in that runs within a web page. This plug-in can be integrated with any web technology including ASP, ASP.NET, JSP, and PHP. In order to create an instance of this plug-in, you must use an HTML object tag or the JavaScript utility file that is included with the Silverlight SDK. This utility file includes a JavaScript function called createObjectEx which creates the object element for you. An example of creating a Silverlight plugin with the createObjectEx function is shown here.

As this snippet shows, the createObjectEx function is basically composed of three sections. The first section defines the mandatory elements of a plug-in instance. The parameters that define these elements are shown in the following table:

In addition to the required elements, you can customize the plug-in instance. These customizations are defined within the nested properties object. This object was shown in the previous code snippet. However, only some of the options were shown. All of the possible options are shown in the following table.

In addition to defining the general look of the plug-in, it can also be configured to respond to certain events. These events are listed here:

The events, properties, and core items of the createObjectEx function define how to create an instance of the Silverlight plug-in. This instance may host a Silverlight application which includes some managed code methods. Significantly, you may call these managed code items from JavaScript.

Silverlight empowers you to expose managed code to the scripting world. When you consider Silverlight's rich networking and data frameworks, the value in this becomes apparent. For instance, you may choose to use the powerful LINQ capabilities to query data or sort a result set. Alternatively, you may need to retrieve data from an RSS feed. Or perhaps you need to communicate with a POX, ATOM, REST, SOAP, or WS-* service. Regardless of your data or communication task, Silverlight allows you to use the power of the .NET Framework to accomplish it. Harnessing this power from JavaScript involves four simple steps:

1. Mark the method, property, or event with the ScriptableMember attribute.
2. Tag the class that holds the item from step 1 with the ScriptableType attribute.
3. Create the bridge between the class instance and the HTML DOM with the RegisterScriptableObject class.
4. Call the item from step 1 from JavaScript.

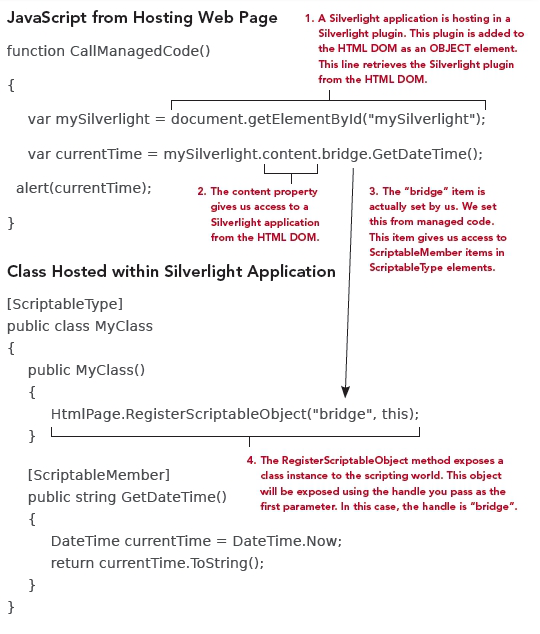

These four steps outline the process of exposing managed code to the scripting world. To demonstrate how this looks with actual code, we will call a C# method that returns the current date and time. This date and time will then be printed within an alert prompt.

This example demonstrates how to call managed code from JavaScript. This approach lets us use the .NET Framework in Silverlight to perform tasks that are traditionally difficult or annoying in JavaScript. For instance, consider the task of parsing XML in JavaScript. This task is quite cumbersome with ECMA JavaScript. However, with the powerful .NET Framework provided by Silverlight, this task is a cinch. You can use the feature we just learned about to either enhance, or replace, some current functionality written in JavaScript. However, in order to truly replace that functionality, you will probably need to know how to manage the HTML DOM from managed code.

Silverlight gives us the flexibility to manage the HTML DOM from managed code. This means you can alter HTML elements using a language such as C# or Visual Basic. These languages offer features such as compile-time type-checking and richer IntelliSense support through Microsoft Visual Studio. Either way, when you consider coupling this with the ability to call managed code from JavaScript, you can see a powerful combination. This powerful combination is glued together by three classes: HtmlPage, HtmlDocument, and HtmlElement.

The HtmlPage class is the core element to use when working with the HTML DOM. This statically visible class exposes a variety of properties that give you access to the key items of a web page. These properties are listed and described in the following table.

The properties listed in the previous table serve as entry points into the HTML world. The main entry point we will use in this section is provided through the Document property. This property is an HtmlDocument object which in turn gives us two properties that serve as entry points into a web page. These properties are listed and described in the following table.

Both of the elements listed in the previous table are actually HtmlElement objects. An HtmlElement is an in-memory representation of an HTML element. This means that if you have an input tag or span element in HTML, they will both be represented as HtmlElement objects in managed code. This gives us the ability to work with common, useful properties from managed code. These properties are listed in the following table.

The properties in the previous table define an HtmlElement. An HtmlElement is a critical component of an HtmlDocument object. This object is accessible through the statically visible HtmlPage class. With this class in hand we can perform a number of valuable tasks. Not the least of which include: finding HTML elements, setting element properties, setting CSS information, and managing state information.

Finding HTML Elements

Searching for HTML elements from managed code is an important part of taking advantage of the HTML DOM API. We can traverse through the hierarchy of a web page using the DocumentElement, Children, and Parent properties mentioned earlier. However, the HtmlDocument class exposes two methods that empower us to retrieve HtmlElement items more efficiently. These methods are listed and described in the following table.

The previous table shows the two methods that can be used to find items within a web page. To demonstrate how to find an individual item, please look at the following code sample:

HtmlDocument document = HtmlPage.Document;
HtmlElement myHtmlElement =
document.GetElementById("myHtmlElement");

This element was assumed to be named "myHtmlElement". This name needs to be the id of an element within the hosting web page. Once we have retrieved the element though, we can actually set any of the properties that define it.

Setting Element Properties

The HtmlElement class exposes an all-purpose method called SetProperty. This method empowers us to set an element's attribute from managed code. To accomplish this, we must use two string parameters:

• The first parameter is a string that represents the name of the property to set.
• The second parameter is a string that represents the value to set to the property.

This is demonstrated in the following code sample:

HtmlDocument document = HtmlPage.Document;
HtmlElement myHtmlElement =
document.GetElementById("myHtmlElement");
myHtmlElement.SetProperty("innerText", "Hello, HTML");

This code sample sets the innerText property of an imaginary HTML element to "Hello, HTML". Essentially, imagine setting the text of a span named "myHtmlElement" to "Hello, World". This is what the code sample accomplishes. Significantly, this approach is applicable to any element in a web page.

Setting CSS Information

In addition to setting properties, we can also set an HTML element's style information from managed code. This can be accomplished by using the SetStyleAttribute method. This method takes two string parameters:

• The first parameter specifies the CSS property we want to set.
• The second parameter signals the value we want to set the property to.

This approach is demonstrated on a fictional span in the following sample:

HtmlDocument document = HtmlPage.Document;
HtmlElement myHtmlElement =
document.GetElementById("myHtmlElement");
myHtmlElement.SetStyleAttribute("color", "green");

This basic code sample changes the text color of an assumed span to green. This demonstrates how to set the CSS information of an HtmlElement. This object also allows us to set the properties that separate it from other elements in a web page. This web page is represented as an HtmlDocument. This web page may have information that is specific to the current request. For instance, the web page may display information specific to an individual customer or order. These types of situations are often times exposed through state variables.

Managing State Variables

State variables allow you to store information across page post backs. While Silverlight is a client-side platform that helps to alleviate post backs, you may still run into them. The reason why is simply because a Silverlight application is hosted within a web page. Either way, you can read state-related information through the two properties shown in the following table.

The two properties shown in the previous table are part of the HtmlDocument class. These two properties can be very useful in integration scenarios. In addition, these types of scenarios may have pre-existing JavaScript that can be used. Fortunately, Silverlight gives you the flexibility to call JavaScript from managed code.

Calling JavaScript from managed code is especially useful if you are attempting to integrate Silverlight into a pre-existing web application. For instance, let's pretend you have a JavaScript function called "myJSFunction". You could call this JavaScript function from managed code using the Invoke method as shown here:

HtmlWindow window = HtmlPage.Window;
window.Invoke("myJSFunction", new object[]{});

The Invoke method takes two parameters:

• The first parameter is the name of the JavaScript function to execute. Notice that this value does not include the opening and closing parenthesis associated with a function call.
• The second parameter is an object array that stores the parameters to pass to the function. Thus, if "myJSFunction" expected the date and time as parameters, you could pass them using the following:

This approach is demonstrated on a fictional span in the following sample:

HtmlWindow window = HtmlPage.Window;
window.Invoke("myJSFunction",
new object[] {DateTime.Now.Date,
DateTime.Now.TimeOfDay});

After the JavaScript function has been invoked, the result will be returned back to the managed code. The result will be available as an object. This gives you the flexibility to interact with any existing JavaScript function.

HtmlWindow window = HtmlPage.Window;
window.Invoke("print", new object[]{});

Silverlight gives us the flexibility to work with a user's browser window through the HtmlWindow class. An instance of this class can be obtained from the statically visible Window property of an HtmlPage. Once retrieved, we can use this object to navigate the user to another location. Alternatively, we can actually use the browser window to display some valuable prompts to a user.

Navigating the Browser

Navigating the browser window is an important part of the hyperlinked world of the internet. Because of this, the HtmlWindow class exposes two methods to address navigation:

• One method is designed to be used with a location within the current page.
• The other method is intended to be used to go to other locations on the internet.

Either way, both of these methods are described in the following table:

The two methods listed in the previous table ensure that your Silverlight application isn't isolated. In order to escape from an island of isolation, you can use the following code to go to another page on the internet.

Uri uri =
new Uri("http://www.manning.com/affiliate/
idevaffiliate.php?id=513_100");
HtmlWindow window = HtmlPage.Window;
window.Navigate(uri, "_blank");

This code sample will open a web page in a new browser window. In addition to performing basic navigation though, we can also use the browser to display prompts.

Prompting the User

The HtmlWindow class gives us the ability to provide prompts through the user's browser window. These prompts are listed and described in the following table.

The prompt options shown may be familiar to you. They mimic the prompt options found in the HTML DOM Window object. Either way, in order to deliver a prompt from C#, you can use code like the following:

HtmlWindow window = HtmlPage.Window;
window.Alert(DateTime.Now.ToString());

This code snippet simply displays the current date and time to the user. That's all there is to it. These kinds of prompts are a valuable part of the browser environment. Equally valuable and useful though is the information associated with the browser itself.

Collecting Browser Information

As a web developer, you may have witnessed how HTML content sometimes renders differently on different browsers and platforms. However, Silverlight content is designed to render consistently across different browsers and platforms. But, if you are editing the HTML DOM through Silverlight, you will still need to take these browser differences into consideration. Fortunately, the BrowserInformation class gives us access to this information through the following properties.

With these properties, you can easily account for differences between browsers. For instance, absolutely positioning an element in an HTML page is a common pain point across browsers. To do this from Silverlight, you can do something like the following:

// Retrieve an html element
HtmlDocument document = HtmlPage.Document;
HtmlElement element = document.GetElementById
("myHtmlElement");
// Absolutely position it based on the browser
BrowserInformation bi = HtmlPage.BrowserInformation;
if (bi.Name == "Internet Explorer")
element.SetStyleAttribute("top", "300px");
else
element.SetStyleAttribute("top", "305px");

As you can imagine, the BrowserInformation class is an important part of working with the HTML DOM. Perhaps an even more powerful part of the HTML DOM API though is the HtmlWindow. This API also allows you to manage the HTML DOM from managed code. On the contrary, you can expose your managed code to the HTML DOM. No matter the direction you want to go, Silverlight can help you get there. You can find out more about the incredibly powerful Silverlight platform in the book Silverlight 2 in Action.
