AutoCompleteTextBox in C# Windows Form Application

DZone's Guide to

AutoCompleteTextBox in C# Windows Form Application

· Java Zone
Free Resource

Find your next Integration job at DZone Jobs. See jobs focused on integration, or create your profile and have the employers come to you!

In this Article, We will learn how to create AutoCompleteTextBox using C# Windows Form Application. In my previous article, we learned How to Search Records in DataGridView Using C#.

Let's Begin.

Create a new Windows Form Application.

Drop a Label and TextBox Control from the ToolBox.

Now go to Code behind file(.cs code) and add the following Code:


 using System;
using System.Windows.Forms;

namespace AutoCompleteTextBoxDemo
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        //AutoCompleteData Method
        private void autoCompleteData()
        {
            //Set AutoCompleteSource property of txt_StateName as CustomSource
            txt_StateName.AutoCompleteSource = AutoCompleteSource.CustomSource;
            //Set AutoCompleteMode property of txt_StateName as SuggestAppend. SuggestAppend Applies both Suggest and Append
            txt_StateName.AutoCompleteMode = AutoCompleteMode.SuggestAppend;
            txt_StateName.AutoCompleteCustomSource.AddRange(new string[]{"Maharastra","Andhra Pradesh","Assam","Punjab","Arunachal Pradesh","Bihar","Goa","Gujarat","Haryana"});
        }

        private void Form1_Load(object sender, EventArgs e)
        {
            autoCompleteData();
        }
    }
}

In the preeceding code, We set the AutoCompleteSource, AutoCompleteMode and AutoCompleteCustomSource properties of Textbox named as txt_StateName so that it automatically completes the input string.

Preview:


AutoComplete TextBox using a Database:

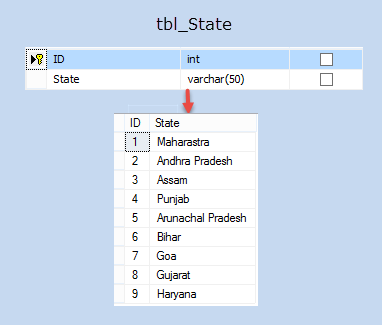

In this example, We will Suggest/Append the data in TextBox(txt_StateName) from the Database. For Demonstration, I have created a Database (named Sample). Add a Table, tbl_State. The following is the table schema for creating tbl_State.

Add the following lines of code:


 using System;
using System.Windows.Forms;
using System.Data.SqlClient;

namespace AutoCompleteTextBoxDemo
{
    public partial class Form2 : Form
    {
        public Form2()
        {
            InitializeComponent();
        }
        private void autoCompleteData()
        {
            SqlConnection con = new SqlConnection("Data Source=.;Initial Catalog=Sample;Integrated Security=true;");
            SqlCommand com = new SqlCommand("Select State from tbl_State", con);
            con.Open();
            SqlDataReader rdr = com.ExecuteReader();
            //AutoCompleteStringCollection Contains a collection of strings to use for the auto-complete feature on certain Windows Forms controls.
            AutoCompleteStringCollection autoCompleteCollection = new AutoCompleteStringCollection();
            while (rdr.Read())
            {
                autoCompleteCollection.Add(rdr.GetString(0));
            }
            //Set AutoCompleteSource property of txt_StateName as CustomSource
            txt_StateName.AutoCompleteSource = AutoCompleteSource.CustomSource;
            //Set AutoCompleteMode property of txt_StateName as SuggestAppend. SuggestAppend Applies both Suggest and Append
            txt_StateName.AutoCompleteMode = AutoCompleteMode.SuggestAppend;
            txt_StateName.AutoCompleteCustomSource = autoCompleteCollection;
            con.Close();
        }
        //Form2_Load Event
        private void Form2_Load(object sender, EventArgs e)
        {
            autoCompleteData();
        }
    }
}
Preview:

Hope you like it. Thanks.
