Build J2EE Microservices Architecture

This post will cover the following aspects: Keycloak setup, Eureka service registration and discovery, Spring Cloud API gateway, and more!

Kunkka Li

Oct. 15, 20 · Tutorial

Likes (4)

Comment

Save

7.4K Views

I posted an article in regards to a single-page application(UI), but in this post, I'm going to introduce how to build microservice architecture for the J2EE application with Spring framework and open-source SSO framework Keycloak. This post will cover the following aspects:

Keycloak setup
Eureka service registration and discovery
Spring Cloud API gateway
Spring Security (OAuth2 login) and the integration with Keycloak
Microservices

The code is available in my Github and please check the docker-compose.yml at first so that you can read the rest of the post easier. One thing I need to mention here is you need to replace the IP address of the keycloak server URL with your own before running the docker containers.

    YAML

















xxxxxxxxxx











version: '3.4'
services:
  api-gateway:
    build:
      context: ./api-gateway
    ports:
      - "8080:8080"
    restart: on-failure
    environment:
      #overriding spring application.properties
      - eureka.client.serviceUrl.defaultZone=http://eureka-server:9091/eureka/
      - keycloak-client.server-url=http://10.0.0.17:18080/auth # use host name or ip of the host machine
    depends_on:
      - eureka-server
  eureka-server:
    build:
      context: ./eureka-server
    ports:
      - "9091:9091"
    restart: on-failure
  microservice-consumer:
    build:
      context: ./microservice-consumer
    ports:
      - "9080:9080"
    restart: on-failure
    environment:
      #overriding spring application.properties
      - eureka.client.serviceUrl.defaultZone=http://eureka-server:9091/eureka/
      - keycloak-client.server-url=http://10.0.0.17:18080/auth # use host name or ip of the host machine
    depends_on:
      - eureka-server
  microservice-producer:
    build:
      context: ./microservice-producer
    ports:
      - "9081:9081"
    restart: on-failure
    environment:
      #overriding spring application.properties
      - eureka.client.serviceUrl.defaultZone=http://eureka-server:9091/eureka/
      - keycloak-client.server-url=http://10.0.0.17:18080/auth # use host name or ip of the host machine
    depends_on:
      - eureka-server
  keycloak:
    image: jboss/keycloak:11.0.0
      volumes:
      - ./keycloak-server/realm-export.json:/tmp/keycloak/config/realm-export.json
    environment:
        KEYCLOAK_USER: admin
        KEYCLOAK_PASSWORD: admin
        KEYCLOAK_IMPORT: /tmp/keycloak/config/realm-export.json
        DB_VENDOR: POSTGRES
        DB_ADDR: postgres
        DB_DATABASE: keycloak
        DB_USER: keycloak
        DB_SCHEMA: public
        DB_PASSWORD: password
    ports:
      - "18080:18080"
    command:
      - "-b"
      - "0.0.0.0"
      - "-Djboss.socket.binding.port-offset=10000"
    restart: on-failure
    depends_on:
      - postgres
  postgres:
      image: postgres
      volumes:
        - postgres_data:/var/lib/postgresql/data
      environment:
        POSTGRES_DB: keycloak
        POSTGRES_USER: keycloak
        POSTGRES_PASSWORD: password
volumes:
    postgres_data:
      name: keycloak_postgres_data
      driver: local





Then, you can run the following cmd to start up docker containers.

    Shell

xxxxxxxxxx

docker-compose up --build

1. Keycloak

Keycloak is an open-source identity and access management solution. It's convenient to integrate with Spring Security OAuth2 framework. Here I'm showing step by step how to set up a keycloak server.

First of all, based on the docker-compose profile above, please use the following cmd to build and start a keycloak server. I have exported a JSON file(realm-export.json) that can be consumed by the keycloak docker container so that you don't need to configure step by step. Anyway, I will show that steps one by one.

    Shell

          x

docker-compose up --build keycloak

1.1 Create a Realm

1.2 Create Clients Under the Above Realm

As shown above, we created three clients that represent API-gateway, microservice consumer, microservice producer. There are two things necessary to mention.

First, fill mandatory field(Valid Redirect URIs) as * so that we can redirect back to our URI configured in our application.

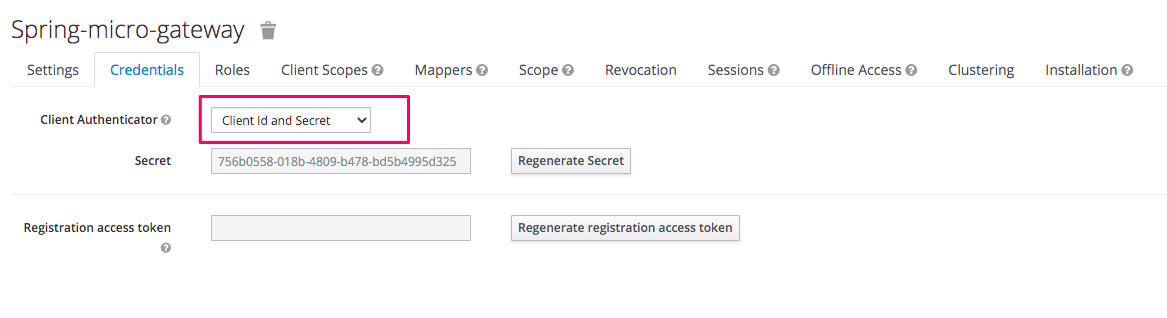

Then, choose client id and secrete as Client Authenticator, which is suitable for the integration with Spring Security OAuth2 client.

1.3 Create a User

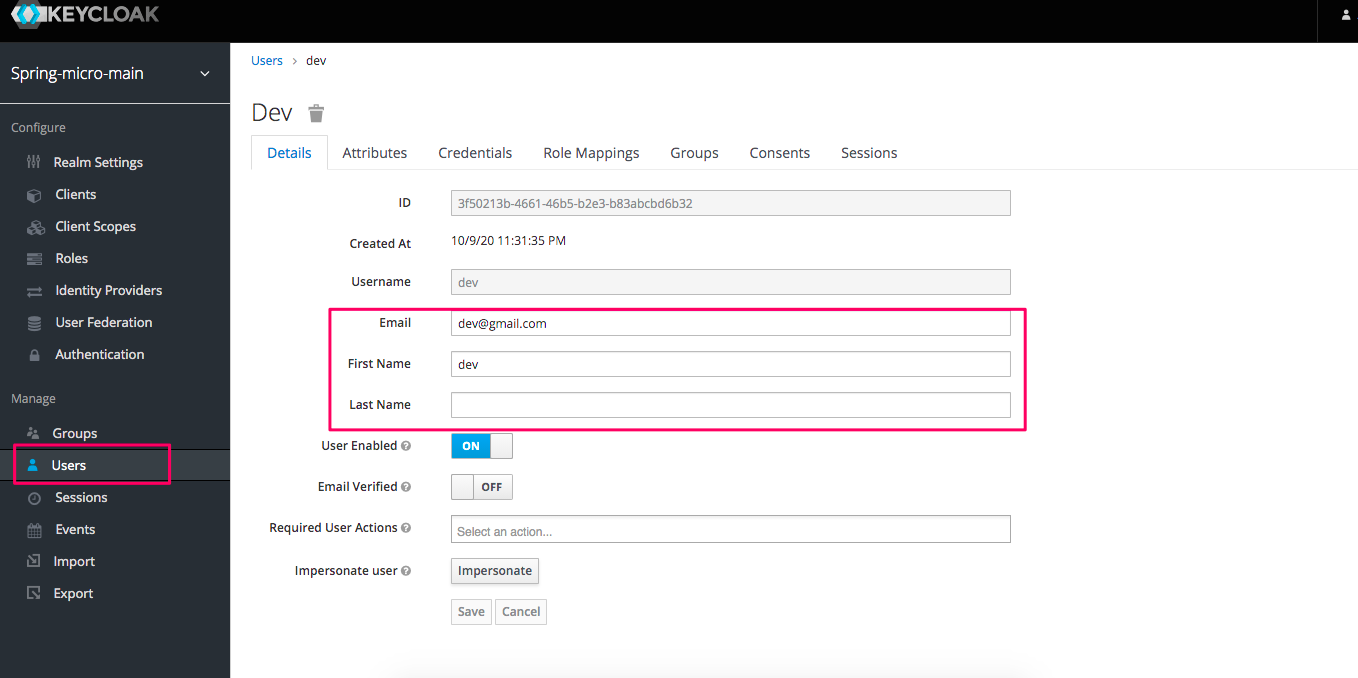

As shown in the screenshot below, we need to fill some necessary fields like first name, last name, and email, etc.

2. Eureka Sever — Service Registration

It's quite straight forward to build a service registration server based on Spring Cloud Eureka, and we just need annotation @EnableEurekaServer to enable that.

3. API Gateway

Spring framework 5 releases Spring Cloud gateway to replace the previous gateway — Spring Cloud Zuul. Spring Cloud Gateway is a new generation nonblocking gateway built on top of Project Reactor, Spring WebFlux, and Spring Boot 2.0, while Zuul is a blocking gateway. So, in this post, I use Spring Cloud Gateway as an API gateway for the microservices.

First of all, I need to show the application.yml configuration profile.

    YAML

















xxxxxxxxxx











logging:
  level:
    root: WARN
    org.springframework.web: INFO
    org.springframework.security: DEBUG
    org.springframework.security.oauth2: DEBUG
server:
  port: 8080
keycloak-client:
  server-url: http://localhost:18080/auth
  realm:  spring-micro-main
spring:
  application:
    name: api-gateway
  security:
    oauth2:
      client:
        registration:
          keycloak:
            provider: keycloak
            client-id: spring-micro-gateway
            client-secret: 756b0558-018b-4809-b478-bd5b4995d325
            authorization-grant-type: authorization_code
            redirect-uri: http://localhost:8080/login/oauth2/code/keycloak
            scope: openid
        provider:
          keycloak:
            authorization-uri: ${keycloak-client.server-url}/realms/${keycloak-client.realm}/protocol/openid-connect/auth
            token-uri: ${keycloak-client.server-url}/realms/${keycloak-client.realm}/protocol/openid-connect/token
            user-info-uri: ${keycloak-client.server-url}/realms/${keycloak-client.realm}/protocol/openid-connect/userinfo
            jwk-set-uri: ${keycloak-client.server-url}/realms/${keycloak-client.realm}/protocol/openid-connect/certs
            user-name-attribute: name
            user-info-authentication-method: header
      resourceserver:
        jwt:
          jwk-set-uri: ${keycloak-client.server-url}/realms/${keycloak-client.realm}/protocol/openid-connect/certs
  cloud:
    gateway:
      routes:
        - id: microservice-consumer
          uri: lb://microservice-consumer
          predicates:
            - Path=/api/consume/**
          filters:
            - TokenRelay=
            - RemoveRequestHeader=Cookie
        - id: microservice-producer
          uri: lb://microservice-producer
          predicates:
            - Path=/api/produce/**
          filters:
            - TokenRelay=
            - RemoveRequestHeader=Cookie
eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:9091/eureka/





3.1 Route Definition in Spring Cloud Gateway

We defined two routes for two microservices: consumer and producer. The lb://microservice-consumer means it points to microservice-consumer based on service registration server - Eureka. We use TokenRelay so that the access_token from the request can be passed through to the microservice resource server which is secured by Spring Security OAuth2 along with Keycloak as well.

3.2 Eureka Client Configuration

The API gateway also acts as a Eureka client so that it can work with microservice replicas. We just need an annotation @EnableEurekaClient and configure the eureka server URL in the properties.

    YAML

xxxxxxxxxx

eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:9091/eureka/

3.3 Spring Security OAuth2 and the Integration With Keycloak Server

3.3.1 Spring Security OAuth2

One of the key features of Spring Security 5 is the native support for OAuth2 and OIDC, instead of the legacy client support in the old Spring Security OAuth subproject, integrating with IAM(Identity and Access Management) providers gets super easy. We need to add the following dependencies:

    XML

          x

<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-oauth2-client</artifactId>
</dependency>
<dependency>
  <groupId>org.springframework.cloud</groupId>
  <artifactId>spring-cloud-starter-security</artifactId>
</dependency>

3.3.2 OAuth2 Client Registration

The properties for OAuth 2 clients are prefixed with spring.security.oauth2.client.registration andspring.security.

oauth2.client.provider. For Keycloak specifically, we have to configure the details of the OAuth2 provider and provides the details of client registration as below.

    YAML

          x

spring:
  security:
    oauth2:
      client:
        registration:
          keycloak:
            provider: keycloak
            client-id: spring-micro-consumer
            client-secret: b2678444-3e56-466d-b035-a6109ca686ca
            authorization-grant-type: authorization_code
            redirect-uri: http://localhost:9080/login/oauth2/code/keycloak
            scope: openid
        provider:
          keycloak:
            authorization-uri: ${keycloak-client.server-url}/realms/${keycloak-client.realm}/protocol/openid-connect/auth
            token-uri: ${keycloak-client.server-url}/realms/${keycloak-client.realm}/protocol/openid-connect/token
            user-info-uri: ${keycloak-client.server-url}/realms/${keycloak-client.realm}/protocol/openid-connect/userinfo
            jwk-set-uri: ${keycloak-client.server-url}/realms/${keycloak-client.realm}/protocol/openid-connect/certs
            user-name-attribute: name
            user-info-authentication-method: header
      resourceserver:
        jwt:
          jwk-set-uri: ${keycloak-client.server-url}/realms/${keycloak-client.realm}/protocol/openid-connect/certs

3.3.3 Spring Security OAuth2 Resource Server

Keycloak uses a public/private key pair to issue and verify the JWT(JSON Web Token). In particular, it uses a private key to sign the access token, and the OAuth2 client uses the public key to verify the token.

We need to protect the API gateway as an OAuth2 resource server so that when a request coming in with a bearer token under the Authorization header, it can also verify the token rather than redirect to the SSO server for authentication, then the request can eventually go to downstream microservices. For example, we can use an HTTP client to issue a request as below.

    HTTP

xxxxxxxxxx

GET localhost:8080/api/produce/
Authorization: Bearer <your access token>

3.3.4 Enable OAuth2 Login and Resource Server

To enable Spring Security OAuth2 login as well as a resource server, we need to leverage DSL methods.

Spring Security’s OAuth 2.0 Login support is enabled via the Spring Security oauth2Login() DSL method.

Spring Security’s Resource Server support is enabled via the Spring Security oauth2ResourceServer DSL method.

Illustrated as below:

    Java

xxxxxxxxxx

@EnableWebFluxSecurity
@EnableReactiveMethodSecurity
public class SpringSecurityConfig {
    @Bean
    public SecurityWebFilterChain securityWebFilterChain(ServerHttpSecurity http) {
        // @formatter:off
        http
                .authorizeExchange()
                .anyExchange().authenticated()
                .and()
                .oauth2Login()
                .and()
                .oauth2ResourceServer()
                .jwt();
        return http.build();
        // @formatter:on
    }
}

4. Microservices

Microservices should be protected by Keycloak and enabled as the OAuth2 resource server as well. So the configuration is similar to the API gateway. One key difference is that Spring Cloud gateway is built on top of Spring WebFlux while our microservices are built on top of Spring MVC. So the security configuration has a slight difference, illustrated as below.

    Java

xxxxxxxxxx

@Configuration
public class OAuth2ResourceServerConfig extends WebSecurityConfigurerAdapter {
    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                .anyRequest().authenticated()
                .and()
                .oauth2Login()
                .and()
                .oauth2ResourceServer()
                .jwt();
    }
}

That's it and you are good to go. Please check the source code from my Github.
