Creating a Customer 360 with MuleSoft and Azure Data Lake Store

DZone's Guide to

Creating a Customer 360 with MuleSoft and Azure Data Lake Store

In this article, we'll focus on connectivity with Azure Data Lake Store and walk through the process of setting up a Data Lake Store and connect data using an example Anypoint Studio project.

· Integration Zone ·
Free Resource

The Future of Enterprise Integration: Learn how organizations are re-architecting their integration strategy with data-driven app integration for true digital transformation.

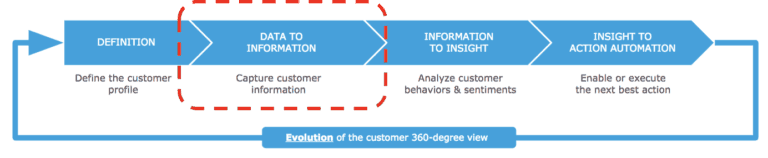

Image titleAs companies embrace omnichannel strategies, achieving a 360-degree view of their customers has become increasingly challenging. Customer 360 is a continuous discipline around delivering a reliable view of their customers and relevant attributes so that any employee or system has access to the customer information it needs to manage the customer journey. The discipline is iterative in nature and involves 5 steps as illustrated below. In this article, we will provide a detailed guide regarding one strategy you can use to capture customer information (step 2, outlined in red below):

Image title

This stage is hard. Customer data is everywhere — whether it is streaming data sources, structured data files, unstructured documents, emails, weblogs, transaction logs, and social media. To create a customer 360 view, companies are leveraging data lakes that unify data from all customer touchpoints to gain better visibility, eliminate data silos, and capture 360-degree views of their customers.

In this article, I'll show you how MuleSoft provides a single solution to quickly integrate (by developing APIs) your customer data into data lakes to help with customer 360 initiatives. As a side note, with MuleSoft, you can also rapidly build an API layer around that connectivity that enables you to properly govern and secure your precious customer data assets (that is for another article!).

In this article, we'll focus on connectivity with Azure Data Lake Store and walk you through the process of setting up a Data Lake Store and connect your data using an example Anypoint Studio project. Azure Data Lake Store is an enterprise-wide hyper-scale repository for big data analytic workloads. Azure Data Lake Store enables you to capture data of any size, type, and ingestion speed in one single place for operational and exploratory analytics.

1. Create an Azure Data Lake Store

1.1. Log in to the Azure portal and click on All services on the left-hand navigation bar.

Image title

1.2. In the search field, type in data lake and click on Data Lake Store.

Image title

1.3. In Data Lake Store, click on Create Data Lake Store in the center or click on Add in the top left.

Image title

1.4. In the New Data Lake Store window, enter the following information:

Name: mulesoft

Subscription: This can depend on your account. If you recently signed up, you should have a 30-day subscription. I selected Pay-As-You-Go.

Resource group: Either create a new resource group or use an existing one. (e.g. mulesoft).

Location: Leave the default East US 2.

Encryption settings: I set this to Do not enable encryption.

Image title

1.5. Click on Create.

Image title

1.6. Once you create the Data Lake Store, click on Data explorer in the left-hand navigation menu. We want to grant access to all users for this demo, so click on the Access button.

Image title

1.7. In the Access screen, check the Read, Write, and Execute checkboxes under Everyone else, and then click on Save.

Image title

2. Create an Azure Active Directory "Web" Application

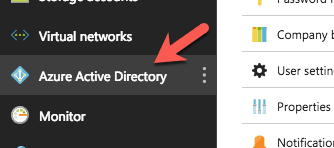

2.1. In the left-hand navigation menu, click on Azure Active Directory. If the menu item isn't there, click on All services and search for it.

Image title

2.2. In the navigation menu for Azure Active Directory, click on App registrations.

Image title

2.3. Click on New application registration.

Image title

2.4. In the Create window, enter the following data:

Name: mule

Application type: Keep the default Web app / API

Sign-on URL: Just enter http://localhost:8081 . This can be changed later and doesn't affect anything in this demo.

Click on Create

Image title

2.5. Once the app has been created, copy down the Application ID: E.g. bdcabff5-af3c-4127-b69b-38bcf1792bfd. Next, click on Settings and then click on Required permissions.

Image title

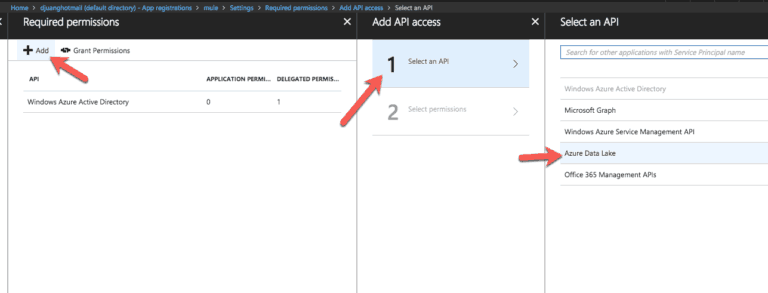

2.6. In the Required permissions screen, click on Add and then click on Select an API. Select Azure Data Lake from the list of available APIs and then click on Select.

Image title

2.7. In the Enable Access screen, check the Have full access to the Azure Data Lake service checkbox and then click on Select.

Image title

2.8. Next, we need to generate a key. Click on Keys on the left-hand navigation bar for the app settings.

Image title

2.9. In the Keys window, enter the following:

Description: mule-app-key

Expires: Set this to Never expires

Then, click on Save. A value will appear for the key. Copy that value down. e.g. +zAbZQgXomvqsfHgCH32Yv+VCvkT3ZcxRyw5CWaw4dw=

Image title

2.10. Next, let's get your tenant ID. In Azure Active Directory, click on Properties in the left-hand navigation bar.

Image title

2.11. Copy down the Directory ID value. This is your tenant ID that you'll need to make the OAuth call.

e.g. 57744783-79ff-49ab-b27e-26245d4d97ef.

Image title

3. Download and Run the Mule Project

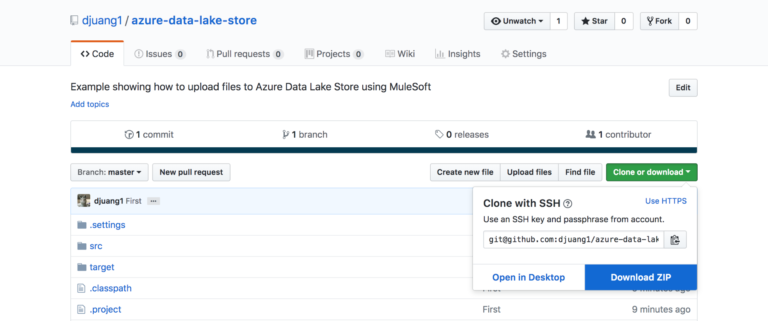

3.1. Download the project from Github.

Image title

3.2. Import the project into Anypoint Studio

Image title

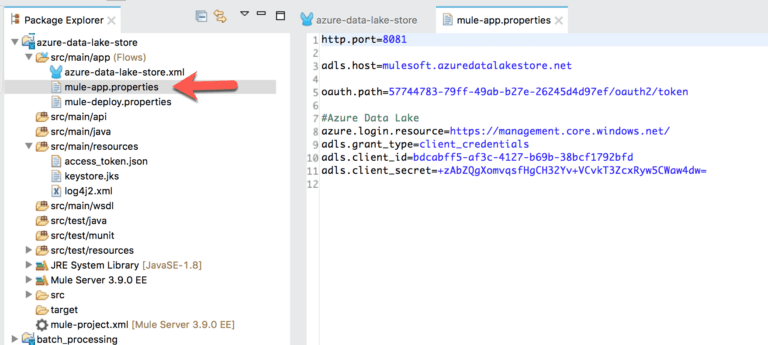

3.3. Open the mule-app.properties and modify the following properties:

adls.host: <name of your Data Lake Store>.azuredatalakestore.net

oauth.path: <tenant ID from Step 2.11>/oauth2/token

adls.client_id: This is the ID from Step 2.5

adls.client_secret: This is the key from Step 2.9

Image title

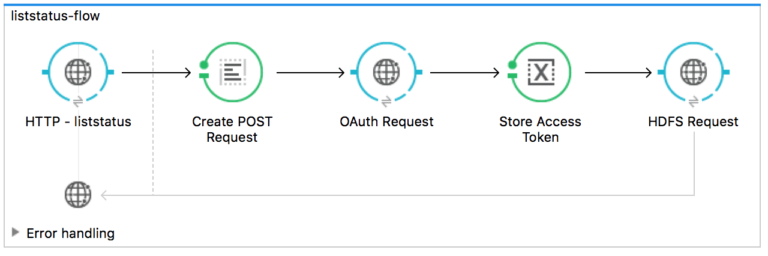

3.4. The first flow will the files and folders from the root directory of the Data Lake Store. Once the flow receives the request it creates the parameters to be sent to the OAuth request. If the OAuth request is successful, it returns an access token that is used to make the HDFS request to list the folders.

Image title

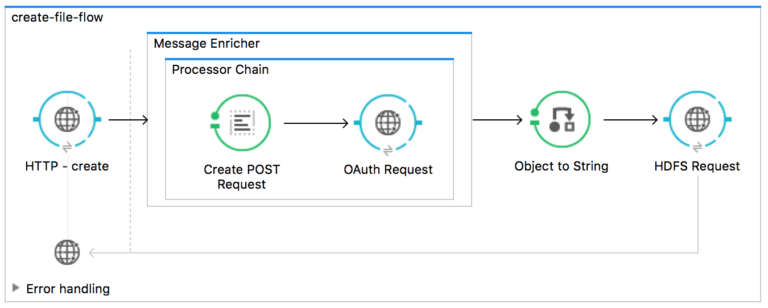

3.5. The second flow shows how to data to the Data Lake Store. Similar to the first flow, it makes an OAuth request and passes the access token to make the HDFS request.

Image title

3.6. Run the project and open up Postman. Let's test the first flow. Paste the following into the request URL: http://localhost:8081/liststatus

Then, click Send. The screenshot to the right shows the results. If you add some folders and files, you’ll receive more data from the API call.

Image title

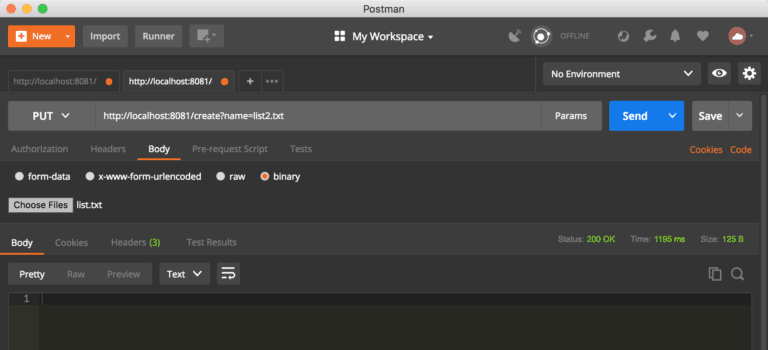

3.7. Open another tab and paste the following URL: http://localhost:8081/create?name=list2.txt

Change the method to PUT. Under the Body sectionselect the binary radio button and select the file name list.txt from the src/main/resources folder from the project. Click on Send.

Image title

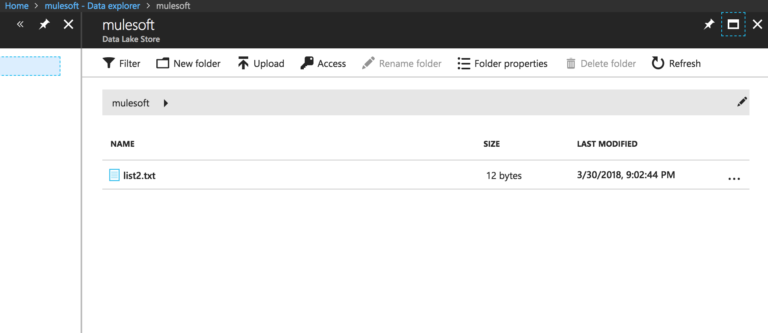

3.8. If successful, when you switch back the Data Lake Store, you should see the file in the root directory. Click to open the file.

Image title

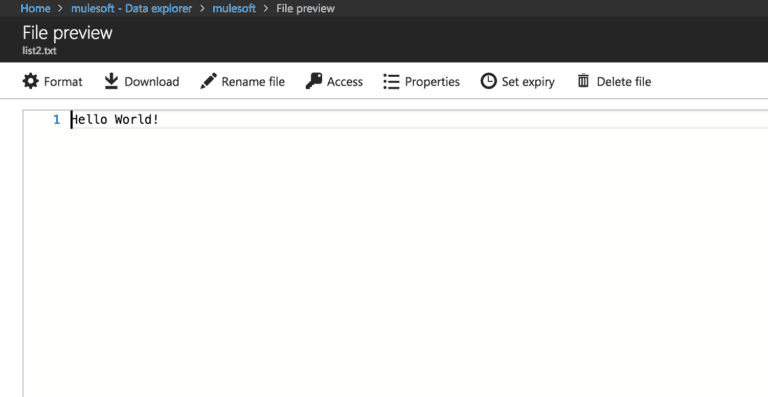

3.9. You should see the following data in the file if everything was configured successfully.

Image title

Summary

As you can see, MuleSoft can easily connect your data to Azure Data Lake Store. We provide easy connectivity to the Microsoft Azure ecosystem through our library of connectors in Anypoint Exchange . This sample project exposes an HTTP endpoint, but you can easily setup multiple inbound endpoints to feed in data using our File, S/FTP, Database, or SAP connector.

You can even build your own connector using the Mule SDK. Anypoint Platform helps reduce the time it takes to connect multiple data sources and enables you to spend more time delivering actionable insights around your customer 360 initiatives. In my next post, I'll show you how you can define a File REST API layer around Azure Data Lake Store to properly govern and secure your precious customer data assets.
