Fixing Duplicate API Requests

The first rule of distributed systems is: "Don’t distribute your system." Designing distributed systems correctly is infamously hard for multiple reasons.

The Idempotency Concept

For example, a call to a function can succeed or fail in non-distributed systems. Once you move the called function to a remote component, a third option appears: you call the remote function but get no response from the component. At this point, it’s impossible to know whether the call reached the component or not; i.e., whether the problem occurred on the way to or the way back.

The only choice is to resend the request again. It’s a non-issue for reads; for calls that update the remote state, it’s "complicated." We need to describe the concept of idempotence:

Idempotence is the property of certain operations in mathematics and computer science whereby they can be applied multiple times without changing the result beyond the initial application.

— "Idempotence" on Wikipedia

In the realm of HTTP APIs:

• GET, PUT, DELETE, HEAD, OPTIONS, and TRACE are idempotent. For example, if you repeatedly delete an entity from the system, whether the said entity exists or not, the end state will be the same: there will be no entity.
• POST and PATCH are not idempotent. For example, posting multiple times a new entity will create that many new entities.

A Possible Solution

Imagine that the client sending a request sends a unique key along. The server keeps track of key-request pairs. Overall, two things can happen:

• The server already has a record of such a pair and discards the request.
• The server has no such previous record and stores the pair.

It’s precisely the idea behind the IETF specification The Idempotency-Key HTTP Header Field. The Idempotency-Key HTTP header’s value is a string; the specification uses a UUID as an example. It’s the client’s responsibility to generate such a value, which must be unique.

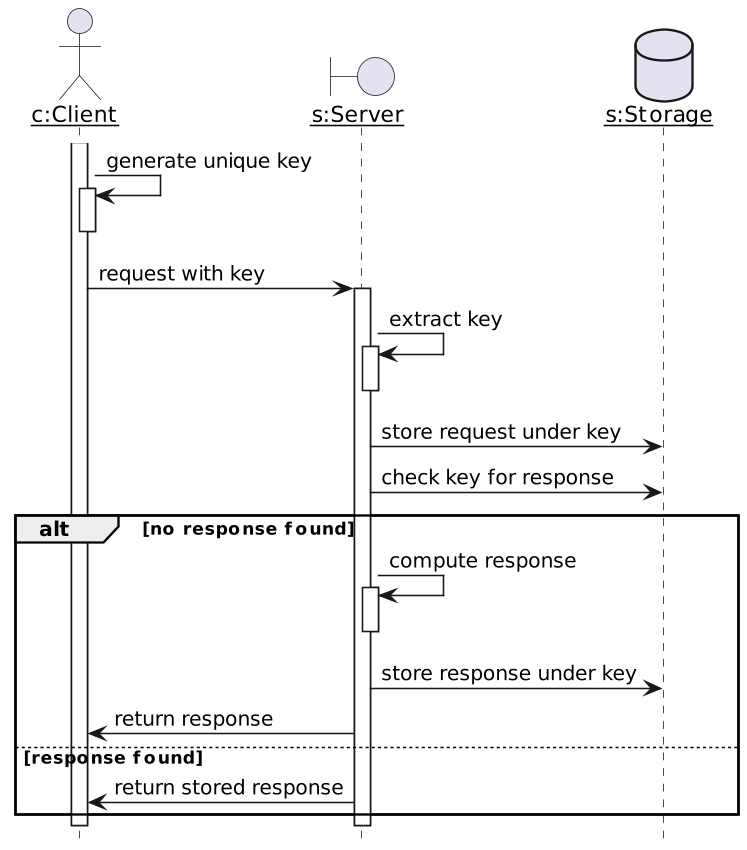

The spec describes the following flow:

The specification mentions the server can optionally fingerprint the request; i.e., hash it, and store the hash instead.

Error Scenarios

The nominal path is pretty straightforward, but the specification also defines three possible error scenarios that can happen.

Here they are:

HTTP/1.1 400 Bad Request
Content-Type: application/problem+json
Content-Language: en
{
  "type": "https://developer.example.com/idempotency",
  "title": "Idempotency-Key is missing",
  "detail": "This operation is idempotent and it requires
             correct usage of Idempotency Key."
}

HTTP/1.1 422 Unprocessable Content
Content-Type: application/problem+json
Content-Language: en
{
  "type": "https://developer.example.com/idempotency",
  "title": "Idempotency-Key is already used",
  "detail": "This operation is idempotent and it requires
             correct usage of Idempotency Key. Idempotency Key
             MUST not be reused across different payloads of this operation."
}

HTTP/1.1 409 Conflict
Content-Type: application/problem+json
Content-Language: en
{
  "type": "https://developer.example.com/idempotency",
  "title": "A request is outstanding for this Idempotency-Key",
  "detail": "A request with the same Idempotency-Key for the
             same operation is being processed or is outstanding."
}

Conclusion

Distributed systems are complex in part because if a call to a remote component times out, it’s impossible to know whether it reached the said component. The only option is to repeat the call, but we risk executing a non-idempotent operation twice. In the realm of APIs, we can rely on the Idempotency-Key HTTP Header, an IETF specification currently in draft.

From an architect’s point of view, it makes sense to factor the behavior described in the above sequence diagram into a component, i.e., an API Gateway. In a future post, I’ll try implementing the behavior in Apache APISIX.
