Running Spring Batch Applications in PCF

In this post, we cover how to use Spring Batch to create micro services that we'll then deploy to a cloud environment.

By
Rajesh Bhojwani user avatar
Rajesh Bhojwani
·
Updated Apr. 05, 19 · Tutorial
Likes (5)
Comment
Save
Tweet
Share
31.5K Views

Join the DZone community and get the full member experience.

Join For Free

1. Overview

Most developers are creating microservices these days and deploying to cloud platforms. Pivotal Cloud Foundry (PCF) is one of the most well known cloud platforms. When we talk about deploying applications on PCF, mostly they would be long-running processes which never end, like web applications, SPAs, or REST-based services. PCF monitors all these long-running instances and if one goes down it spins up the new instance to replace the failed one. This works fine where the process is expected to run continuously but for a batch process, it's overkill. The container will be running all the time with no CPU usage and the cost will add up. Many developers have an ambiguity that PCF cannot run a batch application which can just be initiated based on a request. But that is not correct.

Spring Batch enables us to create a batch application and provides many out-of-the-box features to reduce boilerplate code. Recently, Spring Cloud Task has been added in the list of projects to create short-running processes. With both of these options, we can create microservices, deploy them on PCF, and then stop them so that PCF doesn't try to self heal them. And with the help of PCF Scheduler, we can schedule the task to run them at a certain time of the day. Let's see in this article how we can do that with very few steps.

2. Pre-Requisite

  • JDK 1.8
  • Spring Boot knowledge
  • Gradle
  • IDE (Eclipse, VSC, etc.)
  • PCF instance

3. Develop the Spring Batch Application

Let's develop a small Spring Batch application (spring-batch-master) which will read a file with employee data and then add the department name to each of the employee's records.

3.1 BatchConfiguration

Let's start with tje BatchConfiguration file. I have added two jobs here and both show a different way of implementing the batch process. The first one is using Spring Batch Chunks and is configured to set up the job flow with a few steps. Each step will have a reader, processor, and writer configured. The second way of implementing a batch process is using Tasklet:

@Configuration
public class BatchConfiguration {
    @Bean
    public JobLauncher jobLauncher(JobRepository jobRepo) {
        SimpleJobLauncher simpleJobLauncher = new SimpleJobLauncher();
        simpleJobLauncher.setJobRepository(jobRepo);
        return simpleJobLauncher;
    }
    @Bean
    public Job departmentProcessingJob() {
        return jobBuilderFactory.get("departmentProcessingJob")
                .flow(step1())
                .end()
                .build();
    }
    @Bean
    public Step step1() {
        return stepBuilderFactory.get("step1")
                .<Employee, Employee>chunk(1)
                .reader(reader())
                .processor(processor())
                .writer(writer())
                .build();
    }
    @Bean
    public Job job2() {
      return this.jobBuilderFactory.get("job2")
        .start(this.stepBuilderFactory.get("job2step1")
          .tasklet(new Tasklet() {
            @Override
            public RepeatStatus execute
              (StepContribution contribution, ChunkContext chunkContext)
              throws Exception {
              logger.info("Job2 was run");
              return RepeatStatus.FINISHED;
            }
          })
          .build())
        .build();
    }
}

Let's discuss first job, departmentProcessingJob, in a little more detail. This job has thestep1 function, which reads the file, processes it, and then prints it.

3.2 DepartmentReader

This code has logic to read the employee data from a file as part of the first step:

public class DepartmentReader {
    public FlatFileItemReader<Employee> reader() {
        FlatFileItemReader<Employee> reader = new FlatFileItemReader<Employee>();
        reader.setResource(new ClassPathResource("employee_data.txt"));
        reader.setLineMapper(new DefaultLineMapper<Employee>() {{
            setLineTokenizer(new DelimitedLineTokenizer() {{
                setNames(new String[]{"id", "employeenumber", "salary"});
            }});
            setFieldSetMapper(new BeanWrapperFieldSetMapper<Employee>() {{
                setTargetType(Employee.class);
            }});
        }});
        return reader;
    }
}

3.3 DepartmentProcessor

This code has logic to add the department name to each employee record, based on some condition:

public class DepartmentProcessor implements ItemProcessor<Employee, Employee> {
    @Override
     public Employee process(Employee item) throws Exception {
        if ("1001".equalsIgnoreCase(item.getEmployeeNumber())) {
            item.setDepartment("Sales");
        } else if ("1002".equalsIgnoreCase(item.getEmployeeNumber())) {
            item.setDepartment("IT");
        } else {
            item.setDepartment("Staff");
        }
        System.out.println("Employee Details --> " + item.toString());
        return item;
    }
}

3.4 DepartmentWriter

This code has logic to print the employee records with the department name appended to it:

public class DepartmentWriter implements ItemWriter<Employee> {
    @Override
    public void write(List<? extends Employee> items) throws Exception {
        List<String> employeeList = new ArrayList<>();
        items.forEach(item -> {
            String enrichedTxn = String.join(",", item.getId(),
                    item.getEmployeeNumber(), item.getSalary(),
                    item.getDepartment());
            employeeList.add(enrichedTxn);
        });
        employeeList.forEach(System.out::println);
    }
}

3.5 BatchCommandLineRunner

Now, let's bootstrap the application logic to run as a batch process. Spring provides CommandLineRunner to enable this:

@Component
public class BatchCommandLineRunner implements CommandLineRunner {
   @Autowired
   JobLauncher jobLauncher;
 @Autowired
  Job departmentProcessingJob;4.
  public void run(String... args) throws Exception {
 JobParameters param = new JobParametersBuilder()
  .addString("JobID", String.valueOf(System.currentTimeMillis()))
  .toJobParameters(); jobLauncher.run(departmentProcessingJob, param);
             jobLauncher.run(job2, param);
    }
}

4. Deploy the Application on PCF

So far we have created a Spring Batch job. Now let's deploy it to PCF. You just need to package the code and cf push to PCF with a manifest file.

manifest.yaml:

---
applications:
- name: batch-example
 memory: 1G
 random-route: true
 path: build/libs/spring-batch-master-0.0.1-SNAPSHOT.jar
 no-hostname: true
 no-route: true
 health-check-type: none

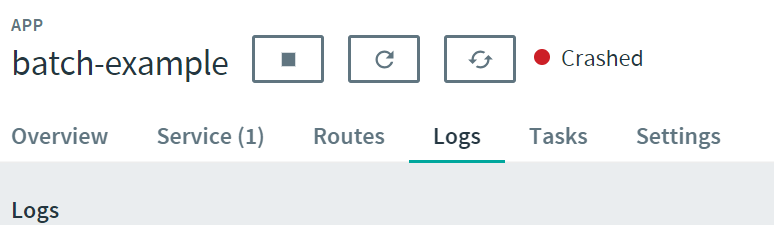

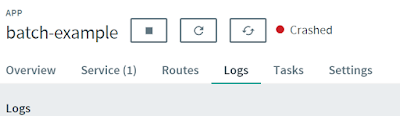

We will see that application started, executed the logic, and then exited. The application will display as 'crashed' in the PCF Apps Manager.

In PCF, all the applications run withprocess type: web. It expects the application to be running all the time on some web port. However, for a Spring Batch application, this is not the case. So let's see how to handle that:

  • Stop the application manually.
  • Run this job either manually with thecf run-task command or schedule it using PCF Scheduler

5. Start Our Spring Batch Application With the CF CLI

To run the Spring Batch (Boot) application on PCF, we need to run the following command:

cf run-task <APP Name>
".java-buildpack/open_jdk_jre/bin/java org.springframework.boot.loader.JarLauncher"

Now, you can use this command in a Bamboo/Jenkins pipeline to trigger the application with a cron job.

6. Schedule Batch Job With PCF Scheduler

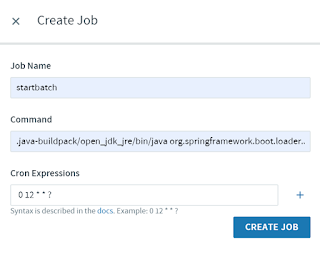

We can go to the application in Apps Manager -> Tasks and click on Enable Scheduling to bind the application with the PCF Scheduler. Now you can create a job as shown in the below picture. For more details on how to use PCF Scheduler, you can read this blog.

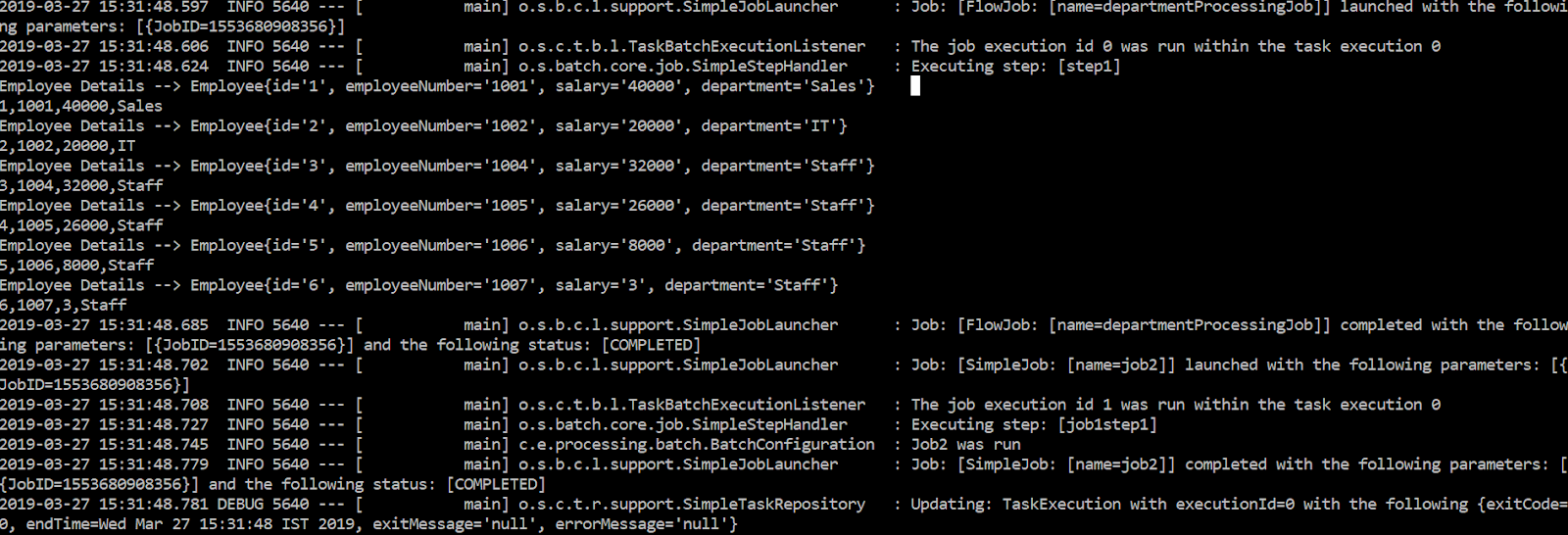

Now, if we run this code, it should execute both the bobs and give the below results:

7. Batch Applications With Spring Cloud Task

Spring has come up with a new project called Spring Cloud Task (SCT). Its purpose is to create short-lived microservices on cloud platforms. We just need to add a the @EnableTask annotation. This will register TaskRepository and creates the TaskExecution, which will pick up the job defined and execute them one by one.

TaskRepository, by default, uses an in-memory DB, however, it can support most of the persistence DBs like Oracle, MySQL, PostgreSQL, etc.

So let's develop one more small application (sct-batch-job) with SCT. Put @EnableTask in the Spring Boot Main Class:

@SpringBootApplication
@EnableTask
@EnableBatchProcessing
public class EmployeeProcessingBatch {
    public static void main(String[] args) {
        SpringApplication.run(EmployeeProcessingBatch.class, args);
    }
}

Add two Jobs in the SCTJobConfiguration file:

@Configuration
public class SCTJobConfiguration {
 private static final Log logger = LogFactory.getLog(SCTJobConfiguration.class);
 @Autowired
 public JobBuilderFactory jobBuilderFactory;
 @Autowired
 public StepBuilderFactory stepBuilderFactory;
 @Bean
 public Job job1() {
      return this.jobBuilderFactory.get("job1")
        .start(this.stepBuilderFactory.get("job1step1")
          .tasklet(new Tasklet() {
            @Override
            public RepeatStatus execute
              (StepContribution contribution, ChunkContext chunkContext)
              throws Exception {
                logger.info("Job1 ran successfully");
                return RepeatStatus.FINISHED;
            }
          })
          .build())
        .build();
 }
 @Bean
 public Job job2() {
      return this.jobBuilderFactory.get("job2")
        .start(this.stepBuilderFactory.get("job2step1")
          .tasklet(new Tasklet() {
           @Override
           public RepeatStatus execute
             (StepContribution contribution, ChunkContext chunkContext)
             throws Exception {
               logger.info("Job2 ran successfully");
               return RepeatStatus.FINISHED;
           }
          })
          .build())
        .build();
 }
}

That's it. So if you'll notice, I have used @EnableBatchProcessing to integrate SCT with Spring Batch. That way we can run a Spring Batch application as a Task. We can now push this application to PCF as we did the earlier one and then either run it manually or schedule it using PCF Scheduler.

8. Conclusion

In this article, we have talked about how a Spring Batch application can be run on PCF. We can also use Spring Cloud Task to run short-lived microservices. Spring Cloud Task also provides integration with Spring Batch so you can use full benefits of Batch as well as Spring Cloud Task.

As usual, the code can be found over on GitHub - Spring Batch App, Spring Cloud Task App

Spring Framework application Spring Batch Spring Cloud
