Join For FreeThis tutorial is all about implementing JWT Policy Enforcement in API Manager using a sample RAML-based project. It's especially helpful when applying policies through the API Manager in the Anypoint Platform. Along the way, you’ll also learn how to secure a specific API endpoint using a third-party Auth Provider like Auth0.
In this project, the following policies have been applied to enhance API security and traffic control:
- JWT Policy Enforcement
- IP Whitelisting
- Rate Limiting
Prerequisites
- Anypoint Studeio 7.21 (Java 17 Compatible default)
- Java 17
- Anypoint Platform account
- SOAPUI + POSTMAN
- Maven
Watch the video tutorial for a complete walkthrough of the concept.
Refer to the diagram to understand how the JWT (JSON Web Token) authentication process works.
- The client first calls the Auth Provider to obtain a token by sending the client ID, client secret, and grant_type.

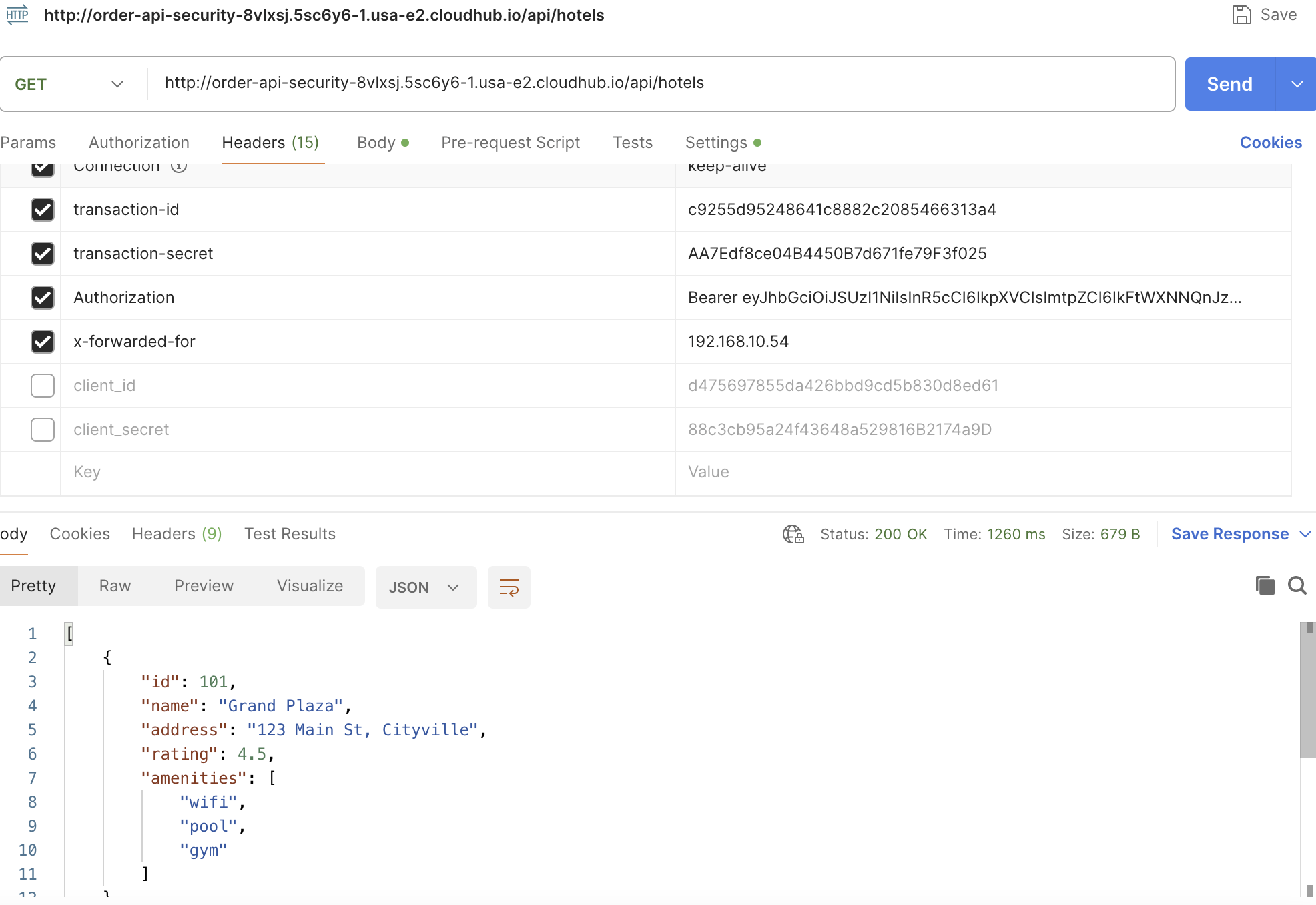

- Once the token is received, the client uses it to call the actual resource server endpoint.
- The resource server then validates the token by making a call to the Auth Provider.
- If the token is valid, a 200 OK response is returned to the client.

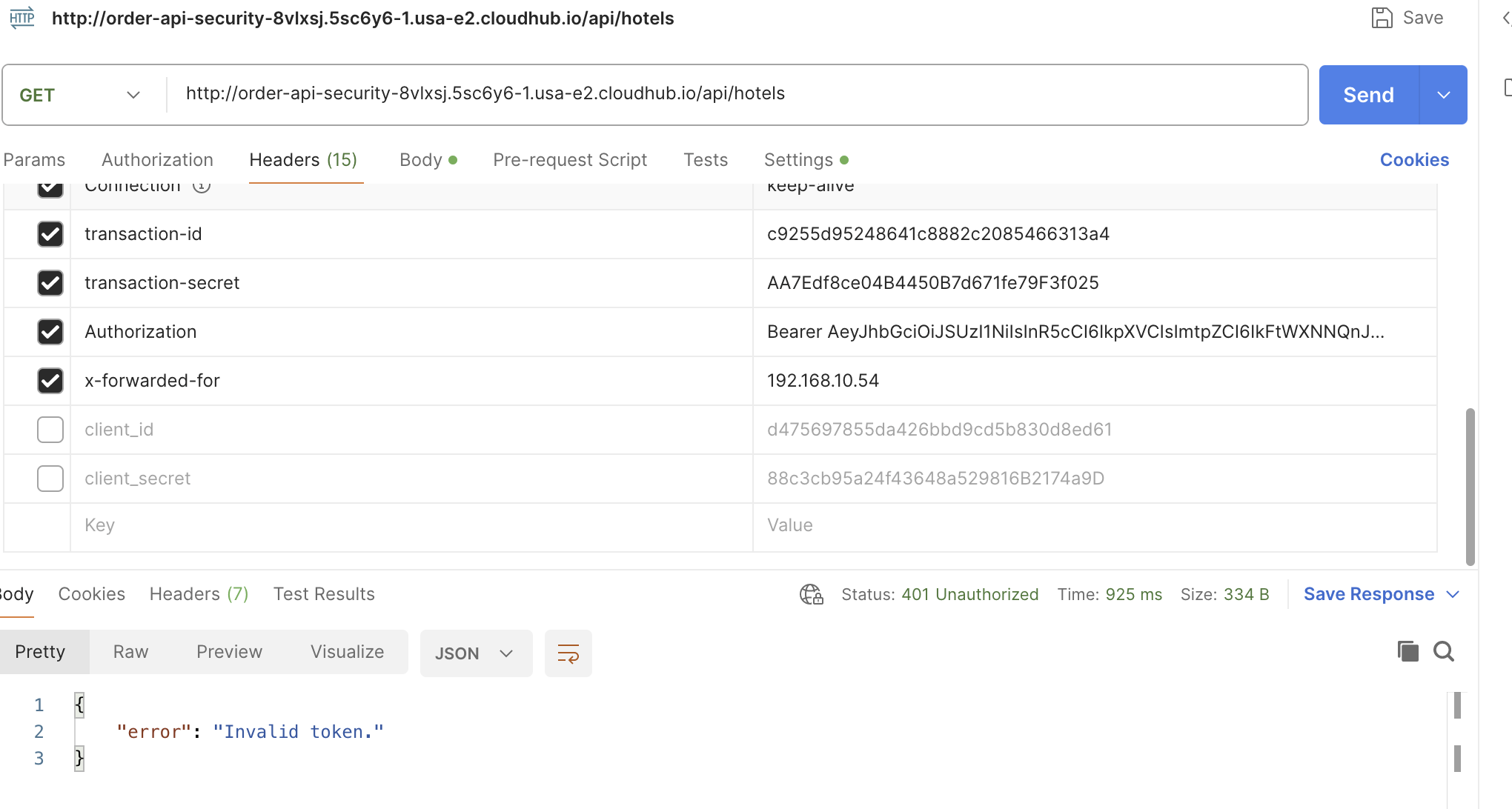

- If the token is invalid, an error response is sent back.

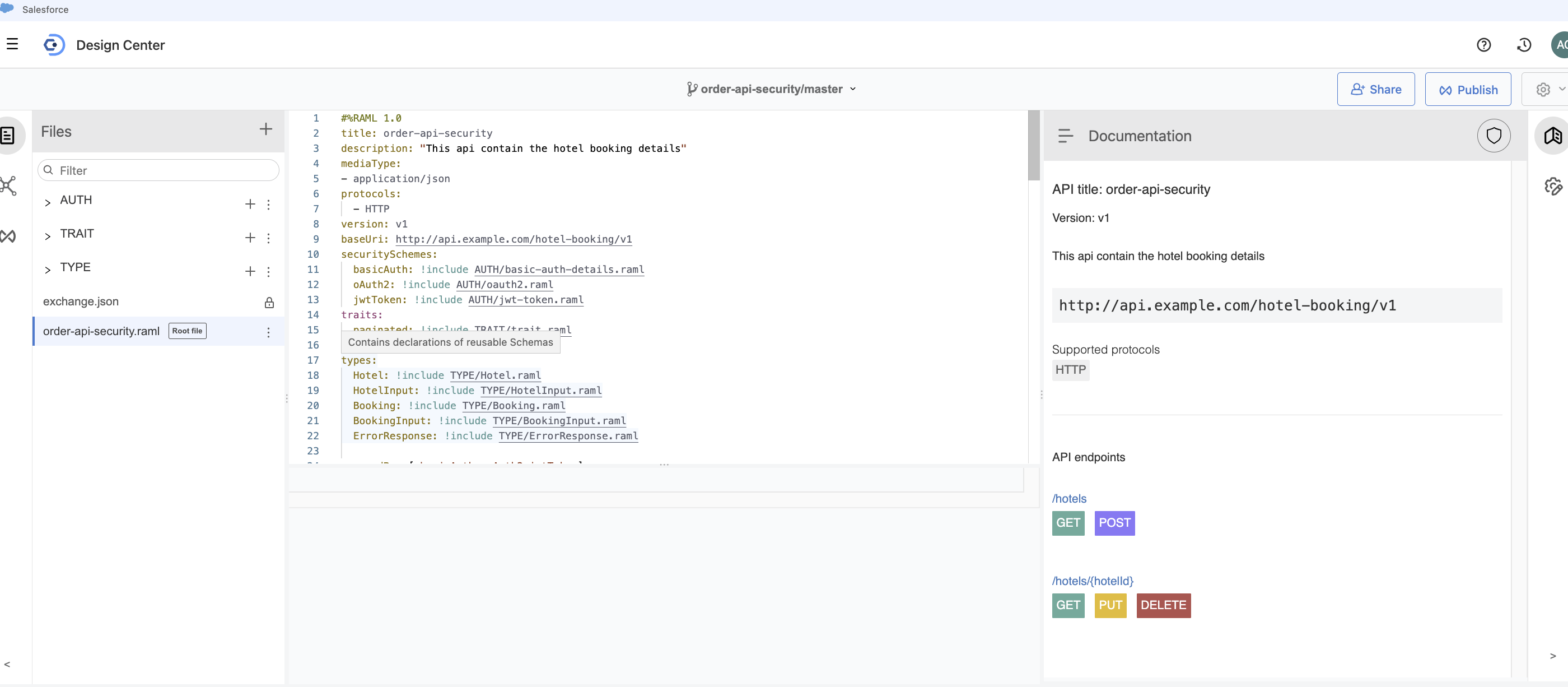

I’ve included the relevant RAML file details below for reference.
The following RAML files define the API security schemes used in this project:
jwt-token.raml
This file defines the JWT-based security scheme, specifying how tokens should be passed and validated.
#%RAML 1.0 SecurityScheme
type: x-jwt
description: |
This API uses JWT for authentication. Pass the token in the Authorization header as "Bearer {token}".
describedBy:
headers:
Authorization:
description: |
JWT access token in the format "Bearer {token}".
type: string
required: true
example: Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...
responses:
401:
description: |
Unauthorized. JWT is missing, invalid, or expired.oauth2.raml
This file defines the OAuth 2.0 security scheme, where clients must obtain an access token and include it in the Authorization header as "Bearer {token}". It supports common grant types like authorization_code and client_credentials, along with scoped access control.
#%RAML 1.0 SecurityScheme
type: OAuth 2.0
description: |
This API is secured using OAuth 2.0. Obtain an access token and include it in the Authorization header as "Bearer {token".
describedBy:
headers:
Authorization:
description: |
Used to send the OAuth 2.0 access token. Format: "Bearer {token}".
type: string
required: true
example: Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...
responses:
401:
description: |
Unauthorized. Access token is missing, invalid, or expired.
403:
description: |
Forbidden. The access token does not have the required scopes or permissions.
settings:
authorizationUri: https://auth.example.com/oauth2/authorize
accessTokenUri: https://auth.example.com/oauth2/token
authorizationGrants: [ authorization_code, client_credentials ]
scopes: [ read, write, admin ]basic-auth-details.xml
This file defines the Basic Authentication scheme using a standard username and password passed in the Authorization header.
#%RAML 1.0 SecurityScheme
type: Basic Authentication
description: |
Basic Authentication using username and password.
describedBy:
headers:
Authorization:
description: |
Standard HTTP Basic Authentication header. Value must be "Basic base64(username:password)".
type: string
required: true
responses:
401:
description: Unauthorized. Invalid or missing credentials.
The trait file is defined as follows:
#%RAML 1.0 Trait
usage: Apply to collection GET endpoints to support pagination.
queryParameters:
page:
type: integer
required: false
minimum: 1
default: 1
description: The page number to retrieve (starting from 1).
example: 2
pageSize:
type: integer
required: false
minimum: 1
maximum: 100
default: 20
description: The number of items per page.
example: 10
responses:
200:
headers:
X-Total-Count:
type: integer
description: Total number of items available.
example: 57
X-Total-Pages:
type: integer
description: Total number of pages available.
example: 6
X-Current-Page:
type: integer
description: The current page number.
example: 2
X-Page-Size:
type: integer
description: The number of items per page in this response.
example: 10TYPE RAML Files
The following RAML files define the data types used across the API:
Booking.raml
Defines the Booking data type, including fields like id, hotelId, guestName, checkInDate, checkOutDate, rooms, and status. It represents a complete hotel booking with validation and example data.
#%RAML 1.0 DataType
type: object
properties:
id:
type: integer
description: Unique booking identifier
example: 1001
hotelId:
type: integer
description: ID of the booked hotel
example: 101
guestName:
type: string
required: true
description: Name of the guest
example: "Alice Smith"
checkInDate:
type: date-only
required: true
description: Check-in date
example: 2024-07-01
checkOutDate:
type: date-only
required: true
description: Check-out date
example: 2024-07-05
rooms:
type: integer
required: true
minimum: 1
description: Number of rooms booked
example: 2
status:
type: string
enum: [ confirmed, cancelled, pending ]
description: Booking status
example: confirmed
example:
id: 1001
hotelId: 101
guestName: "Alice Smith"
checkInDate: 2024-07-01
checkOutDate: 2024-07-05
rooms: 2
status: confirmed
BookingInput.raml
Outlines the required data format for submitting a hotel booking request. It includes required fields such as hotelId, guestName, checkInDate, checkOutDate, and rooms, with validation rules for each. This file excludes fields like id and status, which are typically set by the system.
#%RAML 1.0 DataType
type: object
properties:
hotelId:
type: integer
required: true
guestName:
type: string
required: true
checkInDate:
type: date-only
required: true
checkOutDate:
type: date-only
required: true
rooms:
type: integer
required: true
minimum: 1
example:
hotelId: 101
guestName: "Alice Smith"
checkInDate: 2024-07-01
checkOutDate: 2024-07-05
rooms: 2ErrorResponse.raml
Defines a standard error response object containing a single required property: message. This message provides details about the error encountered, such as missing resources, invalid inputs, or authentication failures.
#%RAML 1.0 DataType
type: object
properties:
message:
type: string
required: true
description: Error message
example:
message: "Resource not found."Hotel.raml
Represents the full Hotel data type used in API responses. It includes properties like:
id: Unique identifier for the hotelname: Hotel name (required)address: Hotel address (required)rating: Optional float value (1–5) indicating the hotel’s ratingamenities: Optional list of available features (e.g.,"wifi","pool")
#%RAML 1.0 DataType
type: object
description: Data type for hotel
properties:
id:
type: integer
description: Unique hotel identifier
example: 101
name:
type: string
required: true
description: Name of the hotel
example: "Grand Plaza"
address:
type: string
required: true
description: Address of the hotel
example: "123 Main St, Cityville"
rating?:
type: number
format: float
minimum: 1
maximum: 5
description: Hotel rating (1-5 stars)
example: 4.5
amenities?:
type: array
items: string
description: List of amenities
example: [ "wifi", "pool", "gym" ]
example:
id: 101
name: "Grand Plaza"
address: "123 Main St, Cityville"
rating: 4.5
amenities: [ "wifi", "pool", "gym" ]
additionalProperties: false
HotelInput.raml
Specifies the format and required details for submitting a new hotel booking. It includes:
name(string, required): The hotel’s nameaddress(string, required): The hotel’s addressrating(number, optional): Hotel rating from 1 to 5 (float)amenities(array of strings, optional): List of hotel amenities like"wifi","pool","gym"
This type is used when sending hotel details in POST or PUT requests.
#%RAML 1.0 DataType
type: object
properties:
name:
type: string
required: true
address:
type: string
required: true
rating?:
type: number
format: float
minimum: 1
maximum: 5
amenities?:
type: array
items: string
example:
name: "Grand Plaza"
address: "123 Main St, Cityville"
rating: 4.5
amenities: [ "wifi", "pool", "gym" ]
additionalProperties: false
order-api-security.raml
This RAML file defines the hotel booking API with security and data types included:
- Title: order-api-security
- Description: API for hotel booking management
- Media Type: application/json
- Protocols: HTTP
- Version: v1
- Base URI:
http://api.example.com/hotel-booking/v1
Security Schemes:
- Basic Authentication
- OAuth 2.0
- JWT Token
Traits:
-
Pagination support applied to GET collections
Data Types Included:
- Hotel
- HotelInput
- Booking
- BookingInput
- ErrorResponse
Endpoints:
/hotelsfor listing and creating hotels (with pagination for GET)/hotels/{hotelId}for retrieving, updating, and deleting specific hotels
The API is secured by basicAuth, oAuth2, and jwtToken schemes.
#%RAML 1.0
title: order-api-security
description: "This api contain the hotel booking details"
mediaType:
- application/json
protocols:
- HTTP
version: v1
baseUri: http://api.example.com/hotel-booking/v1
securitySchemes:
basicAuth: !include AUTH/basic-auth-details.raml
oAuth2: !include AUTH/oauth2.raml
jwtToken: !include AUTH/jwt-token.raml
traits:
paginated: !include TRAIT/trait.raml
types:
Hotel: !include TYPE/Hotel.raml
HotelInput: !include TYPE/HotelInput.raml
Booking: !include TYPE/Booking.raml
BookingInput: !include TYPE/BookingInput.raml
ErrorResponse: !include TYPE/ErrorResponse.raml
securedBy: [ basicAuth, oAuth2,jwtToken]
/hotels:
get:
description: Get a paginated list of hotels.
is: [ paginated ]
responses:
200:
description: Successful response with a list of hotels.
body:
application/json:
type: Hotel[]
example:
- id: 101
name: "Grand Plaza"
address: "123 Main St, Cityville"
rating: 4.5
amenities: [ "wifi", "pool", "gym" ]
- id: 102
name: "Ocean View"
address: "456 Beach Rd, Seaside"
rating: 4.0
amenities: [ "wifi", "spa" ]
post:
description: Create a new hotel.
body:
application/json:
type: HotelInput
example:
name: "Grand Plaza"
address: "123 Main St, Cityville"
rating: 4.5
amenities: [ "wifi", "pool", "gym" ]
responses:
201:
description: Hotel created successfully.
body:
application/json:
type: Hotel
example:
id: 103
name: "Mountain Retreat"
address: "789 Hilltop Ave, Mountainview"
rating: 5
amenities: [ "wifi", "sauna" ]
/hotels/{hotelId}:
uriParameters:
hotelId:
type: integer
required: true
description: Unique hotel identifier
example: 101
get:
description: Get details of a specific hotel.
responses:
200:
description: Successful response with hotel details.
body:
application/json:
type: Hotel
example:
id: 101
name: "Grand Plaza"
address: "123 Main St, Cityville"
rating: 4.5
amenities: [ "wifi", "pool", "gym" ]
put:
description: Update details of a specific hotel
body:
application/json:
type: HotelInput
example:
name: "Grand Plaza Updated"
address: "123 Main St, Cityville"
rating: 4.7
amenities: [ "wifi", "pool", "gym", "spa" ]
responses:
200:
description: Hotel updated successfully.
body:
application/json:
type: Hotel
example:
id: 101
name: "Grand Plaza Updated"
address: "123 Main St, Cityville"
rating: 4.7
amenities: [ "wifi", "pool", "gym", "spa" ]
delete:
description: Delete a specific hotel.
responses:
204:
description: Hotel deleted successfully. No content.Now, publish your API to Exchange.

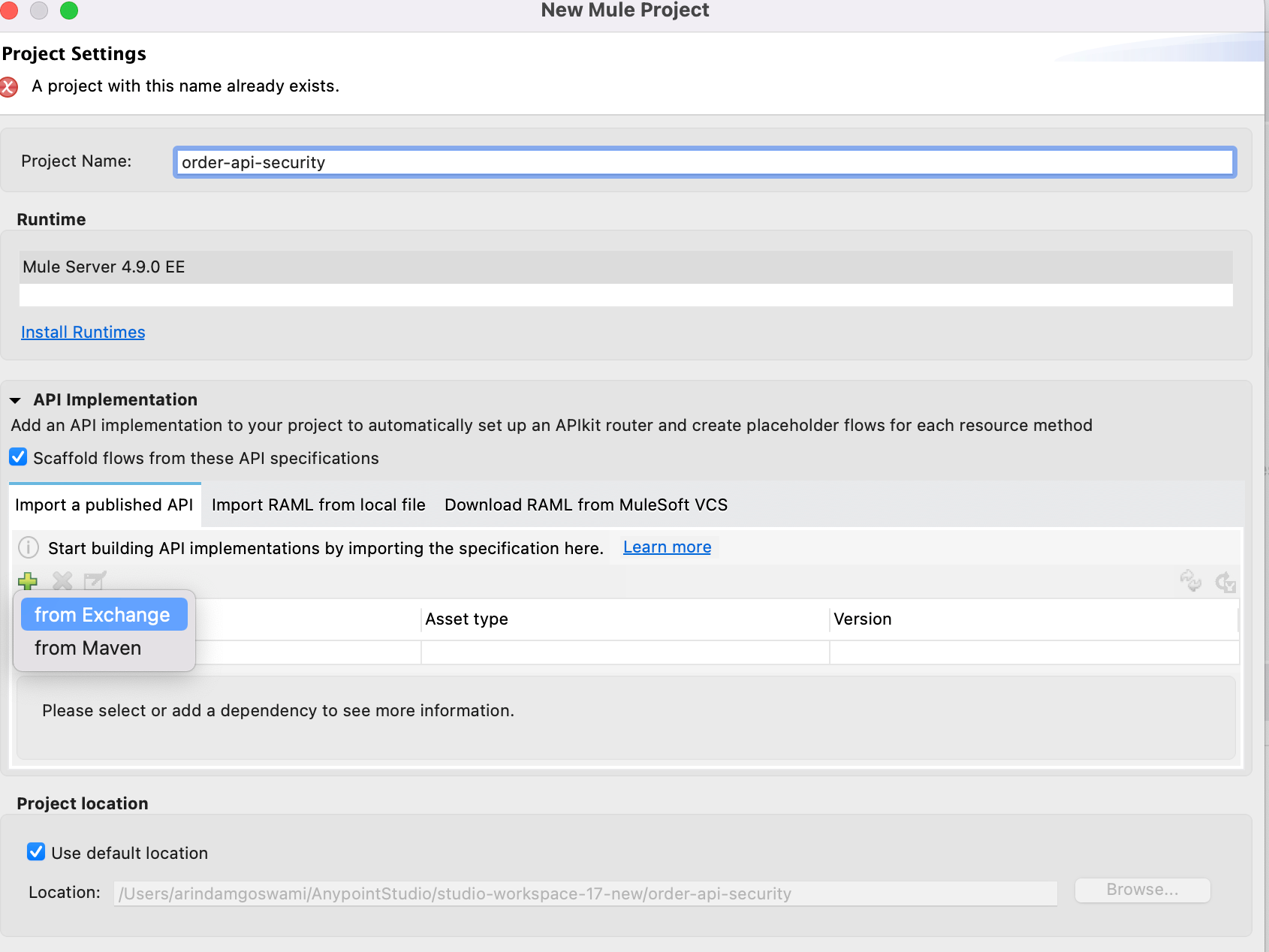

To implement the project locally, choose the scaffolding option shown below.
For implementation and auto-discovery, I assume you’re already familiar, so I won’t cover the details here.

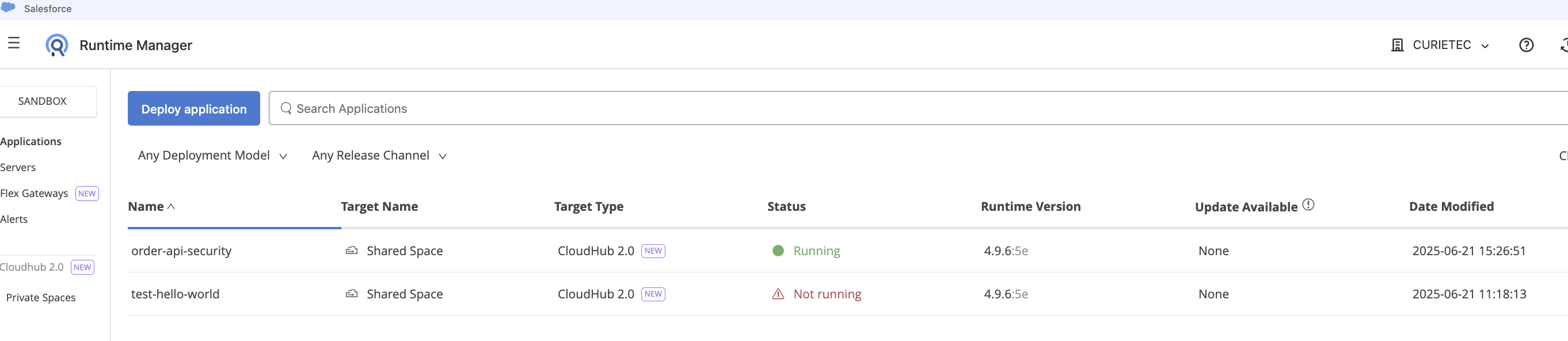

Once everything looks good, deploy the project to CloudHub 2.0, where it should appear as running.
Now, log in or sign up with the Auth0 provider to obtain the JWKS URL.

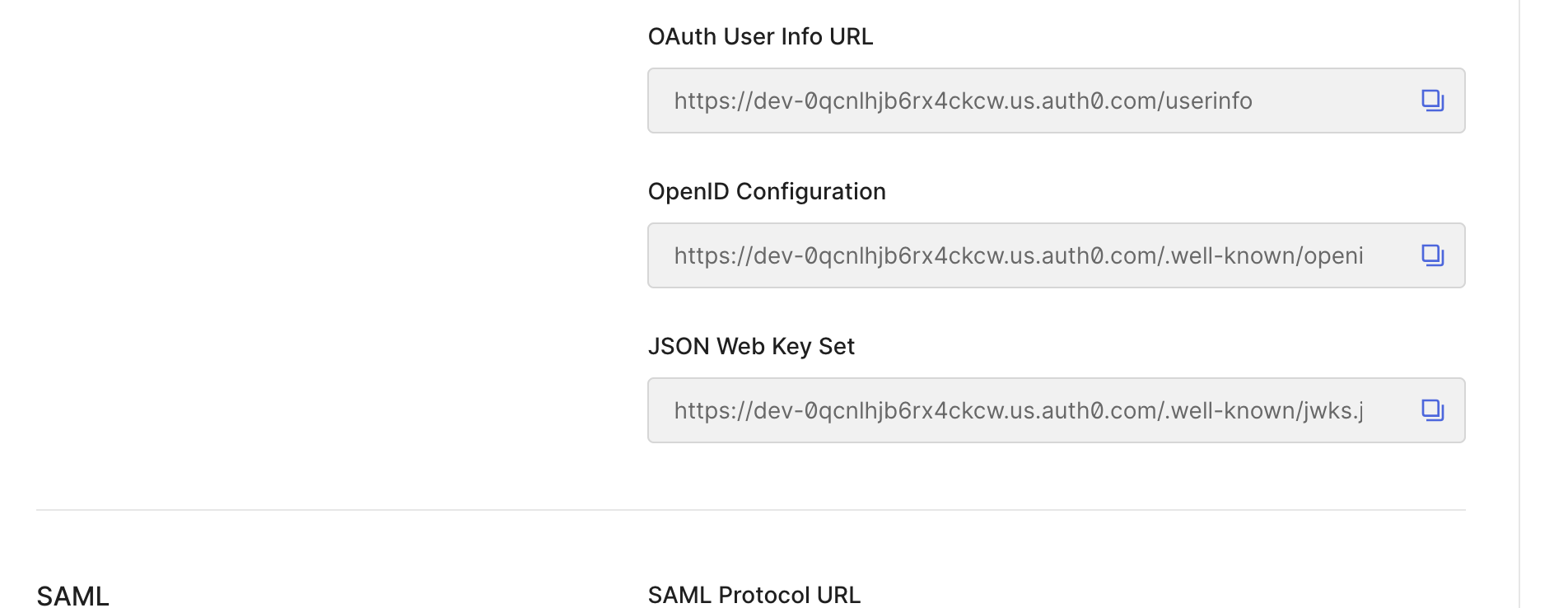

Navigate to Auth0 > My Profile > Applications > Settings > Endpoints.
Copy the JWKS URL and paste it into the JWT policy configuration within the API Manager as demonstrated below.

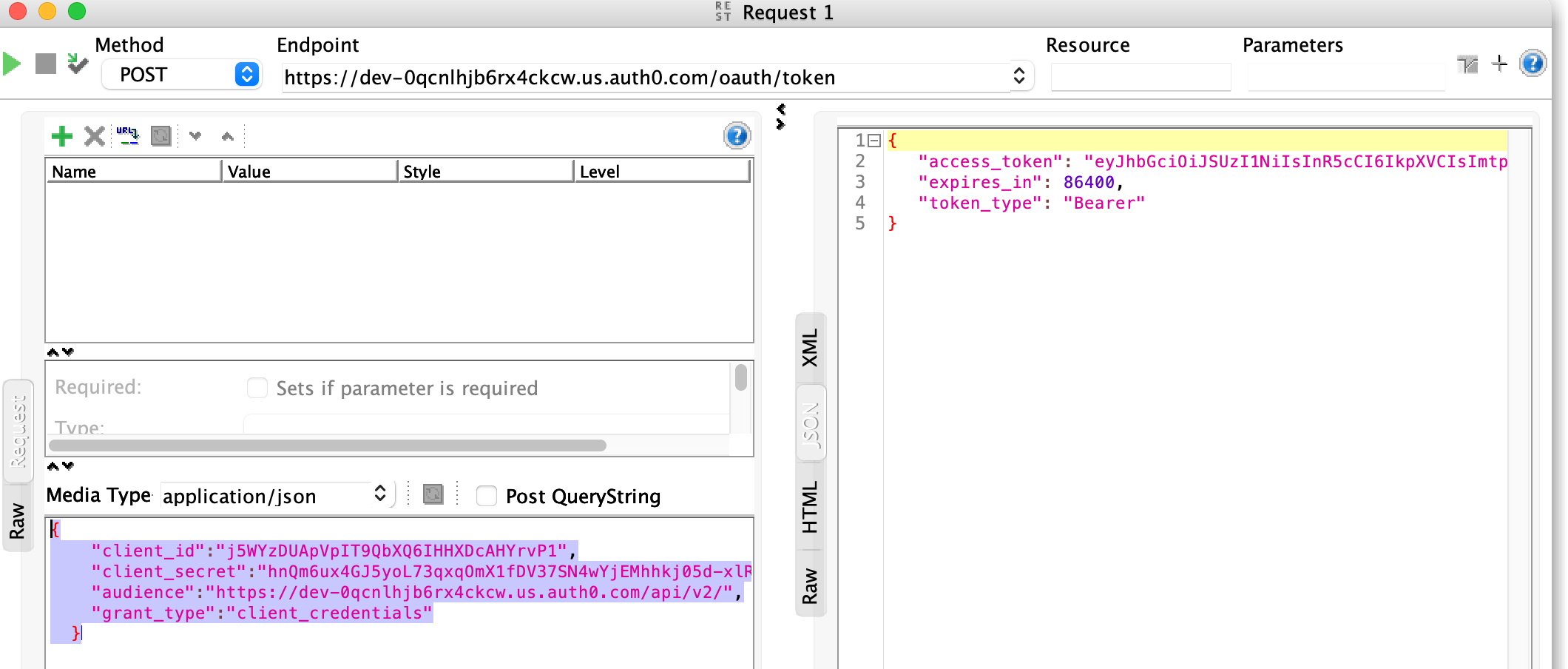

The next step is to obtain the token. You’ll need the following four pieces of information to request it. (Note: The client secret shown here is modified for security.)
{
"client_id":"j5WYzDUApVpIT9QbXQ6IHHXDcAHYrvP1",
"client_secret":"hnQmxxsxsxsxsxsoL73qxqOmX1fDV37SN4wYjEMhhkj05d-xlR4oeKExY8PFDYm39iL",
"audience":"https://dev-0qcnlhjb6rx4ckcw.us.auth0.com/api/v2/",
"grant_type":"client_credentials"
}
Next, use the token to call the actual API. If the token is valid, you’ll receive the expected response.
If the token is invalid, you will receive a 401 Unauthorized response.
The IP Allow List policy and Rate Limiting are straightforward—please refer to the video for detailed explanation.
If you found this tutorial helpful, please give it a like and feel free to ask any questions you may have!
Opinions expressed by DZone contributors are their own.
Comments
