NetSuite Integration Using Mulesoft
Learn how to implement NetSuite Integration using Mulesoft's NetSuite Connector v11.
·
Join the DZone community and get the full member experience.
Join For FreeNetSuite software is an online service that enables companies to manage all key business processes in a single system. NetSuite provides cloud-based business management software that helps companies manage core business processes, ERP financials, CRM, e-commerce, inventory, and more.
Mulesoft provides NetSuite Connector, which synchronizes data and automates business processes between NetSuite and third-party applications, either on-premises or in the cloud.
NetSuite Connector provides the following features:
- SOAP-based integration
- Generation of NetSuite business objects
- Different authentication levels
- Error-handling support
Mulesoft released version 11 of NetSuite Connector in March 2021. This is a huge improvement over the previous version.
Major Changes to NetSuite Connector
NetSuite Connector v11 has significant performance improvements in terms of memory usage and has been able to address the issue with the old connector becoming unresponsive at times.
NetSuite Connector v11 exposes an XML-based interface, which is consistent with NetSuite’s SOAP web service. This means all requests/responses from the connector will be in XML and straightforward to map to the underlying NetSuite web service (WSDL).
NetSuite Connector v11 is not backward compatible. This means that if migrating to v11, DataWeave mapping must be changed.
Looking at those benefits, it would be a good idea to start using NetSuite Connector v11.
GET Operation

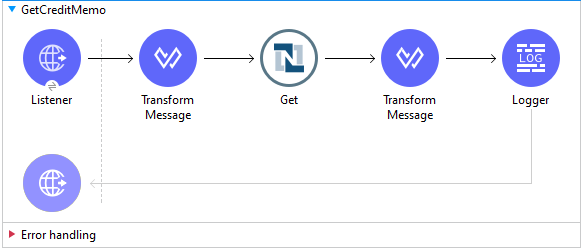

Following is the simple application used to get the creditMemo from NetSuite based on internalId.
<flow name="GetCreditMemo" doc:id="2f2ef1b2-39c7-4aad-8bd4-001fb5d5f44c" >
<http:listener doc:name="Listener" doc:id="c0e4a905-ecbc-495a-83e3-4479437450d2" config-ref="HTTP_Listener_config" path="/creditMemo"/>
<ee:transform doc:name="Transform Message" doc:id="d3981c8b-a95d-42c3-932d-09eb5aff2c90" >
<ee:message >
<ee:set-payload ><![CDATA[%dw 2.0
output application/xml
ns ns0 urn:messages_2020_2.platform.webservices.netsuite.com
ns ns1 urn:core_2020_2.platform.webservices.netsuite.com
ns xsi http://www.w3.org/2001/XMLSchema-instance
---
{
ns0#get: {
ns1#baseRef @("type": "creditMemo" , internalId: "2077523" , xsi#"type": "ns1:RecordRef"): {
}
}
}]]></ee:set-payload>
</ee:message>
</ee:transform>
<netsuite:get doc:name="Get" doc:id="650f720d-a4ba-4c40-9c36-ce993d597f80" config-ref="NetSuite_Config" refType="RecordRef" type="creditMemo"/>
<ee:transform doc:name="Transform Message" doc:id="b96003fd-7169-4365-bc73-1ef2f851ea0b" >
<ee:message >
<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
</ee:message>
</ee:transform>
<logger level="INFO" doc:name="Logger" doc:id="3f038b27-393e-47c4-88de-8db9452341ad" message="#[payload]"/>
</flow>Have a look at the namespace and the attributes passed in the first "Transform Message."
The attribute "type" defines the object to be worked on. In this case, it is creditMemo. Other valid examples are customer, salesOrder, and so on.
The next attribute, "internalId," is the internalId of the object in NetSuite.
Since it is the baseRef, we need to pass another attribute xsi#"type": "ns1:RecordRef"
%dw 2.0
output application/xml
ns ns0 urn:messages_2020_2.platform.webservices.netsuite.com
ns ns1 urn:core_2020_2.platform.webservices.netsuite.com
ns xsi http://www.w3.org/2001/XMLSchema-instance
---
{
ns0#get: {
ns1#baseRef @("type": "creditMemo" , internalId: "2077523" , xsi#"type": "ns1:RecordRef"): {
}
}
}UPDATE Operation

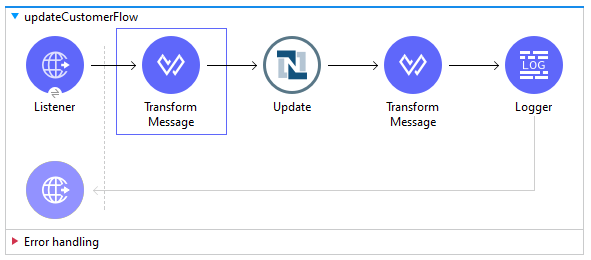

Following is the simple flow to update Customer in NetSuite.
<flow name="updateCustomerFlow" doc:id="4780c39f-d68f-43c0-93be-9e8492f99021" >
<http:listener doc:name="Listener" doc:id="21df5619-4ad4-44f5-9bd1-38c6db2e63af" config-ref="HTTP_Listener_config" path="/updateCustomer"/>
<ee:transform doc:name="Transform Message" doc:id="3dab5d5b-b3ee-4b05-b09d-e6656354d12b" >
<ee:message >
<ee:set-payload ><![CDATA[%dw 2.0
output application/xml
ns ns0 urn:messages_2020_2.platform.webservices.netsuite.com
ns ns01 urn:relationships_2020_2.lists.webservices.netsuite.com
ns ns02 urn:core_2020_2.platform.webservices.netsuite.com
ns xsi http://www.w3.org/2001/XMLSchema-instance
---
{
ns0#update: {
ns01#record @(internalId: "404220", xsi#"type": "ns01:Customer"): {
ns01#isPerson: false,
ns01#companyName: "ABC ORG",
ns01#phone: "1234567890"
}
}
}]]></ee:set-payload>
</ee:message>
</ee:transform>
<netsuite:update doc:name="Update" doc:id="ffa0beb0-e7d2-4c0f-9daf-ce235a44d54b" config-ref="NetSuite_Config" type="Customer"/>
<ee:transform doc:name="Transform Message" doc:id="7b4dca9c-68c7-4bb5-bf6d-3a21a71e2318" >
<ee:message >
<ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
payload]]></ee:set-payload>
</ee:message>
</ee:transform>
<logger level="INFO" doc:name="Logger" doc:id="e3b845dd-2ae5-4969-83ae-286aecdc01f5" message="#[payload]"/>
</flow>
Have a look at the namespace and the attributes passed in the first "Transform Message."
The attribute "internalId" is the internalId of the object in NetSuite. Please note that this needs to be added manually.
The attribute "type" defines the object to be worked on. In this case, it is customer. Other valid examples are creditMemo, salesOrder, and so on.
Please note the namespace "ns01" for record. This is added manually after the drag and drop mapping.
%dw 2.0
output application/xml
ns ns0 urn:messages_2020_2.platform.webservices.netsuite.com
ns ns01 urn:relationships_2020_2.lists.webservices.netsuite.com
ns ns02 urn:core_2020_2.platform.webservices.netsuite.com
ns xsi http://www.w3.org/2001/XMLSchema-instance
---
{
ns0#update: {
ns01#record @(internalId: "404220", xsi#"type": "ns01:Customer"): {
ns01#isPerson: false,
ns01#companyName: "ABC ORG",
ns01#phone: "1234567890"
}
}
}ADD Operation

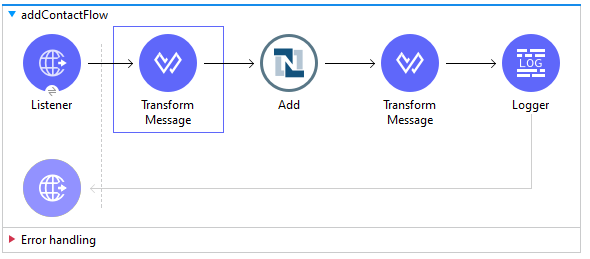

Following is the example to add Contact in NetSuite.
<flow name="addContactFlow" doc:id="db1ef95b-56b6-4089-97c0-5353d0407ccb" >
<http:listener doc:name="Listener" doc:id="30359e75-0543-46de-a555-0715944e871f" config-ref="HTTP_Listener_config" path="/addContact"/>
<ee:transform doc:name="Transform Message" doc:id="c7ad5432-e59d-42d4-b5ff-7998a7ab3980" >
<ee:message >
<ee:set-payload ><![CDATA[%dw 2.0
output application/xml
ns ns0 urn:messages_2020_2.platform.webservices.netsuite.com
ns ns01 urn:relationships_2020_2.lists.webservices.netsuite.com
ns ns02 urn:core_2020_2.platform.webservices.netsuite.com
ns xsi http://www.w3.org/2001/XMLSchema-instance
---
{
ns0#add: {
ns01#record @(xsi#"type": "ns01:Contact"): {
ns01#salutation: "Dr",
ns01#firstName: "FName",
ns01#lastName: "LName",
ns01#phone: "123456987",
ns01#email: "[email protected]",
ns01#subsidiary @(internalId: "1"): null
}
}
}]]></ee:set-payload>
</ee:message>
</ee:transform>
<netsuite:add doc:name="Add" doc:id="9806ee25-1e35-470c-8f61-f830a8524a77" config-ref="NetSuite_Config" type="Contact"/>
<ee:transform doc:name="Transform Message" doc:id="d89d8a23-7ab0-4778-b00b-8ce01a425043" >
<ee:message >
<ee:set-payload ><![CDATA[%dw 2.0
output application/java
---
{
}]]></ee:set-payload>
</ee:message>
</ee:transform>
<logger level="INFO" doc:name="Logger" doc:id="b2c9ca28-438f-4243-878b-5a629162873c" message="#[payload]"/>
</flow>Have a look at the namespace and the attributes passed in the first "Transform Message."
The attribute "type" defines the object to be worked on. In this case, it is contact. Other valid examples are creditMemo, salesOrder, and so on.
Please note the namespace "ns01" for record. This is added manually after the drag and drop mapping.
%dw 2.0
output application/xml
ns ns0 urn:messages_2020_2.platform.webservices.netsuite.com
ns ns01 urn:relationships_2020_2.lists.webservices.netsuite.com
ns ns02 urn:core_2020_2.platform.webservices.netsuite.com
ns xsi http://www.w3.org/2001/XMLSchema-instance
---
{
ns0#add: {
ns01#record @(xsi#"type": "ns01:Contact"): {
ns01#salutation: "Dr",
ns01#firstName: "FName",
ns01#lastName: "LName",
ns01#phone: "123456987",
ns01#email: "[email protected]",
ns01#subsidiary @(internalId: "1"): null
}
}
}The above examples should act as a starting point for migrating to v11 on NetSuite Connector.
