Porting Processor Expert Projects to MCUXpresso IDE

The McuOnEclipse GitHub repository hosts many Processor Expert projects and is very popular (cloned more than 1000 times, thank you!). Processor Expert is a powerful framework that generates driver and configuration code, simplifying application development for a wide range of microcontroller and families. But, Processor Expert won’t be developed further by NXP and is not part of MCUXpresso IDE. While it is possible to install Processor Expert into MCUXpresso IDE 10.2, how can these projects use an IDE without Processor Expert? This article describes how to port an existing Processor Expert project into the NXP MCUXpresso IDE.

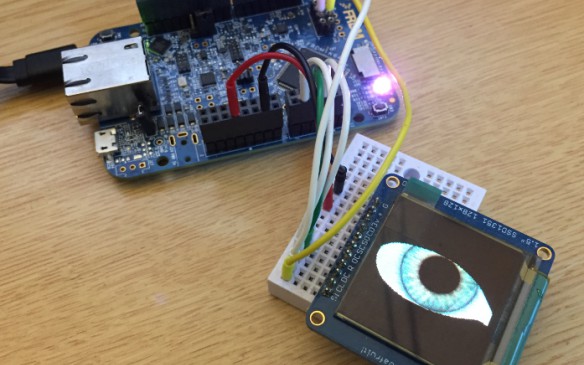

Ported Project with FRDM-K64F using Adafruit SSD1351 and Processor Expert

Outline

Processor Expert is a configuration and code generation utility originally developed by Unis in the Czech Republic. This technology has been widely used in CodeWarrior IDE and later in Eclipse-based Kinetis Design Studio IDE or S32 Design Studio. Processor Expert has been replaced by its successor, the MCUXpresso Configuration Tools. The new approach is not compatible with the old Processor Expert, so I keep (and have to keep) my existing Processor Expert projects alive for an extended period (for automotive projects 10-15 years are not that unusual). And, for this, I usually keep tool chains, IDE, and projects inside that original environment.

However, sometimes it makes sense to move over a project to a new environment. In this article, I describe how to port an existing Processor Expert project to the MCUXpresso IDE.

Below are the approaches to dealing with the Processor Expert transition:

1. Use the MCUXpresso SDK and Configuration tools: Basically, this means doing things from scratch. I recommend this for new projects where the microcontroller is supported by the SDK and the Configuration Tools. This is the cleanest solution, but requires more work. I call it the clean start way.
2. Install Processor Expert and the GNU ARM Eclipse into MCUXpresso IDE: With this, the projects can be reused as is — no extra work needed. At the same time, it allows you to work with both worlds, and the most important McuOnEclipse components work well with the SDK and configuration tools. See “MCUXpresso IDE: Installing Processor Expert into Eclipse Neon,” which works as well for MCUXpresso IDE 10.2 (Oxygen-based). However, this route is not guaranteed in the future and not supported by NXP. I call it the bridge way.
3. Use the McuOnEclipse Library: This is a library on GitHub that is the generated code from many custom components, but available as normal source files with configuration settings in header files. This approach is ideal if you don’t want to use it for any ARM Cortex microcontrollers and is independent of microcontroller venders, IDE, or tools. I call it the unchained way.
4. Port over the Processor Expert generated files: With this, I continue to use the Processor Expert source files in the new IDE, but I am not using Processor Expert anymore. That way, all the advanced MCUXpresso IDE and build features can be used. The MCUXpresso SDK is in conflict with the API used by Processor Expert, so the SDK code has to be removed. Additionally, the startup code has to be tweaked to work with the vector table generated by Processor Expert. This approach means leaving Processor Expert behind, so I call it the burning bridges way.

This article is about the burning bridges approach.

If there is any special interest in the other approaches, leave a comment at the end of this article!

Preconditions

The approach described in this article is about porting source files from a Processor Expert project (assuming Kinetis Design Studio 3.2.0) to MCUXpresso IDE 10.2.0. It requires:

1. Your source project working, and it includes the Processor Expert generated code
2. Your source device is supported by the MCUXpresso IDE and SDK
3. You have loaded the corresponding MCUXpresso SDK into the MCUXpresso IDE

Approach

This porting used the following steps:

1. Create a new MCUXpresso SDK project in the MCUXpresso IDE
2. Copy over all you need from the source project ( Generated_Code , Static_Code)
3. Include the copied folders into the build process
4. Update the compiler to include paths for the new directories added ( Generated_Code, Static_code)
5. Remove the SDK and CMSIS files
6. Add main.c events and application code
7. Merging vector/interrupt table and startup code

In this article, I’m porting an application for the NXP FRDM-K64F board with the Adafruit SSD1351 display to the MCUXpresso IDE.

The original source project is on GitHub.

Step 1: Create a New Project in MCUXpresso IDE

In the IDE, create a new project for the device using the Quickstart Panel:

Quickstart new Project

Create a new baremetal project with default settings:

Make sure the package type matches your original project! Otherwise, the header files for the peripherals might not match.

FRDM-K64F baremetal project

With this, we have the base for our project to be ported.

New Project created

Now, it would be a good idea to build and debug that project — just to make sure everything works as expected.

Step 2: Copy Generated Code

Copy the following folders from the original project to the new MCUXpresso project:

•  Generated_Code: this contains all the generated code from the components
•  Static_Code: this directory has all the PDD macros

Below shows them added to the project:

Copied generated files

Step 3: Include Into Build

By default, the files and folders might not be included for the build/to be compiled. This can be seen since there is not a small blue ‘c’ in the icon decorator.

Folders included or not in the build

Include the ‘Generated_Code’ and ‘Static_Code’ folders into the build by changing the folder properties (right-click on each folder and use the ‘Properties’ context menu):

Unchecked Exclude Resource from build

Do this for both folders:

Included Folders into Build

Step 4: Add Include Paths

Now, we need to tell the compiler that there are extra folders to search for header files. Add the following paths/directories — you can copy-paste them into the compiler include path settings of the project:

../Generated_Code
../Static_Code/IO_Map
../Static_Code/PDD
../Static_Code/System

Added Processor Expert Folders to Include Paths

Step 5: Remove the SDK and CMSIS Files

The next step is necessary because the Processor Expert API is not compatible with CMSIS and the SDK in the project, such as the header files for the peripherals are slightly different. The easiest way is to remove the files and folders marked in yellow below:

Remove files and folders

Consequently, we can remove the following marked include paths in the compiler settings:

removed include paths

Next, remove the following entry from the compiler settings since we are not using CMSIS:

__USE_CMSIS

Remove __USE_CMSIS

Step 6: main(), Events, and Application Code

Now, we can add/copy the application code. Copy the main() file,  events.c , and events.h from the original project:

Added Application Files

Step 7: Startup Code and Vectors

This step is probably the most complicated, because here I’m going to use the MCUXpresso SDK startup code with the vector table created by Processor Expert. That way, I get the feature having MCUXpresso IDE to manage the linker files. The challenge is that different names are used by the SDK and Processor Expert for the reset routine and the initial stack pointer.

First, I have to change the names used in the vector table generated by Processor Expert. For this, I add the following to  Generated_Code/Vectors_Config.h:

#if 1 /* needed by SDK startup */
extern void _vStackTop(void);
extern void ResetISR(void);
#endif

Then, I change the symbols:

#if 0 /* original Processor Expert code */
#define VECTOR_SP_MAIN    &__SP_INIT                            /* 0x00 -    ivINT_Initial_Stack_Pointer    used by PE */
#define VECTOR_1
#if 0 /* original Processor Expert code */
#define VECTOR_SP_MAIN    &__SP_INIT                            /* 0x00 -    ivINT_Initial_Stack_Pointer    used by PE */
#define VECTOR_1          (tIsrFunc)&__thumb_startup            /* 0x01 -    ivINT_Initial_Program_Counter  used by PE */
#else /* needed by SDK startup */
#define VECTOR_SP_MAIN    &_vStackTop                            /* 0x00 -    ivINT_Initial_Stack_Pointer    used by PE */
#define VECTOR_1          (tIsrFunc)&ResetISR            /* 0x01 -    ivINT_Initial_Program_Counter  used by PE */
#endif

(tIsrFunc)&__thumb_startup            /* 0x01 -    ivINT_Initial_Program_Counter  used by PE */
#else /* needed by SDK startup */
#define VECTOR_SP_MAIN    &_vStackTop                            /* 0x00 -    ivINT_Initial_Stack_Pointer    used by PE */
#define VECTOR_1          (tIsrFunc)&ResetISR            /* 0x01 -    ivINT_Initial_Program_Counter  used by PE */
#endif

Changes for SDK in Vectors_Config.h

Depending on your project and Processor Expert, you might need to edit the file Generated_Code\Vectors.c  in a similar way.

The SDK expects the vector table in a special named section (" .isr_vector ") with a dedicated name ( g_pfnVectors ). Modify accordingly  Static_Code\System\Vectors.c :

#if 0
__attribute__ ((section (".vectortable"))) const tVectorTable __vect_table = { /* Interrupt vector table */
#else /* SDK needs special sector name and section name */
__attribute__ ((section (".isr_vector"))) const tVectorTable g_pfnVectors = { /* Interrupt vector table */
#endif

Vector section name and vector table name

The name of the vector table needs to be updated in  Static_Code\System\CPU_Init.h :

extern const tVectorTable g_pfnVectors;

Name of Vector table ini CPU_Init.h

And, its usage in  Static_Code\System\CPU_Init.c:

SCB_VTOR = (uint32_t)(&g_pfnVectors); /* Set the interrupt vector table position */

Vector table usage in CPU_Init.c

The next step is to change the SDK startup code in  startup\startup_mk64f12.c :

The file name depends on the device used.

Here, you need to disable or remove all the lines that deal with the interrupt vectors. It starts here:

Start of disabled vectors

And, it ends here:

End of disabled vectors

Next, we disable the vector table itself, which starts here:

Start of disabled vector table

And, it ends here:

End of disabled vector table

Finally, we disable the weak interrupt handlers, starting with:

Start of Disabled Weak Vector Stubs

And, it ends here:

End of disabled weak vector stubs

As a last step, we need to call the CPU initialization code, which sets the clocks. Add a prototpye:

void __init_hardware(void); /* prototype of Processor Expert hardware initialization function */

And, we call it from the startup code:

__init_hardware(); /* all Processor Expert CPU initialization code */

  __init_hardware( )  call in startup code

Conclusion

That's it. Now, you can build/compile, run, and debug my application without Processor Expert and with MCUXpresso IDE:

Ported Application

Summary

Porting a Processor Expert project to MCUXpresso IDE requires a few changes dealing with the vector table and startup code. But, otherwise, it is pretty much working the 'create a new project and add your source files to it' way.

Happy Porting!
