Setup and Configure Velero on AKS

$ az group create --name myResourceGroup --location eastus

$ az aks create --resource-group myResourceGroup --name myAKSCluster --node-count 1 --enable-addons monitoring --generate-ssh-keys

$ az aks get-credentials --resource-group myResourceGroup --name myAKSCluster

$ az storage account create --name mystoragevelero --resource-group myResourceGroup --sku Standard_GRS --encryption-services blob --https-only true --kind BlobStorage --access-tier Hot

$ az storage container create -n velero --public-access off --account-name mystoragevelero

$ az account list --query '[?isDefault].id' -o tsv

XXXX-XXXX-XXX-XXX-XXXX-XXXXXXXX

$ az account list --query '[?isDefault].tenantId' -o tsv

XXXX-XXXX-XXX-XXX-XXXX-XXXXXXXX

$ export SUBSCRIPTION_ID=XXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXX

$ export STORAGE_RESOURCE_GROUP=myResourceGroup

$ export MC_RESOURCE_GROUP=MC_myresourcegroup_myakscluster_eastus

$ az ad sp create-for-rbac \

  --name "velero" \

  --role "Contributor" \

  --query 'password' \

  -o tsv \

  --scopes /subscriptions/$SUBSCRIPTION_ID/resourceGroups/$STORAGE_RESOURCE_GROUP /subscriptions/$SUBSCRIPTION_ID/resourceGroups/$MC_RESOURCE_GROUP

$ az ad sp list --display-name "velero" --query '[0].appId' -o tsv

$ cat credentails-velero

AZURE_SUBSCRIPTION_ID=XXXX-XXXX-XXX-XXX-XXXX-XXXXXXXX

AZURE_TENANT_ID=XXXX-XXXX-XXX-XXX-XXXX-XXXXXXXX

AZURE_CLIENT_ID=SERVICE_PRINCIPAL_APPID

AZURE_CLIENT_SECRET=SERVICE_PRINCIPAL_PASSWORD

AZURE_RESOURCE_GROUP=MC_myresourcegroup_myakscluster_eastus

AZURE_CLOUD_NAME=AzurePublicCloud

$ helm repo add vmware-tanzu https://vmware-tanzu.github.io/helm-charts

# Make sure you are setting the values correctly

# --set-file credentials.secretContents.cloud=./credentials-velero

# this file has SP details for velero

# --set configuration.backupStorageLocation.config.resourceGroup=myResourceGroup \

# --set configuration.backupStorageLocation.config.storageAccount=mystoragevelero \

# the above 2 configurations will save kubernetes objects tar in storage account.

$ helm install --name velero vmware-tanzu/velero --namespace velero \

--set-file credentials.secretContents.cloud=./credentials-velero \

--set configuration.provider=azure \

--set configuration.backupStorageLocation.name=azure \

--set configuration.backupStorageLocation.bucket='velero' \

--set configuration.backupStorageLocation.config.resourceGroup=myResourceGroup \

--set configuration.backupStorageLocation.config.storageAccount=mystoragevelero \

--set snapshotsEnabled=true \

--set deployRestic=true \

--set configuration.volumeSnapshotLocation.name=azure \

--set image.repository=velero/velero \

--set image.pullPolicy=Always \

--set initContainers[0].name=velero-plugin-for-microsoft-azure \

--set initContainers[0].image=velero/velero-plugin-for-microsoft-azure:master \

--set initContainers[0].volumeMounts[0].mountPath=/target \

--set initContainers[0].volumeMounts[0].name=plugins

NAME: velero

LAST DEPLOYED: Thu Nov 28 18:10:04 2020

NAMESPACE: velero

STATUS: deployed

REVISION: 1

TEST SUITE: None

NOTES:

Check that the velero is up and running:

    kubectl get deployment/velero -n velero

Check that the secret has been created:

    kubectl get secret/velero -n velero

Once velero server is up and running you need the client before you can use it

1. wget https://github.com/vmware-tanzu/velero/releases/download/v1.5.2/velero-v1.5.2-darwin-amd64.tar.gz

2. tar -xvf velero-v1.5.2-darwin-amd64.tar.gz -C velero-client

More info on the official site: https://velero.io/docs

$ kubectl get pods -n velero

NAME                      READY   STATUS    RESTARTS   AGE

restic-86ty8              1/1     Running   0          1d

restic-kdr5t              1/1     Running   0          1d

restic-pjbhn              1/1     Running   0          1d

velero-742b785c76-j8bcf   1/1     Running   0          1d

$ velero backup-location get

NAME    PROVIDER   BUCKET/PREFIX   PHASE       LAST VALIDATED                  ACCESS MODE

azure   azure      velero          Available   2021-03-19 20:09:54 +0530 IST   ReadWrite

$ kubectl create ns wp

namespace/wp created

$ helm install my-app bitnami/wordpress --namespace wp

NAME: my-app

LAST DEPLOYED:  Fri Mar 19 19:53:36 2021

NAMESPACE: wp

STATUS: deployed

REVISION: 1

NOTES:

** Please be patient while the chart is being deployed **

Your WordPress site can be accessed through the following DNS name from within your cluster:

    my-app-wordpress.wp.svc.cluster.local (port 80)

To access your WordPress site from outside the cluster follow the steps below:

1. Get the WordPress URL by running these commands:

  NOTE: It may take a few minutes for the LoadBalancer IP to be available.

        Watch the status with: 'kubectl get svc --namespace wp -w my-app-wordpress'

   export SERVICE_IP=$(kubectl get svc --namespace wp my-app-wordpress --template "{{ range (index .status.loadBalancer.ingress 0) }}{{.}}{{ end }}")

   echo "WordPress URL: http://$SERVICE_IP/"

   echo "WordPress Admin URL: http://$SERVICE_IP/admin"

2. Open a browser and access WordPress using the obtained URL.

3. Login with the following credentials below to see your blog:

  echo Username: user

  echo Password: $(kubectl get secret --namespace wp my-app-wordpress -o jsonpath="{.data.wordpress-password}" | base64 --decode)

$ kubectl get svc --namespace wp -w my-app-wordpress

NAME               TYPE           CLUSTER-IP     EXTERNAL-IP    PORT(S)                      AGE

my-app-wordpress   LoadBalancer   10.30.0.125   22.67.23.109   80:30017/TCP,443:31863/TCP   2m58s

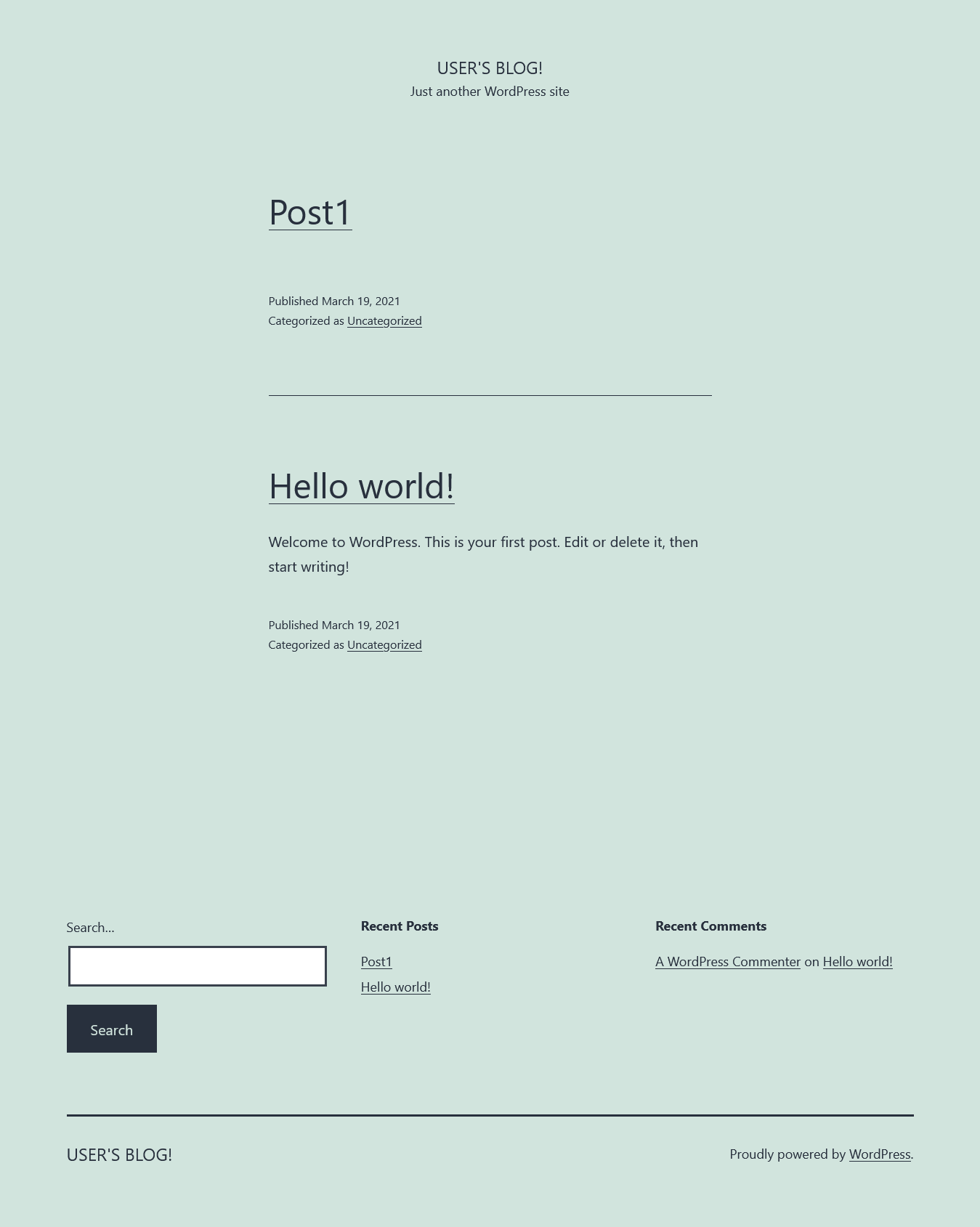

# port forward it to local to see the wordpress website

$ kubectl port-forward services/my-app-wordpress -n wp 3000:80

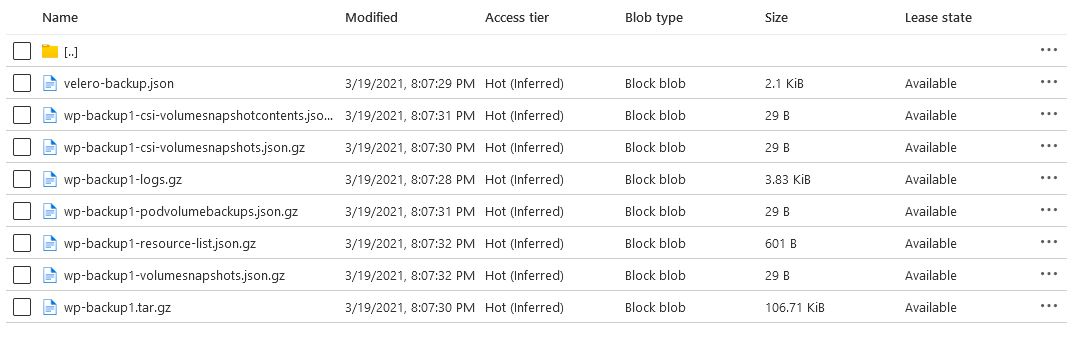

$ velero backup create wp-backup --include-namespaces wp --storage-location azure --wait

$ velero get backup

NAME  STATUS  ERRORS  WARNINGS  CREATED  EXPIRES  STORAGE LOCATION  SELECTOR

wp-backup1  Completed  0  0  2021-03-19 20:07:22 +0530 IST   29d  azure          <none>

$ velero backup describe wp-backup

Name:         wp-backup

Namespace:    velero

Labels:       velero.io/storage-location=azure

Annotations:  velero.io/source-cluster-k8s-gitversion=v1.19.3

              velero.io/source-cluster-k8s-major-version=1

              velero.io/source-cluster-k8s-minor-version=19

Phase:  Completed

Errors:    0

Warnings:  0

Namespaces:

  Included:  wp

  Excluded:  <none>

Resources:

  Included:        *

  Excluded:        <none>

  Cluster-scoped:  auto

Label selector:  <none>

Storage Location:  azure

Velero-Native Snapshot PVs:  auto

TTL:  720h0m0s

Hooks:  <none>

Backup Format Version:  1.1.0

Started:    2021-03-19 20:07:22 +0530 IST

Completed:  2021-03-19 20:07:26 +0530 IST

Expiration:  2021-04-18 20:07:22 +0530 IST

Total items to be backed up:  50

Items backed up:              50

Velero-Native Snapshots: 2

$ kubectl delete ns wp

$ kubectl get pods -n wp

No resources found in wp namespace.

$ kubectl get pv -A

No resources found

$ velero restore create --from-backup wp-backup

Restore request "wp-backup-20210319201629" submitted successfully.

Run `velero restore describe wp-backup-20210319201629` or `velero restore logs wp-backup-20210319201629` for more details.

$ velero restore describe wp-backup-20210319201629

Name:         wp-backup-20210319201629

Namespace:    velero

Labels:       <none>

Annotations:  <none>

Phase:  Completed

Started:    2021-03-19 20:16:31 +0530 IST

Completed:  2021-03-19 20:16:36 +0530 IST

Backup:  wp-backup

Namespaces:

  Included:  all namespaces found in the backup

  Excluded:  <none>

Resources:

  Included:        *

  Excluded:        nodes, events, events.events.k8s.io, backups.velero.io, restores.velero.io, resticrepositories.velero.io

  Cluster-scoped:  auto

Namespace mappings:  <none>

Label selector:  <none>

Restore PVs:  auto
