Orchestrating Complex Workflows With XState

XState is a state orchestration and management library designed for JavaScript and TypeScript applications. It approaches complex logic through an event-driven model that combines state machines, statecharts, and actors. This structure helps developers create clear, maintainable workflows and application states that behave reliably and are easy to visualize.

Although XState is widely used in UI development, its declarative structure makes it an excellent choice for backend workflows (specially in cloud-native and/or event-driven systems). In this article, we’ll look at how XState can be leveraged to manage complex backend workflows using AWS Lambda and AWS ECS and draw some comparisons.

Why XState isn’t just for UI/frontend development

At a high level, most backend orchestration services revolve around workflows which are states and transitions that represent business logic. A most commonly used example is “order processing” that includes placing order, payment followed by fulfillment and all of these can be mapped naturally to state machines.

Using XState, you get to define:

• States: Representing stages (finite) in the process
• Events: Triggers that cause transition from one state to another
• Actions: Side-effects (fire & forget) to perform
• Guards: Conditions to control whether a transition is allowed

When these patterns are applied to backend systems, the result is deterministic, traceable and easier-to-debug logic. A workflow being deterministic vs non-deterministic plays a huge role in orchestration systems as they impact retries, error handling and most importantly ensure a step in the process is not repeated in itself (either causing duplicate orders or payments).

Let’s walk through a simplified order-processing example. Assume the intake is via API gateway, workflow sourced from s3 and DynamoDB as our datastore. (If the events need ordering, consider SQS FIFO).

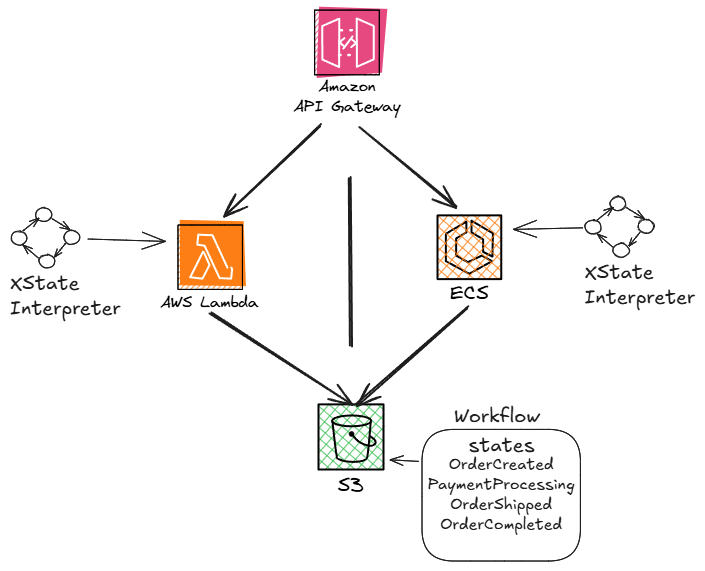

Simplified diagram using excalidraw

Define the Machine:

const orderMachine = {
  id: 'order-processing',
  initial: 'OrderCreated',
  states: {
    OrderCreated: {
      on: { PaymentReceived: 'PaymentProcessing' }
    },
    PaymentProcessing: {
      on: { PaymentProcessed: 'OrderShipped' }
    },
    OrderShipped: {
      on: { Delivered: 'OrderCompleted' }
    },
    OrderCompleted: {
      type: 'final'
    }
  }
};

Pattern 1: XState With AWS Lambda

1. Lambda Handler

const { createMachine, interpret } = require('xstate');

exports.handler = async (event) => {
  const machine = createMachine(orderMachine).withContext({
    orderId: event.orderId,
    paymentStatus: event.paymentStatus,
  });

  const service = interpret(machine).start();

  service.send(event.type); // e.g. 'PaymentReceived'

  const nextState = service.state;

  console.log(`Order ${event.orderId} transitioned to ${nextState.value}`);

// Best practice to stop the machine to avoid any memory leak
  service.stop();

  return {
    statusCode: 200,
    body: JSON.stringify({ newState: nextState.value })
  };
};

2. Post Effects (e.g. DynamoDB Updates)

Add actions or post-transition logic to update state in your database:

await updateOrderInDynamoDB(event.orderId, nextState.value);

This works well for short-lived logic where each Lambda execution represents a single transition.

Pattern 2: XState With Amazon ECS

For long-running workflows or scenarios where Lambda’s timeout and cold start issues become limiting, Amazon ECS (Fargate or EC2-backed) is a strong alternative. ECS tasks can run XState interpreters as long-lived services, which makes them well-suited for:

• Stateful workflow runners
• Orchestration engines
• Services waiting on external signals/events

1. Running the Same Machine in ECS

You can reuse the same XState definition from the Lambda section. The difference lies in how you manage lifecycle and communication. Here's an approach

const express = require('express');
const { createMachine, interpret } = require('xstate');

const app = express();
app.use(express.json());

const machine = createMachine(orderMachine);
const service = interpret(machine).start();

app.post('/event', (req, res) => {
  const event = req.body;
  service.send(event.type);
  res.json({ newState: service.state.value });
});

app.listen(3000, () => {
  console.log('XState workflow service running on ECS');
});

You can deploy this as a containerized app to ECS (with Fargate or EC2) and expose it via an Application Load Balancer or an internal network.

2. State Persistence

In ECS, because your service is long-lived, you might want to:

• Persist workflow state (e.g., DynamoDB in this case)
• Implement a resume/replay mechanism
• Add durability for restarts (e.g., using checkpoints, this is critical so you do not lose data)

You can hydrate machine state using

createMachine(config).resolveState(serializedState);

Performance Testing XState on Lambda vs ECS

To better understand how XState performs in different compute environments, I ran a set of benchmarks simulating the workflow we have with 4 state transitions, including DynamoDB interactions. Performance testing done using jmeter sending requests to API gateway endpoint that has connections to Lambda & ECS.

Workflow steps: Simulated order lifecycle

             OrderCreated -> PaymentProcessing -> OrderShipped -> OrderCompleted

State Machine: XState interpreter initialized per request for Lambda (to calculate cold starts), vs long-lived (ECS)

Infrastructure:

• Lambda: 1GB memory configs, cold and warm starts tested
• ECS: Used fargate with 0.5 vCPU / 1GB memory, container kept warm with ALB health checks
• Region: us-east-1

Performance Results:

• You need to keep interpreter alive across multiple events
• You need complex state recovery or long-running workflows

My Conclusion

XState brings a formal model to backend engineering. Abstracting workflows into state machine will help developers gain clarity, testability and extensibility.

Whether you’re deploying functions to Lambda or spinning up services in ECS, XState can serve as the brain of your backend workflows. If you’ve been manually stringing together state logic (if/else logic), it might be time to give state charts a serious look.

One more thing—there are other orchestration engines out there like Temporal and Restate that offer durable execution out of the box. The difference is, XState is just a library. It handles state transitions and you rely on AWS or your cloud setup to manage durability, retries and infrastructure. That tradeoff gives you more flexibility but also means more responsibility. Good luck!
