Memory Optimization and Utilization in Java 25 LTS: Practical Best Practices

Memory tuning in Java has evolved over years and whenever each version was released, we anticipate some magic. If you worked with Java 6 or 7, you probably remember spending hours tweaking PermGen, experimenting with CMS flags, and nervously watching GC logs in production. But with Java 25, Memory Optimization and Utilization are more mature.

Modern Java gives us better garbage collectors, improved container awareness, stronger tooling, and smarter runtime ergonomics. But despite all that progress, memory optimization is something that you can't ignore. In a cloud-native environment where every gigabyte costs money, memory efficiency directly affects both performance and money spent on infrastructure as well.

In this article I am trying to summarize some of the best practices for memory utilization, so developers can use it as a reference guide.

1. Start with Measurement, Not Assumptions

The most common mistake that we could usually see is increasing heap size without understanding allocation patterns. A bigger heap often delays a problem rather than solving it.

Modern Java includes powerful built-in diagnostics: Unified GC logging (-Xlog:gc), Java Flight Recorder (JFR) and JDK Mission Control.

Start by enabling GC logs:

java -Xlog:gc*,safepoint:file=gc.log:time,level,tags -jar app.jar

Then capture allocation behavior using JFR:

java -XX:StartFlightRecording=filename=memory.jfr,duration=2m -jar app.jar

Memory optimization without profiling is guesswork, so Measure first.

2. Choose the Right Garbage Collector

The latest Java continues to refine modern garbage collectors. Garbage First (G1) collector remains the default and works well for most of the workloads. But depending on your latency requirements, you may want to consider other alternatives as well.

Garbage First Garbage Collector (G1GC)

This is balanced, stable and good for most microservices and backend APIs.

Z Garbage Collector (ZGC)

This is designed for ultra-low pause times, especially with large heaps. Modern versions include generational support and improving efficiency for allocation-heavy workloads.

Enable ZGC:

java -XX:+UseZGC -jar app.jar

3. Reduce Allocation Pressure in Hot Paths

Garbage collectors work well until allocation rates become extreme.

In high-throughput systems, unnecessary object creation increases GC frequency and CPU usage.

Avoid excessive temporary objects :

Instead of:

for (Order order : orders) {
    String message = "Order ID: " + order.getId();
    process(message);
}

Use:

StringBuilder sb = new StringBuilder(64);
for (Order order : orders) {
    sb.setLength(0);
    sb.append("Order ID: ").append(order.getId());
    process(sb.toString());
}

Reuse expensive objects

Objects like DateTimeFormatter, ObjectMapper, or Pattern should be created once:

private static final DateTimeFormatter FORMATTER =
    DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss");

public static String format(Instant instant) {
    return FORMATTER.format(instant.atZone(ZoneId.of("UTC")));
}

4. Be Intentional About Caching

Caching improves the performance of the application but it can silently destroy memory efficiency.

Common mistakes are unbounded caches, large object graphs cached indefinitely and No eviction strategy

Example using Caffeine:

LoadingCache<String, User> cache = Caffeine.newBuilder()
                                       .maximumSize(100_000)
                                       .expireAfterWrite(Duration.ofMinutes(15))
                                       .build(this::loadUser);

Bounded caches prevent heap growth from becoming unpredictable.

Also monitor cache hit rate. A low hit rate with high memory usage is a wasted heap.

5. Understand Heap vs Non-Heap Memory

Heap is not the only memory consumer. Modern Java applications also use: Metaspace, Thread stacks, Direct (off-heap) buffers, Native memory (JNI, libraries)

In containerized environments, failing to account for non-heap memory can cause Out of Memory killed events even when heap usage looks safe.

Best practice in containers:

java -XX:MaxRAMPercentage=60 -XX:InitialRAMPercentage=30 -jar app.jar

This leaves headroom for non-heap memory.

Always monitor: RSS (Resident Set Size), Heap usage and Direct buffer allocation

6. Watch for Retention Leaks

Unlike traditional memory leaks, modern memory leaks occur when objects remain unintentionally referenced.

Common sources: Static collections, Listener registries, ThreadLocal misuse and Executor queues

Example ThreadLocal cleanup:

private static final ThreadLocal<byte[]> BUFFER =
    ThreadLocal.withInitial(() -> new byte[1024 * 1024]);

public void handle() {
    try {
        byte[] data = BUFFER.get();
        // process
    } finally {
        BUFFER.remove();
    }
}

Failure to remove ThreadLocal values in pooled threads can cause long-term retention.

Heap dump analysis with JFR or external tools helps detect these patterns early.

7. Optimize Data Structures

Small structural choices can impact memory footprint.

Prefer primitives when possible

int[] values = new int[1_000_000];

Instead of:

List<Integer> values = new ArrayList<>();

Boxed types consume more memory due to object overhead.

8. Avoid Oversizing the Heap

Bigger heaps can also increase Garbage Collection pause durations and hide memory issues.

Right-sizing is key: Size heap based on live set + safety margin, monitor GC pause time distribution and watch allocation rate trends.

9. Upgrade Regularly

Recent Java releases include continuous GC, runtime, and JIT improvements. Staying on the current version often gives memory and performance gains without code changes.

Modern Java versions improve GC pause predictability, Container memory detection, JFR diagnostics and Generational behavior in low-latency collectors

Upgrading is often the easiest optimization you can make.

Final Thoughts

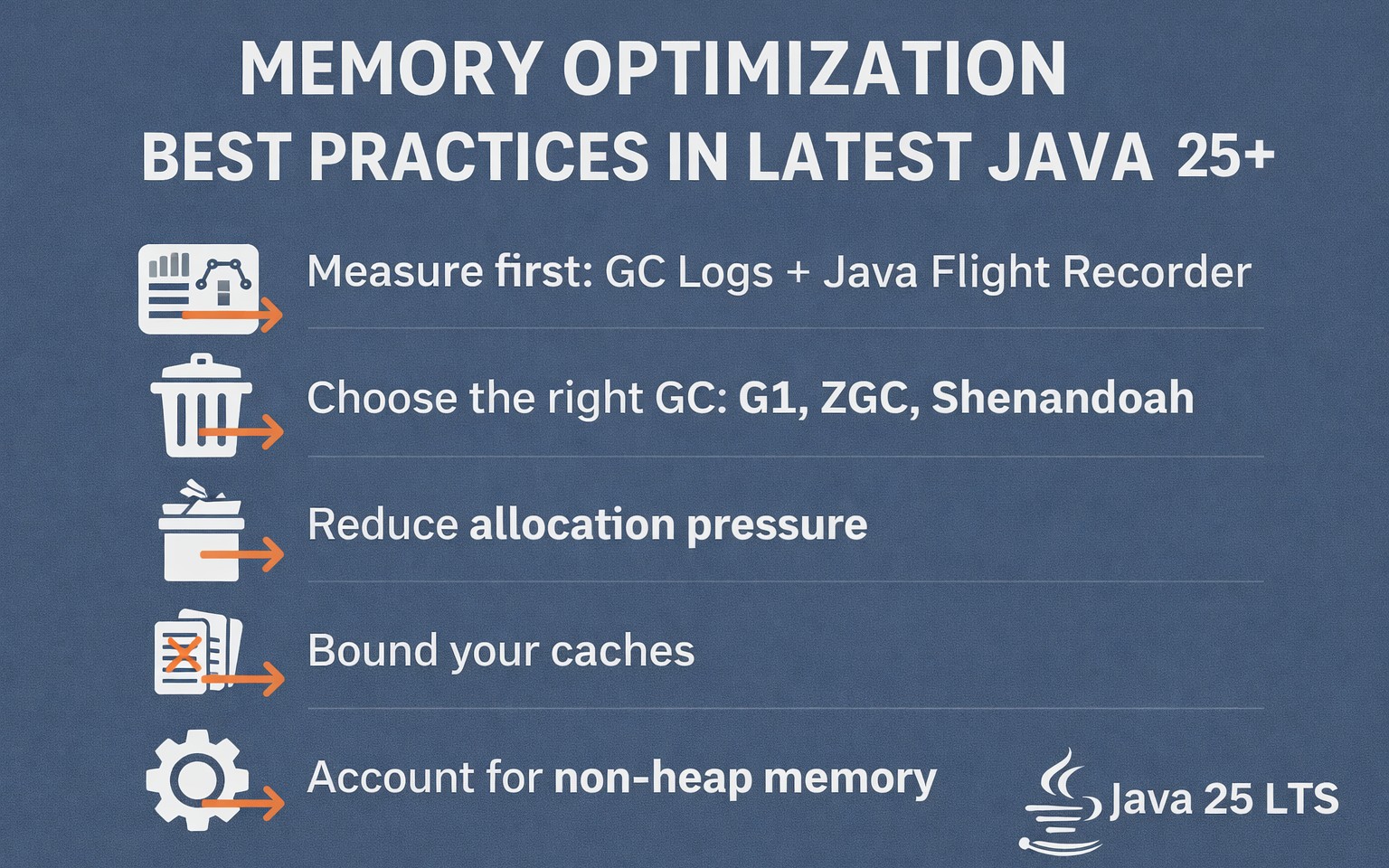

Memory optimization in modern Java is no longer about memorizing obscure JVM flags. It’s about understanding allocation patterns, choosing the right Garbage collection, bounding memory growth and continuously measuring behavior under realistic load.

The most effective approach is simple:

1. Measure allocation and retention
2. Reduce unnecessary object creation
3. Bound caches
4. Choose the GC that aligns with your latency goals
5. Right-size the heap with container awareness
6. Upgrade to benefit from JVM improvements

Modern Java gives you powerful tools. When used intentionally, they make memory tuning predictable instead of stressful.
