The Quickest Way to Create an Android QR Code Scanner

Learn the quickest way to create an Android QR code scanner. See a step-by-step implementation camera preview, as well as how to integrate QR code scanning SDK.

By
Xiao Ling
·
Jan. 08, 22 · Tutorial
Post on X (opens in a new tab) Share on LinkedIn (opens in a new tab)
5.3K Views

Join the DZone community Save articles, join the discussion, and download Refcards and Trend Reports with a free account.

Join for free Already a member? Log in

A QR code scanner application primarily consists of two parts: camera preview and QR code scanning. There are many Android QR code scanner apps downloadable in the Google Play Store. However, it is more interesting to create a QR code scanner by yourself than to use an existing one. This article aims to reveal the quickest way to create an Android QR code scanner. You will see how to step by step implement camera preview, as well as how to integrate QR code scanning SDK.

Prerequisites

The following Android libraries are required in order to implement the QR code scanner. You can feel free to replace them with your own libraries.

  • Camera Preview SDK
  • CameraX

Since Android Camera2 API is extremely complicated for beginners, Google released CameraX to simplify camera app development. The codelab tutorial is a good starting point to learn CameraX.

Installation

In AndroidManifest.xml, add the camera permission:

XML

<uses-feature android:name="android.hardware.camera.any" />

        <uses-permission android:name="android.permission.CAMERA" />

In app/build.gradle, add the dependency:

Groovy

dependencies {

            ...

            def camerax_version = "1.0.1"

            implementation "androidx.camera:camera-camera2:$camerax_version"

            implementation "androidx.camera:camera-lifecycle:$camerax_version"

            implementation "androidx.camera:camera-view:1.0.0-alpha27"

        }

Dynamsoft Camera Enhancer

Similar to CameraX, [Dynamsoft Camera Enhancer](https://www.dynamsoft.com/camera-enhancer/docs/introduction/) is also a wrapper for Android Camera2 API. In addition to basic camera capabilities, it features frame filtering for better image quality. We use Dynamsoft Camera Enhancer to make a comparison with CameraX.

Installation

In "settings.gradle", add the custom Maven repository:

Groovy

dependencyResolutionManagement {

            repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)

            repositories {

                ...

                maven{url "https://download.dynamsoft.com/maven/dce/aar"}

            }

        }

In app/build.gradle, add the dependency:

Groovy

dependencies {

            ...

            implementation 'com.dynamsoft:dynamsoftcameraenhancer:2.1.0@aar'

        }
  • QR Code Scanning SDK

Dynamsoft Barcode Reader:

A barcode SDK that supports all mainstream linear barcode and 2D barcode formats.

Installation

In settings.gradle, add the custom Maven repository:

Groovy

dependencyResolutionManagement {

            repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)

            repositories {

                ...

                maven{url "https://download.dynamsoft.com/maven/dbr/aar"}

            }

        }

In app/build.gradle, add the dependency:

Groovy

dependencies {

            ...

            implementation 'com.dynamsoft:dynamsoftbarcodereader:8.9.0@aar'

        }

You also need a license key to activate the barcode SDK.

Creating Android Camera Preview Within 5 Minutes

Three Steps To Implement Camera Preview With CameraX

The official CameraX tutorial is written in Kotlin. Here we use Java.

  1. Create the UI layout which contains the CameraX preview view:
XML

<?xml version="1.0" encoding="utf-8"?>

    <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"

        xmlns:app="http://schemas.android.com/apk/res-auto"

        xmlns:tools="http://schemas.android.com/tools"

        android:layout_width="match_parent"

        android:layout_height="match_parent"

        tools:context=".CameraXActivity">



        <androidx.camera.view.PreviewView

            android:id="@+id/camerax_viewFinder"

            android:layout_width="match_parent"

            android:layout_height="match_parent" />



    </androidx.constraintlayout.widget.ConstraintLayout>

2.  Check and request camera permissions:

Java

  @Override

    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.camerax_main);

        previewView = findViewById(R.id.camerax_viewFinder);



        if (!CameraUtils.allPermissionsGranted(this)) {

            CameraUtils.getRuntimePermissions(this);

        } else {

            startCamera();

        }

    }



    private static String[] getRequiredPermissions(Context context) {

        try {

            PackageInfo info =

                    context.getPackageManager()

                            .getPackageInfo(context.getPackageName(), PackageManager.GET_PERMISSIONS);

            String[] ps = info.requestedPermissions;

            if (ps != null && ps.length > 0) {

                return ps;

            } else {

                return new String[0];

            }

        } catch (Exception e) {

            return new String[0];

        }

    }



    public static boolean allPermissionsGranted(Context context) {

        for (String permission : getRequiredPermissions(context)) {

            if (!isPermissionGranted(context, permission)) {

                return false;

            }

        }

        return true;

    }



    public static void getRuntimePermissions(Activity activity) {

        List<String> allNeededPermissions = new ArrayList<>();

        for (String permission : getRequiredPermissions(activity)) {

            if (!isPermissionGranted(activity, permission)) {

                allNeededPermissions.add(permission);

            }

        }



        if (!allNeededPermissions.isEmpty()) {

            ActivityCompat.requestPermissions(

                    activity, allNeededPermissions.toArray(new String[0]), PERMISSION_REQUESTS);

        }

    }



    private static boolean isPermissionGranted(Context context, String permission) {

        if (ContextCompat.checkSelfPermission(context, permission)

                == PackageManager.PERMISSION_GRANTED) {

            Log.i(TAG, "Permission granted: " + permission);

            return true;

        }

        Log.i(TAG, "Permission NOT granted: " + permission);

        return false;

    }

3.  Start the camera preview:

Java

 private void startCamera() {

        ListenableFuture<ProcessCameraProvider> cameraProviderFuture =

                ProcessCameraProvider.getInstance(getApplication());

        cameraProviderFuture.addListener(

                () -> {

                    try {

                        ProcessCameraProvider cameraProvider = cameraProviderFuture.get();



                        Preview.Builder builder = new Preview.Builder();

                        Preview previewUseCase = builder.build();

                        previewUseCase.setSurfaceProvider(previewView.getSurfaceProvider());

                        CameraSelector cameraSelector = CameraSelector.DEFAULT_BACK_CAMERA;

                        cameraProvider.unbindAll();

                        cameraProvider.bindToLifecycle(this, cameraSelector, previewUseCase);

                    } catch (ExecutionException | InterruptedException e) {

                        Log.e(TAG, "Unhandled exception", e);

                    }

                },

                ContextCompat.getMainExecutor(getApplication()));

    }

Two Steps To Implement Camera Preview With Dynamsoft Camera Enhancer

Using Dynamsoft Camera Enhancer, you can write less code than using CameraX to implement the same functionality.

  1. Create the UI layout which contains the DCE preview view:
XML

<?xml version="1.0" encoding="utf-8"?>

    <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"

        xmlns:app="http://schemas.android.com/apk/res-auto"

        xmlns:tools="http://schemas.android.com/tools"

        android:layout_width="match_parent"

        android:layout_height="match_parent"

        tools:context=".CameraXActivity">



        <com.dynamsoft.dce.DCECameraView

            android:id="@+id/dce_viewFinder"

            android:layout_width="match_parent"

            android:layout_height="match_parent" />



    </androidx.constraintlayout.widget.ConstraintLayout>

2.  Start the camera preview:

Java

@Override

    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.dce_main);

        previewView = findViewById(R.id.dce_viewFinder);



        cameraEnhancer = new CameraEnhancer(this);

        cameraEnhancer.setCameraView(previewView);

        cameraEnhancer.addListener(this);

    }



    @Override

    protected void onResume() {

        super.onResume();

        try {

            cameraEnhancer.open();

        } catch (CameraEnhancerException e) {

            e.printStackTrace();

        }

    }



    @Override

    protected void onPause() {

        super.onPause();

        try {

            cameraEnhancer.close();

        } catch (CameraEnhancerException e) {

            e.printStackTrace();

        }

    }

All in One

We create an entry activity to launch the CameraX and Dynamsoft Camera Enhancer respectively:

Java

package com.example.qrcodescanner;



import android.content.Intent;

import android.os.Bundle;

import android.view.View;



import androidx.appcompat.app.AppCompatActivity;



public class EntryChoiceActivity extends AppCompatActivity {

    @Override

    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.entry_choice);



        findViewById(R.id.camerax_entry_point).setOnClickListener(new View.OnClickListener() {

            @Override

            public void onClick(View v) {

                Intent intent = new Intent(EntryChoiceActivity.this, CameraXActivity.class);

                startActivity(intent);

            }

        });



        findViewById(R.id.dce_entry_point).setOnClickListener(new View.OnClickListener() {

            @Override

            public void onClick(View v) {

                Intent intent = new Intent(EntryChoiceActivity.this, DceActivity.class);

                startActivity(intent);

            }

        });

    }

}

Turning Android Camera Into QR Code Scanner

To scan QR codes, we need to continuously get the camera preview frames and pass the frames to the QR code detector.

How To Set the Camera Frame Callback

When using CameraX, we can use the "ImageAnalysis" class to receive the camera frames:

Java

ImageAnalysis analysisUseCase = new ImageAnalysis.Builder().build();

analysisUseCase.setAnalyzer(cameraExecutor,

        imageProxy -> {

            // image processing

            // Must call close to keep receiving frames.

            imageProxy.close();

        });

cameraProvider.bindToLifecycle(this, cameraSelector, previewUseCase, analysisUseCase);

In contrast, Dynamsoft Camera Enhancer is much easier. The callback function looks like the one used in Android Camera1:

Java

public class DceActivity extends AppCompatActivity implements DCEFrameListener {

    @Override

    public void frameOutputCallback(DCEFrame dceFrame, long l) {

        // image processing

    }

}

The data types returned by their callback functions are different. Data type conversion is required for later use.

Decoding QR Code

With CameraX, we firstly convert "ByteBuffer" to "byte[]" and then call the "decodeBuffer()" method:

Java

analysisUseCase.setAnalyzer(cameraExecutor,

imageProxy -> {

    TextResult[] results = null;

    ByteBuffer buffer = imageProxy.getPlanes()[0].getBuffer();

    int nRowStride = imageProxy.getPlanes()[0].getRowStride();

    int nPixelStride = imageProxy.getPlanes()[0].getPixelStride();

    int length = buffer.remaining();

    byte[] bytes = new byte[length];

    buffer.get(bytes);

    try {

        results = reader.decodeBuffer(bytes, imageProxy.getWidth(), imageProxy.getHeight(), nRowStride * nPixelStride, EnumImagePixelFormat.IPF_NV21, "");

    } catch (BarcodeReaderException e) {

        e.printStackTrace();

    }



    // Must call close to keep receiving frames.

    imageProxy.close();

});

Whereas with Dynamsoft Camera Enhancer, we get Bitmap from the DCEFrame and then call the decodeBufferedImage() method:

Java

public void frameOutputCallback(DCEFrame dceFrame, long l) {

    TextResult[] results = null;

    try {

        results = reader.decodeBufferedImage(dceFrame.toBitmap(), "");

    } catch (BarcodeReaderException e) {

        e.printStackTrace();

    }

}

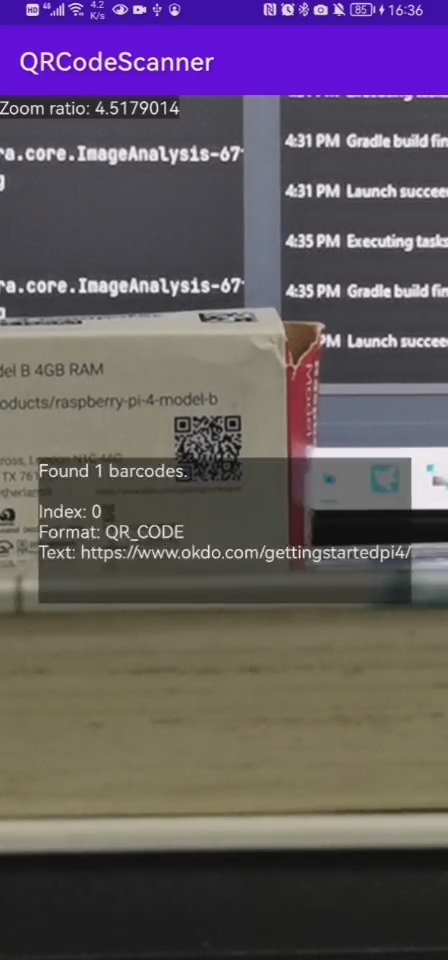

Android QR code scanner

Using Zoom and Torch To Boost the Frame Quality

The recognition accuracy is always affected by the input image quality. If the QR code is too small, we can zoom in on the camera to scale up the image. If the input image is too dark, we can turn on the torch to brighten the image. Both CameraX and Dynamsoft Camera Enhancer have completely supported the camera control.

Android Camera Zoom

We use the finger pinch gesture to trigger the zoom. Thus, the first step is to create the gesture detector and take over the "onTouchEvent()" method:

Java

public class ZoomController {

    public final static String TAG = "ZoomController";

    private float currentFactor = 1.0f;

    private float minZoomRatio = 1.0f, maxZoomRatio = 1.0f;

    private ZoomStatus zoomStatus;

    private ScaleGestureDetector scaleGestureDetector;

    private ScaleGestureDetector.OnScaleGestureListener scaleGestureListener = new ScaleGestureDetector.OnScaleGestureListener() {

        @Override

        public boolean onScale(ScaleGestureDetector detector) {

            Log.i(TAG, "onScale: " + detector.getScaleFactor());

            currentFactor = detector.getScaleFactor() * currentFactor;

            if (currentFactor < minZoomRatio) currentFactor = minZoomRatio;

            if (currentFactor > maxZoomRatio) currentFactor = maxZoomRatio;



            if (zoomStatus != null) {

                zoomStatus.onZoomChange(currentFactor);

            }



            return true;

        }



        @Override

        public boolean onScaleBegin(ScaleGestureDetector detector) {

            return true;

        }



        @Override

        public void onScaleEnd(ScaleGestureDetector detector) {

        }

    };



    public ZoomController(Activity activity) {

        scaleGestureDetector = new ScaleGestureDetector(activity, scaleGestureListener);

    }



    public interface ZoomStatus {

        void onZoomChange(float ratio);

    }



    public void addListener(ZoomStatus zoomStatus) {

        this.zoomStatus = zoomStatus;

    }



    public void initZoomRatio(float minZoomRatio, float maxZoomRatio) {

        this.minZoomRatio = minZoomRatio;

        this.maxZoomRatio = maxZoomRatio;

    }



    public boolean onTouchEvent(MotionEvent event) {

        return scaleGestureDetector.onTouchEvent(event);

    }

}



@Override

public boolean onTouchEvent(MotionEvent event) {

    zoomController.onTouchEvent(event);

    return super.onTouchEvent(event);

}

As the gesture is detected, we get the scale factor and take it as the zoom ratio.

Set Camera Zoom Ratio With CameraX

Java

if (camera != null) {

    camera.getCameraControl().setZoomRatio(ratio);

}

Set Camera Zoom Ratio With Dynamsoft Camera Enhancer

Java

try {

    cameraEnhancer.setZoom(ratio);

} catch (CameraEnhancerException e) {

    e.printStackTrace();

}

Android Camera Torch

To turn on the torch automatically, we monitor the light value returned by the light sensor.

Java

public class AutoTorchController implements SensorEventListener {

    public final static String TAG = "AutoTorchController";

    private SensorManager sensorManager;

    private TorchStatus torchStatus;



    public interface TorchStatus {

        void onTorchChange(boolean status);

    }



    public AutoTorchController(Activity activity) {

        sensorManager = (SensorManager)activity.getSystemService(SENSOR_SERVICE);

    }



    public void onStart() {

        Sensor lightSensor = sensorManager.getDefaultSensor(Sensor.TYPE_LIGHT);

        if(lightSensor != null){

            sensorManager.registerListener(

                    this,

                    lightSensor,

                    SensorManager.SENSOR_DELAY_NORMAL);



        }

    }



    public void onStop() {

        sensorManager.unregisterListener(this);

    }



    @Override

    public void onSensorChanged(SensorEvent event) {

        if(event.sensor.getType() == Sensor.TYPE_LIGHT){

            if (event.values[0] < 20) {

                if (torchStatus != null) torchStatus.onTorchChange(true);

            }

            else {

                if (torchStatus != null) torchStatus.onTorchChange(false);

            }

        }

    }



    @Override

    public void onAccuracyChanged(Sensor sensor, int accuracy) {

    }



    public void addListener(TorchStatus torchStatus) {

        this.torchStatus = torchStatus;

    }

}

Toggle Camera Torch With CameraX

Java

if (camera != null) camera.getCameraControl().enableTorch(status);

Toggle Camera Torch With Dynamsoft Camera Enhancer

Java

if (status) {

    try {

        cameraEnhancer.turnOnTorch();

    } catch (CameraEnhancerException e) {

        e.printStackTrace();

    }

}

else {

    try {

        cameraEnhancer.turnOffTorch();

    } catch (CameraEnhancerException e) {

        e.printStackTrace();

    }

}

Source Code

https://github.com/yushulx/android-camera2-preview-qr-code-scanner

QR code Android (robot) Java (programming language)

Published at DZone with permission of Xiao Ling. See the original article here.

Opinions expressed by DZone contributors are their own.

Related

  • Diving into JNI: My Messy Adventures With C++ in Android
  • Cordova: Communicating Between JavaScript and Java
  • Is Java Still Relevant?
  • Using Barcodes in iText 7

Partner Resources

×

Comments

Loading comments

The comments didn't load

Please try again in a moment.

Likes

Loading

The next likes didn't load. Please try again.

The likes didn't load

Please try again in a moment.

See who liked this

Log in or join DZone for free to see who liked this article.

Log in Join for free
  • RSS
  • X
  • Facebook

ABOUT US

  • About DZone
  • Support and feedback
  • Community research

ADVERTISE

  • Advertise with DZone

CONTRIBUTE ON DZONE

  • Article Submission Guidelines
  • Become a Contributor
  • Core Program
  • Visit the Writers' Zone

LEGAL

  • Terms of Service
  • Privacy Policy

CONTACT US

  • 3343 Perimeter Hill Drive
  • Suite 215
  • Nashville, TN 37211
  • [email protected]

Let's be friends:

  • RSS
  • X
  • Facebook
