Understanding MQTT Topics and Wildcards by Case

This article introduces MQTT topics and wildcards by cases and answers common questions that might come up during implementation.

By
Weihong Zhang user avatar
Weihong Zhang
·
Oct. 22, 22 · Opinion
Likes (1)
Comment
Save
Tweet
Share
6.5K Views

Join the DZone community and get the full member experience.

Join For Free

An MQTT topic is a UTF-8 encoded string that is the basis for message routing in the MQTT protocol. A topic is typically leveled and separated with a slash / between the levels. This is similar to URL paths, for example:

Plain Text

chat/room/1
sensor/10/temperature
sensor/+/temperature
sensor/#

In comparison to topics in other messaging systems, for example, Kafka and Pulsar, MQTT topics are not to be created in advance. The client creates the topic when subscribing or publishing, and does not need to delete the topic.

Although allowed, it is usually not recommended to use topics that begin or end with /, such as /chat or chat/.

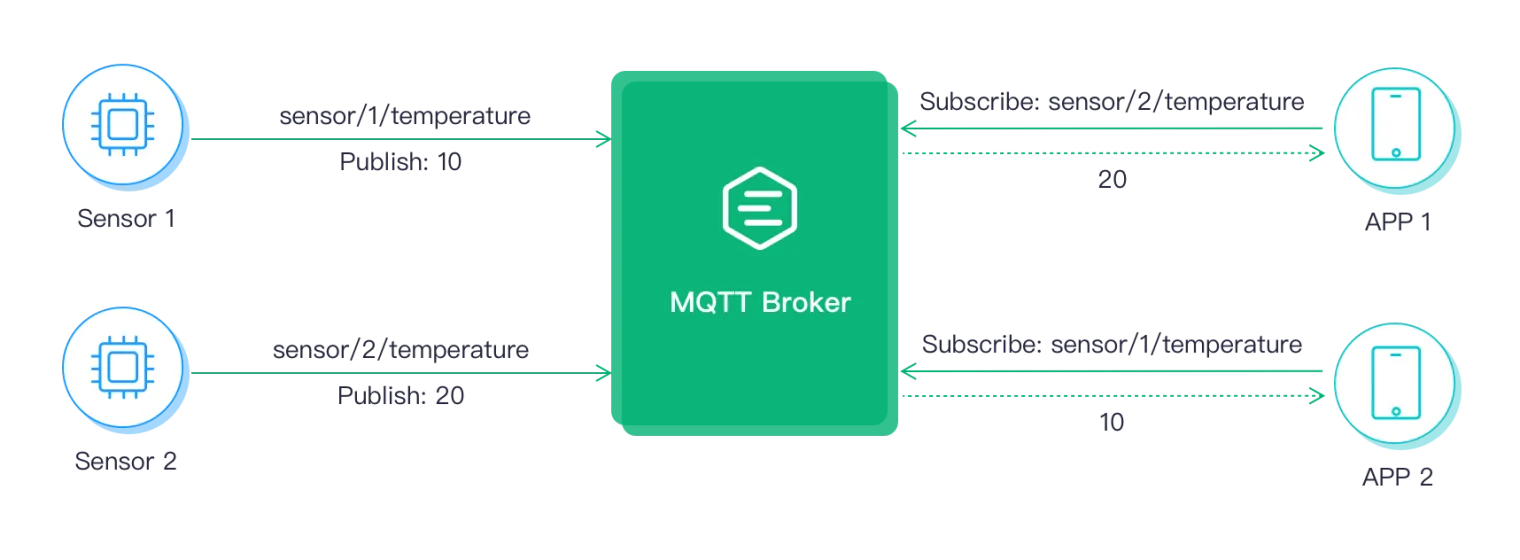

The following is a simple MQTT publish and subscribe flow. If APP 1 subscribes to the sensor/2/temperature topic, it will receive messages from Sensor 2 publishing to this topic.

MQTT Publish Subscribe

MQTT Wildcards

Single-Level Wildcard

+ (U+002B) is a wildcard character that matches only one topic level. When using a single-level wildcard, the single-level wildcard must occupy an entire level, for example:

Plain Text

"+" is valid
"sensor/+" is valid
"sensor/+/temperature" is valid
"sensor+" is invalid (does not occupy an entire level)


If the client subscribes to the topic sensor/+/temperature, it will receive messages from the following topics:

Plain Text

sensor/1/temperature
sensor/2/temperature
...
sensor/n/temperature


But it will not match the following topics:

Plain Text

sensor/temperature
sensor/bedroom/1/temperature


Multi-Level Wildcard

# (U+0023) is a wildcard character that matches any number of levels within a topic. When using a multi-level wildcard, it must occupy an entire level and must be the last character of the topic, for example:

Plain Text

"#" is valid, matches all topics
"sensor/#" is valid
"sensor/bedroom#" is invalid (+ or # are only used as a wildcard level)
"sensor/#/temperature" is invalid (# must be the last level)


Topics Beginning With $

System Topics

The topics starting with $SYS/ are system topics mainly used to get metadata about the MQTT broker's running status, statistics, client online/offline events, etc. $SYS/ topic is not defined in MQTT specification, however, most MQTT brokers follow this recommendation.

For example, the EMQX supports getting cluster status through the following topics.

Topic Description
$SYS/brokers EMQX cluster node list
$SYS/brokers/${node}/version EMQX Broker version
$SYS/brokers/${node}/uptime EMQX Broker startup time
$SYS/brokers/${node}/datetime EMQX Broker time
$SYS/brokers/${node}/sysdescr EMQX Broker description

EMQX also supports rich system topics such as client online/offline events, statistics, system monitoring and alarms. For more details, please see the EMQX System Topics documentation.

Shared Subscriptions

Shared subscriptions are a feature of MQTT 5.0, a subscription method that achieves load balancing among multiple subscribers. The topic of a shared subscription starts with $share.

Although the MQTT protocol added shared subscriptions in 5.0, EMQX has supported shared subscriptions since MQTT 3.1.1.

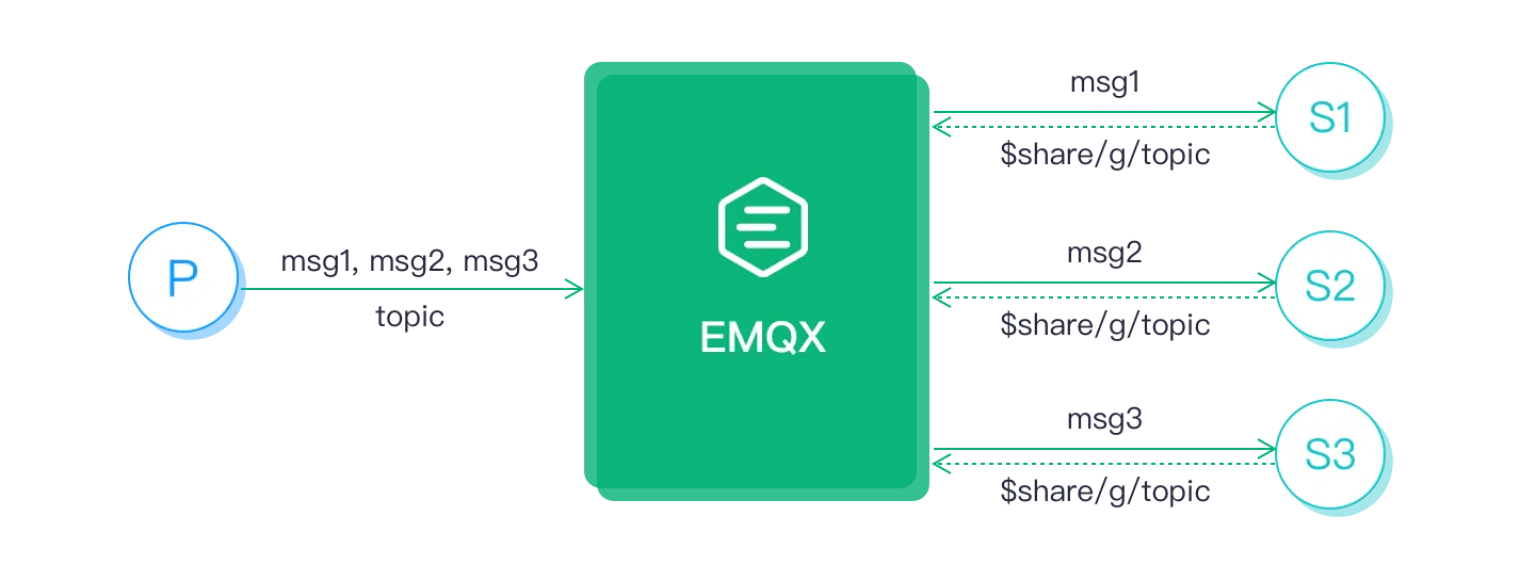

In the following diagram, three subscribers subscribe to the same topic $share/g/topic using a shared subscription method, where the topic is the real topic name they subscribe to, and the publishers publish messages to the topic, but NOT to $share/g/topic.

MQTT Shared Subscriptions



In addition, EMQX also supports the use of the shared subscription prefix $queue in MQTT 3.1.1. It is a special case of a shared subscription, which is equivalent to having all subscribers in one group.

For more details about shared subscriptions, please refer to EMQX Shared Subscriptions documentation.

Topics in Different Scenarios

Smart Home

For example, we use sensors to monitor the temperature, humidity and air quality of bedrooms, living rooms and kitchens. We can design the following topics:

We can design the following topics:

  • myhome/bedroom/temperature
  • myhome/bedroom/humidity
  • myhome/bedroom/airquality
  • myhome/livingroom/temperature
  • myhome/livingroom/humidity
  • myhome/livingroom/airquality
  • myhome/kitchen/temperature
  • myhome/kitchen/humidity
  • myhome/kitchen/airquality

Next, you can subscribe to the myhome/bedroom/+ topic to get temperature, humidity and air quality data for the bedroom, the myhome/+/temperature topic to get temperature data for all three rooms, and the myhome/# topic to get all the data.

Charging Piles

  • ocpp/cp/cp001/notify/bootNotification

    Publish an online request to this topic when the charging pile is online.

  • ocpp/cp/cp001/notify/startTransaction

    Publish a charging request to this topic.

  • ocpp/cp/cp001/reply/bootNotification

    Before the charging pile goes online, it needs to subscribe to this topic to receive the online response.

  • ocpp/cp/cp001/reply/startTransaction

    Before the charging pile initiates the charging request, it needs to subscribe to this topic to receive the charging request response.

Instant Messaging

  • chat/user/${user_id}/inbox

    One-to-one chat: Users subscribe to this topic after they are online and will receive messages from their friends. When replying to a friend, just replace the user_id of the topic with the friend's id.

  • chat/group/${group_id}/inbox

    Group chat: After the user successfully joins a group, they can subscribe to the topic to get the group's messages.

  • req/user/${user_id}/add

    Add a friend: Publish a friend request to this topic (user_id is the friend's id).

    Receive friend requests: Subscribe to this topic (user_id is the subscriber's id) to receive friend requests from other users.

  • resp/user/${user_id}/add

    Receive replies to friend requests: Before adding friends, the user needs to subscribe to this topic (user_id is the subscriber's id) to receive the request results.

    Reply to friend request: Send a message to this topic (user_id is the friend's id) about whether or not to approve the friend request.

  • user/${user_id}/state

    User Status: Subscribe to this topic to get your friends' online status.

MQTT Topics FAQ

What Is the Maximum Level and Length of an MQTT topic?

MQTT topic is UTF-8 encoded strings, and it MUST NOT be more than 65535 bytes. However in practice, using shorter length topic names and fewer levels means less resource consumption.

Try not to use more topic levels “just because I can”. For example, my-home/room1/data is a better choice than my/home/room1/data.

Is There a Limit to the Number of Topics?

Different message servers have different limits on the number of topics. Currently, the default configuration of EMQX has no limit on the number of topics, but the more topics, the more server memory will be used.

Given the large number of devices connected to the MQTT Broker, we recommend that a client subscribes to no more than ten topics.

Do Wildcard Subscriptions Degrade Performance?

When routing messages to wildcard subscriptions, the broker may require more resources than non-wildcard topics. It is a wise choice if the wildcard subscription can be avoided.

This very much depends on how the data schema is modeled for the MQTT message payload.

For example, if a publisher publishes to device-id/stream1/foo and device-id/stream1/bar and the subscriber needs to subscribe to both, then it may subscribe device-id/stream1/#. A better alternative is perhaps to push the foo and bar part of the namespace down to the payload, so it publishes to only one topic device-id/stream1, and the subscriber just subscribes to this one topic.

Can I Subscribe to the Same Topic With a Shared Subscription and a Normal Subscription?

Yes, but it is not recommended.

Per the MQTT specification, multiple subscriptions will result in multiple (duplicated) message deliveries.

What Are the Best Practices for MQTT Topics?

  • Do not use # to subscribe to all topics.
  • The topic should not start or end with /, such as /chat or chat/.
  • Do not use spaces and non-ASCII characters in the topic.
  • Use _ or - to connect words (or camel case) within a topic level.
  • Try to use fewer topic levels.
  • Try to model the message data schema in favor to avoid using wildcard topics.
  • When wildcard is in use, try to move the more unique topic level closer to root. e.g. device/00000001/command/# is a better choice than device/command/00000001/#.
