How LLMs Reach 1 Million Token Context Windows — Context Parallelism and Ring Attention

Context Length and Hardware Scalability

Context windows have exploded from 4k tokens to 10 million in just a few years. Meta's Llama 4 Scout supports 10M tokens — 78x more than Llama 3's 128k. Google's Gemini 3 Pro handles 1M tokens, while Claude 4 offers 1M in beta.

This enables processing entire codebases, hundreds of research papers, or multi-day conversation histories in a single pass. But there's a problem: context length has outpaced hardware capacity.

Training a 405B parameter model requires approximately 6.5TB of memory at 32-bit precision. Add gradients, optimizer states, and activations — which scale quadratically with context length — and even a single NVIDIA HGX B300 with 2.3TB of HBM3e per system falls short.

The math:

• Model parameters: ~2GB per billion parameters
• Gradients: match parameter size
• Optimizer states: 2-3x parameter size
• Activations: scale with context length (quadratic for attention)

This forces multi-node distribution across dozens or hundreds of NVIDIA Blackwell GPUs, which is why NVIDIA NVLink (at 1.8TB/s) and InfiniBand are essential networking technologies within the data center. The challenge isn't just splitting the workload — it's the communication bottlenecks when we split the workload among the GPUs.

Parallelism Fundamentals

When a model or dataset exceeds single-GPU capacity, parallelism strategies distribute the workload. Each approach trades communication overhead for memory relief.

• Data Parallelism: The entire model fits on each GPU. Training data is split across devices, with each GPU processing different batches while gradients are synchronized after each step. This is ideal for smaller models where computation is the bottleneck and memory isn’t.
• Model Parallelism: Splits the model across multiple GPUs when it's too large for a single device. Different layers run on different GPUs sequentially. Critical for massive architectures like 405B parameter models. Creates "pipeline bubbles" where some GPUs remain idle while waiting for upstream layers to finish.
• Tensor Parallelism: Even individual operations (matrix multiplications) don't fit on one GPU. Operations are split row or column-wise across devices, then combined with all-reduce operations. Used in extreme-scale training where model layers exceed single-GPU memory.

The Limitation: When models are large, and context windows extend to millions of tokens, even tensor parallelism falls short. Attention's quadratic memory scaling means activations dominate memory usage. A 128k token context requires 16x more activation memory than an 8k context

Context Parallelism vs Sequence Parallelism

Both sequence and context parallelism address memory constraints by splitting sequences across devices, but they differ in scope and application.

Sequence Parallelism: Works alongside tensor parallelism to split non-matrix-multiplication operations (layer normalization, dropout) across the sequence dimension. Each device handles a portion of activations for operations that tensor parallelism doesn't cover. Combined with tensor parallelism, this extends sequence length capacity but still faces limits at 128k+ tokens due to attention's quadratic memory scaling.

Context Parallelism: Splits the entire sequence across all modules, not just non-matmul operations. Every operation — including attention — processes a partitioned sequence. This enables training with million-token contexts by distributing the massive activation memory footprint.

The Attention Challenge: Most model operations process tokens independently, making parallelization straightforward. Attention is different — every token must "attend" to every other token in the sequence. When the sequence is split across GPUs, how does GPU 1's tokens attend to GPU 2's tokens without stalling the entire computation?

This is where Ring Attention enables multi-node, multi-GPU LLM training and inferencing across a huge data center

Zig Zag Ring Attention: Overlapping Communication and Computation

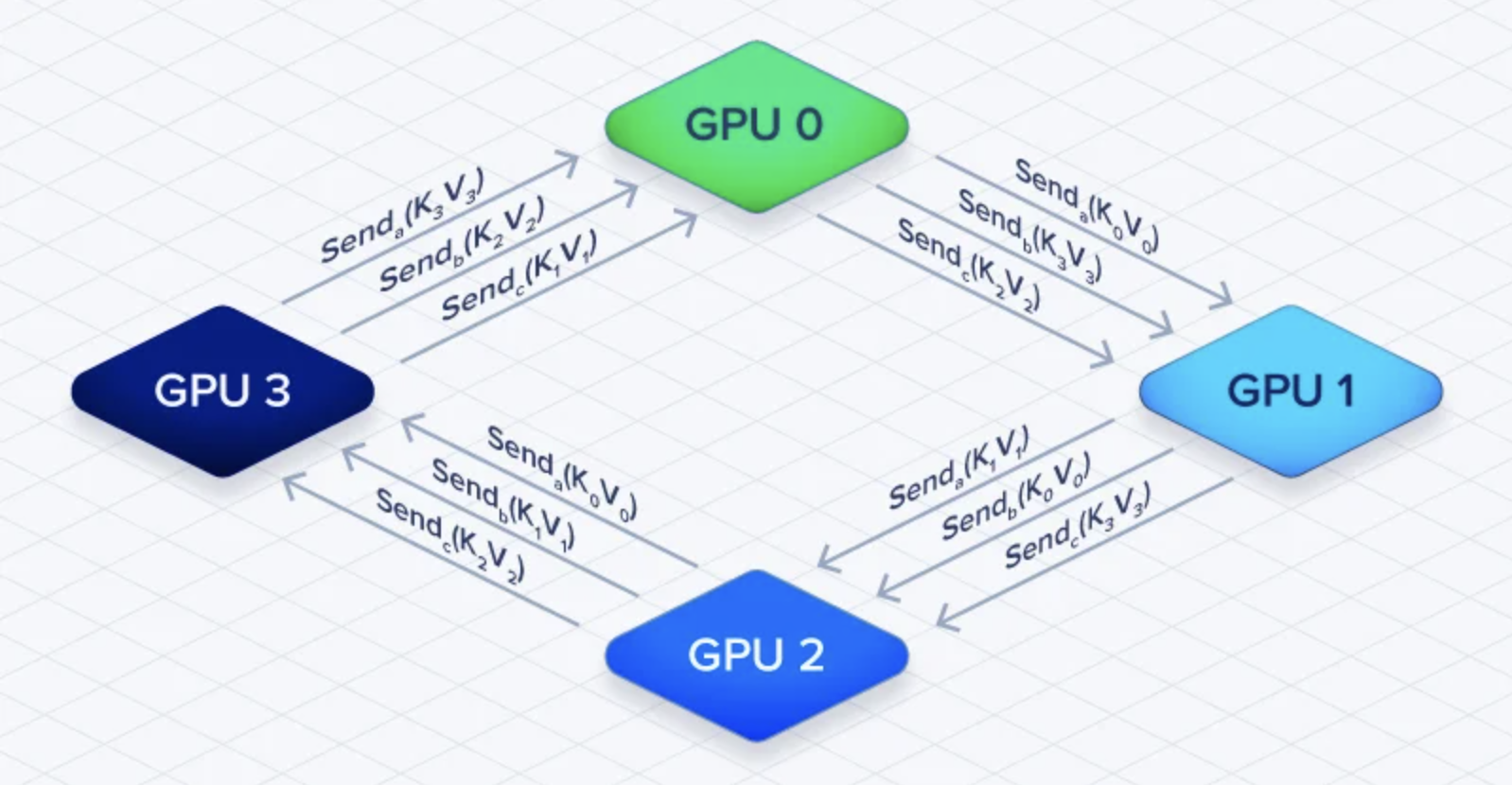

Ring Attention solves the cross-device attention problem by organizing GPUs in a ring topology. Each GPU:

1. Holds a chunk of the sequence's Query (Q), Key (K), and Value (V) tensors
2. Computes attention for its Q chunk using its local K and V
3. Passes its K and V to the next GPU in the ring
4. Receives K and V from the previous GPU
5. Repeats until all Q tokens have attended to all K/V tokens

Computation and communication overlap. While GPU 1 computes attention using its current K/V chunks, it simultaneously receives the next chunks from GPU 0. This hides communication latency behind compute, avoiding the stall that would occur if GPUs waited for all data before computing.

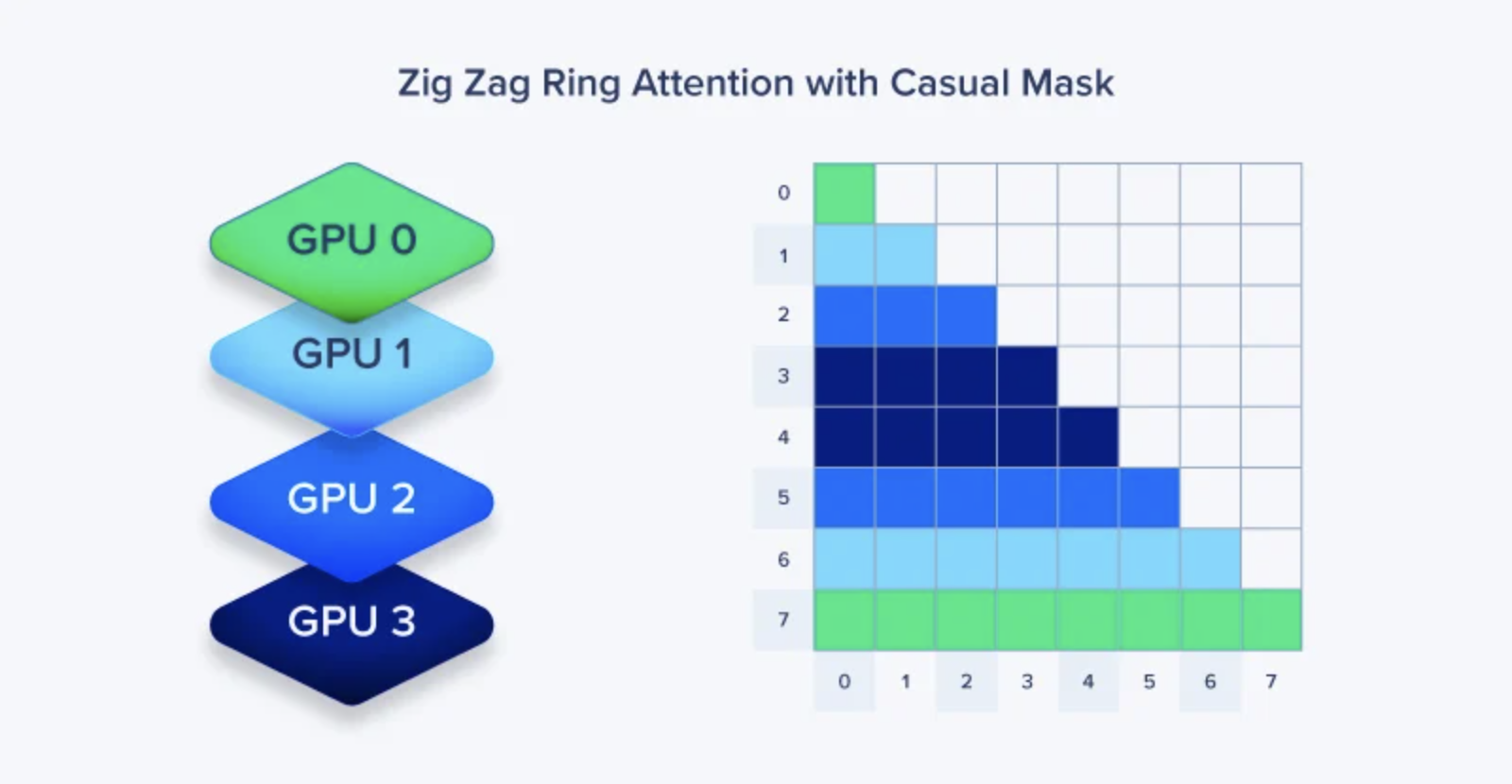

In autoregressive models like GPT, tokens only attend to previous tokens — not future ones, causing a load balancing challenge, leaving some GPUs idle. Zig-Zag Ring Attention addresses this imbalance by distributing sequence chunks in an interleaved pattern rather than sequential blocks. GPU 0 processes tokens [0, 4, 8...], GPU 1 handles [1, 5, 9...], and so on. This ensures every GPU receives a balanced mix of early and late tokens, equalizing compute load during causal attention and preventing idle GPUs in the ring.

This pattern maintains the ring communication structure while achieving near-perfect GPU utilization even with causal masking. The trade-off: slightly more complex indexing logic, but the performance gains at scale are substantial.

FAQ for Context Parallelism and Ring Attention

What is context parallelism in transformer models?

Context parallelism splits input sequences across multiple GPUs to overcome memory constraints during training. Unlike tensor or data parallelism, it partitions the entire sequence dimension across all model modules, enabling training with million-token contexts that exceed single-GPU memory capacity.

How does Ring Attention reduce GPU memory bottlenecks?

Ring Attention organizes GPUs in a ring topology where each device passes key-value pairs to the next while computing attention on available data. This overlaps communication with computation, allowing all-to-all attention calculations without stalling GPUs while waiting for complete sequence data.

What is the difference between sequence parallelism and context parallelism?

Sequence parallelism splits non-matrix-multiplication operations (like layer normalization) across the sequence dimension and works alongside tensor parallelism. Context parallelism splits the entire sequence across all modules, including attention, making it necessary for contexts exceeding 128k tokens, where activation memory scales quadratically.

Why is Zig-Zag Ring Attention better than standard Ring Attention?

Zig-Zag Ring Attention uses interleaved sequence splitting instead of sequential assignment, balancing GPU utilization during causal masking. Standard Ring Attention can create idle compute where later GPUs wait for earlier chunks, while Zig-Zag distributes early and late tokens evenly across all devices.

What hardware is needed for training models with 1M token contexts?

For training with a 1M token, choose a multi-node GPU cluster with GPUs featuring HBM memory coupled with high-speed interconnects like NVIDIA NVLink (1.8TB/s) or InfiniBand. For a 405B parameter model, 4x NVIDIA HGX B300 servers in a rack deployment is a great starting point for, from scratch, training and inferencing on 32-bit precision.

Key Takeaways: Scaling Context Without Breaking Hardware

Context parallelism trades communication overhead for memory relief — but that trade only works if your hardware can keep pace. Network bandwidth is the critical bottleneck: Ring Attention requires continuous key-value pair exchanges between GPUs, and if transfer time exceeds compute time, devices return to waiting instead of computing.

High-speed interconnects between systems with NVIDIA NVLink (1.8TB/s) and InfiniBand are essential in multi-rack deployments. Your interconnect bandwidth must match your GPU compute throughput, or context parallelism effectiveness collapses.
