How to Run Apache Kafka on Windows

This blog post was originally published on the Confluent blog.

Is Windows your favorite development environment? Do you want to run Apache Kafka^® on Windows? Thanks to the Windows Subsystem for Linux 2 (WSL 2), now you can, and with fewer tears than in the past. Windows still isn’t the recommended platform for running Kafka with production workloads, but for trying out Kafka, it works just fine. Let’s take a look at how it’s done.

Set Up Your Environment

Install WSL 2

The Windows Subsystem for Linux 2 makes it all possible. Microsoft describes WSL 2 as 'a GNU/Linux environment—including most command-line tools, utilities, and applications—directly on Windows, unmodified, without the overhead of a traditional virtual machine or dual boot setup.'

Make sure you’re running Windows 10, version 1903.18362 or higher. Click Start and navigate to Settings > System > About. In the 'Windows specifications' section, find the 'OS build.'

If you’re on the Windows Update train, you probably have the latest version and are good to go. If not, you need to update Windows 10.

When you’re sure that Windows is up-to-date, follow these instructions below to install WSL 2.

Enable the Windows Subsystem for Linux

Turn on the Windows Subsystem for Linux feature before installing a Linux distribution. Open PowerShell as an administrator, and run the following command:

dism.exe /online /enable-feature /featurename:Microsoft-Windows-Subsystem-Linux /all /norestart

This may take a minute or two. Your output should resemble the following:

Deployment Image Servicing and Management tool
Version: 10.0.18362.1139

Image Version: 10.0.18363.1139

Enabling feature(s)
[==========================100.0%==========================]
The operation completed successfully.

Enable the Virtual Machine Feature

WSL 2 requires the Virtual Machine Platform feature. In PowerShell, run the following command:

dism.exe /online /enable-feature /featurename:VirtualMachinePlatform /all /norestart

Get the Linux Kernel Update

Download the Linux kernel update package, which is a regular Windows Installer (.msi) file.

Double-click the .msi file to install the WSL 2 update. If you’re prompted for elevated permissions, select Yes to approve the installation.

Set the Default WSL Version

In PowerShell, run the following command to set WSL 2 as the default version for your Linux distributions:

wsl --set-default-version 2

Your output should resemble the following:

For information on key differences with WSL 2 please visit https://aka.ms/wsl2

WSL 2 is ready to use. For more information on installing WSL 2, including troubleshooting, see Windows Subsystem for Linux Installation Guide for Windows 10.

Install Your Preferred Linux Distribution

Install Linux from the Microsoft Store, the same way you install other applications on Windows.

Open the Microsoft Store app and search for 'Linux.'

This blog post uses Ubuntu 20.04. Select Ubuntu 20.04 LTS and click Install.

When the installation is complete, click Launch. The shell opens and displays the following message:

Installing, this may take a few minutes...
Please create a default UNIX user account. The username does not need to match your Windows username.
For more information visit: https://aka.ms/wslusers
Enter new UNIX username:

Enter a username and password to complete the installation.

Install Java

Run the package manager to get the latest updates. In the Ubuntu shell window that opened above, run the following commands:

sudo apt-get update && sudo apt-get upgrade -y

Kafka requires the Java runtime to be version 8 or higher. Check the Java version in your Linux installation:

java -version

Your output should resemble this:

openjdk version "1.8.0_265"
OpenJDK Runtime Environment (build 1.8.0_265-8u265-b01-0ubuntu2~20.04-b01)
OpenJDK 64-Bit Server VM (build 25.265-b01, mixed mode)

If Java isn’t installed (likely) or it’s not the right version, install it by using your distribution’s package manager. There are a lot of ways to install Java. On Ubuntu, this is one of the simplest:

sudo apt install openjdk-8-jdk -y

Download Kafka

You can install Kafka by using a package manager, or you can download the tarball and extract it to your local machine directly.

Select a mirror from the Kafka download site and download the tarball. The following command downloads Apache Kafka version 2.6:

wget https://ftp.wayne.edu/apache/kafka/2.6.0/kafka_2.13-2.6.0.tgz

Run the following commands to untar the Kafka archive, and cd to the kafka directory:

tar -xzf kafka_2.13-2.6.0.tgz
cd kafka_2.13-2.6.0

Run the ls -al command to list the contents of the kafka directory:

total 64
drwxr-xr-x  7 jim jim  4096 Oct 14 12:27 ./
drwxr-xr-x 25 jim jim  4096 Nov 20 12:52 ../
-rw-r--r--  1 jim jim 29975 Jul 28 11:16 LICENSE
-rw-r--r--  1 jim jim   337 Jul 28 11:16 NOTICE
drwxr-xr-x  3 jim jim  4096 Jul 28 11:23 bin/
drwxr-xr-x  2 jim jim  4096 Jul 28 11:23 config/
drwxr-xr-x  2 jim jim  4096 Oct 14 12:26 libs/
drwxr-xr-x  2 jim jim  4096 Oct 14 12:28 logs/
drwxr-xr-x  2 jim jim  4096 Jul 28 11:23 site-docs/

Start the Kafka Cluster

Run the following command to start ZooKeeper:

bin/zookeeper-server-start.sh config/zookeeper.properties

There will be a lot of output, and ZooKeeper will be ready in a short time, typically around a second or two.

Open another terminal session. Change the directory to the kafka directory, and start the Kafka broker:

cd kafka_2.13-2.6.0
bin/kafka-server-start.sh config/server.properties

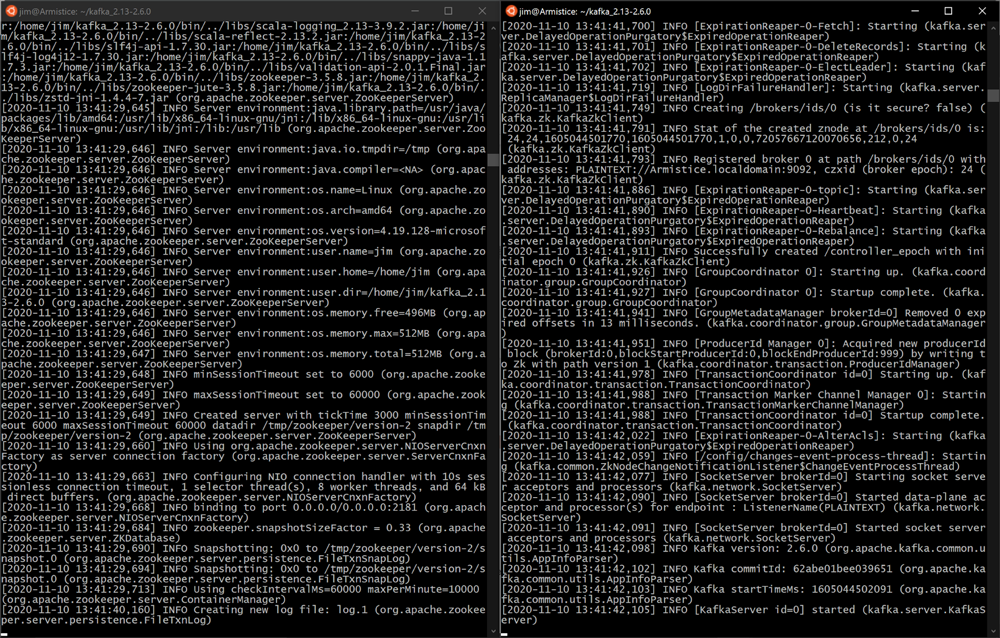

If you arrange the windows to be side-by-side, your output should resemble the following screenshot:

Produce and Consume Some Messages

Open another terminal session and run the kafka-topics command to create a Kafka topic named quickstart-events:

cd kafka_2.13-2.6.0
bin/kafka-topics.sh --create --topic quickstart-events --bootstrap-server localhost:9092

Your output should resemble this:

first event
second event
third event

Arrange the producer and consumer terminal windows to be side by side. In the producer terminal, type a few more messages, and watch as they appear in the consumer terminal.

Stop Kafka

When you’re done experimenting with Kafka, follow these steps to exit the Kafka environment:

1. Stop the consumer and producer clients with Ctrl+C
2. Stop the Kafka broker with Ctrl+C
3. Stop the ZooKeeper server with Ctrl+C
4. Run the following command to clean up:
   rm -rf /tmp/kafka-logs /tmp/zookeeper

Kafka and Windows: The Good, the Bad, and the Ugly

There are lots of Kafka-on-Windows tutorials, but most make the mistake of running Kafka directly on the JVM on Windows. Superficially, this appears to work, but there are limitations: Kafka uses specific features of POSIX to achieve high performance, so emulations—which happen on WSL 1—are insufficient. For example, the broker will crash when it rolls a segment file. Always run Kafka on Windows in a Linux environment backed by WSL 2.

Another approach that works well is to run Kafka in Docker containers. Docker Desktop for Windows has been updated to use the WSL 2 back end, so Docker works exactly as it does on native Linux, without needing to spin up an entire VM.

You’re Just Getting Started!

Although Kafka provides an event streaming platform to build your applications on, you’ll want to take advantage of the broader ecosystem of components—like ksqlDB, Confluent Schema Registry, and Confluent Control Center—all provided as part of Confluent Platform.

Now that you have Kafka installed, you’ll want to learn more about it, try out the numerous tutorials, and join in the community! Don’t forget that Apache Kafka has many APIs—including the producer and consumer but also Kafka Streams and Kafka Connect.

Kafka on Windows? What made this possible?

You may recall a time when Linux was anathema to Microsoft. Back in 2001, Microsoft CEO Steve Ballmer famously called Linux a 'malignant cancer,' but he has since come around to 'loving' it. Microsoft’s current CEO Satya Nadella seems intent on making it a first-class citizen in the Microsoft ecosystem, which means that a new era has arrived for software developers on the Windows platform.

When the Windows Subsystem for Linux (WSL 1) was released in 2016, it became possible to run a real Linux dev environment in a Linux shell, while retaining the familiar Windows UX around the shell. Even File Explorer was integrated nicely with the Linux file system.

The big drawbacks are that WSL 1 emulates a Linux kernel, and it runs in a full VM. The first means processes that require a native kernel, like Docker, can’t run. The second means that WSL 1 consumes a lot of resources. WSL 1 was not sufficient to run Kafka reliably.

But Microsoft delivered WSL 2 in 2019, and it’s a whole new world. They fixed the two biggest limitations, so WSL 2 runs a real Linux kernel, and the kernel runs on a subset of Hyper-V features, not in a full VM. For details, see Comparing WSL 1 and WSL 2. Now the path is clear for devs to build Kafka and ksqlDB apps on Windows.
