SBOMs in Action: Securing Your Golden AMIs From Build to Runtime

Golden Amazon Machine Images (AMIs) are the foundation for launching consistent and efficient instances in your AWS cloud environment. Ensuring their security and immutability is paramount. This guide delves into how Software Bill of Materials (SBOMs), cryptographic signing, and runtime validation create a robust framework for building and maintaining secure golden AMIs.

Steps Involved in Building Golden AMIs

Understanding Drift and Its Causes

AMI drift occurs when a running instance diverges from its original AMI configuration. This can result from ad-hoc administrator modifications, automated patching, configuration management tools like Puppet or Chef, and changes by application users. These deviations emphasize the need for ongoing monitoring and management of AMI configurations in cloud environments to maintain system consistency and security.

Detecting Drift With SBOMs

Once an EC2 instance is created from a golden AMI, maintaining its integrity is crucial. SBOMs (Software Bill of Materials) play a key role in detecting drift, which occurs when the software environment changes from its original state. By regularly generating and comparing SBOMs for the running instance against the original, any unauthorized modifications, updates, or anomalies can be quickly identified. This ensures that the instance remains consistent with the approved configuration, enhancing security and operational reliability.

Signing SBOMs for Trust and Verification

The cryptographic signing of your SBOMs adds a layer of trust and verification, ensuring:

• Authenticity: The SBOM originates from a trusted source.
• Integrity: The SBOM hasn't been tampered with.

Continuous Validation: Maintaining AMI Integrity at Runtime

Runtime validation, powered by SBOMs, continuously monitors the running instance, comparing its current state to the original signed SBOM. This proactive approach detects any unauthorized changes, triggering alerts for swift remediation.

Tools

Here are some of the tools that can be used for building AMI and validating the instances runtime.

Packer

Creates consistent machine images (VMs, Docker containers) across platforms from a single configuration, ensuring standardized environments and automating image creation.

Grype

Scans container images and file systems for vulnerabilities using Anchore's database, providing fast, detailed reports and integrating seamlessly into CI/CD pipelines.

Syft

Generates Software Bill of Materials (SBOM) from container images, revealing software components, dependencies, and licenses for enhanced security and regulatory compliance.

Cosign

Signs and verifies container images to ensure integrity and authenticity, protecting against unauthorized or tampered images and supporting various key management solutions.

Getting Started AMI Build Pipeline

Let’s dive into a simple example to demonstrate how to build a pipeline.

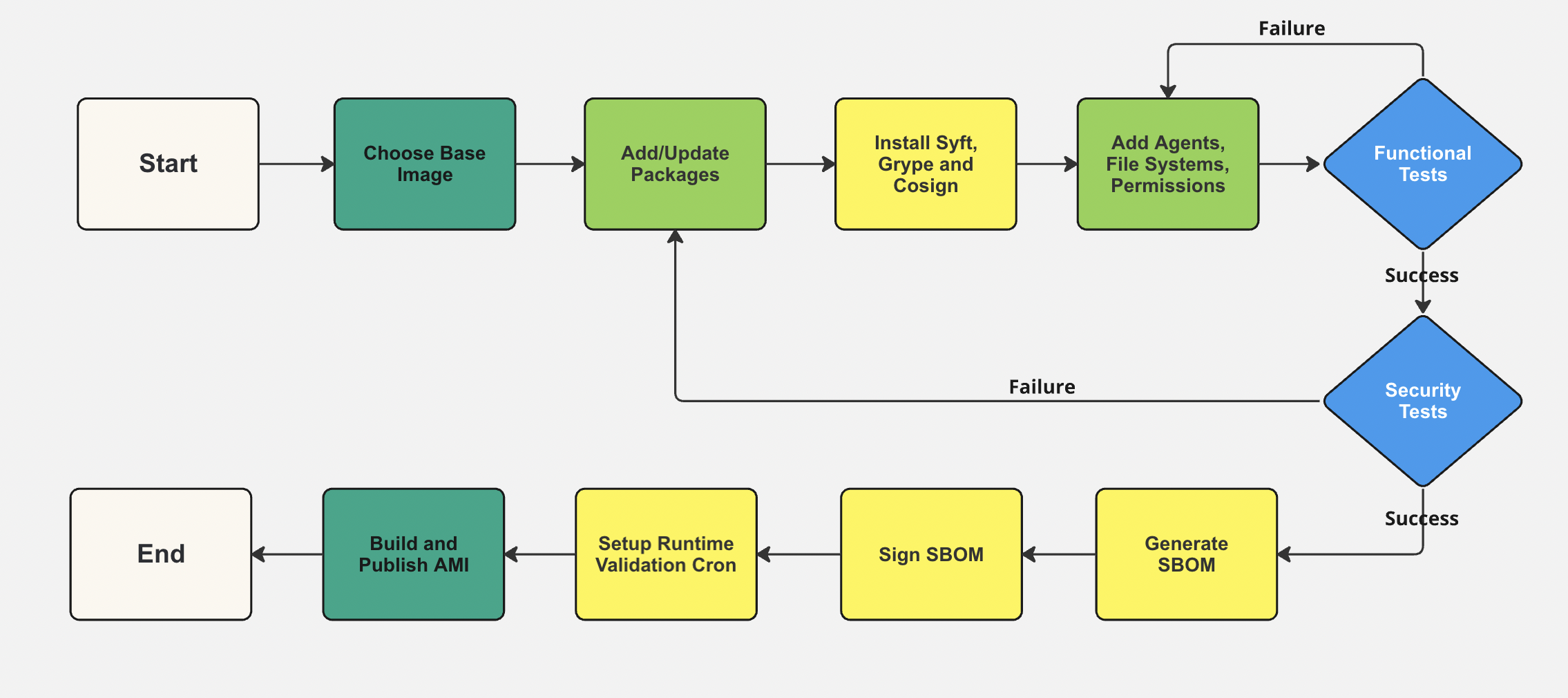

Workflow

Sample Code

Define Packer Template

{
  "builders": [{
    "type": "amazon-ebs",
    "ami_name": "golden-ami-{{timestamp}}",
    "instance_type": "t2.micro",
    "region": "us-east-1",
    "source_ami": "ami-0c55b159cbfafe1f0",  // Amazon Linux 2 AMI (HVM), SSD Volume Type
    // ... other configurations (VPC, subnet, etc.)
  }],
  "provisioners": [{
    "type": "ansible",
    "playbook_file": "./ansible/playbook.yml",
    "user": "ec2-user" // Default user for Amazon Linux 2
  }]
}

Provision With Ansible

Ansible automates configuration management. Create a playbook to install and configure software.

- name: Configure AMI
  hosts: all
  become: true
  tasks:
    - name: Update apt cache
      apt: update_cache=yes
    - name: Install required packages
      apt: name={{ item }} state=present
      loop:
        - curl
        - wget
        - git
    - name: Install security packages
      apt: name={{ item }} state=present
      loop:
        - syft
        - grype
        - cosign

Setup Agents, File Systems and Permissions

- hosts: all
  become: yes
  tasks:
   # Install CloudWatch Agent
    - name: Install CloudWatch Agent
      yum:
        name: amazon-cloudwatch-agent
        state: present
    - name: Start CloudWatch Agent
      service:
        name: amazon-cloudwatch-agent
        state: started
        enabled: yes

    # Set up filesystem (Example: Creating a directory)
    - name: Set up filesystem (Example: Creating a directory)
      file:
        path: /data
        state: directory
        mode: '0755'

    # Set permissions (Example: Granting user access)
    - name: Set permissions (Example: Granting user access)
      file:
        path: /data
        owner: ec2-user
        group: ec2-user
        mode: 'u+rwx,g+rx,o+rx'

    # ... other configurations (software installation, security hardening, etc.)

Functional Testing

---
- name: Test setup
  hosts: localhost
  connection: local
  tasks:
    # Test: Check if Apache is installed and running
    - shell: systemctl is-active --quiet httpd && systemctl is-enabled --quiet httpd
      register: httpd_status
      failed_when: not httpd_status.rc == 0
    # Test: Check if port 80 is listening
    - wait_for:
        port: 80

    # Test: Check drive size (Example: Root volume)
    - shell: df -h /
      register: df_output
      failed_when: "'Size' not in df_output.stdout"

    # Test: Check DHCP/IP connectivity
    - shell: ping -c 1 8.8.8.8
      register: ping_result
      failed_when: ping_result.rc != 0

    # Test: Check DNS resolution
    - uri:
        url: http://www.google.com
        method: GET
        status_code: 200
      register: dns_test_result
      failed_when: dns_test_result.status != 200

    # Test: Check user existence
    - shell: id ec2-user
      register: user_check_result
      failed_when: user_check_result.rc != 0

Generate and Sign SBOM

# Generate and sign SBOM
- name: Generate and sign SBOM
  shell: |
    syft -o cyclonedx dir:/ > /etc/sbom/golden.json
    cosign generate-key-pair
    cosign sign-blob --key cosign.key /etc/sbom/golden.json
    cp cosign.pub /etc/sbom/cosign.pub  # Store public key in AMI

Vulnerability Scanning

jobs:
  vulnerability_scan:
    commands:
      - grype dir:/ --output json > grype_results.json
      - aws securityhub batch-import-findings --findings file://grype_results.json

Continuous SBOM Validation

Include a validation script in the AMI to run continuously and detect configuration drift. During validation packages introduced by docker containers should be excluded as they are installed as part of the workload.

#!/bin/bash
GOLDEN_SBOM="/etc/sbom/golden.json"
NEW_SBOM="/tmp/current_sbom.json"
PUBLIC_KEY="/etc/sbom/cosign.pub"

# Exclude container filesystems from the scan
syft -o cyclonedx dir:/ --exclude '/var/lib/docker/**' --exclude '/run/containerd/**' --exclude '/var/run/docker.sock' > "$NEW_SBOM"

if ! cosign verify-blob --key "$PUBLIC_KEY" "$GOLDEN_SBOM"; then
  # Alert: SBOM verification failed!
  logger -t sbom_validation "SBOM verification failed!"
elif ! diff "$GOLDEN_SBOM" "$NEW_SBOM"; then
  # Alert: SBOM drift detected!
  logger -t sbom_validation "SBOM drift detected!"
fi
rm "$NEW_SBOM"

Configure the AMI to run the above script on a continuous basis using cron or another script that's running with sleep time.

Automate With CodeBuild

AWS CodeBuild automates AMI creation. Define build steps for Packer and Ansible integration.

version: 0.2

phases:
  install:
    runtime-versions:
      python: 3.8
    commands:
      - pip install ansible
      - curl -fsSL https://apt.releases.hashicorp.com/gpg | apt-key add -
      - apt-add-repository "deb [arch=amd64] https://apt.releases.hashicorp.com $(lsb_release -cs) main"
      - apt-get update && apt-get install packer
  build:
    commands:
      - packer init .
      - packer validate .
      - packer build .

Conclusion

In conclusion, integrating SBOMs and runtime validation into your AMI creation process not only fortifies your infrastructure against unauthorized changes but also enhances compliance and operational efficiency. By ensuring that your cloud images remain secure, consistent, and reliable, you lay a robust foundation for scaling and maintaining a resilient cloud environment.
