System Coexistence: Bridging Legacy and Modern Architecture

Abstract

Organizations are challenged with integrating legacy systems and modern applications in a way that ensures operational harmony and business continuity. This article explores the concept of system coexistence, the ability of diverse software systems built across different eras and architectures to function together within shared environments. It delves into practical strategies for achieving coexistence, such as the Strangler Fig Pattern, adapter-based decoupling, and event-driven communication models. The article also addresses critical supporting aspects like data coexistence, observability, and performance monitoring, emphasizing that coexistence is not merely a transitional phase but a strategic imperative for sustainable growth and innovation. Drawing on real-world examples, such as Netflix’s cloud migration and the HealthCare.gov launch failure, this piece provides a roadmap for organizations to navigate coexistence successfully while preparing for scalable, future-ready systems.

Introduction

We live in a world where it's easy to assume that all our applications built at different times, using the "best" technologies of their era will seamlessly integrate and continue to function in harmony. Yet, time and again, we’re proven wrong.

Has there ever been a scenario where application development teams didn’t have to worry about making old and new systems work together?

We spend countless hours discussing how to shut down an old system, do a full cutover or phased migration. Retiring all the legacy applications and replacing them with the most current is either not feasible because of the great amount of resources needed (Time, Effort, Money, Client Commitments, etc.,) or there is a very small ROI involved in it.

What Is Coexistence?

Coexistence is not a buzzword, it’s a fundamental challenge that every maturing tech organization faces. And it goes beyond software. It affects infrastructure, security, and, most importantly, data. Co-existence touches every component in a complex software ecosystem.

In simple terms it can mean unifying systems and applications to solve a problem or provide a solution. Coexistence in software systems refers to the ability of multiple applications, infrastructures, and data systems to operate harmoniously within shared environments without negatively impacting one another. This concept is critical in modern IT ecosystems, where diverse software solutions often share hardware, networks, or cloud environments. Effective coexistence ensures that systems can perform their intended functions efficiently while maintaining compatibility and avoiding conflicts.

A classic example of a success story is of Netflix (fairly a new company ) which took seven years to migrate everything and functioned by coexisting systems for that period of time.

Challenges

Systems may be old (legacy) or the ones built with the latest and greatest technologies. Bringing all these entities to seamlessly integrate in harmony with zero or little obstruction to the end customer along with abstracting all the complexities from the user is a challenge on its own. The older the company, the more amplified their problems are. Classic case which is used in a lot of case studies around the world is the debacle of the HealthCare.gov in 2013.

Architecture Patterns

Coexistence can be achieved. Some unpleasant steps might have to be taken to get there, too. Coexistence might not attend to everything present or all future needs. But a good coexistence solution will cater to the major needs, support scalability and more importantly set up the system at a much better place for teams to enhance and maintain in future.

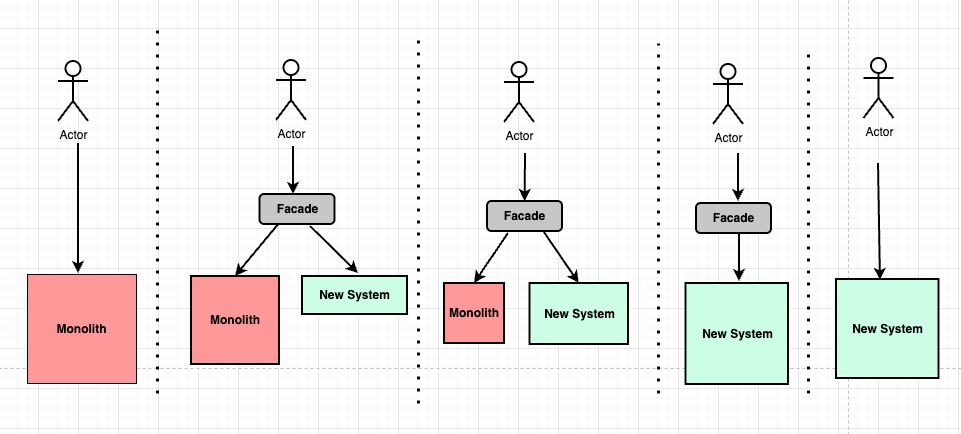

Strangler Fig Pattern

This is one of the most used architecture patterns by organizations to set up coexistence and to slowly migrate the systems to the modern architecture. The pattern is in simple terms strangling the legacy slowly and steadily. It is a process of slowly replacing an old system with a new one, one at a time and with caution to not alter the user-experience despite using a different software behind the scenes.

This is implemented by extensive research on listing out core capabilities which have to be replaced and sequencing of the replacement. Then the parts of systems are slowly replaced with newer systems/services. The end result is that all the legacy systems are replaced with little or no impact to the customer/user.

Decoupled Architecture

Adapters

An adapter can be as simple as one or more micro services which meet the needs of coexistence. It could be a throwaway segregation of mappings and logic which might not be needed when all the systems have migrated to modern architecture. This helps refactor in a later stage by abstracting all the adapter logic in one place and discarding as and when time comes to retiring it. This allows other deployables to be unaltered or altered minimally.

Middleware

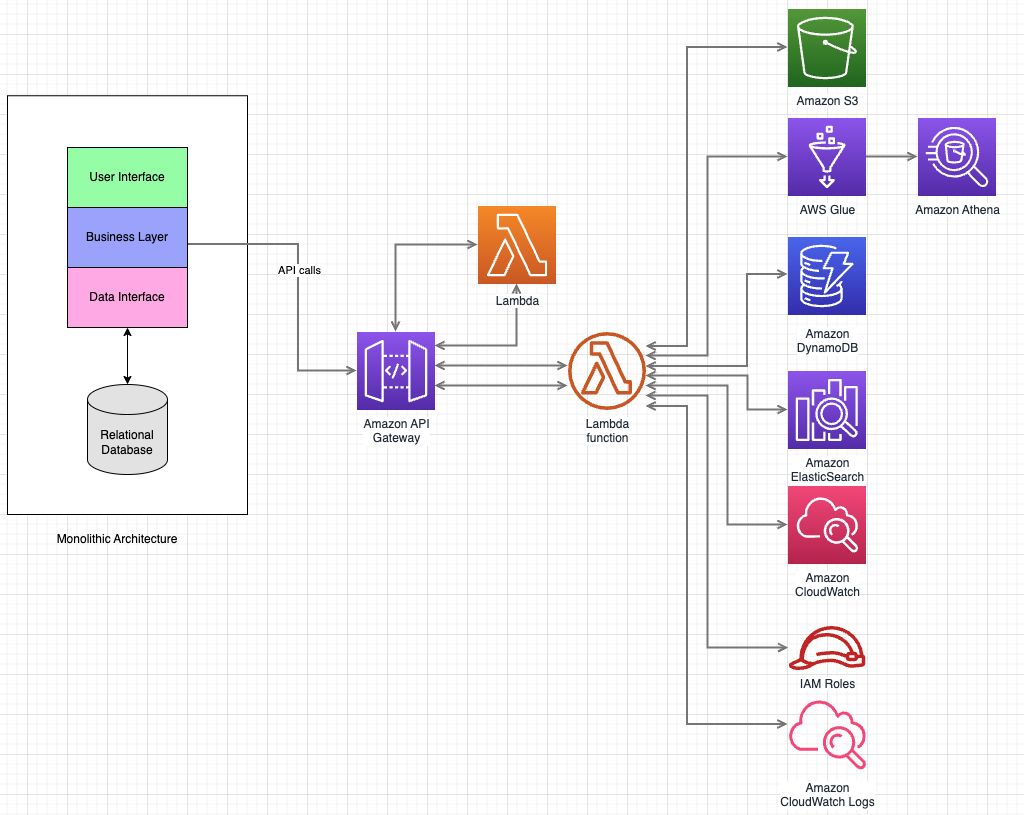

API Gateway - manages routing and can control the traffic by introducing guardrails around rate limiting, throttling, authentication, etc. Gateways behave like translators between different protocols or communication formats.  For example,  Kong API gateway or Amazon’s API gateway.

Message(Event) Based Management

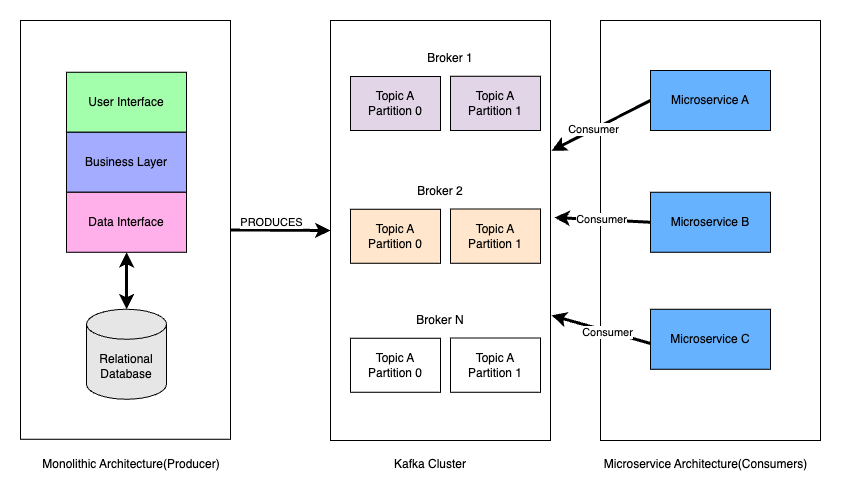

Pub-Sub Models - These have a set of producers and consumers. As long as the schema is maintained between both the entities communication can happen across systems which vary largely with regards to platforms, language, etc.  For example, Apache Kafka, Rabbit MQ, AWS SNS.

Queue based communication - This ensures asynchronous communication between systems by having one system send messages to a queue and another system can pick it whenever it’s ready. Again as long as both systems understand the schema contract, the integration will be smooth.

Other Aspects To Consider...

Data Coexistence

Data coexistence should happen in parallel with System/Software coexistence and this can also be achieved with first careful listing the needs and then following special approaches to manage their integration and compatibility.

Some techniques which can be used are:

1. Combining data from various systems into a unified view like a database or data lake. Eg. ETL(Extract Transform Load)
2. Creating a virtual layer on top of the existing systems, which provides real time access to distributed data.
3. Data duplication might be also an option when needed, though not usually the best way to tackle coexistence.
4. Event driven patterns can be used to propagate data changes to other systems. Hibernate Events is a good example for this.
5. Data versioning pattern can be followed to accommodate data changes while maintaining data compatibility.

Observability

Log Management

Collecting logs from different systems and aggregating them into a centralized platform allows teams to identify issues quickly. Logs from different systems can help identify failure points, service disruptions, or unexpected behaviors that could disrupt system coexistence.

Tools and Techniques:

ELK Stack (Elasticsearch, Logstash, Kibana): Aggregating logs from various systems into a single platform for easier analysis.

Performance Metrics

Metrics like latency, throughput, error rates and resource utilization can give insights into how well the systems are working together.

Metrics Collection: Tools like Prometheus and Datadog are used to collect and visualize performance metrics, ensuring that no system is negatively impacting others when they coexist.

Alerting: Setting up alerts based on specific thresholds (e.g., high response time or error rates) to proactively address issues before they become critical.

Real-Time Visibility

This is critical when all systems old and new have to work together. This also enables teams to be proactive with issue resolution. It allows for faster troubleshooting and enhances performance with teams collaborating and sharing insights with each other. Tools like AWS cloud watch, Kubernetes Dashboard can give very good insights on this.

Conclusion

System co-existence is not optional—it's essential for any organization with legacy systems and also having a roadmap for innovation. As AI and interoperability standards mature, achieving seamless co-existence will only become easier. Whether you choose the Strangler Fig Pattern, a decoupled adapter-based approach, or a hybrid of both, the goal is the same:

Enable systems work together, evolve independently, and deliver uninterrupted business value.

I would like to conclude by reiterating:

DO’s

• Adapt loose coupling.
• Non Functional Requirements are as important as the function ones.
• Define clear cut boundaries and responsibilities for every system.
• Have definite contracts and integration plans across systems.
• Have a very well established observability and monitoring, especially around the integration points.

DONT’s

• Don't over optimize in the beginning , It takes years to get co-existence completely right.
• Don't treat co-existence as an architecture or technical team's problem. It is cross functional and involves development teams, business , architecture , ops , partners etc.
• There is no one size fits all in coexistence. Understand your systems, pain points, business needs and architect accordingly.
• Don’t sideline Data and Observability, they are as important as having software systems working together.

References

• Netflix Cloud Migration
• Healthcare.gov Failure
• Strangler Fig Pattern - Wikipedia
