Traffic Management and Network Resiliency With Istio Service Mesh

Explore how to route traffic between service subsets in a Kubernetes cluster and test their network resiliency using Istio’s traffic management APIs.

By
Anas T user avatar
Anas T
·
Aug. 22, 23 · Tutorial
Likes (5)
Comment
Save
Tweet
Share
6.6K Views

Join the DZone community and get the full member experience.

Join For Free

Istio's virtual services and destination rules help DevOps engineers and cloud architects apply granular routing rules and direct traffic around the mesh. Besides, they provide features to ensure and test network resiliency so that applications operate reliably.

In this article, we will explore both the features of Istio: traffic routing and network resilience testing.

Traffic Routing in CI/CD With Istio

Istio can split traffic between service or service subsets with ease. Traffic splitting is done based on weights/percentages (refer to the image below) defined in the corresponding virtual service and destination rule resources.

Traffic splitting between different versions of a service using IstioTraffic splitting between different versions of a service using Istio

Istio’s traffic-splitting capability helps DevOps and cloud architects have granular control over how traffic is routed to different versions of a service. The feature is useful, especially in performing canary or blue/green deployments.

Canary Deployments With Istio

Canary deployments are a software release strategy where only a fraction of live traffic is routed to the newly released software or service. If the performance and quality of the new version is stable like the existing version, more traffic is routed to the new version, and the older one is phased out gradually.

Canary deployments allow controlled release and help organizations minimize the impact of potential bugs or issues during releases.

Istio provides two ways to carry out canary rollouts:

  • Istio routes traffic to Canary and the stable ones that are deployed as two different services.
  • Istio routes traffic to the canary and the stable one, which are both subsets of a single application.

We have covered a tutorial on implementing canary using Istio and Argo CD Rollouts. Check it out here: How to implement Canary for Kubernetes apps using Istio.

Blue/Green Deployments Using Istio

Blue/green deployment is another progressive delivery strategy where a new version (green) of a service runs in parallel to the existing version (blue). Here, the load balancer switches production traffic to the new version (refer to the image below) and is rolled back to the older version in case of any issues with the new release.

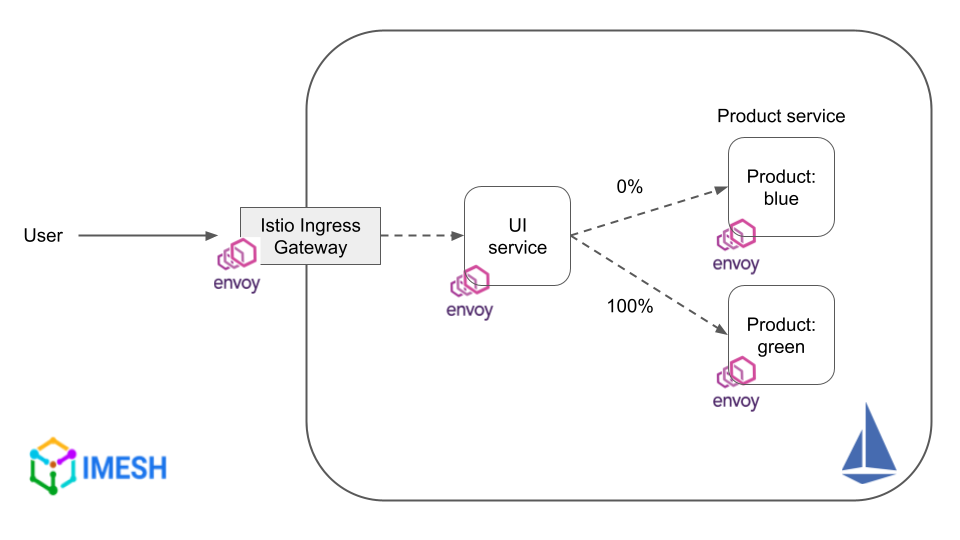

Blue/green deployments using IstioBlue/green deployment with Istio

Blue/green deployments help minimize application downtime by providing the ability to instantly rollback to the older version. The older version acts as a reliable backup during the deployment process. Istio’s ability to seamlessly split traffic between service subsets without changing the application code aids in carrying out blue/green deployments effortlessly.

The following sample VirtualService rule implements a blue/green strategy for istio-support service. All incoming traffic is routed to the green version (weight: 100), while the blue version (weight: 0) remains a backup, handling zero requests.

YAML

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: istio-support
spec:
  hosts:
    - istio-support
  http:
  - route:
    - destination:
        host: istio-support
        subset: green
      weight: 100
    - destination:
        host: istio-support
        subset: blue
      weight: 0


Network Resilience and Testing With Istio

Apart from implementing routing rules for different scenarios, Istio provides opt-in failure recovery and fault injection features, which aid enterprises in maintaining a resilient infrastructure. The features prevent localized failures cascading to other nodes and help DevOps and architects meet SLOs like error time, latency, and uptime.

Some of the network resilience and testing features provided by Istio are circuit breakers, retries, timeouts, and traffic mirroring.

Circuit Breaking

In a web application, circuit breakers set limits to concurrent connections to a service and prevent it from overloading with requests. It is highly useful for B2B and B2C SaaS applications where service responsiveness can make or break the customer experience.

In circuit breaking, if the maximum connection requests to an upstream service go over the specified limit, they will become pending in a queue. If the number of pending requests breaches the limit, further requests are denied until the pending ones are processed.

A circuit breaker is tripped so that client requests fail quickly without exhausting the services and cascading the failure to the overall system. Istio uses DestinationRule to configure circuit breakers.

Here is a sample DestinationRule with circuit breaker rules:

YAML

apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: istio-support
spec:
  host: istio-support
  trafficPolicy:
    connectionPool:
      tcp:
        maxConnections: 1
      http:
        http1MaxPendingRequests: 1
        maxRequestsPerConnection: 1
    outlierDetection:
      consecutive5xxErrors: 1
      interval: 1s
      baseEjectionTime: 3m
      maxEjectionPercent: 100


  • The above DestinationRule sets the number of maximum connections and pending requests to istio-support service to 1.
  • If istio-support receives 3 requests simultaneously; for example, one request will establish a connection, one will be in the queue, and the third one or any additional requests will be denied until the pending one is processed (refer to the image below).

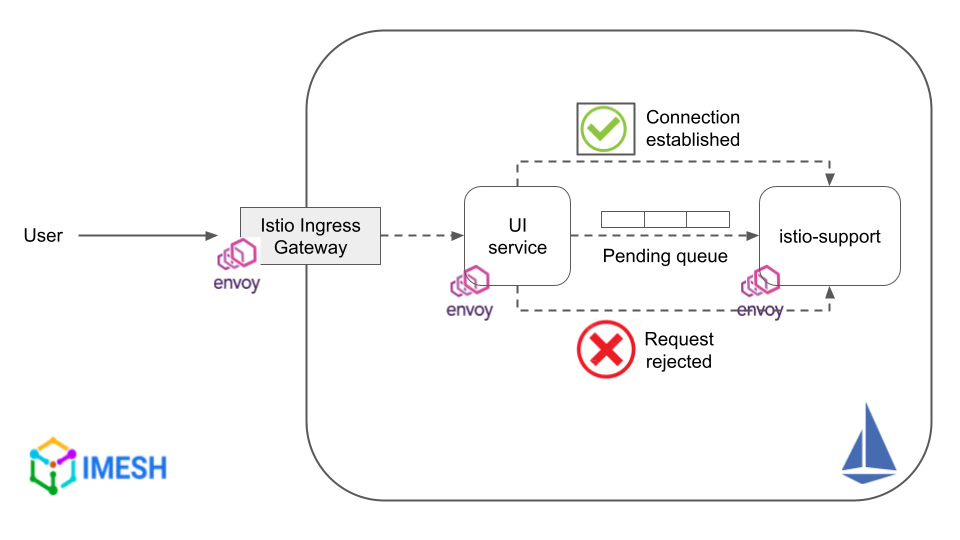

    Circuit breaking with Istio
  • The outlierDetection section towards the end defines the rules to evict unhealthy pods out of the load-balancing pool. It means that if any pod of istio-support triggers a 5xx (or server) error, the pod will be considered an outlier or unhealthy. It will then be ejected out for 3 minutes before being allowed to rejoin the load balancing pool.

Timeouts

Timeout refers to the amount of time the Envoy proxy of the source should wait for a response from the destination service. Timeouts fail or succeed a call within a specific timeframe, which ensures that services do not wait indefinitely for a response.

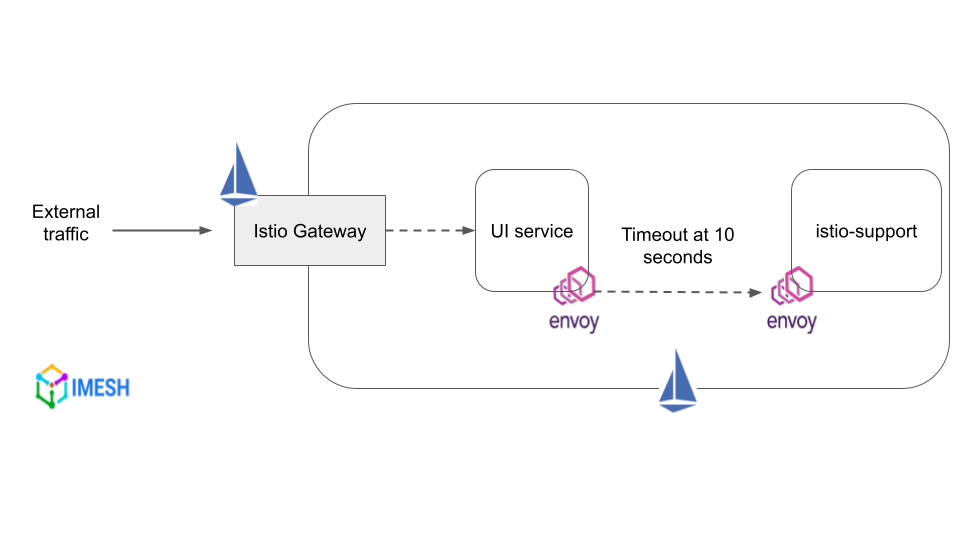

Timeout with IstioTimeout with Istio

You can implement timeouts in your environment using Istio. Istio allows you to create timeout policies and apply them at the source Envoy sidecars.

Below is a sample VirtualService that configures a 10-second timeout for requests to istio-support service. In other words, calls to istio-support service will either fail or succeed in 10 seconds.

YAML

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: istio-support
spec:
  hosts:
  - istio-support
  http:
  - route:
    - destination:
        host: istio-support
    timeout: 10s


  • Timeouts should not be short or too long. Short timeouts will result in unnecessarily failed requests, especially when upstream services face transient issues, such as a temporarily overloaded network. Timeouts that are too long cause increased latency, especially if the call waits for a response from a failed service.
  • If timeouts have to be configured on traffic to a destination outside the mesh, the destination service should first be added to Istio’s internal service registry using ServiceEntry resource. Virtual service rules can then be applied to those traffic.
  • With Istio, you can easily configure timeouts on traffic to any specific service/subset in the runtime.

Retries

The retry setting specifies the number of times an Envoy proxy should attempt to connect to a service if the initial request fails. It helps to improve service availability when services face temporary issues, like resource contention, network problems, etc.

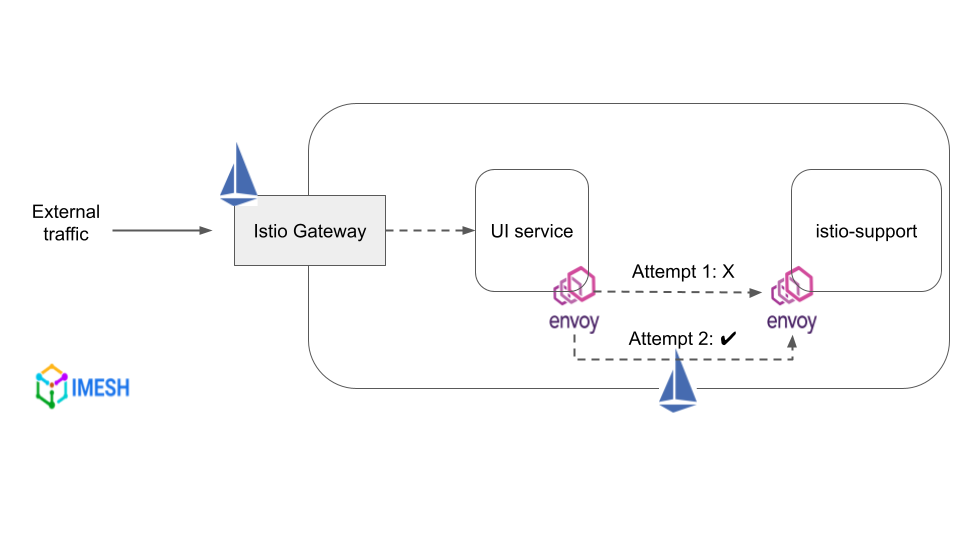

Retries with IstioRetries with Istio

The following VirtualService sets the maximum number of retries to 4 while calling istio-support service.

YAML

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: istio-support
spec:
  hosts:
  - istio-support
  http:
  - route:
    - destination:
        host: istio-support
    retries:
      attempts: 4
      perTryTimeout: 2s


  • In the above resource, attempts represents the maximum number of retries allowed for a given request. Exceeding attempts will activate a circuit breaker.
  • perTryTimeout defines the timeout per attempt, including the initial call and any retries.
  • retryOn subfield can be added under retries field, which will help to set conditions under which retry takes place. The conditions should be valid HTTP status, and there can be one or more conditions or policies.

    For example, retryOn: connect-failure,refused-stream,503 means that Istio will initiate a retry if the upstream service returns any of these HTTP status codes (connect-failure, refused-stream, 503).

Fault Injection

Fault injection is a testing method that includes introducing errors while forwarding HTTP requests to the destination specified in a route. Istio lets DevOps and cloud architects test the resiliency and failure recovery capacity of applications by injecting faults.

With Istio, faults can be injected at the application layer. That is, more relevant failures can be injected, such as HTTP error codes, instead of killing pods, delaying packets, or corrupting packets at the TCP layer.

Istio lets users inject two types of faults using VirtualService resource:

  1. Delays: Used to delay requests to upstream services and simulate network latency or an overloaded upstream service.

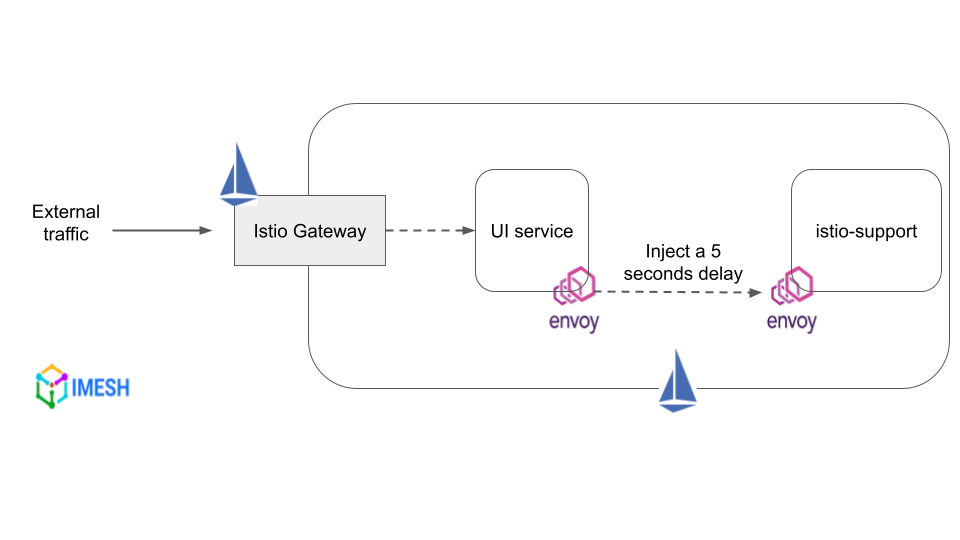

    Fault injection by delaying requests using Istio
    Fault injection by delaying requests using Istio
  2. Aborts: Used to abort HTTP request attempts and return error codes to downstream service, in order to simulate a faulty upstream service.

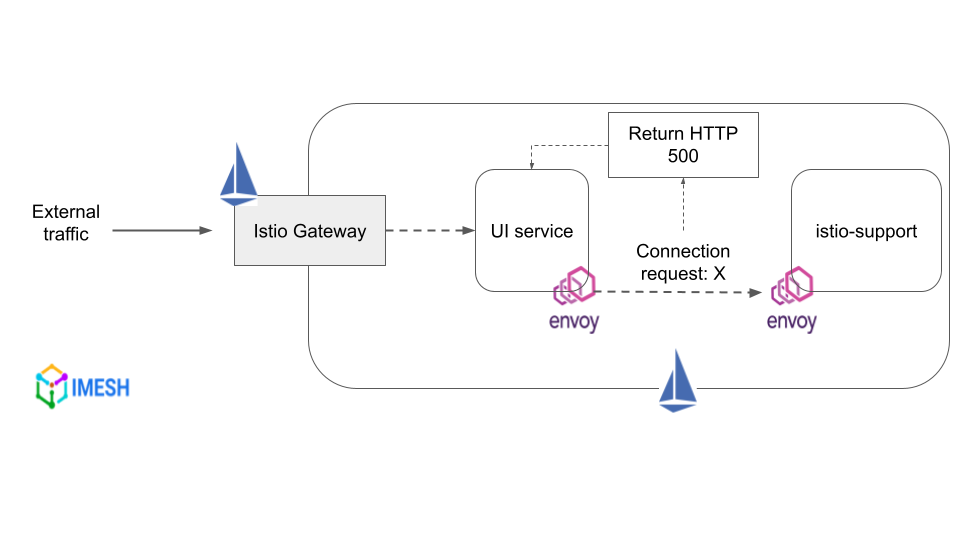

Fault injection by aborting request forwarding using Istio

                                                    Fault injection by aborting request forwarding using Istio

The following VirtualService will inject a 5 second delay on all the requests going to istio-support service.

YAML

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: istio-support-delay
spec:
  hosts:
  - istio-support
  http:
  - fault:
      delay:
        percentage:100
        fixedDelay: 5s


Similarly, the below VirtualService resource configures istio-support service to return an HTTP 500 error for each received request.

YAML

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: istio-support-500
spec:
  hosts:
    - istio-support
  http:
    - route:
        - destination:
            host: istio-support
      fault:
        abort:
          percent: 100
          httpStatus: 500


Note: A fault rule must have delay or abort or both. Also, simultaneously specifying delay and abort faults does not create any dependencies between them.

Traffic Mirroring

Traffic mirroring refers to sending a copy of the live traffic to a mirrored service. It is useful in testing, monitoring, and analyzing a newly deployed application before releasing and routing production traffic to it.

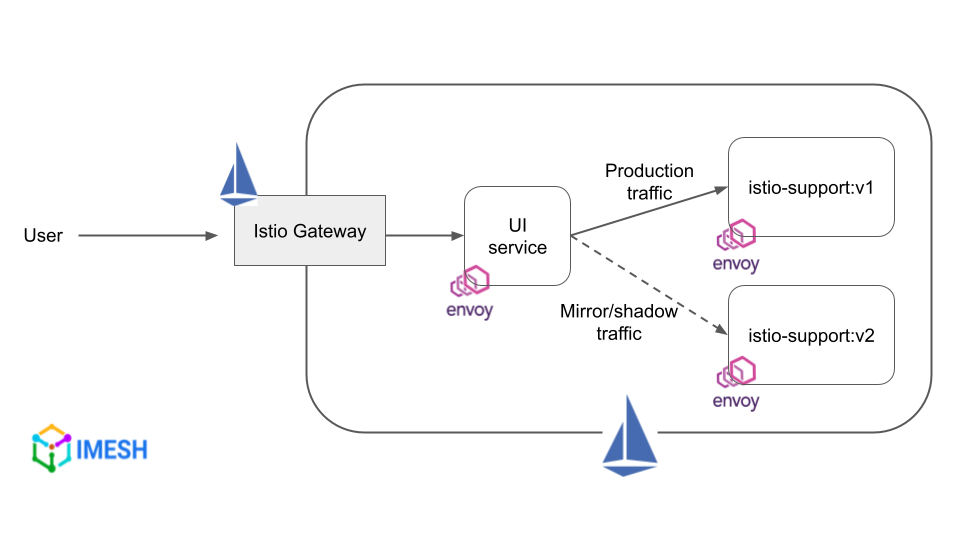

Traffic mirroring with IstioTraffic mirroring with Istio

The mirrored traffic does not affect the performance of the primary service, as it is separate from the main flow of requests served by the primary service. Also, responses from mirrored services are discarded.

The following route rule sends 100% of the traffic to v1 and then to istio-support:v2.

YAML

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: istio-support-mirror
spec:
  hosts:
    - istio-support
  http:
  - route:
    - destination:
        host: istio-support
        subset: v1
      weight: 100
    mirror:
      host: istio-support
      subset: v2
    mirrorPercentage:
      value: 100.0

---

apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: istio-support
spec:
  host: istio-support
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2


The value field under mirrorPercentage allows users to further control the traffic by sending a fraction of the requests instead of mirroring all requests.

Video: Advanced Traffic Management Using Istio

Now it’s time for some action. Watch the following video to see the demo on advanced traffic management with Istio. You will see a tutorial on traffic management, retries, circuit breaking, and fault injection with the application deployed in the Kubernetes cluster along with the Istio ingress gateway.


Fault injection Network Requests microservice

Published at DZone with permission of Anas T. See the original article here.

Opinions expressed by DZone contributors are their own.
