Applying CI/CD to Java Apps Using Spring Boot

DZone 's Guide to

Applying CI/CD to Java Apps Using Spring Boot

Learn more about building Continuous Integration/Continuous Delivery (CI/CD) into Spring-Boot-based Java applications.

· Java Zone ·
Free Resource

Java Spring Apps

I am very excited to share my experiences building Continuous Integration/Continuous Delivery (CI/CD) into Spring-Boot-based Java applications. First, let's establish everything we will learn in this tutorial:

Step 1) Create a Spring Boot Java App using Spring Initializr

Step 2) Create a GitHub repository

Step 3) Use Travis CI and Docker to implement CI/CD

Step 4) Add Codecov to provide code coverage

Step 5) Use SonarCloud to write stellar code

Step 6) Build a project site using GitHub site-maven-plugin

Step 7) Deploy the app on Heroku using heroku-maven-plugin

Step 8) Manage topics

You may also like: Achieve CI/CD With Jenkins X, Kubernetes, and Spring Boot

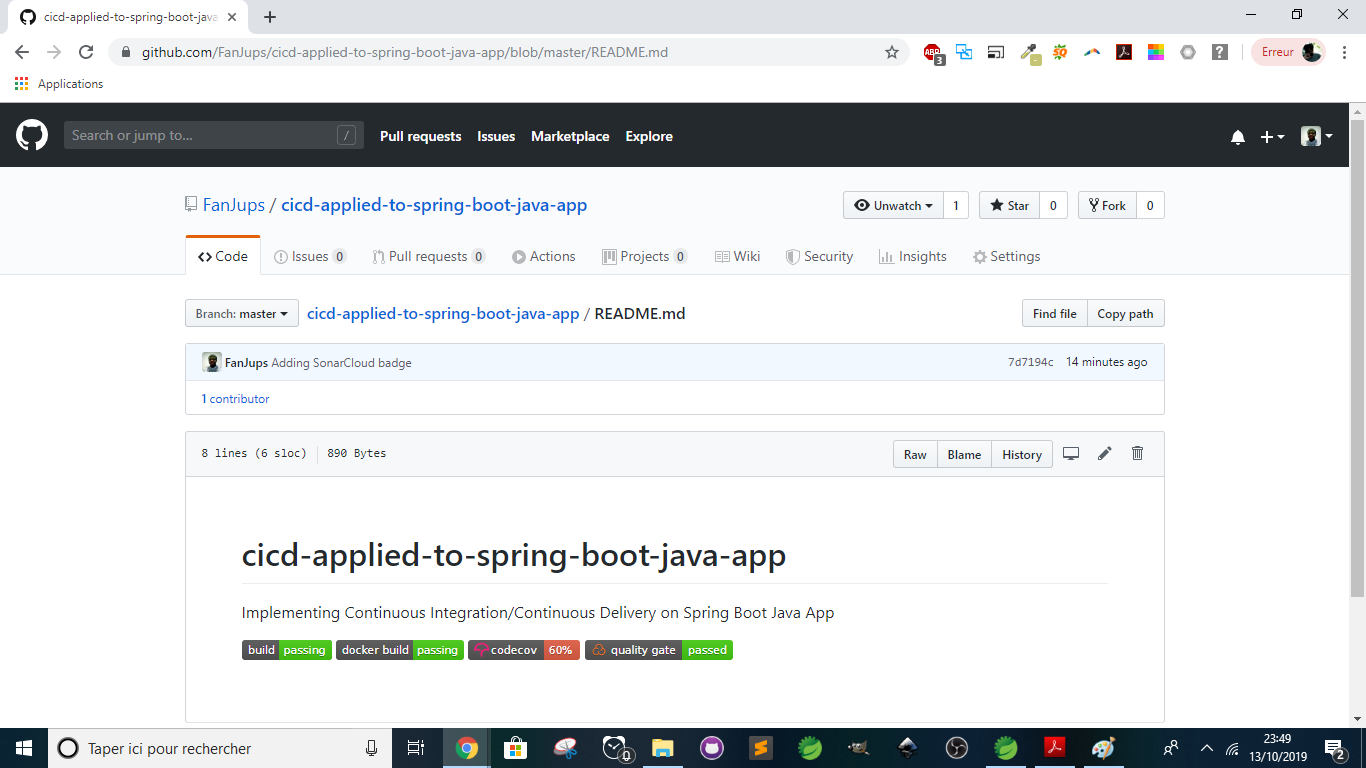

Gradually, we'll add badges to the README.md file so that we can be notified in real-time on the state of Travis CI, Docker, Codecov, and SonarCloud. Also, we'll add the license badge.

Are you ready? If not take time to better understand or prepare yourself and continue to read this later. The code is available here. So just fork, it's all yours!

Step 1: Create a Spring Boot Java App Using Spring Initializr

In this project, I used Spring Tool Suite 4 (STS 4) IDE; you are free to use whatever tool you find suitable for this project. STS 4 has the Spring Initializr built-in, so that's why I chose it for this project.

This is what STS 4 dark theme looks like:

STS 4 - Home

Click on File -> New -> Spring Starter Project

You will get:

STS 4 - Form

Please fill out the form as follows:

Name: cicd-applied-to-spring-boot-java-app

Group: com.cicd

Artifact: cicd-applied-to-spring-boot-java-app

Description: Implementing CI/CD on Spring Boot Java App

Package: com.cicd.cicd-applied-to-spring-boot-java-app

By default:

Type: Maven

Packaging: jar

Java Version: 8

Language: Java

You will get:

STS 4 - Form completed

Then, click Next.

Click on Spring Web:

STS 4 - Spring Web


Click on Finish. The new project will appear:

STS 4 - New project finally created

Next, please open the CicdAppliedToSpringBootJavaAppApplication.java file.

We can then add a basic endpoint:

STS 4 - CicdAppliedToSpringBootJavaAppApplication edited

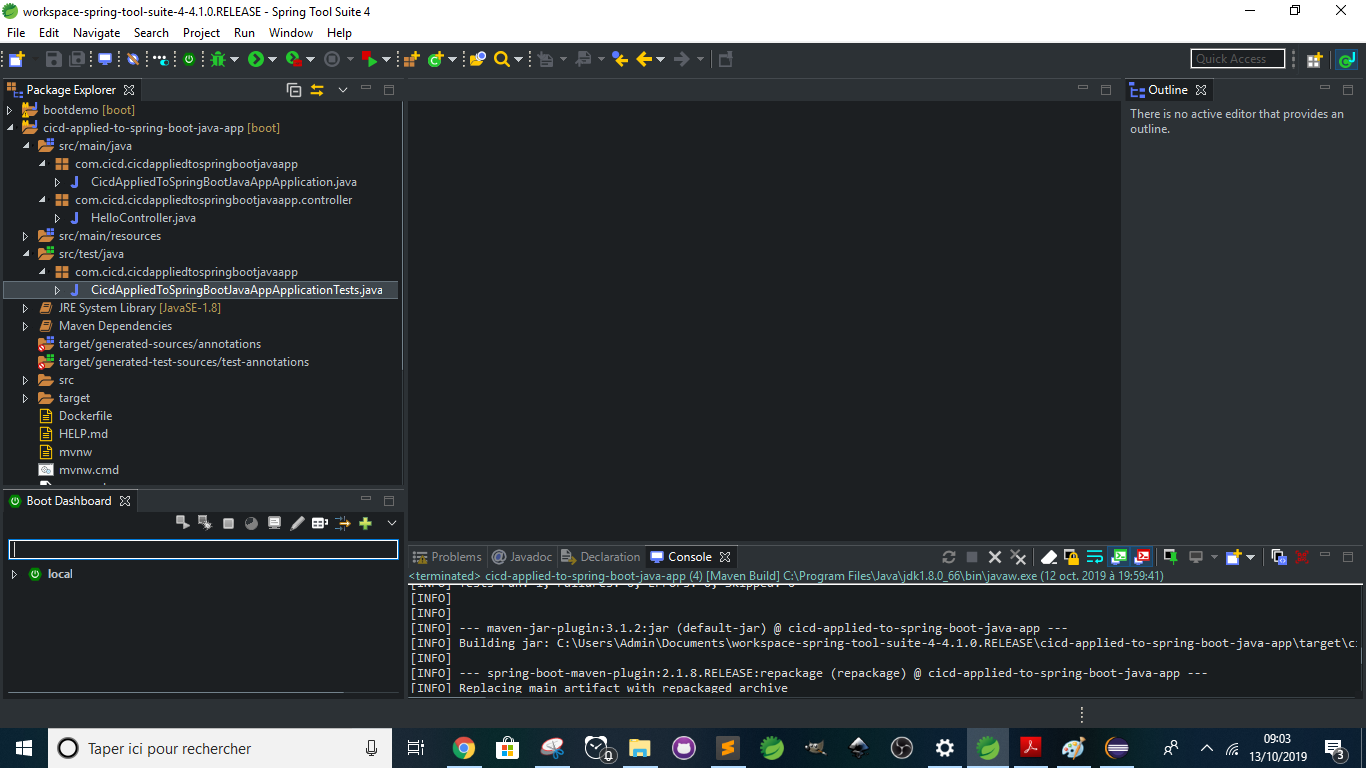

Right click -> Run As -> Maven build

STS 4 - Maven build

Then you will receive:

STS 4 - Edit configuration

To run the app, please add the following:

Goals -> spring-boot:run

STS 4 - Goals

Click Run:

STS 4 - Run

The final result can be found here: http://localhost:8080/

STS 4 - Final result

Now, on to the next step!

Step 2: Create a GitHub Repository

First, you need to sign in or sign up. I'm already a GitHub user so I just signed in. You will be directed to the homepage:

GitHub - Home

To create a new repository, click on green button "New" or click here. You will then be directed here:

GitHub - New repository

Please fill out the form as follows:

Repository name: cicd-applied-to-spring-boot-java-app (I chose to set the same name as the artifact field from step one)

Description: Implementing Continuous Integration/Continuous Delivery on Spring Boot Java App

Click on Public

Click on Initialize this repository with a README

Select the MIT license.

Why? It's very simple. The following links are helpful to better understand why you need an MIT license. Here's how to choose an open-source license and how open-source licenses work and how to add them to your projects.

Later, we'll add the .gitignore file.

Then, click on Create repository:

GitHub - Repository form completed

This is the new repository:

GitHub - New repository

I suggest you add a file named RESEARCHES.md. Why? While working on a project, you may face difficulties and need to ask for help. The goal is to save time when solving problems or fixing bugs.

To create it, please click on Create new file:

GitHub - Create new file

Then, fill the name field with RESEARCHES.md and edit the file as follows. CI/CD is an example of research and the links represent results. "##" makes bold text.

GitHub - RESEARCHES.md

Furthermore, click on the green button "Commit new file" at the bottom of the page:

GitHub - Commit new file

This is what we get:

GitHub - RESEARCHES.md is created

Now, please install Git (Git installation can be found here) and GitHub Desktop (GitHub Desktop installation can be found here).

After installing these two tools, it's time to clone the project we started in step one.

Open GitHub Desktop and select the repository we created previously as follows:

Click on File -> Clone repository...:

GitHub - Desktop clone repository

You'll get this pop-up:

GitHub - Desktop pop-up

Just fill the search bar with "cicd;" you will find the repository: "cicd-applied-to-spring-boot-java-app" among the results:

GitHub - Desktop search bar

Select the repository and click on Clone:

GitHub - repository selected

GitHub Desktop is cloning the repository:

GitHub - Cloning repository

The repository is already cloned:

GitHub - Repository already cloned

At this stage, open the repository folder. This is my path:

My repository folder contains three files: LICENSE, README.md, and RESEARCHES.md shown below:

GitHub - Repository folder

It's time to open the folder where the code is saved:

GitHub - STS 4 project folder

Copy the content from the code folder and paste it into the repository folder. The repository folder looks as follows:

Github - Repository folder changed 1

It's important to ignore files and folders. We will not directly modify these files when working on a project. In order to do that, we'll make some changes to the .gitignore file from the repository folder. I used Sublime Text to edit that file.

Here's what it should look like before any changes:

GitHub - .gitignore before

Here's what it will look like after making changes.

First, add: .gitignore. It should look like:

GitHub - .gitignore after

Now, this is what folder repository looks on GitHub Desktop:

GitHub - 5 changed files

Fill the summary field with "First Upload" and click "Commit to master":

GitHub - First Upload

So what's next? Click on Push origin:

GitHub - Before push origin

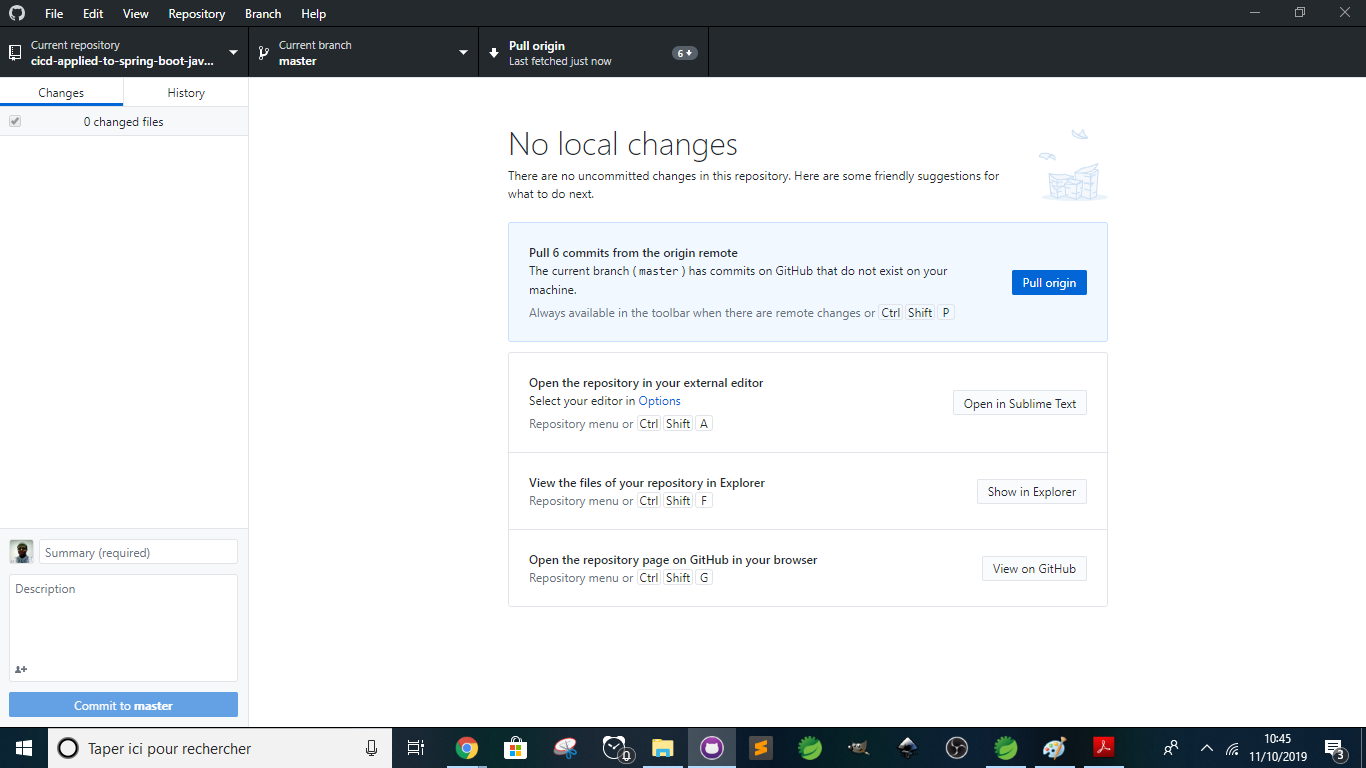

GitHub - After Push origin

The repository is now up-to-date on GitHub:

GitHub - up-to-date


Step 3: Use Travis CI and Docker to Implement CI/CD

Note: If you're not familiar with either of these tools, check out this Travis CI Tutorial and Docker Getting Started tutorial to help you get started.

Sign up or sign in with GitHub and make sure Travis CI has access to your repository. Then, create a file named .travis.yml, which contains instructions that Travis CI will follow:

At first, this is what I get:

Travis - Create .travis.yml 1

Then, click on .travis.yml file:

Travis - Create .travis.yml 2

This is the repository on Travis CI:

Travis - First build passing

Now, we'll add a Travis CI badge so that we are notified about changes, etc.

To edit the README.md file, please click on the pencil icon:

Travis - Click on pencil icon

We'll get this page:

Travis - Opening README.md

Add this text but replace "FanJups" with your Travis CI username:

Travis - Adding Travis build status

Then, add a commit description "Adding Travis CI badge" and click on the Commit changes button:

Travis - Adding Badge Commit description

Then, we get:

Travis - Badge already added

It's important to know that, for every change you make, Travis CI will trigger a build and send an email. It's a continuous process:

Travis - Build related to adding badge

We successfully added Travis CI and its badge. Next, we'll focus on Docker.

First, sign in or sign up on Docker Hub:

Docker - Docker Hub Home Page

Click on the Create Repository button:

Docker - Create Repository Page

Fill out the form as follows:

Name: cicd-applied-to-spring-boot-java-app (GitHub repository name)

Description: Implementing Continuous Integration/Continuous Delivery on Spring Boot Java App (GitHub repository description)

Visibility: choose Public

Build Settings: select GitHub

After clicking on the Create button:

Docker - Repository already created

It's time to link our Docker repository to our GitHub repository. Click on Builds:

Docker - Builds

Then, click on Link to GitHub:

Docker - Link source providers

Select your GitHub repository:

Docker - Selecting GitHub Repository

Now that the GitHub repository is selected, we need to make some changes:

Autotest: select Internal and External Pull Requests

Repository links: select Enable for Base Image

Docker - Configuring builds 1


Docker - Configuring builds 2


Click on Save:

Docker - Github is now linked to Docker

We succeed to link our GitHub repository to the Docker repository. If you need help with Docker builds, this link is helpful.

What's next? First, we'll install Docker. Then we'll make some changes to the code and Travis CI.

To install Docker, go to Docker's Get Started page, select Docker for Developers and click on Download Desktop and Take a Tutorial:

Docker - Download Desktop

To make sure you've installed Docker and verify it's running properly, open your command line and write "docker." Then validate:

Docker - Command Line

Now, go back to your IDE or text editor; we'll make some changes to the code.

Create a file named "Dockerfile." To sum up what we've done so far, the Dockerile is useful when creating Docker images. To better understand the purpose of this file, this Dockerfile reference will help you.

To keep things simple, I use this Callicoder Dockerfile example and make little changes. This is what the Dockerfile looks like:

Here's the Dockerfile creating a process using STS 4:

Select the project, then click on New -> File

Fill the file name field with "Dockerfile" and click the Finish button:

Docker - Dockerfile 2

Copy and paste the content of Dockerfile presented previously:

Docker - Dockerfile is ready

Before making some changes to the pom.xml, let's look at the actual content:

We add Spotify's dockerfile-maven-plugin to push the project on Docker Hub:

Furthermore, we add maven-dependency-plugin as explained in this Getting Started With Spring Boot and Docker, which states:

"... to ensure the jar is unpacked before the Docker image is created, we add some configuration for the dependency plugin."

To continue, we will link Travis CI to Docker from our GitHub repository.

Do you remember your Docker username and password? Well, you will have to do so in order to proceed. We will create two environment variables in Travis CI.

To get there, just copy and paste this (https://travis-ci.com/GITHUBUSERNAME/cicd-applied-to-spring-boot-java-app) in your browser. But replace GITHUBUSERNAME with your correct username or click on your Travis CI badge present in README.md:

Travis CI-Docker - Travis CI Badge


Travis CI-Docker - Travis CI repository

Click on More options -> Settings :

Travis CI-Docker - Travis CI Settings


Travis CI-Docker - Travis CI Environment variables


Fill in the form as follows:

Name: DOCKER_PASSWORD

Value: yourdockerpassword

Click Add button

Name: DOCKER_USERNAME

Value: yourdockerusername

Click Add button

Travis CI-Docker - Docker environment variables added

To deploy on Docker, we'll use "mvn deploy" as explained by Spotify. The Apache Maven Project explains the role of the Apache Maven Deploy Plugin as a plugin used to "add artifacts to a remote repository."

But we don't want to add artifacts to a remote repository, we just want to deploy it on Docker. So, when we call the deploy phase, we must include a valid <distributionManagement/> section POM. However, that's not the purpose here. Thus, we'll add this property in pom.xml

<maven.deploy.skip>true</maven.deploy.skip>


If we don't add this property, this error will occur:

"[ERROR] Failed to execute goal org.apache.maven.plugins:maven-deploy-plugin:2.8.2:deploy (default-deploy) on project cicd-applied-to-spring-boot-java-app: Deployment failed: repository element was not specified in the POM inside distributionManagement element or in -DaltDeploymentRepository=id::layout::url parameter -> [Help 1]"

At this stage, it's time to use those two Docker environment variables. Just copy and paste this new .travis.yml and push it on GitHub:

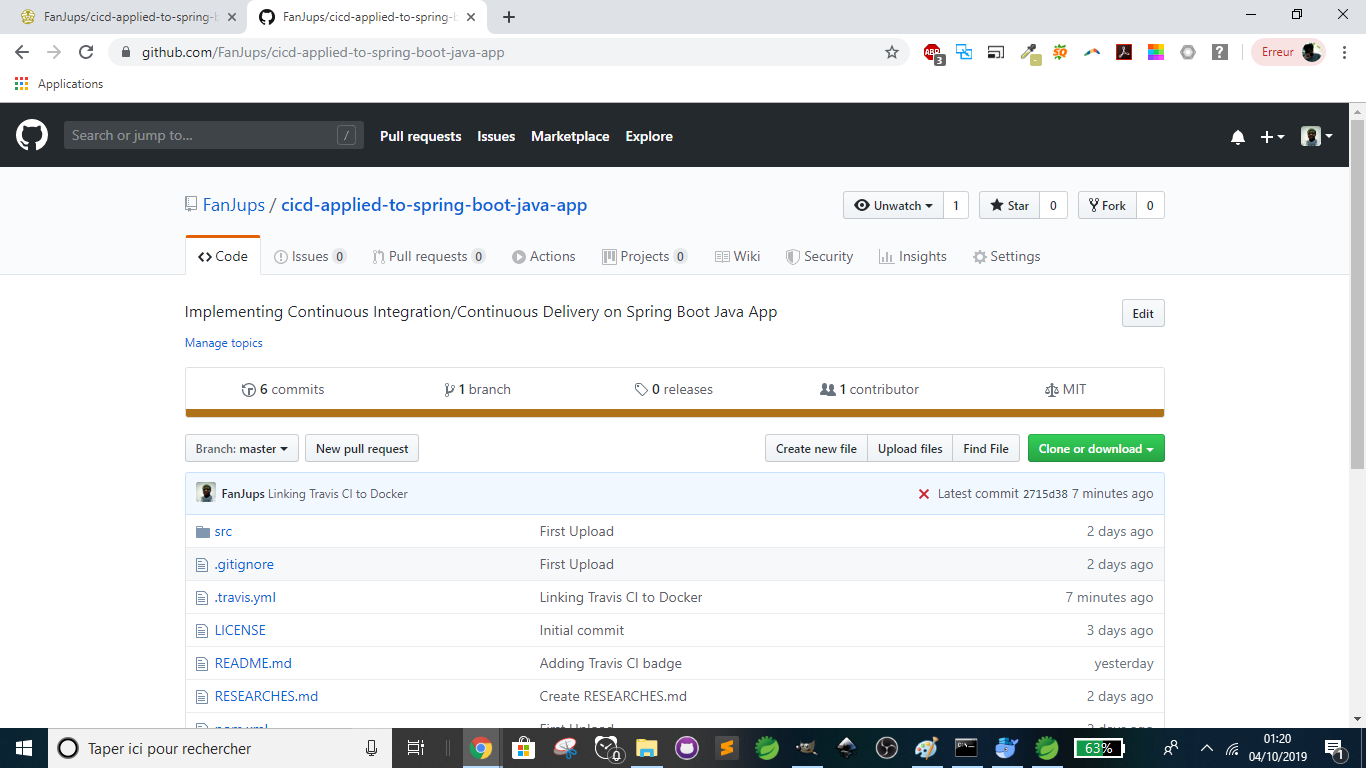

Travis CI-Docker - Updating .travis.yml

Commit description: "Linking Travis CI to Docker"

We received a beautiful red cross and Travis CI badge, meaning a beautiful error! But ignore that for now, we'll correct it later!

Travis CI-Docker - red cross


Travis CI-Docker - Red Travis CI badge faiilure


Ladies and gentlemen, I'm happy to present to you: our beautiful error! Just go to the Travis CI repository and check out the beautiful build log:

The command "mvn deploy" exited with 1.

Travis CI-Docker - mvn deploy failed

We've already added the Travis CI badge. Now, it's time to do the same for Docker. Go to https://shields.io/.

On the search bar, write "docker." Then, we'll get the following results:

Travis CI-Docker - Shields.io 1

Click on Docker Cloud Build Status:

Travis CI-Docker - Shields.io 2

What if I told you we'll get an error here also?

Nevermind, just fill the following form:

Travis CI-Docker - Docker Build inaccessible

Click on the Copy Badge URL.

Now, go back to the GitHub repository and edit README.md. We'll add the following Docker badge:

Travis CI-Docker - Adding Docker badge


Commit description: "Adding Docker badge"

Travis CI-Docker - Adding Docker badge commit description

Ladies and gentlemen, we are all winners here. So let's get it right!

Previously, we made changes on the pom.xml and created a Dockerfile.

All of those errors occurred due to the fact that Maven didn't know how to handle the deployment on Docker and the Dockerfile was absent so it was impossible to push images.

The time has come to push those changes (Dockefile and pom.xml) on GitHub using GitHub Desktop:

Travis CI-Docker - Let&apos;s get it right

Ladies and gentlemen, who are we now? Winners!

Now, we have two ugly green badges meaning success! Just kidding! That's beautiful.

Travis CI - Docker - Success

To be sure, check your emails. You should have received two emails: one from Travis CI and the other from Docker.

Before moving on to step three, we'll run the app without using Docker only. Just remember to replace "fanjups" with your own Docker Hub username:

Travis CI - Docker - Running Docker Image


I got the following error: "Invalid or corrupt jarfile /app.jar." It's all about encoding, so I'll add those two properties to the pom.xml.

Now, it's time to commit on GitHub. If you're confused about writing useful commit messages, this article is for you.

Before running the app again, it's important to list all containers using docker ps.

Then check the "CONTAINER ID," stop (docker stop "CONTAINER ID"), and remove it (docker rm "CONTAINER ID") because it's persisted, as explained by this post on Spring Boot with Docker.

Then, we'll run again the app to ensure that everything works well:

Travis CI - Docker - Running Docker Image Successfully 1


Travis CI - Docker - Running Docker Image Successfully 2


I was so happy when I solved this problem!

The core steps are now over. We've successfully implemented the CI/CD. Now, let's add some useful tools!

Step 4: Add Codecov for Code Coverage

First, make sure you've updated the project on your computer:

Codecov - Pull Origin 2

Click on Pull Origin:

Codecov - Pull Origin 3


Copy the modified files which we'll use in IDE from our GitHub folder and then paste them into our workspace. In this case, we'll only copy and paste the  pom.xml.

Don't forget to refresh the project on STS 4 and do whatever it takes to include changes.

To better use this tool, we make some changes by adding a unit test.

First, create a new package — com.cicd.cicdappliedtospringbootjavaapp.controller.

Secondly, create a new class HelloController.java and change CicdAppliedToSpringBootJavaAppApplication.java as follows:

The folder looks like:

Codecov - folder


Before running the app on your computer, you can skip the entire dockerfile plugin because the deployment will take place on the GitHub repository managed by Travis CI.

To do this, just add this option (-Ddockerfile.skip), as explained by Spotify dockerfile-maven-plugin's usage, to your Maven command. Finally, we get mvn spring-boot:run -Ddockerfile.skip.

Now, log in or sign up to Codecov with GitHub.

Click on Account -> Repositories -> Add new repository

Just choose your GitHub repository or follow this link https://codecov.io/gh/GITHUB_USERNAME/GITHUB_REPOSITORY. But remember to replace GITHUB_REPOSITORY with cicd-applied-to-spring-boot-java-app and the GITHUB_USERNAME with yours:

Codecov -  cicd-applied-to-spring-boot-java-app


Last time, we added two environment variables to Docker. Now, we added the Codecov environment variable: CODECOV_TOKEN, as well. Copy your token and add it to your Travis CI repository.

We made some changes to the pom.xml by adding the jacoco-maven-plugin.

Go back to GitHub repository and we'll edit .travis.yml.

What Time Is it? Codecov Badge Time!

Go to your Codecov repository and Click on Settings -> Badge -> Copy (from Markdown).

Then, go to your GitHub repository and paste it into README.md.

Finally, push your changes from your computer to GitHub.

Code Coverage: 60%

Codecov - Badge 60%

Perhaps, you want to deactivate the coverage and activate it later. If so, go ahead and create a file named codecov.yml. Now, it's useful  to know coverage so I'll comment each line with "#."

If you wish to learn more, click here to read the docs.

Now, on to step 5!

Step 5: Use SonarCloud to Write Great Code

To start, log in or sign up with GitHub.

Click on + (Analyze new project or create new organization)  ->   Analyze new project -> Import another organization -> Choose an organization on GitHub

SonarCloud - Home

Next, make sure SonarCloud has access to your GitHub repository.

Now that we're back to SonarCloud, choose a Key. I suggest using "cicd-applied-to-spring-boot-java-app" as the Key.

Then, click on Continue -> Choose Free plan -> Create Organization -> Analyze new project -> Select your GitHub repository -> Set Up -> With Travis CI -> Provide and encrypt your token -> Copy

Go back to Travis CI and create a SonarCloud environment variable named SONAR_TOKEN. As a value, paste the token you've just copied.

Now, back to SonarCloud and click on Continue -> Edit your .travis.yml file -> Choose Maven as build technology -> Configure your platform ->  Configure the scanner -> Copy.

I chose to write SonarCloud script under after_success instead of script because I focus on deployment here. You are free to place it where you want.

Also, create a file named sonar-project.properties and edit as follows: sonar.projectKey=GITHUBUSERNAME_cicd-applied-to-spring-boot-java-app

Go back to SonarCloud and click on Finish.

To end, we add a SonarCloud badge into README.md.

To get the badge for another project, use  groupId:artifactId.
Here's the SonarCloud badge already added:

SonarCloud - Badge

Now, on to step 6!

Step 6: Build a Project Site Using the GitHub site-maven-plugin

To get started, open pom.xml on your computer. We add:

1) OAuth token and GitHub servers  as  properties

2) org.apache.maven.plugins:maven-site-plugin

3) com.github.github:site-maven-plugin

4) org.apache.maven.plugins:maven-project-info-reports-plugin

5) developers section

6) organization section

7) issueManagement section

8) Software Configuration Management (SCM) section

"The important configuration is to allow the OAuth token to be read from an environment variable (excerpt from pom.xml)" as explained by Michael Lanyon's blog. "To create the token, follow these instructions".

Copy the token, then create a new environment variable named GITHUB_OAUTH_TOKEN.

Push pom.xml to GitHub and edit .travis.yml by adding "- mvn site" under after_success.

After pushing all changes, gh-pages branch and project site are created. Each time you push, the site will be updated if necessary.

GitHub Site - gh-pages branch

To see the site, click on environment -> View deployment (under Deployed to github-pages).

Here's a link to my GitHub repo.

GitHub Site - Home


Ok, great. Now, let's move on to step 7!

Step 7: Deploy the App on Heroku Using heroku-maven-plugin

Here we go! Log in or sign up for Heroku.

Heroku - Home

Click on New -> Create new app. To continue, enter an app name (cicd-spring-boot-java-app). cicd-applied-to-spring-boot-java-app is too long as an app name. Choose a region and click Create app.

Next, click Connect to GitHub.

Search the GitHub repository. Once you find it, click Connect.

Check Wait for CI to pass before deploy.

Click Enable Automatic Deploys.

Go to Account settings.

Heroku - Account settings

Copy your API KEY and create a new Travis CI environment variable named HEROKU_API_KEY. This the last environment variable linked to this project.

Heroku - HEROKU_API_KEY

It's time to edit pom.xml and push to GitHub. We add:

1) full-artifact-name as a property

2) com.heroku.sdk:heroku-maven-plugin

Now, we focus on .travis.yml.

  1. To deploy on Docker Hub, we used mvn deploy.

  2. To deploy on Heroku, we'll use mvn heroku:deploy.

  3. In order to deploy on Docker and Heroku, we'll repeat the deploy phase twice, and risk exceeding timeout.

  4. To avoid that, we'll only use mvn heroku:deploy.

We succeeded in deploying on Heroku! Hooray! Now, go to https://cicd-spring-boot-java-app.herokuapp.com/

Heroku  - Succeesful Deployment

Now, it's time for the final step.

Step 8) Manage Topics

What does it mean to be in the last stage!? Topics are helpful when getting a quick overview of the project.

 Go back to GitHub repository and click on Manage topics and add whatever you want.

By the way, we added a MIT license badge into the README.md and license section of the pom.xml!

Final GitHub Repository 1


Final GitHub Repository 2

Conclusion

Congratulations! You're all done. To sum things up, you learned how to implement CI/CD on a Spring Boot Java app using Maven, GitHub, Travis CI, Docker, Codecov, SonarCloud, and Heroku. This is a template you are free to use.

If you're confused, please ask in the comments. I also suggest reading the docs available, as many times as necessary.

The code is available here. So just fork, it's all yours!

Further Reading

Achieve CI/CD With Jenkins X, Kubernetes, and Spring Boot

Setting Up a CI/CD Pipeline With Spring MVC, Jenkins, and Kubernetes on AWS

Deploying Spring Boot Applications to Heroku

Topics:
travis ,ci/cd ,ci ,cd ,spring boot ,java ,tutorial ,app ,travis ci ,docker

Opinions expressed by DZone contributors are their own.

{{ parent.title || parent.header.title}}

{{ parent.tldr }}

{{ parent.urlSource.name }}
