Mastering the Gemini 3 API: Architecting Next-Gen Multimodal AI Applications

The landscape of large language models (LLMs) has shifted from text-centric interfaces to truly multimodal reasoning engines. With the release of the Gemini 3 API, Google has introduced a paradigm shift in how developers interact with artificial intelligence. Gemini 3 isn’t just an incremental update; it represents a fundamental advancement in native multimodality, expanded context windows, and efficient agentic workflows.

In this technical deep dive, we will explore the architecture of Gemini 3, compare its capabilities with previous generations, and walk through the implementation of a production-ready AI feature: a Multimodal Intelligent Research Assistant.

1. The Architectural Evolution: Why Gemini 3 Matters

Traditional AI models often treat different modalities (images, audio, video) as separate inputs that are later fused together. Gemini 3 utilizes an Omni-Modal Transformer Architecture. This means the model was trained across various modalities simultaneously from the ground up, allowing it to reason across text, code, images, and video with a singular, unified understanding.

System Architecture Overview

When integrating Gemini 3 into a modern software stack, the architecture typically follows a decoupled pattern, where the LLM acts as the reasoning engine rather than a simple data processor.

In this architecture, the Context Manager is responsible for handling Gemini 3’s massive context window (supporting up to 2 million tokens), while the Tool/Function Registry allows the model to interact with the real world through Function Calling.

2. Comparing Gemini 3 with Previous Generations

To understand where to use Gemini 3, we must look at how it improves upon the 1.5 Pro and 1.5 Flash models. Gemini 3 introduces specialized “Reasoning Tokens” and optimized context caching to reduce latency in large-scale applications.

3. Setting Up the Development Environment

To get started, you will need a Google Cloud project or an AI Studio account. For this guide, we will use the google-generativeai Python SDK, which provides the most direct interface for Gemini 3.

Prerequisites

• Python 3.10+
• An API key from Google AI Studio
• The SDK installed via pip:

pip install -q -U google-generativeai

Initializing the Model

import google.generativeai as genai
import os

# Configure the API Key
genai.configure(api_key="YOUR_GEMINI_3_API_KEY")

# List available models to ensure Gemini 3 access
for m in genai.list_models():
    if 'generateContent' in m.supported_generation_methods:
        print(m.name)

# Initialize the Gemini 3 Pro model
model = genai.GenerativeModel(
    model_name="gemini-3.0-pro",
    generation_config={
        "temperature": 0.7,
        "top_p": 0.95,
        "max_output_tokens": 8192,
    }
)

4. Building the Feature: The Multimodal Research Assistant

We will build a feature that allows a user to upload a technical video (such as a recorded Zoom meeting or a coding tutorial) and a PDF documentation file. Gemini 3 will analyze both and provide a synthesized summary.

Data Flow for Multimodal Input

Implementation: Multimodal Synthesis

import time

def analyze_multimodal_content(video_path, pdf_path):
    # 1. Upload files to the Gemini File API
    print(f"Uploading video: {video_path}...")
    video_file = genai.upload_file(path=video_path)

    print(f"Uploading document: {pdf_path}...")
    pdf_file = genai.upload_file(path=pdf_path)

    # 2. Wait for video processing
    while video_file.state.name == "PROCESSING":
        print(".", end="")
        time.sleep(5)
        video_file = genai.get_file(video_file.name)

    # 3. Formulate the prompt
    prompt = """
    Analyze the provided video tutorial and the accompanying PDF documentation.
    1. Identify any discrepancies between the video demonstration and the written docs.
    2. Extract the key code snippets mentioned in the video.
    3. Summarize the troubleshooting steps mentioned at the end of the video.
    """

    # 4. Generate Content
    response = model.generate_content([
        prompt,
        video_file,
        pdf_file
    ])

    return response.text

# Usage
# result = analyze_multimodal_content("tutorial.mp4", "specs.pdf")
# print(result)

Technical Deep Dive: Temporal Video Understanding

Unlike previous models that sampled frames at a low rate, Gemini 3 uses High-Fidelity Temporal Encoding. It treats video as a continuous stream of tokens. This allows it to understand not just what is in the frame, but the intent behind an action performed in the video (e.g., distinguishing between a user successfully clicking a button versus a user struggling to find it).

5. Advanced Capabilities: Function Calling and Tool Use

Gemini 3 excels at Function Calling, enabling it to act as an agent that can interact with external databases or APIs. This is crucial for building features such as live data retrieval.

Defining a Tool

Suppose we want our AI to check real-time inventory while helping a user.

def get_inventory_stock(sku: str):
    """Queries the production database for current stock levels."""
    # Imagine a DB call here
    inventory_db = {"GT-001": 42, "GT-002": 0}
    return inventory_db.get(sku, "Not Found")

# Initialize model with tools
agent_model = genai.GenerativeModel(
    model_name="gemini-3.0-pro",
    tools=[get_inventory_stock]
)

# Start a chat session
chat = agent_model.start_chat(enable_automatic_function_calling=True)
response = chat.send_message("Do we have any GT-001 in stock?")
print(response.text)

In this workflow, the model doesn’t just hallucinate a number. It recognizes the need for specific data, generates a JSON-structured call for get_inventory_stock, executes it (via the SDK’s automatic handling), and incorporates the result into its final answer.

6. Context Caching: Optimizing for Cost and Speed

One of the most significant features for enterprise applications in Gemini 3 is context caching. If you have a massive dataset (e.g., a 1-million-token technical manual) that you query repeatedly, you can cache that context in Gemini’s memory.

Implementation of Context Caching

from google.generativeai import caching
import datetime

# Create a cache for a large document
# Note: This requires the file to be uploaded first
cache = caching.CachedContent.create(
    model='models/gemini-3.0-pro-001',
    display_name='documentation_cache',
    system_instruction="You are a senior systems engineer expert in the provided documentation.",
    contents=[pdf_file],
    ttl=datetime.timedelta(hours=2)
)

# Use the cache in a new model instance
model_with_cache = genai.GenerativeModel(
    model_name=cache.model,
    cached_content=cache.name
)

This is a game changer for building long-context RAG (Retrieval-Augmented Generation) systems, where the entire knowledge base can live inside the model’s active window rather than being chopped into small chunks in a vector database.

7. Best Practices for Gemini 3 Development

• System instructions: Always define the persona. Gemini 3 is highly sensitive to the system_instruction parameter. Be explicit about the output format (e.g., “Return only JSON”).
• Safety settings: Gemini 3 includes robust safety filters. If your application handles sensitive but non-harmful data (e.g., medical texts), you may need to adjust the HarmCategory thresholds to prevent over-eager blocking.
• Token budgeting: Even with a 2M-token window, tokens aren’t free. Use the count_tokens method to monitor usage before sending large requests.

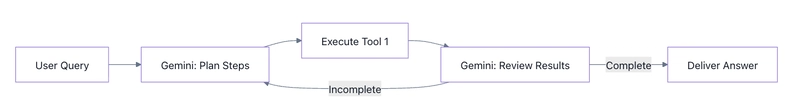

• Prompt chaining vs. agentic loops: For complex tasks, don’t rely on a single massive prompt. Use Gemini 3’s reasoning capabilities to break tasks into sub-steps (Observe → Plan → Execute).

Conclusion

Gemini 3 marks the beginning of the “Agentic Era” of AI development. By moving beyond text and embracing native multimodality, developers can now build features that were previously impossible: real-time video analysis, deep-reasoning research assistants, and autonomous tools that interact with complex software ecosystems.

As you begin building with Gemini 3, focus on leveraging the expanded context window and context caching to provide a richer, more grounded experience for your users. The future of software isn’t just about code—it’s about how well your code can reason with the world.
